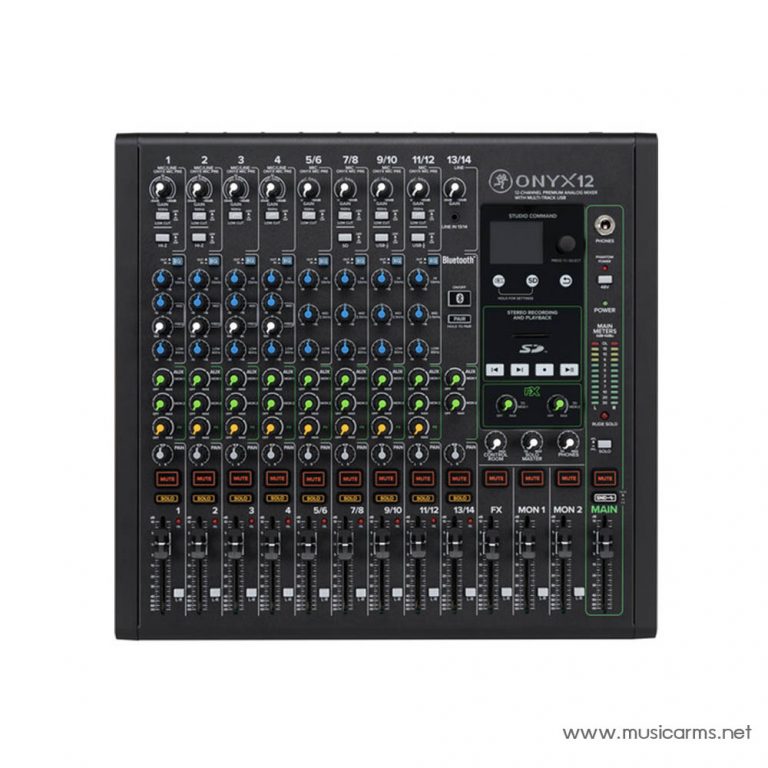

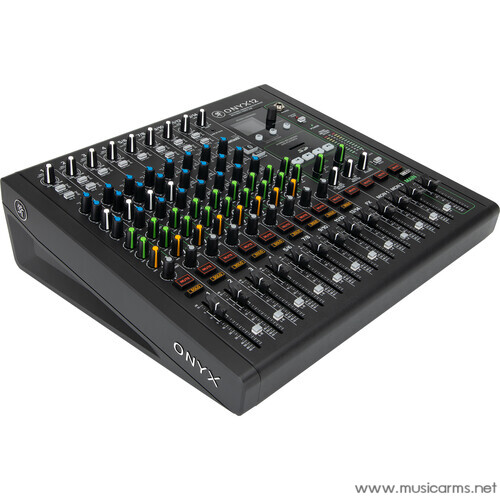

Mackie Onyx12
ราคา : 20,900 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
วีดีโอ
Description
Professional-grade Mixer for the Studio and Stage
When it comes to world-class quality and versatility, the Mackie Onyx12 12-channel Analog Mixer with Multi-track USB is the perfect go-to board for all your live sound and recording needs. Compact enough for both home use and the traveling engineer, the Onyx12 combines 24-bit/96kHz multitrack recording with high-gain preamps and a low-noise design to meet the uncompromising demands of professionals everywhere. With its British-style sound, Mackie’s timeless Perkins EQ is a favorite among many Sweetwater engineers, and the studio-grade effects sound stellar when used with any mix. Top it off with a full-color display and easy navigation, and you get a formidable analog mixer capable of capturing audio with impeccable quality.
Award-winning preamps and legendary EQ
Don’t let the Onyx12’s compact design fool you — this analog mixer delivers solid studio-quality sound guaranteed to take your mixes to the next level. Eight award-winning mic preamps offer an impressive 60dB of gain, and the top-notch analog circuitry works exceptionally well when aiming for a professional product. Taking inspiration from veteran Mackie engineer Cal Perkins, the Onyx12’s Perkins EQ offers a wider, highly musical Q filter, with a sweepable midrange producing classic sounds reminiscent of the 1960s and ’70s. Plus, this powerful mixer’s digital effects engine offers a wide variety of enhancements, with user-customizable reverbs, delays, and more at your disposal.
User-friendly high-resolution recording
The Onyx12’s USB connectivity makes recording professional-quality mixes easier than ever. Simply plug into your Mac or PC, and you’re ready to tap into high-resolution 24-bit/96kHz multitrack recording. The Onyx12’s full-color display and single-knob interface let you navigate FX parameters, onboard SD recording, and playback, with physical buttons for Previous, Next, Record, and Play/Pause functions.
Geared for the studio, venue, and more
With its compact design and wide versatility, the Onyx12 analog mixer is ready to tackle practically any situation imaginable. Its stellar effects processor can handle everything from massive performances to studio recordings, live streams, and more, with adjustable parameters and a dedicated EQ making it easy to dial in that perfect sound. Bluetooth streaming capabilities allow you to connect your Bluetooth-enabled devices to any of the Onyx12’s channels, with the streamed audio routed to either the Aux Sends or Main Mix.
Mackie Onyx12 12-channel Analog Mixer with Multi-track USB Features:
- 8 award-winning Onyx mic preamps
- Analog circuitry delivers premium-quality sound with minimum noise
- Analog/USB channel strips with flexible routing
- Studio-grade effects with user customization options
- 3-band Perkins EQ with On/Off hard bypass switches
- Switchable hi-Z inputs for guitars, bass, and other instruments
- 100Hz low-cut filter and 48V phantom power on all mic channels
- High-resolution 24-bit/96kHz multi-track recording to Mac/PC via USB
- Full-color display and single-knob interface
- Dedicated buttons for Previous, Next, Record, and Play/Pause
- Bluetooth streaming capabilities
Specification
Mixer:
- Number of Analog Input Channels: 14 (8 Mono / 5 Stereo)
- Number of Mic Preamps: 8
- Analog Output Channels: 2 x Stereo Master Output, 2 x Stereo Control Room/Monitor Output, 2 x Mono Aux Send Output, 1 x Mono FX Send Output, 1 x Stereo Headphone Output
- Mix Routing:1 x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
- Faders: 9 x 2.4″ / 60 mm Channel Fader, 1 x 2.4″ / 60 mm FX Fader, 2 x 2.4″ / 60 mm Bus/Subgroup Fader, 1 x 2.4″ / 60 mm Master Fader
- Main Meter: x 12-Segment LEDMeter Range, -30 dB to +20 dB Peak/Clip
Signal Processing
- Input Pad: None
- Input Polarity: None
- Dynamic Processing: None
- Sidechain Filters: None
- EQ: 3-Band Semi-Parametric (Mono Channels), 3-Band Shelving/Notch/Peak
- EQ Parameters: Mono Channels:High: ±15 dB at 12 kHz, Mid: ±15 dB at 100 Hz to 8 kHz, Low: ±15 dB at 80 Hz
- Stereo Channels: High: ±15 dB at 12 kHz, Mid: ±15 dB at 2.5 kHz, Low: ±15 dB at 80 Hz
- Filters Input Channels: 1 x High-Pass: 100 Hz
- Solo/Mute: Solo per Input Channel, Mute per Input Channel, Bus, FX Bus, Master
Digital Audio:
- Sample Rates: 96 kHz
- Bit Depth: 24-Bit
- DSP: None
- Word Clock Input: None

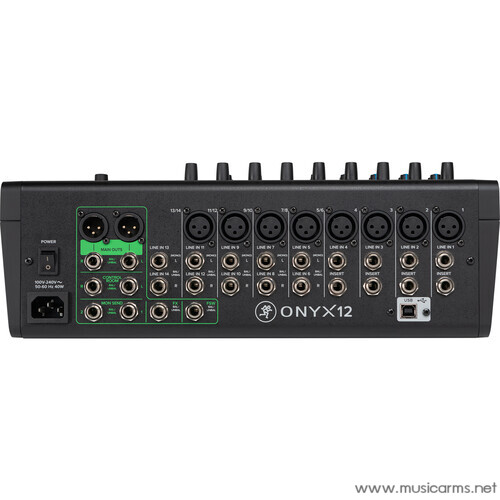

Connectivity:
- Analog Inputs: 8 x XLR 3-Pin Balanced Mic Input, 4 x 1/4″ TRS Balanced/Unbalanced Line Input, 4 x 1/4″ TRS Unbalanced Line Insert, 2 x 1/4″ TRS Balanced/Unbalanced Hi-Z Input, 10 x 1/4″ TRS, Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs), 1 x 1/4″ TRS Footswitch Input
- Analog Outputs: 2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair), 2 x 1/4″ TRS, Balanced/Unbalanced Stereo Main Output (1 Stereo Pair), 2 x 1/4″ TRS Balanced/Unbalanced Stereo, Monitor Output (1 Stereo Pair), 2 x 1/4″ TRS Balanced/Unbalanced Mono Aux/Monitor Output, 1 x 1/4″ TRS Balanced/Unbalanced FX Send
- Phantom Power: +48 V (Applied to All Inputs)
- USB: 1 x USB Type-B (Audio Playback, Host Connection, Recording)
- Wireless Connectivity: Bluetooth
Recording:
- Max Multitrack Recording: 14 Tracks
- Media Support: SD
Compatibility:
- OS Compatibility: None
Power:
- AC Power Connector: 1 x IEC Input
- Power Consumption: 40 W
Physical:
- Dimensions: 14 x 14.8 x 4.5″ / 355.6 x 375.9 x 114.3 mm
- Weight :12.7 lb / 5.8 kg
