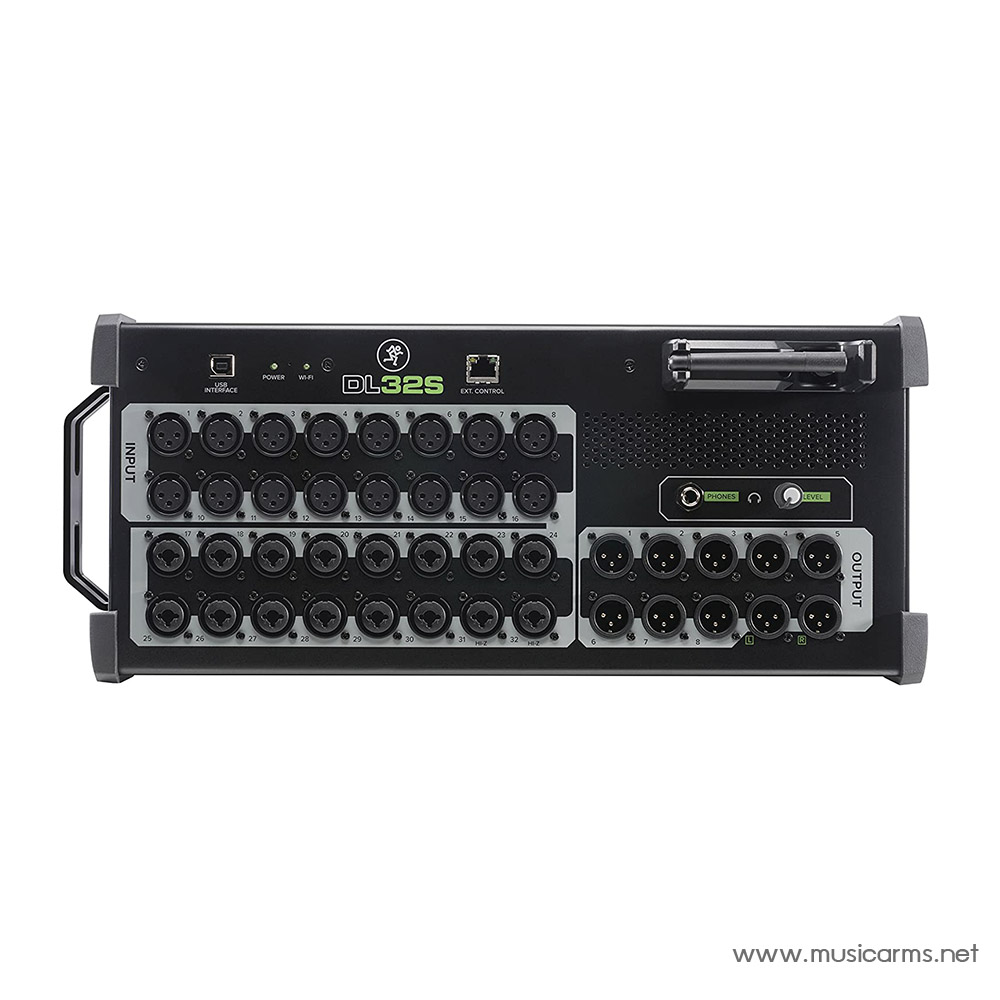

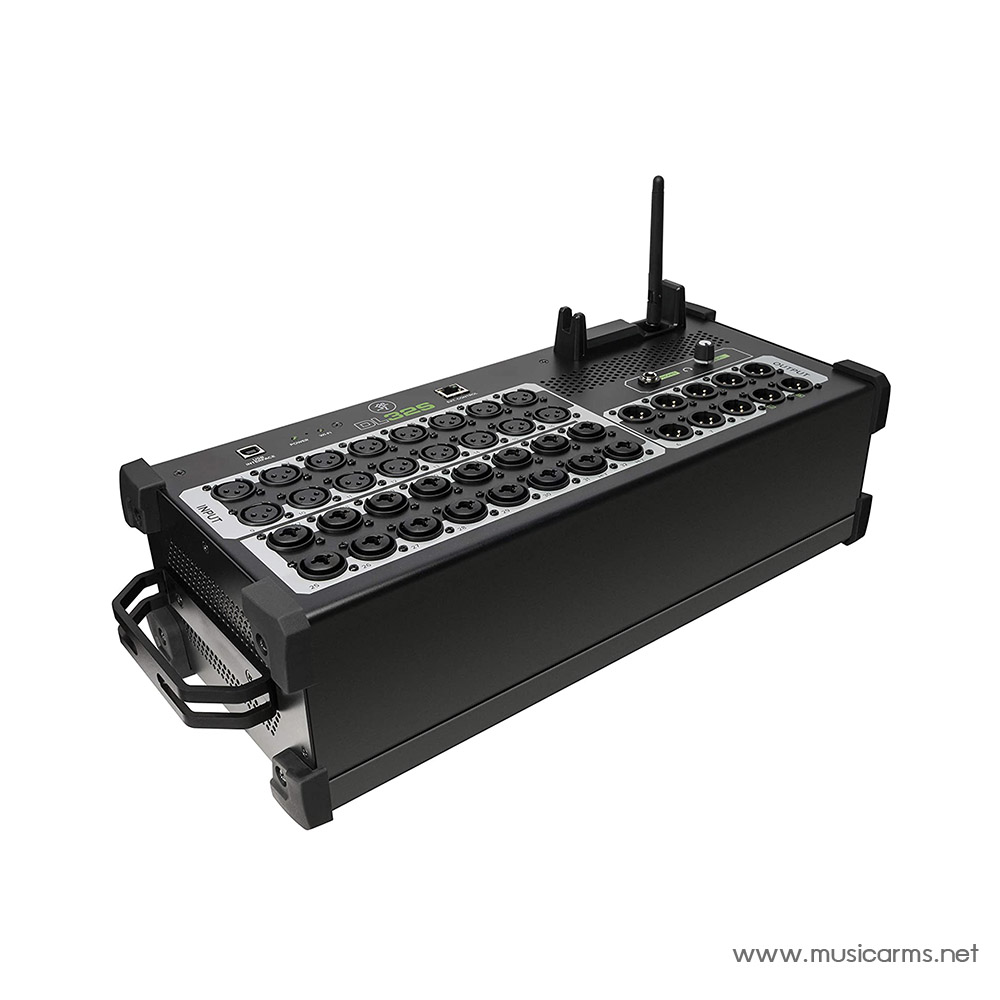

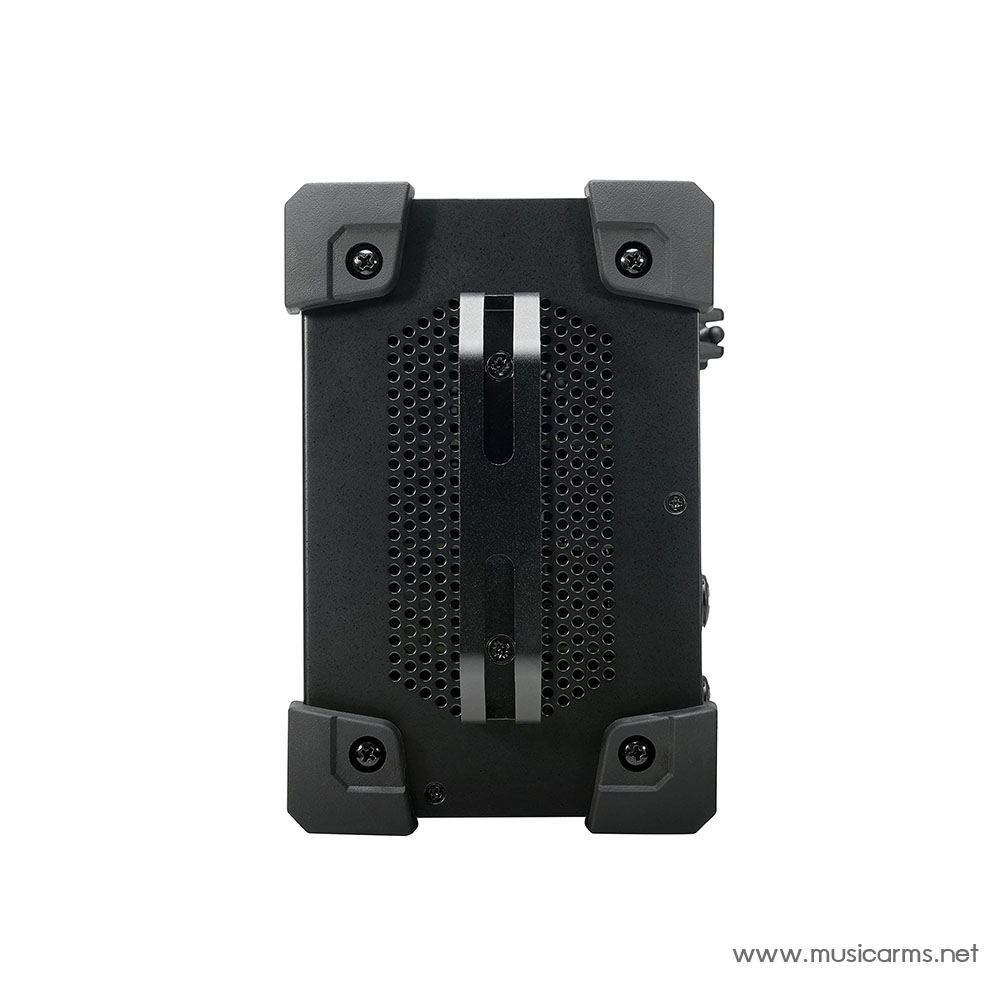

Mackie DL32S ดิจิตอลมิกเซอร์ 32 แชนแนล

32-channel Rack Mixer with Built-in Wi-Fi

Put a Mackie DL32S in your rack, and you can mix from anywhere. All you need is an iPad and Mackie’s Master Fader control app. 32 great-sounding Onyx+ mic preamps and onboard FX ensure a great-sounding performance. The DL32S also functions as a 32-in/32-out USB interface, so you can record the show then mix it later in the studio. You can also play back a full multitrack recording for a virtual sound check. The DL32S supports up to 20 iPads at once, so multiple engineers can work from one mixer. And with built-in Wi-Fi networking and instant recall of every setting, setup is a snap. The DL32S gets you into your mix like never before.

Control everything from anywhere with wireless mixing

Leave that bulky snake at home! Because you can control the Mackie DL32S with your iPad, you can place it anywhere. Even if the DL32S is onstage, you can walk around the venue to fine-tune your mix. It’s a great way to ensure optimal sound quality for every member of your audience. And because the DL32S supports up to 20 iPads at once, multiple engineers can work from one DL32S. You can even set up personal mixes for each performer that are tweakable via any iOS device. Back in the day, you would’ve needed miles of cable and a pile of submixers to pull off this much signal routing. But with the DL32S in your rack, all you need is an iPad and your fingers!

All your connections are covered

With the Mackie DL32S in your live rig, you’ll never run short of I/O. Providing you with 32 stereo-linkable input channels, 10 fully assignable XLR outputs, and 32 great-sounding Onyx+ mic preamps, the DL32S has your I/O needs covered. Of the 32 input channels, 16 are XLR jacks, 16 feature XLR/TRS combo jacks, and two include hi-Z inputs. On top of that, you also get 15 output buses, 8 stereo-linkable aux sends, 6 stereo-linkable subgroups, a Main L/R bus, and a headphone output. And best of all, the DL32S gives you total recall of your settings!

Integrated USB 2.0 audio interface

One of the Mackie DL32S’s most useful features is multitrack recording and playback. Use the DL32S as an audio interface to record straight to your DAW. Play intermission music, backing tracks, and more. Play back your full multitrack recording for a virtual sound check. You can also use your DAW’s audio plug-ins in a live environment. The DL32S is a value-packed, high-channel-count studio recording solution.

Create polished, professional-sounding mixes

Packed with DSP, the Mackie DL32S gives you 32 input channels with a 4-band parametric EQ, highpass filter, noise gate, and compression, as well as 15 output buses with a 4-band parametric EQ, highpass and lowpass filters, 31-band graphic EQ, compressor/limiter, and alignment delay. On top of that, you also get onboard delay, reverb, and modulation effects. With four stereo FX processors with dedicated sends and returns, full I/O routing with A/B sources per channel, and modern and vintage options for each processor, churning out polished, pro-quality mixes is no problem.

A large-format console in the palm of your hand

The Mackie DL32S supplies 32 channels of powerful digital mixing. You get wireless control over everything, including its processing and routing, via Mackie’s Master Fader control app. The DL32S is tailor-made for live sound engineers who demand flexible wireless mixing. So, whether you work in a theater, house of worship, or concert hall — if you’re serious about live sound, you owe it to yourself to check out the DL32S.

Mackie DL32S Features:

• Ample I/O including 32 stereo-linkable input channels, 10 fully assignable XLR outputs, 15 output buses, 8 stereo-linkable aux sends, 6 stereo-linkable subgroups, a Main L/R bus, and a headphone output
• 16 input channels are XLR jacks, 16 feature XLR/TRS combo jacks, and two include hi-Z inputs
• 32 recallable Onyx+ mic preamps deliver top-notch sound
• Wireless mixing allows you to take control of your mix via an iPad
• Tweak your mix, processing, and routing from anywhere in the venue
• Built-in Wi-Fi networking and instant recall ensure easy setup
• Supports up to 20 iPads at once to accommodate multiple engineers
• 4 onboard FX processors with dedicated sends and returns create polished, professional-sounding mixes
• 32-in/32-out USB interface for recording straight to your DAW
• Play intermission music, backing tracks, and more
• Play back your full multitrack recording for a virtual sound check
• Use your DAW’s audio plug-ins in a live environment

• Type:Digital Stage Box Mixer
• Channels:32
• Inputs – Mic Preamps:16 x XLR, 14 x XLR-1/4″ combo, 2 x XLR-1/4″ combo (mic/line/Hi-Z)
• Outputs – Main:2 x XLR (L/R, assignable), 8 x XLR (assignable)
• Aux Sends:8 x Stereo Sends
• Busses/Groups:6 x Stereo Sub Groups, 15 x Output Busses, 6 x Mute Groups
• Data I/O:1 x RJ45 (external control)
• USB:1 x Type B
• Computer Connectivity:USB (32 x 32), Wi-Fi
• Headphones:1 x 1/4″
• EQ Bands:4-band Parametric EQ, Highpass Filter
• Effects:4 x Stereo FX Processors, Reverb, Delay, Chorus, Flange
• Signal Processing:Gate, Compressor
• Software:Master Fader 5 Control App (iOS 11 or later, Android 6.0 or later, macOS 10.2, Windows 10)
• Height:7.3″
• Depth:5.8″
• Width:17.6″
• Weight:8.8 lbs.

• มิกเซอร์ดิจิตอลไร้สาย 32 ช่อง
• พร้อม Wi-Fi ในตัวสำหรับการควบคุมหลายแพลตฟอร์ม
• 32 Onyx+ ไมโครโฟนปรีแอมป์ที่สามารถเรียกได้
• 32 ช่องอินพุตสเตอริโอที่เชื่อมโยงได้พร้อม PEQ + HPF 4 แบนด์, gate, compression และ RTA /spectrograph
• บัสเอาท์พุต 15 ตัวพร้อม PEQ 4 แบนด์ + HPF / LPF
• 31 แบนด์ GEQ
• Comp / Limiter
• Delay ในการจัดตำแหน่งและ RTA / Spectrograph
• การเชื่อมต่อเครือข่าย Wi-Fi ในตัว
• DSP เต็มรูปแบบ
• การบันทึกแบบมัลติแทร็กผ่าน USB I/O 32×32
• รองรับอุปกรณ์แยกกันสูงสุด 20 เครื่องพร้อมกัน (พร้อมความสามารถในการกำหนดสิทธิ์)
• ตัวเลือกสมัยใหม่และวินเทจสำหรับ Comp / Gate และ EQ
• 10 เอาต์พุต XLR ที่สามารถกำหนดได้เต็มที่พร้อมเอาต์พุตหูฟัง
• แอปควบคุมเฟดเดอร์
• สามารถบันทึกสแนปชอต (ฉาก) ได้ 99 ภาพต่อการแสดง – ไม่จำกัดจำนวนการแสดง (สามารถดูแบบออฟไลน์ได้ด้วย)
• ใชัได้กับ iOS, Android และ Windows
• การออกแบบ “Built-Like-A-Tank”
• ประกอบด้วยการติดตั้งบนชั้นวาง รหัสสำหรับการดาวน์โหลดซอฟต์แวร์ ปลั๊กอิน Tracktion DAW และ DAW Essentials
• ขนาด 185 x 447 x 147 มม.
• น้ำหนัก 4 กก.
