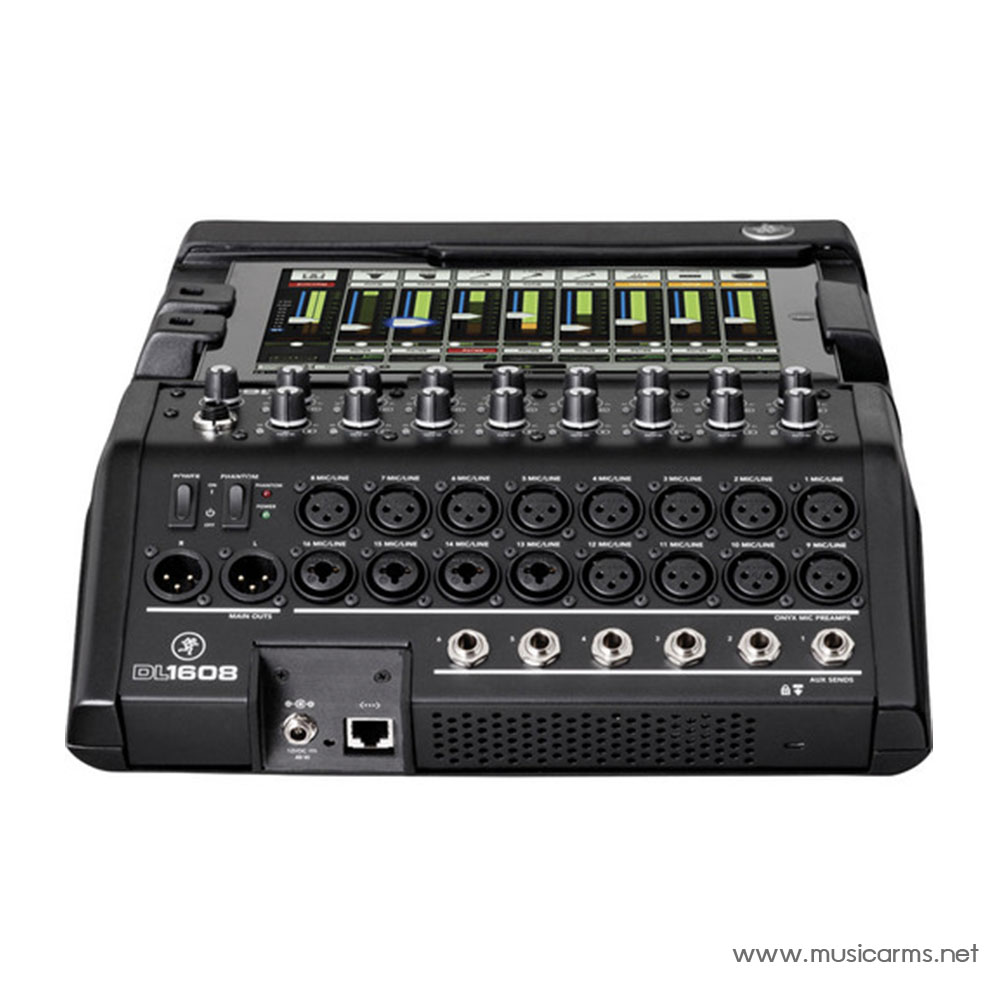

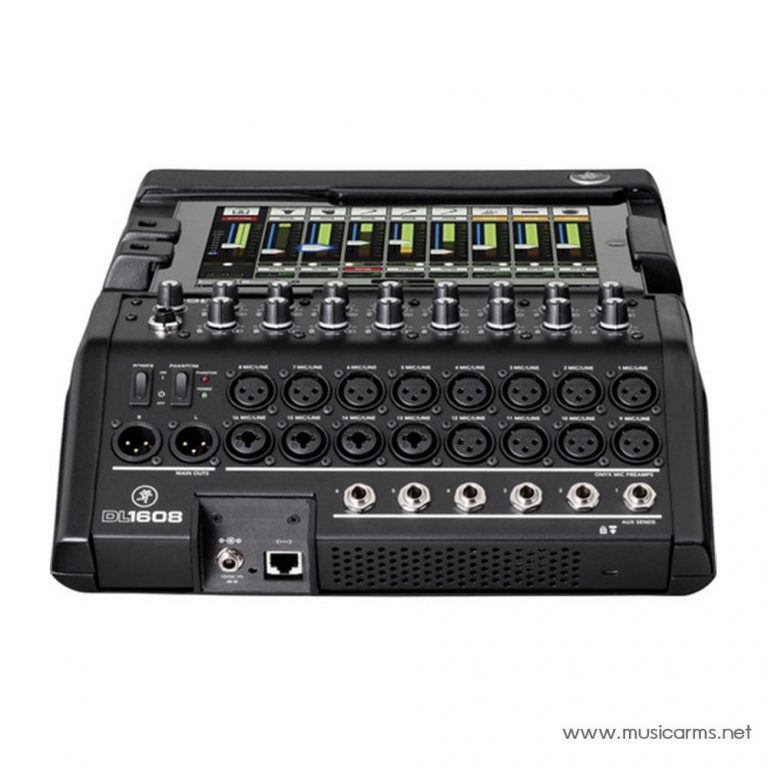

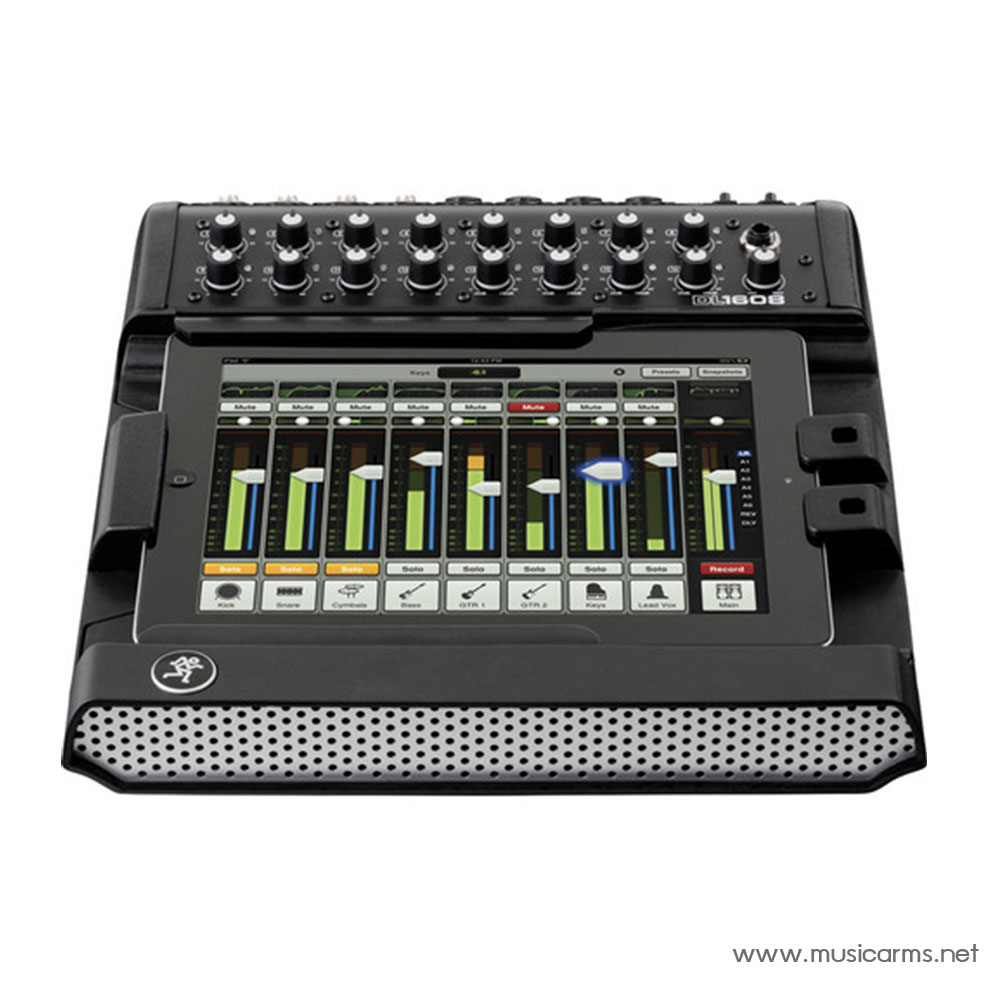

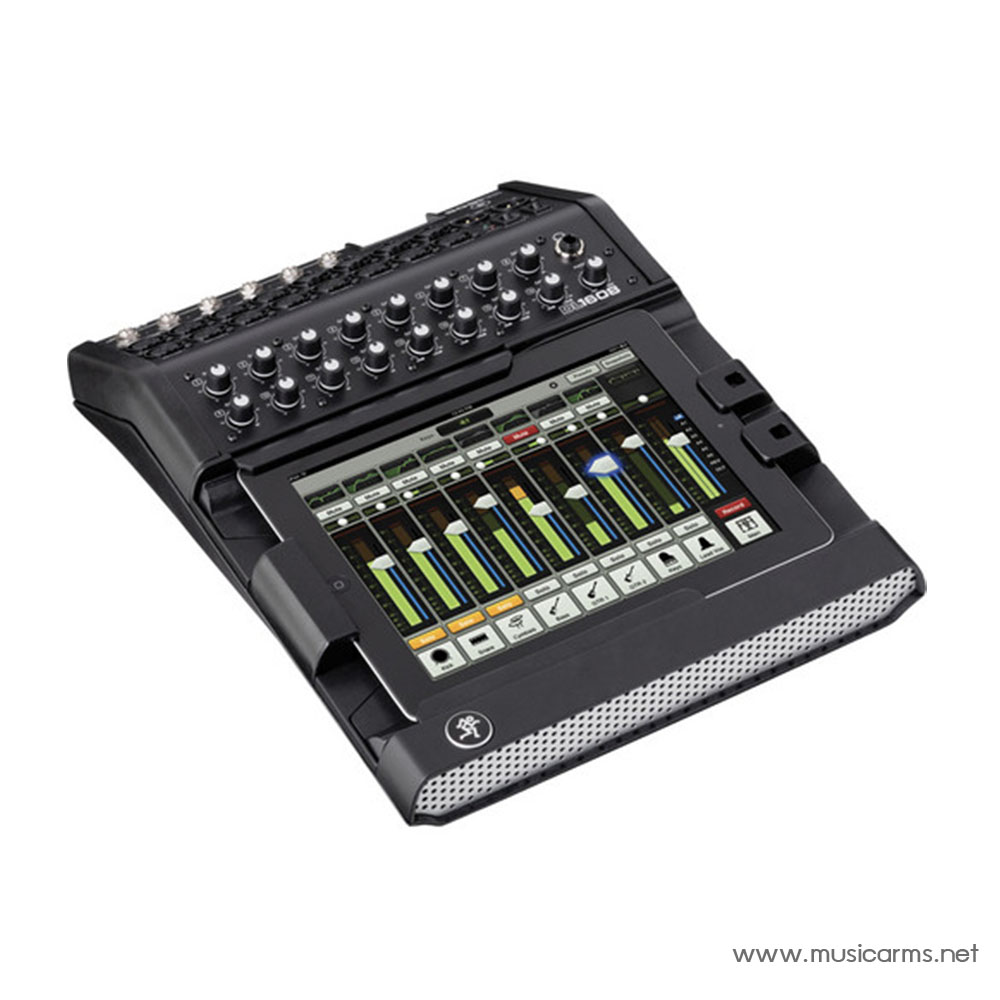

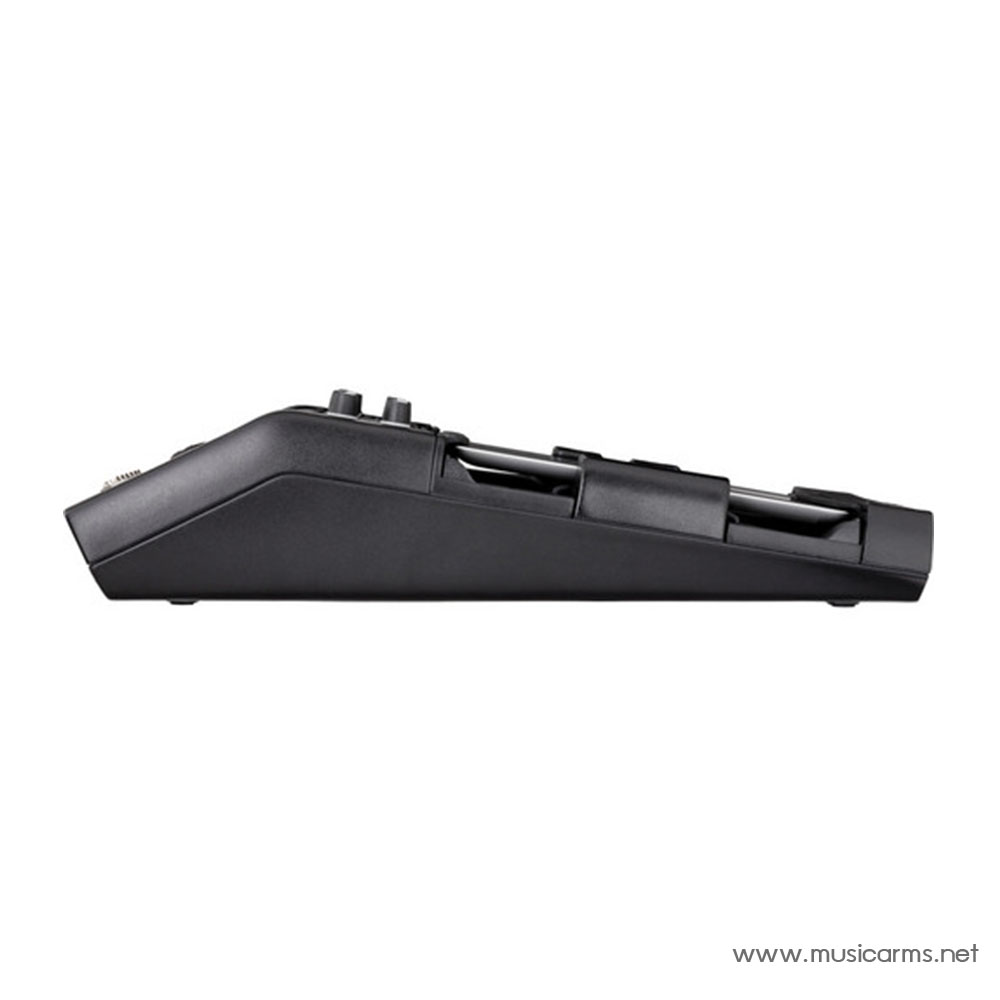

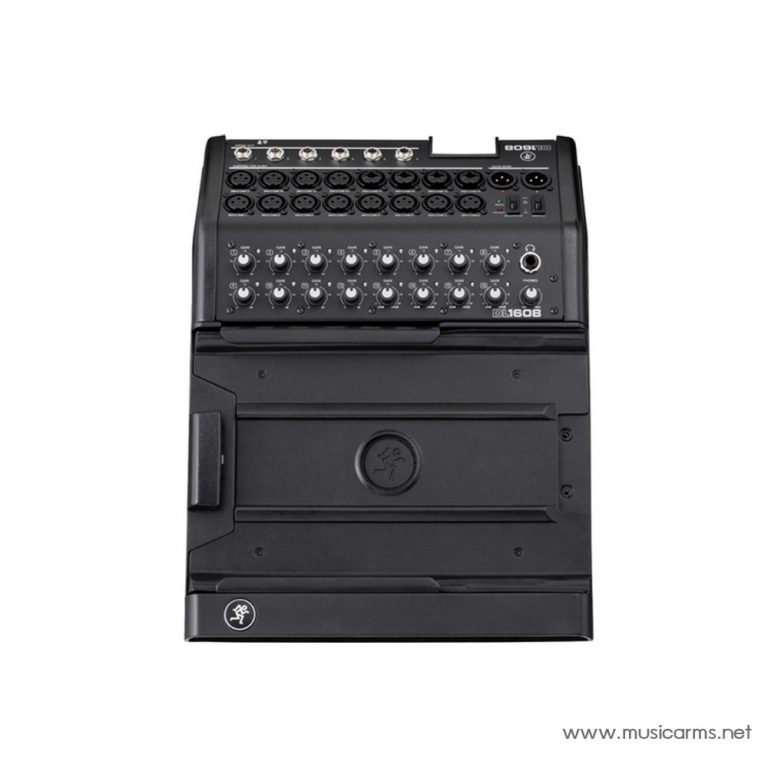

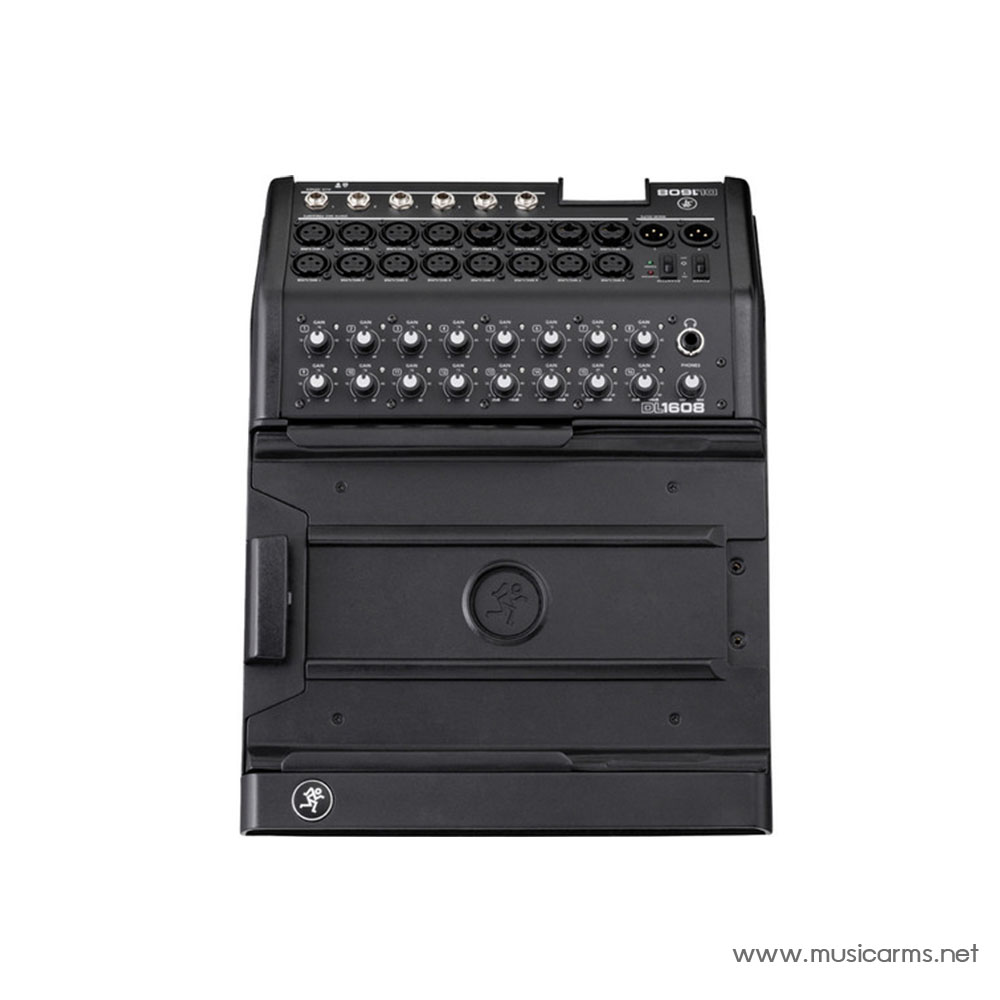

Mackie DL1608

FREEDOM TO MIX FROM ANYWHERE

Ideal for bands, rental house and production/installations, the DL1608 provides the mobile freedom to wirelessly control the mix and powerful plug-in processing. With boutique-quality Onyx™ mic preamps and the performance of 24-bit Cirrus Logic^® AD/DA converters, you have unparalleled sound quality. The Master Fader control app, the heart of your DL mixer, even supports up to 20 wireless devices. Forget bulky consoles and racks of gear. The power is at your fingertips.

The Heart of Your Mix

Master Fader is the main user interface for your DL Series mixer. Rather than knobs, faders and buttons on a large piece of hardware, you get powerful mixing tools on your tablet, Mac, or PC and at up to 20 different devices simultaneously. The intuitive design of the Master Fader app makes managing your mix, large or small, easy and efficient. Organize your channels with view and mute groups, utilize subgroups with full bus processing, control levels of channel groups simply with VCAs, and even lock out devices from specific capabilities within the app. And when you get a mix you like, you can save it all into a snapshot.

Powerful Processing

• From EQ to compression, every bit of signal processing is implemented with the highest quality possible maintaining the fidelity of each source. Every channel and output bus gets it’s own dedicated processing.
• The 4-band parametric EQ on each channel and output features a dedicated high-pass filter, modern and vintage modes, and built-in RTA for maximum versatility and detailed analysis of each source. The clear UI makes it easy to make adjustments, view settings, and choose presets.
• Each FX processor features tons of studio-quality reverbs and delays plus effects like chorus, tremolo, flanger, and sweep filter. Fine tune each effect with advanced

• Type:Digital
• Channels:16
• Inputs – Mic Preamps:12 x XLR, 4 x Combo
• Phantom Power:Switchable
• Inputs – Line:12 x XLR, 4 x Combo
• Outputs – Main:2 x XLR
• Send/Return I/O:6 x TRS (Sends)
• Aux Sends:6 x Aux Sends
• Busses/Groups:Software-controlled
• Data I/O:Ethernet (WiFi Router Not Included)
• Headphones:1 x 1/4″
• EQ Bands:4-band Fully Parametric (Per Channel), 31-band Graphic Master Bus
• Effects:Yes (Compression, Reverb, Delay)
• Software:Master Fader Control App (iOS 11 or later, Android 6.0 or later, macOS 10.2, Windows 10)
• Rackmountable:Yes (via Optional Kit)
• Height:3.9″
• Depth:15.5″
• Width:11.5″
• Weight:7.9 lbs.
