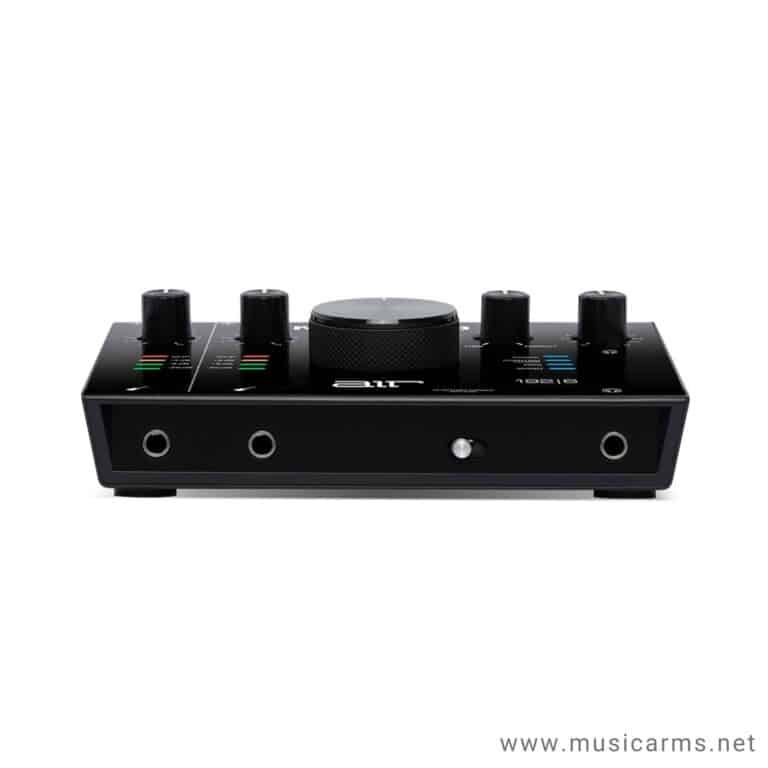

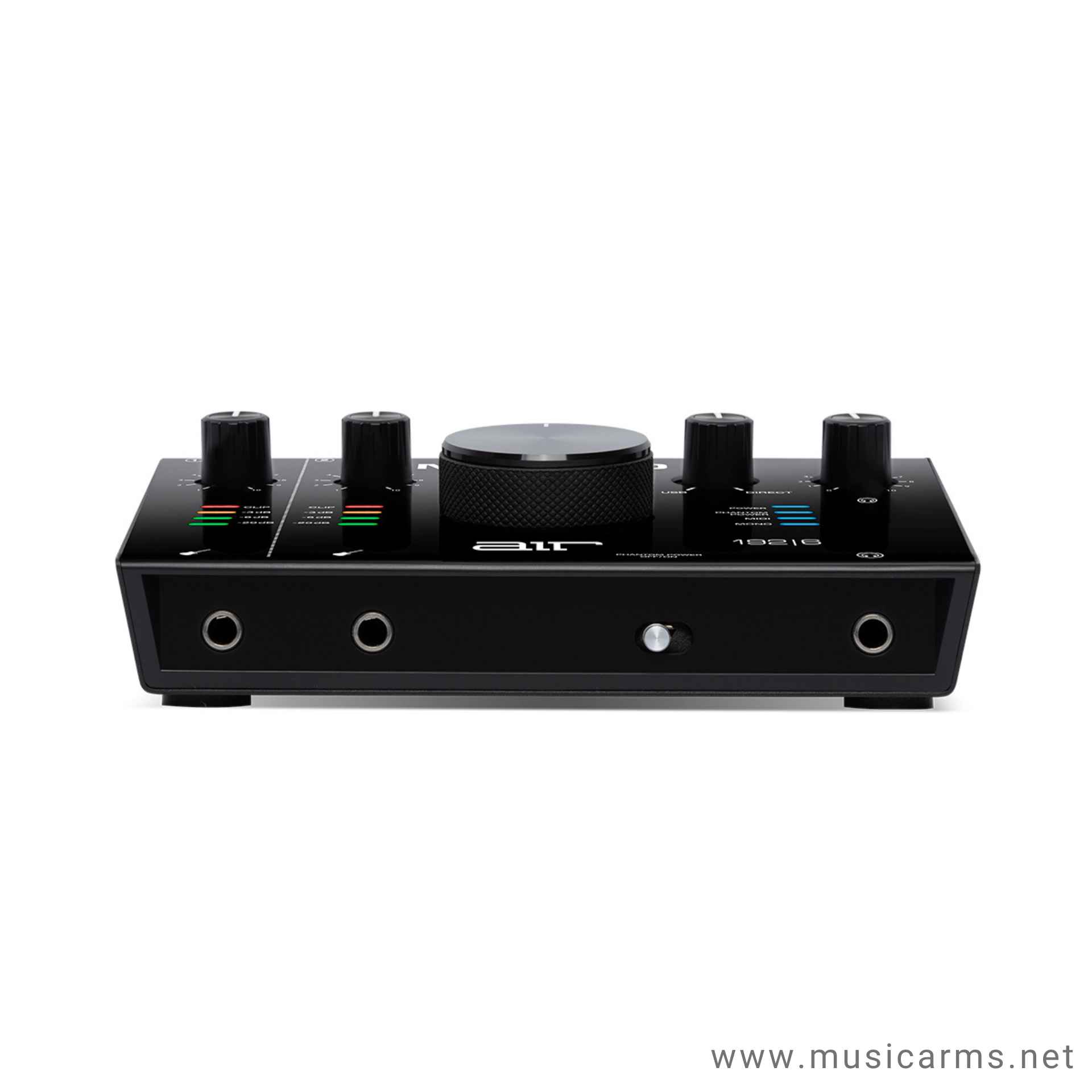

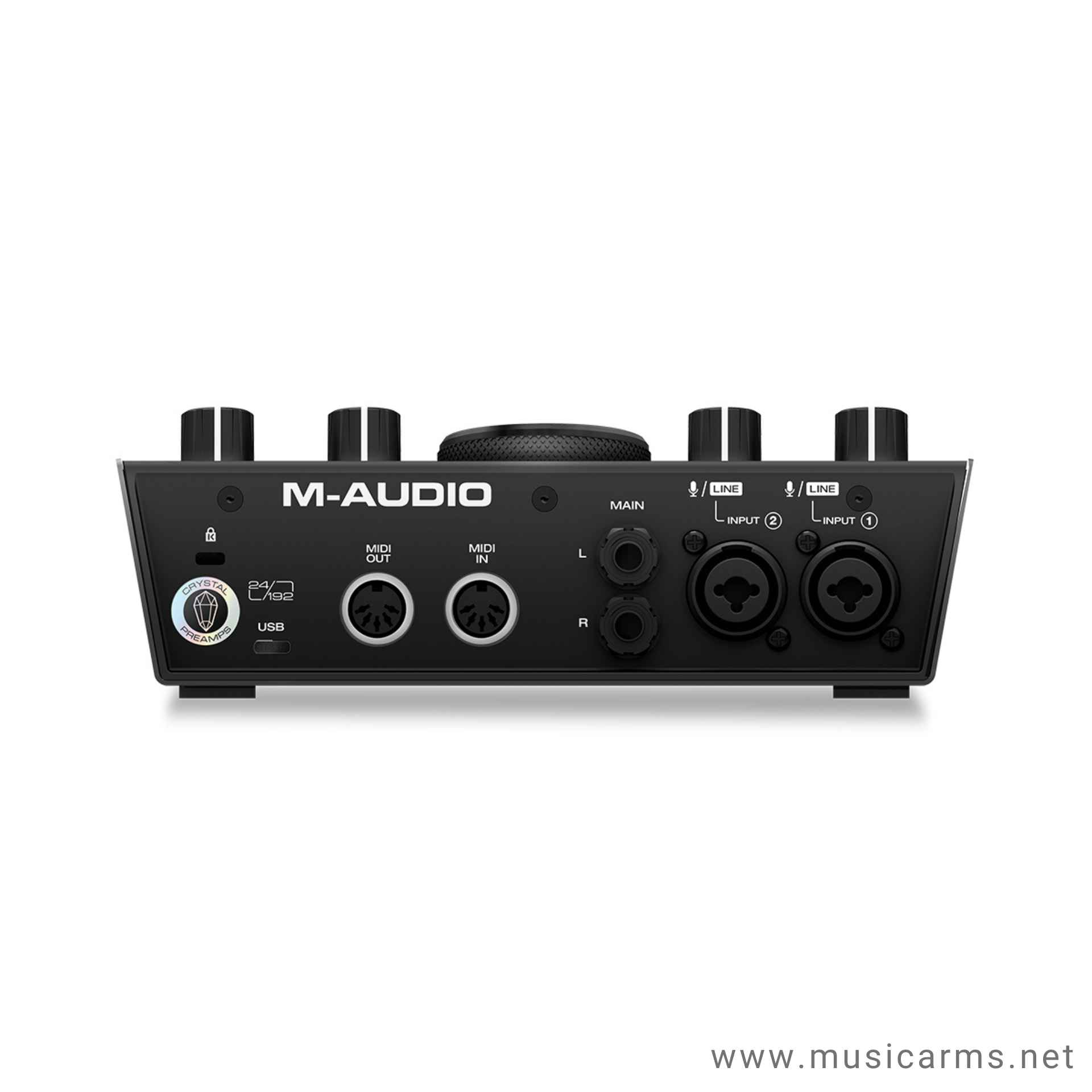

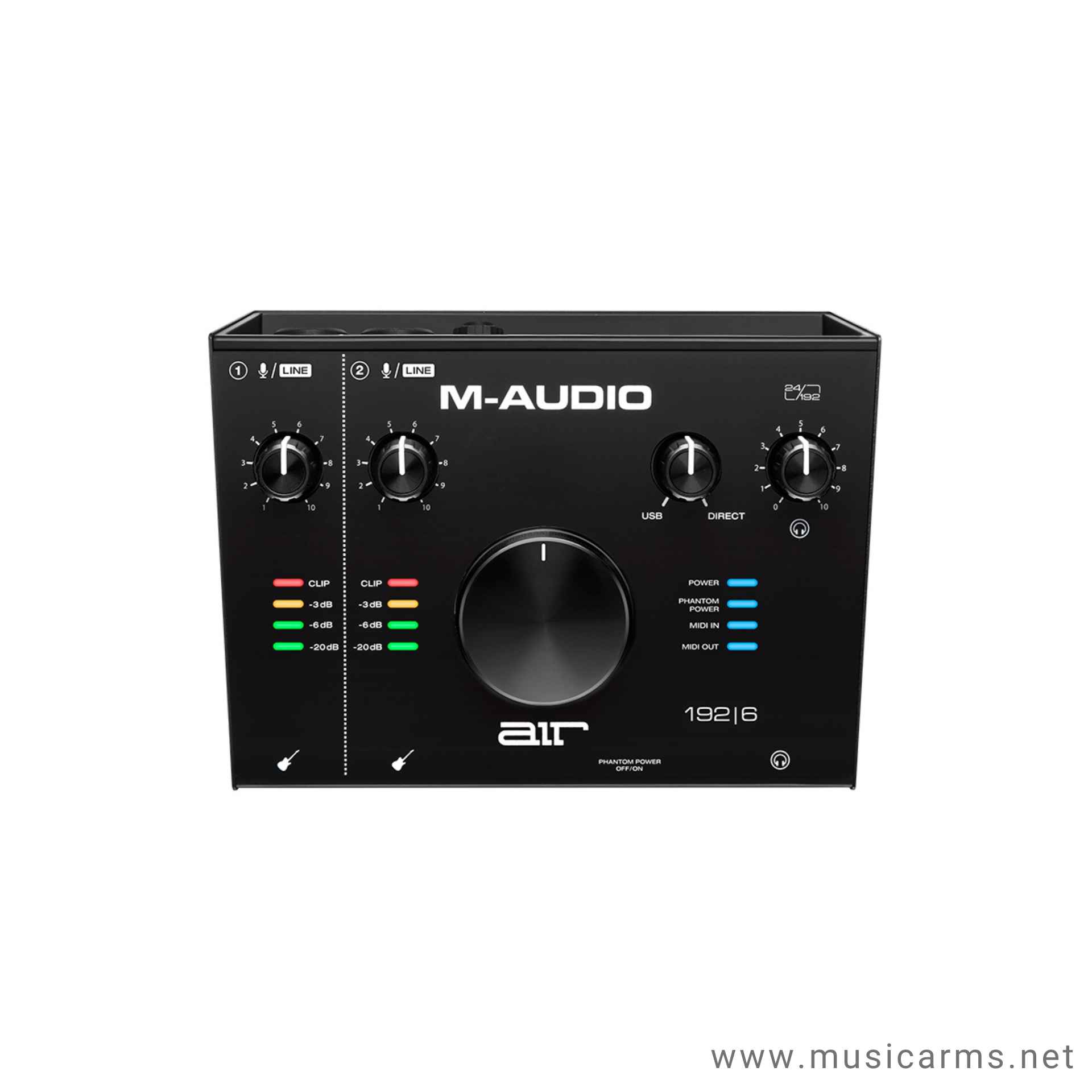

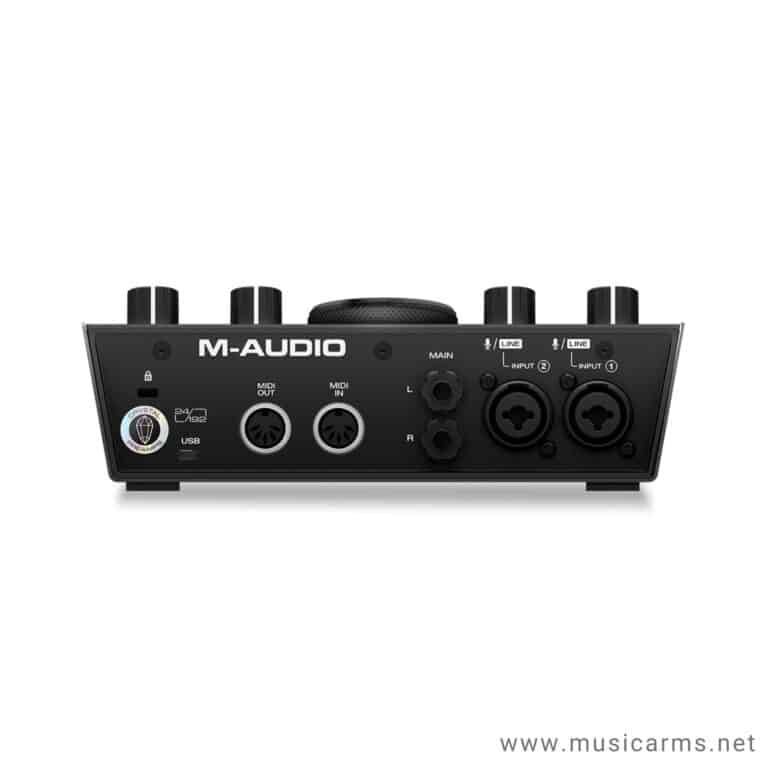

M-AUDIOAIR-192|6 Audio Interface
ราคา : 5,760 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
Description
Sets the new standard with professional studio-quality and features!
With the AIR 192|6, you can create 24-bit/192kHz studio-quality recordings with an intuitive and easy-to-use audio interface. The AIR 192|6 enables you to record up to 2 channels at once with its 2 dedicated XLR+¼” balanced combo inputs, and 2 all-new ¼” instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of a guitar or bass plugged directly into the interface. 5-pin MIDI In and Out connections are included for connecting synths, sequencers and other external MIDI gear.
We’ve included software to match your style!
The AIR 192|6 comes complete with a software package that has everything to get you started. With a powerful DAW to suit your production needs, AIR 192|6 includes Ableton Live Lite and MPC Beats.
We’ve also added an entire Effects Plugin, Virtual Instruments and Loop package to cater to all your production needs. Whether you need a guitar tone, reverb, or delay we’ve got your effects needs covered with Revalver, AIR effect plugins and AIR’s Creative FX Collection. With the included AIR Virtual Instrument plugins, you’ll have a virtual synth, strings, percussion, organ and piano plugins to add world-class-sounding instruments to your songs with ease.
Key Features
- 24-bit/192kHz resolution for professional recording and monitoring
- Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
- Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
- VU LED meters for dialing in the perfect level
- Flexible inputs: (2) XLR+¼” TRS combo or ¼” instrument inputs
- Use any combination of TRS combo or ¼” instrument input on the two channels:(2) TRS, (2) instrument or (1) of each
- 5-pin MIDI input/output for connecting virtually any external MIDI gear
- Stereo ¼” outs; ¼” headphone out with independent level control
- Rugged metal chassis; large central control for easy volume adjustment
- USB/Direct knob for balancing between the input signal and the computer signal
*Round trip latency is dependent on buffer settings, and computer hardware.
Specification
Specifications
| Mic Inputs 1-2 (balanced XLR) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.1 dB) |
| DYNAMIC RANGE | 104 dB (A-weighted) |
| SIGNAL-TO-NOISE RATIO | 104 dB (+1.0 dBu, A-weighted) |
| THD+N | 0.002% |
| PREAMP EIN | -128 dBu (max gain, 150 Ω source, A-weighted) |
| MAX INPUT LEVEL | +1.5 dBu |
| GAIN RANGE | 55 dB |
| Line Input 1-2 (balanced 1/4″ [6.35 mm] TRS) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.05 dB) |
| SIGNAL-TO-NOISE RATIO | 101 dB (1 kHz, +4 dBu, A-weighted) |
| THD+N | 0.002% |
| MAX INPUT LEVEL | 16 dBu |
| GAIN RANGE | 55 dB |
| Inst Input 1-2 (unbalanced 1/4″ [6.35 mm] TS) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.05 dB) |
| DYNAMIC RANGE | 100 dB (A-weighted) |
| SIGNAL-TO-NOISE RATIO | 98 dB (+ 4 dBu, A-weighted) |
| THD+N | 0.005% |
| MAX INPUT LEVEL | 6 dBu |
| INPUT IMPEDANCE | 1 MΩ |
| GAIN RANGE | 24 dB |
| Main Outputs, L and R (balanced 1/4″ [6.35 mm] TRS) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.05 dB) |
| DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO | 106 dB (A-weighted) |
| THD+N | 0.005% |
| MAX OUTPUT LEVEL | +13 dBu (1 kHz, -1 dBFS) |
| Headphone Output (1/4” [6.35 mm] TRS) | |
| THD+N | 0.005% |
| OUTPUT IMPEDANCE | 10 Ω |
| General | |
| POWER | USB-bus-powered |
| DIMENSIONS (WIDTH X DEPTH X HEIGHT) | 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm) |
| WEIGHT | 2.1 lbs. 0.95 kg |
