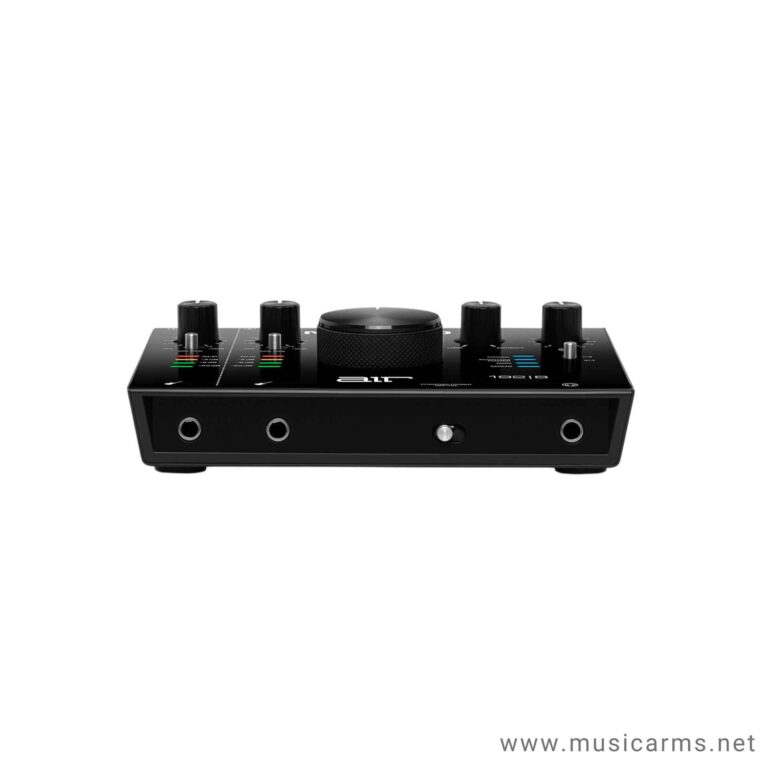

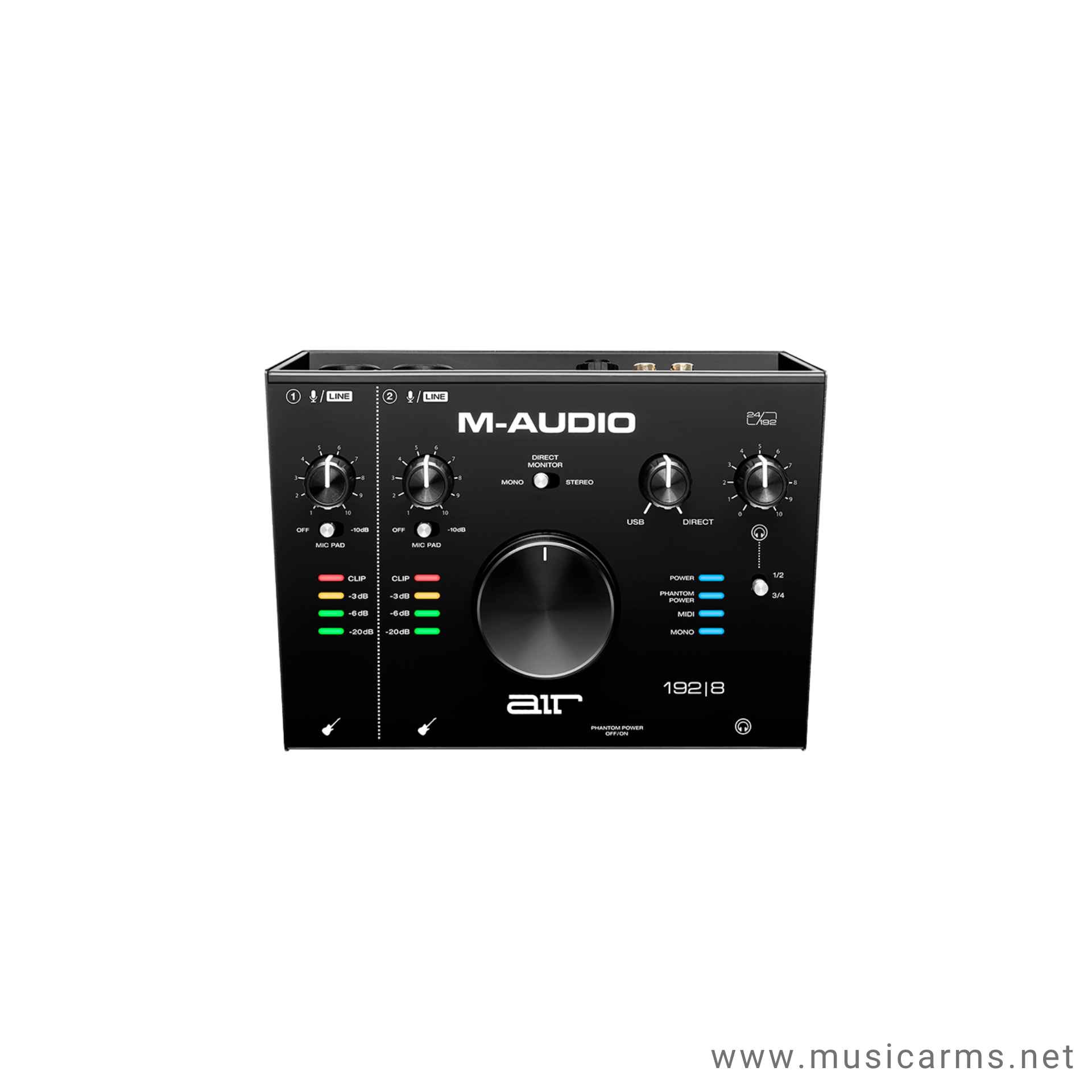

M-AUDIO AIR-192|8

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : M-Audio

ราคา : 8,100 บาท

รุ่น :  M-Audio AIR-192|8 ออดิโอ อินเตอร์เฟส Audio Interface
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 11 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ M-AUDIO AIR-192|8ผ่านline สั่งซื้อ M-AUDIO AIR-192|8ผ่าน messenger

Description

No-compromise professional studio quality and features at an amazing value!

With the AIR 192|8, you can create 24-bit/192kHz studio-quality recordings with an intuitive and easy-to-use audio interface. The AIR 192|8’s flexible inputs enable you to record up to 2 channels at once with its 2 dedicated XLR+¼” balanced combo inputs with switchable -10dB mic pad, and 2 all-new ¼” instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of a guitar or bass plugged directly into the interface. The (2) ¼” and (4) RCA outputs with USB/Direct control, and Direct Mono/Stereo switch provide multiple output options for connecting to outboard gear, DJ mixers, or studio monitors. The headphone output with independent level, USB/Direct, and switchable 1/2 or 3/4 audio stream controls are perfect for discretely listening to a cue mix, sub mix, or main mix. MIDI In and Out connections are included for connecting synths, sequencers and external MIDI gear.

We’ve included software to match your style!

The AIR 192|8 comes complete with a software package that has everything to get you started making professional recordings right out of the box. With a powerful DAW to suit your production needs, AIR 192|8 includes Ableton Live Lite and MPC Beats.

We’ve also added an entire Effects Plugin, Virtual Instruments and Loop package to cater to all your production needs. Whether you need a guitar tone, reverb, or delay we’ve got your effects needs covered with Revalver, AIR effect plugins and AIR’s Creative FX Collection Plus. With the included AIR Virtual Instrument plugins, you’ll have a virtual drummer, synth, strings, percussion, organ and piano plugins to add world-class-sounding instruments to your songs with ease.

 Features

  • 24-bit/192kHz resolution for professional recording and monitoring
  • Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
  • Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
  • VU LED meters for dialing in the perfect level

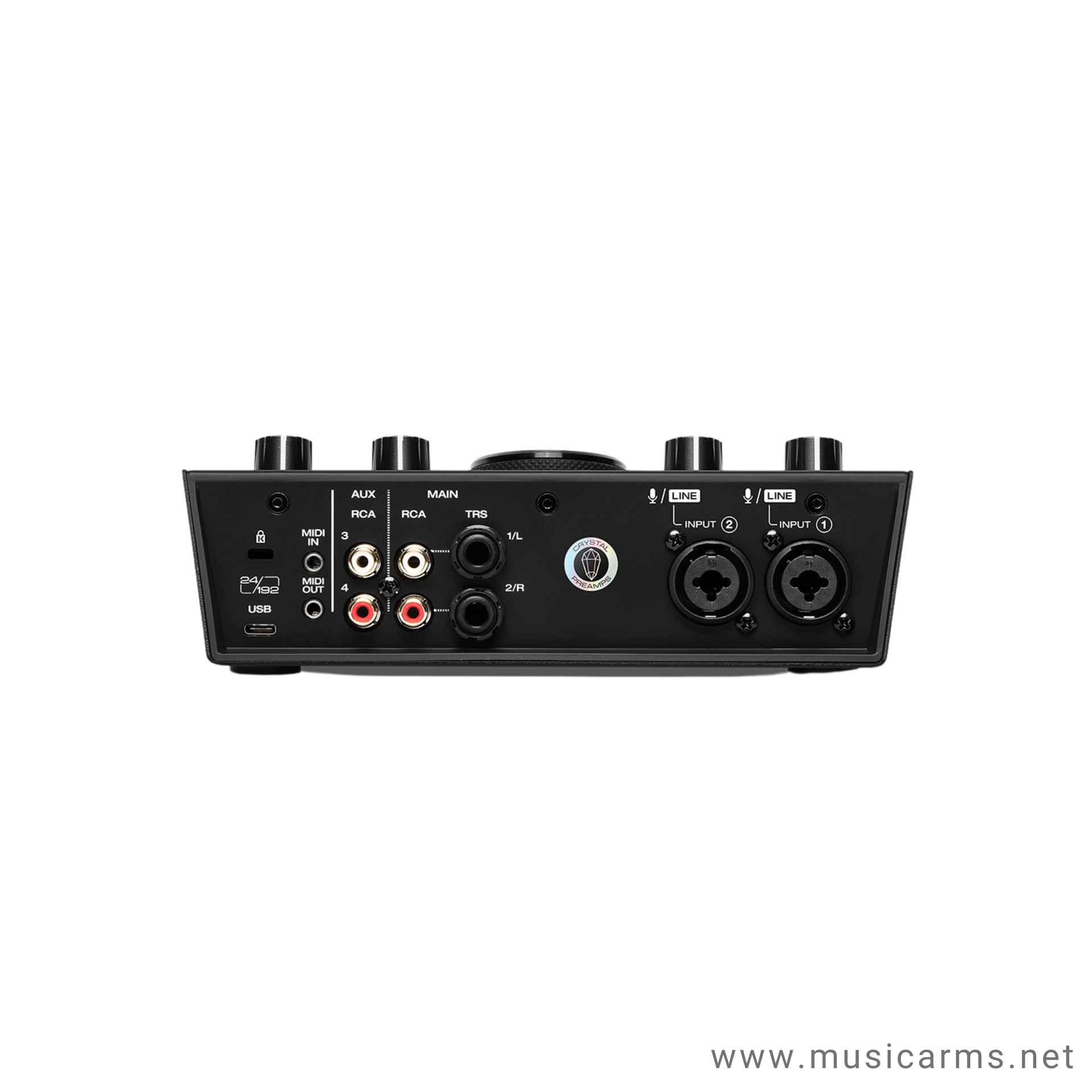

  • Flexible inputs: (2) XLR+¼” TRS combo with -10dB mic pad or ¼” instrument inputs
  • Use any combination of TRS combo or ¼” instrument input on the two channels:(2) TRS, (2) instrument or (1) of each
  • MIDI input/output for connecting virtually any external MIDI gear
  • Stereo ¼” and RCA outs with direct mono/stereo switch
  • (2) RCA assignable auxiliary outputs; ¼” headphone output with independent source and level controls
  • Rugged metal chassis; large central control for easy volume adjustment
  • USB/Direct knob for balancing between the input signal and the computer signal
  • *Round trip latency is dependent on buffer settings, and computer hardware



Specification

Mic Inputs 1-2 (balanced XLR)
FREQUENCY RESPONSE 20Hz – 20kHz (+/-0.1 dB)
DYNAMIC RANGE 104dB (A-weighted)
SIGNAL-TO-NOISE RATIO 104dB (+1.0dBu, A-weighted)
THD+N 0.001% (1kHz, +0.8dBu, -1dBFS)
PREAMP EIN -126dBu (150Ω, unweighted)
MAX INPUT LEVEL +1.8dBu
GAIN RANGE 60dB



Line Input 1-2 (balanced 1/4″ TRS)
FREQUENCY RESPONSE 20Hz – 20kHz (+/-0.1dB)
SIGNAL-TO-NOISE RATIO 101dB (1kHz, +4dBu, A-weighted)
THD+N 0.002% (1kHz, +19.7dBu, -1dBFS)
MAX INPUT LEVEL +20.7dBu
DYNAMIC RANGE 106dB (A-weighted)



Inst Input 1-2 (unbalanced 1/4″ TS)
FREQUENCY RESPONSE 20Hz – 20kHz (+/-0.1dB)
DYNAMIC RANGE 106dB (A-weighted)
SIGNAL-TO-NOISE RATIO 98dB (+4dBu, A-weighted)
THD+N 0.001% (1kHz, +5.8dBu, -1dBFS)
MAX INPUT LEVEL +6.8dBu
INPUT IMPEDANCE ~1MΩ
GAIN RANGE 24dB



Main TRS Outputs, 1/L & 2/R (balanced 1/4″ TRS)
FREQUENCY RESPONSE 20Hz – 20kHz (+/-0.1dB)
DYNAMIC RANGE 109dB (A-weighted)
THD+N 0.003% (1kHz, -1dBFS)
MAX OUTPUT LEVEL +13dBu



Main & Aux RCA Outputs 1 – 4 (Unbalanced RCA)
FREQUENCY RESPONSE 20Hz – 20kHz (+/-0.1dB)
DYNAMIC RANGE 109dB (A-weighted)
THD+N 0.003% (1kHz, -1dBFS)
MAX OUTPUT +7dBu



Headphone Outputs (Stereo 1/4″ TRS)
DYNAMIC RANGE 101dB
THD+N 0.008% (1kHz, -1dBFS, 36mW)
MAX POWER 36mW (32-ohm load)
MIN IMPEDANCE 32-ohm
