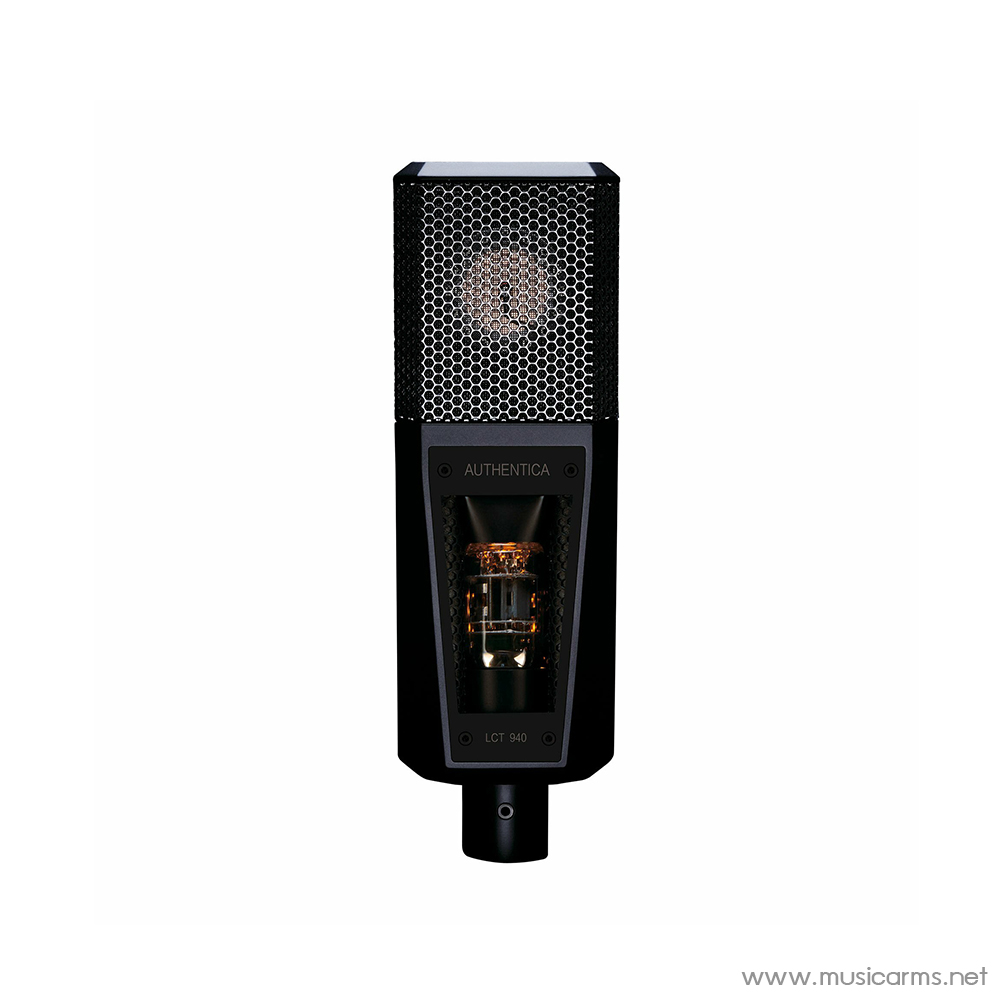

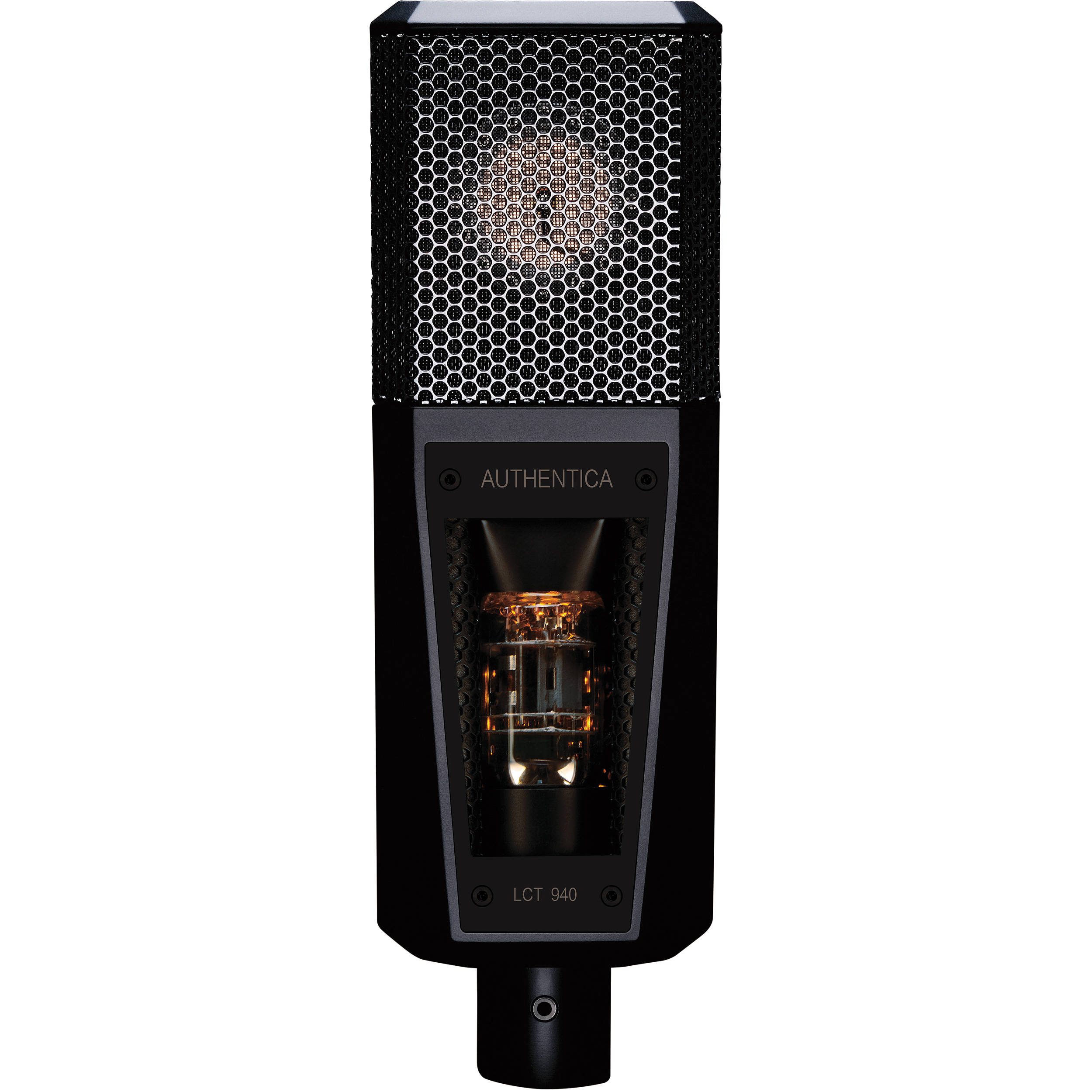

Lewitt LTC 940

The LCT 940 Premium Large-Diaphragm FET Condenser and Tube Microphone from Lewitt combines the specific characteristics of a premium large-diaphragm FET condenser microphone and tube microphone in one housing. You can choose between the two main settings (“FET” and “Tube”) or mix and merge the characteristics of the two, providing various creative possibilities for artists and producers. The LCT 940 also features a total of nine different polar patterns: cardioid, omnidirectional, figure-8, wide-cardioid, super-cardioid, and four additional intermediate patterns. The microphone’s PSU (power supply unit) offers four levels of attenuation and four switchable high-pass filters, indicators, and push buttons for noiseless handling. Additional attributes are automatic attenuation and clipping history. The microphone and the PSU are connected via an included 26′ 11-pin XLR cable.

Specifications

• Continuously adjustable polar pattern: Omnidirectional , broad cardioid, cardioid, supercardioid, figure-8 and four intermediate patterns
• Gold-coated capsule
• Classic warm sound
• 4 Low-cut and thomann pre-attenuation settings
• Illuminated buttons
• Robust metal construction
• External control unit with control elements
• Frequency range: 20 – 20000 Hz
• Dynamic range FET (FET): 135 dB-A
• Dynamic range (tube): 128 dB-A
• Max SPL for 0.5% THD (FET): 143 dB, 149 dB with 6 dB pad, 155 dB with 12 dB pad, 161 dB with 18 dB thomann pad
• Low cut filter: 12 dB / octave at 40 Hz, 6 dB / octave at 300 Hz, 6 dB / octave at 150 Hz
• Capsule size: 25.4 mm
• Impedance: <200 Ohm
• Dimensions of microphone: 192 x 60 x 46 mm
• Weight microphone: 662 g
• Dimensions of the food: 250 x 150 x 70 thomann mm
• Weight of food: 1894 g
• Includes case, PSU 940 power supply, LCT 40 SH shockmount, LCT 40 Tr cable 11-pin XLR, LCT 40 W pop protection
