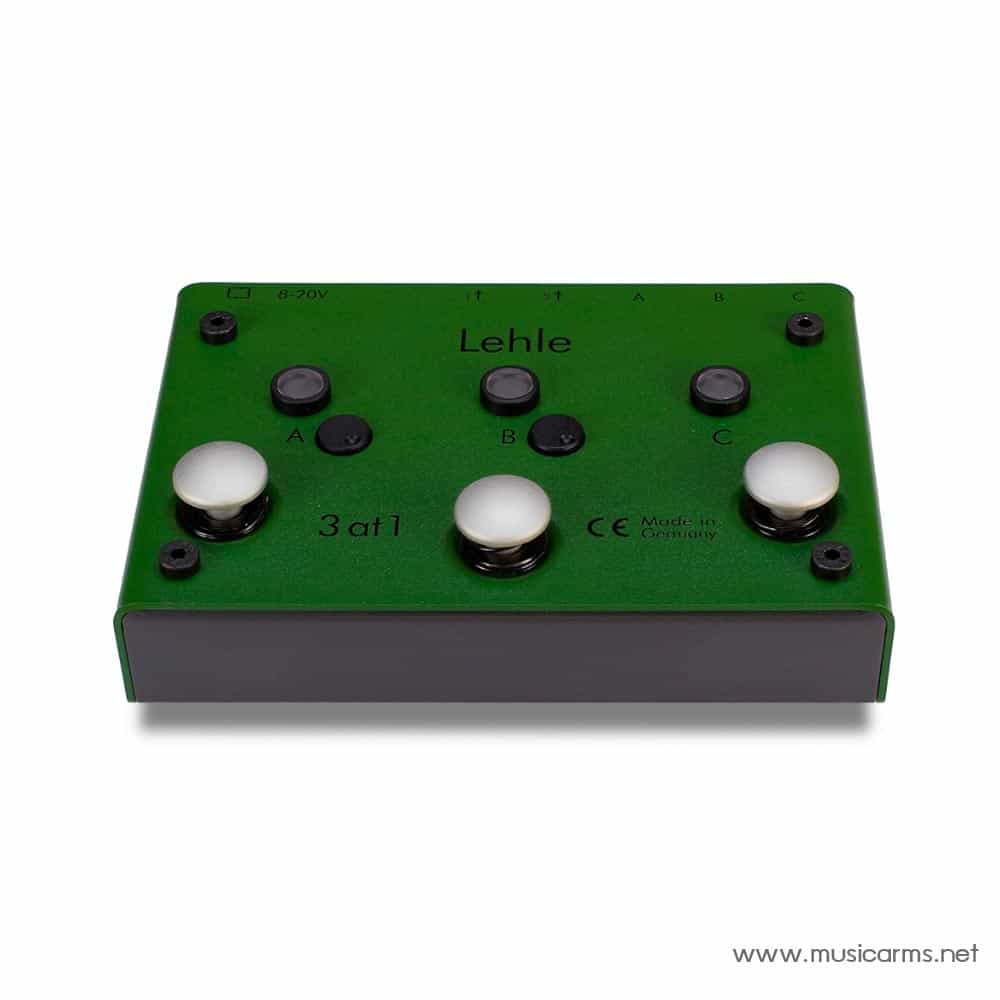

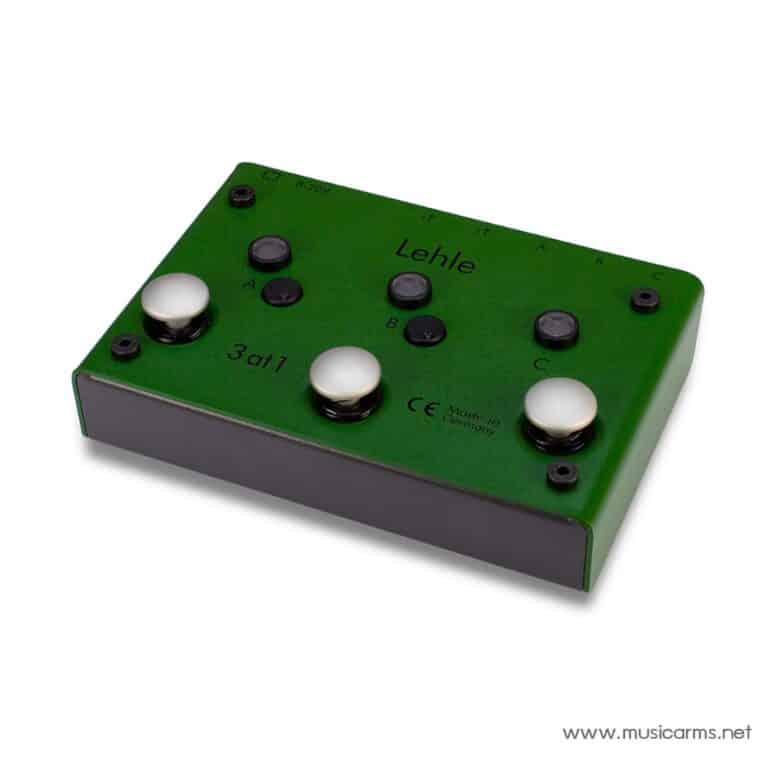

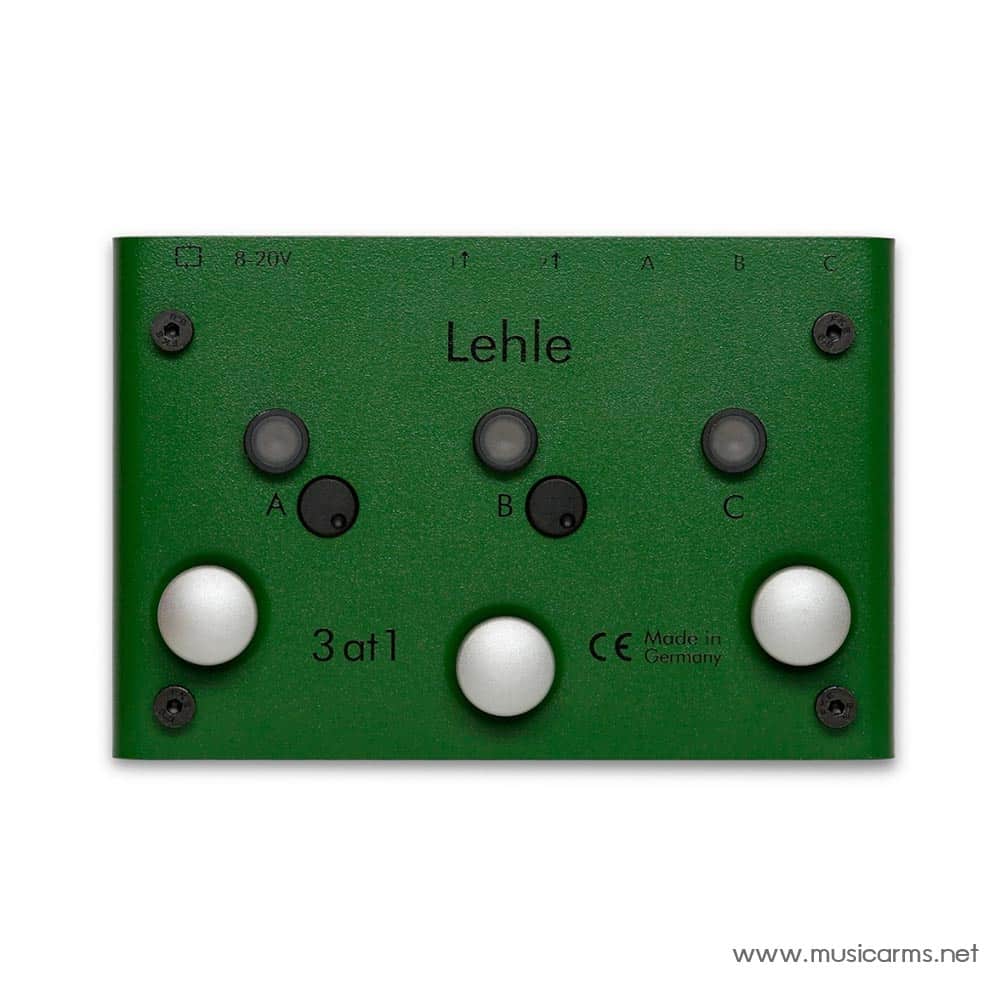

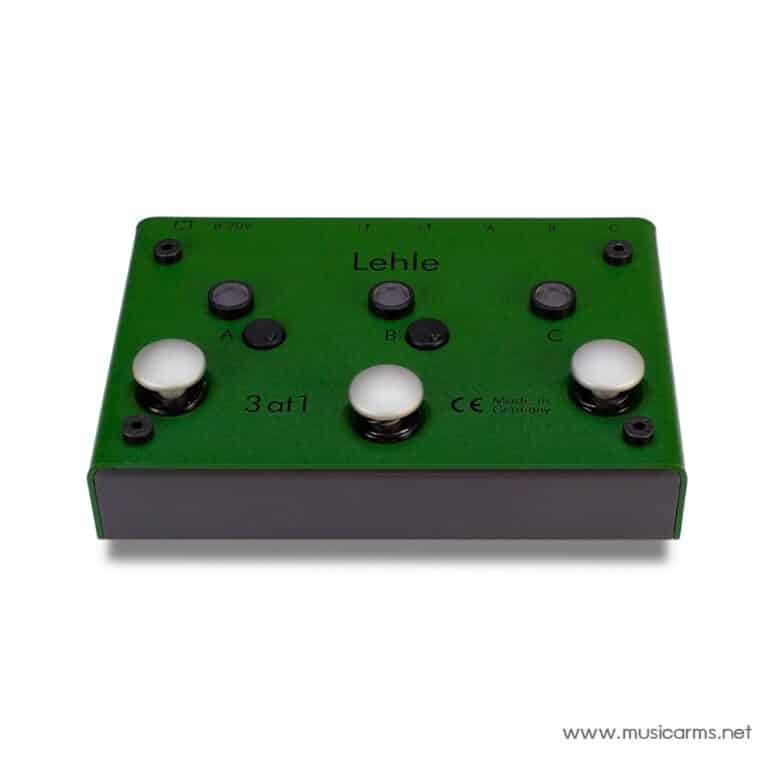

Lehle 3AT1 SGOS Footswitch ฟุตสวิตช์

Second Generation of Switching

There can’t be anyone, anywhere, who doesn’t know what a drag it can be swapping cables when changing instruments during a gig! So eliminate it – with the Lehle 3at1 SGoS! This True Bypass pedal switches the signals from magnetic and piezo pick-ups just as free of losses and background noise as it does line signals. The secret is in its gold-plated-contact relays and its active pop-and-click suppression. Any differences in level can be ironed out, and Outputs A and B lowered relative to C.

You can also feed signals from totally different sound sources, such as keyboards and CD/MP3 players, to an amp or a PA channel. All inputs and outputs, plus the internal signal path, are stereo. Press the active footswitch again to route the signal to the second output, and thus to an instrument tuner, another amp, or a mixing console channel.

The Lehle 3at1 SGoS can be remote controlled using MIDI program change commands. You can also network the unit with other Lehle SGoS switchers via a stereo jack socket. Cable swapping to change instruments? History, when you use the Lehle 3at1 SGoS!

Effects Pedal

• Allows switching between different instruments in stereo via gold-plated contact relays
• Without semiconductors, the signal from inputs A, B or C pass through outputs 1 or 2 unaltered. This makes it easy to switch between an amp and a tuner
• Can be controlled via MIDI and networked with other Lehle SGoS switches
• True bypass
• LED: Effects On
• Footswitch: Effects bypass

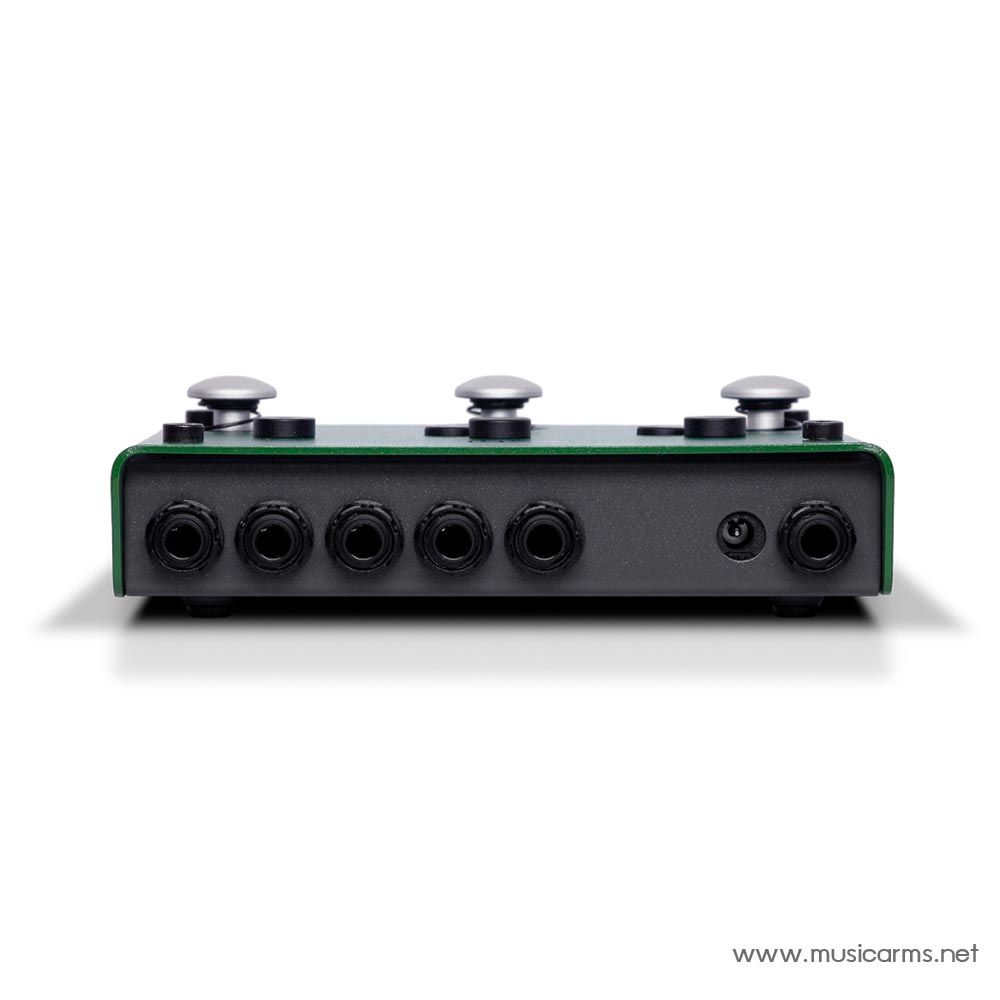

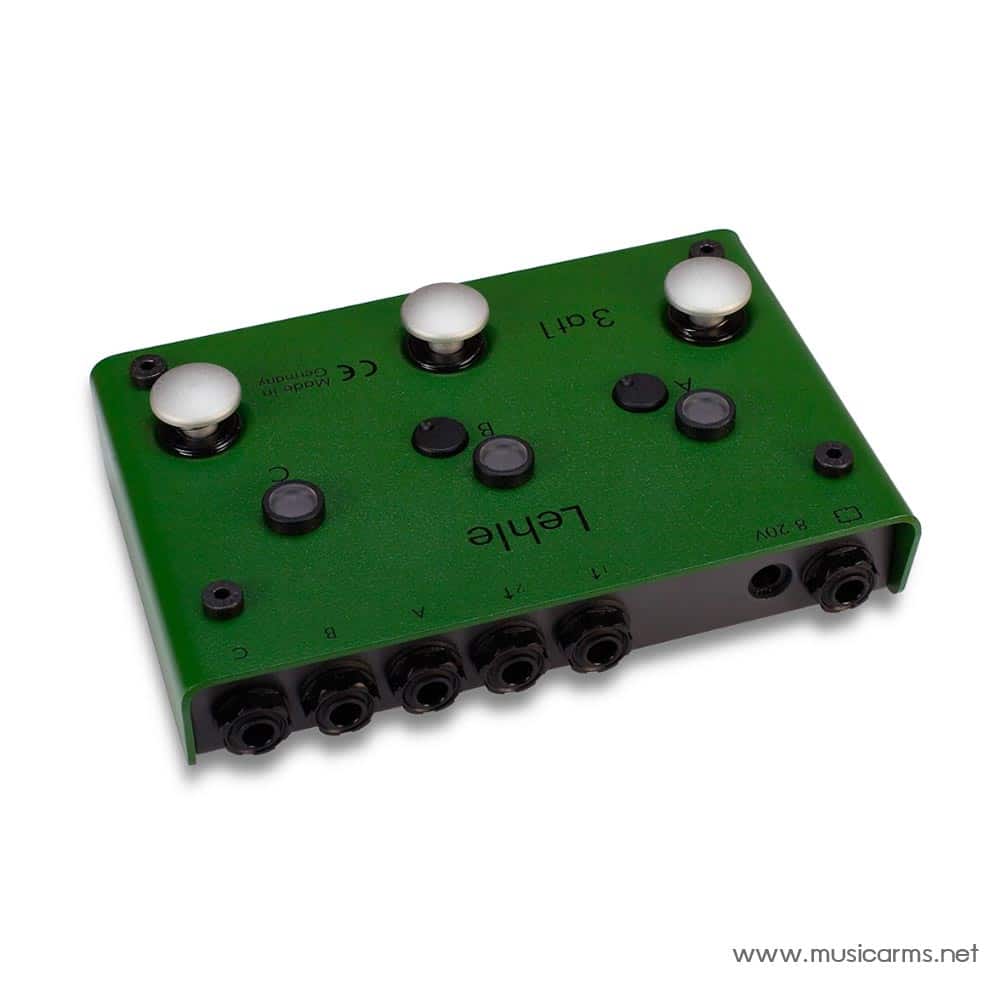

• Input: 6.3 mm jack
• Output: 6.3 mm jack
• Power supply port (coaxial socket, 5.5 x 2.1 mm – negative polarity inside)
• Power consumption: 97 mA
• Powered via 8-20 V DC power supply (not included, suitable power supply available under Article Nr 409939 (not included))
• Dimensions (W x D x H): 156 x 103 x 47 mm
• Weight: 735 g
• Made in Germany
