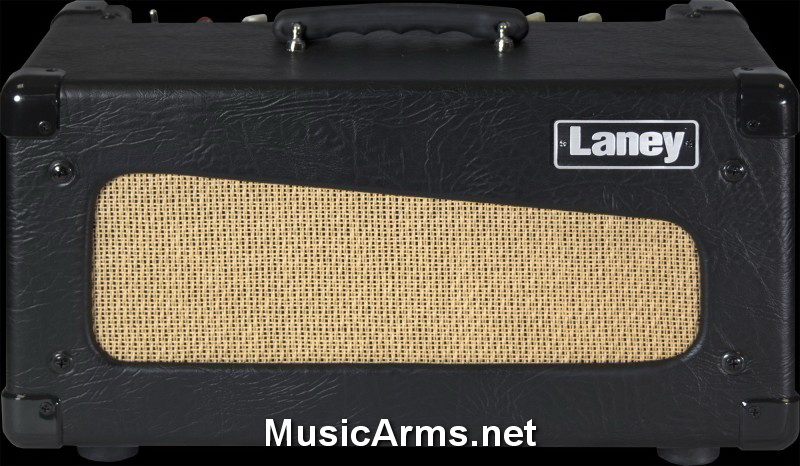

Laney CUB-Head All Tube Classic

STRAIGHT AHEAD TONE

Dialling in a great valve tone is simple select your input 5 W or < W : more on these controls in a moment, dial in your tone, add a taste of high
quality reverb and away you go.

CLASS A TONE

The CUB HEAD houses 3 x ECC83’s in its preamp and 2 x EL84’s in the power amp section, all hand selected to give the best valve tone possible.
Lets go back for a moment and look at the inputs on the CUB HEAD. The CUB HEADhas two input options, one giving you 5W RMS of valve tone, the other
giving you a huge valve sound, but cutting the output down to .75 of a Watt. .75 of a Watt might not sound like much, but it allows you to drive the
output section really hard and generate some very pleasing power amp compression and pleasing break up giving you that holy grail of guitar tone!

The rear panel of the CUB HEAD houses two speaker out sockets in 8 & 6 Ohm options, a footswitch socket for switching the reverb and an effects loop consisting of a Send/Line out socket and a return socket.
The CUB HEAD can be paired with any Laney cabinet but is ideally suited to the CUBCAB.

Specification

Channel ControlsL: Gain, Treble, Middle, Bass, Volume & Tone
Class: Class A/B
Packed Dimensions (HxWxD mm): 27 x 475 x 275
Drivers: No
Equalisation: Bass, Middle, Treble
Footswitch: FS (Not Included)
FX Loop(s): Yes
Impedance: NA
Inputs: 2 : 5W & <W
Output Valves: 2 x EL84
Power: 5 Watts & < Watt
Preamp Valves: 3 x ECC83
Reverb: Yes
Speaker connections: 8 – 6 Ohm connections
Weight: 9 Kg
Unit Dims – for int. case (HxWxD mm): 248 x 435 x 235
