KRK S12.4 (PC.)

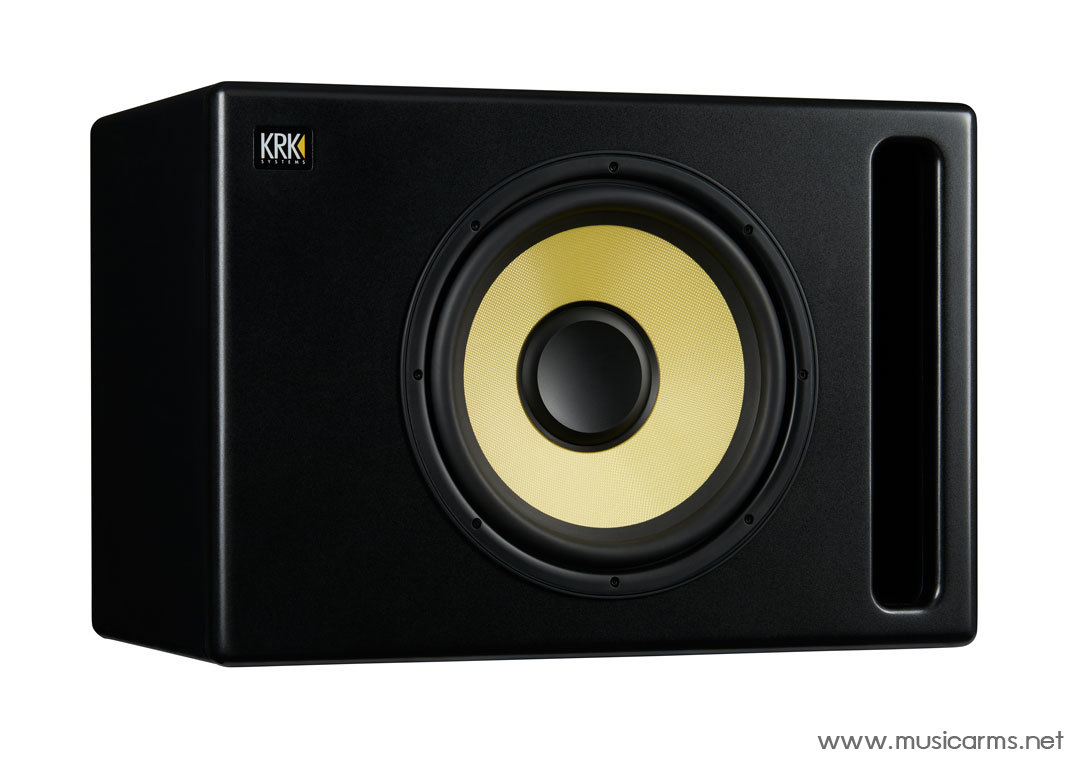

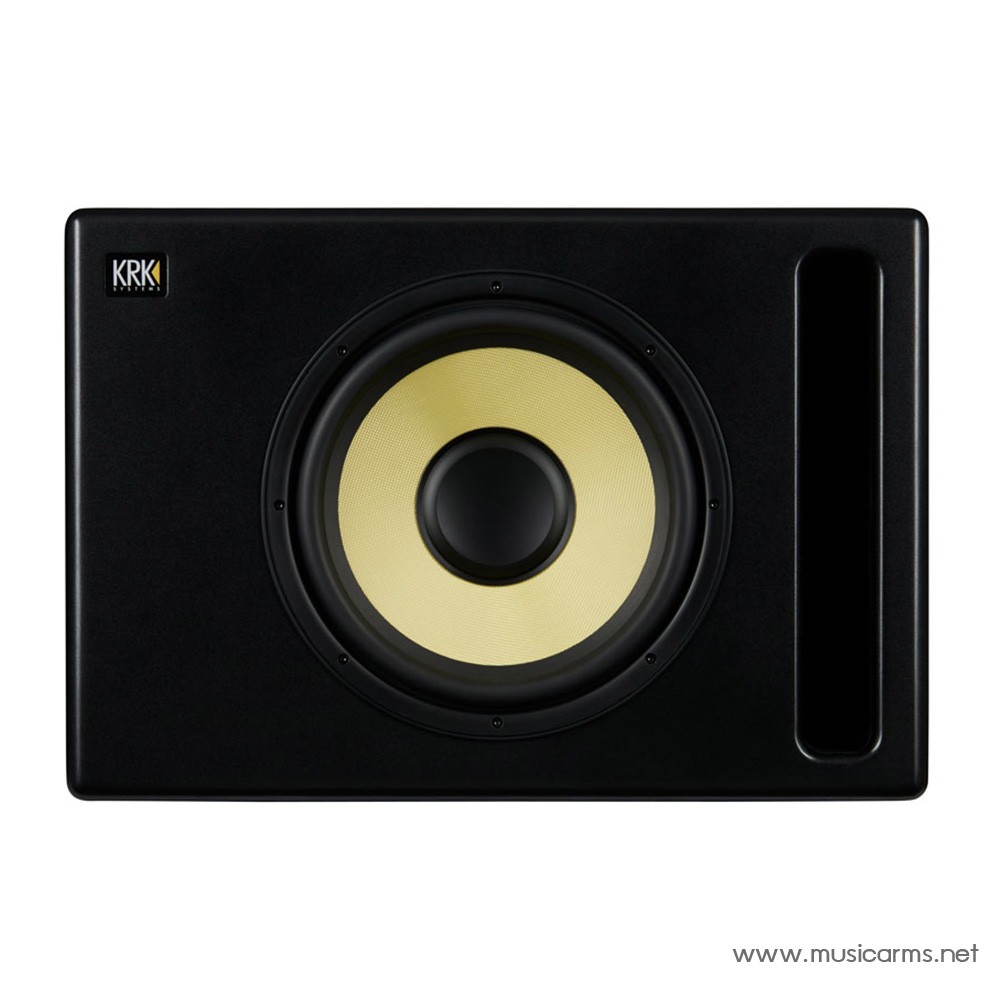

S12.4  Powered Studio Subwoofer

The S12.4 powered studio subwoofer builds upon KRK’s legacy for sonic accuracy and stellar performance. The custom-made, Kevlar® woofer delivers ultra-tight, defined bass, while the Class-D power amplifier dramatically increases transient response, control, and punch. The four-position selectable crossover lets you adjust the subwoofer setting easily to your existing monitors.

Pairing the S12.4 with KRK or another studio monitor delivers an optimized listening and mixing experience with extended low end, while the exclusive bypass-control feature provides full range audio to the monitors without switching off the subwoofer. The powerful S12.4 subwoofer doesn’t just deliver precise, ultra-low bass and a rich feature set: it’s the next dimension in subwoofer performance.

S12.4 Features

• 12″ Kevlar® Composite Woofer
• Bass extension to 23Hz with a max SPL of 119.9 dB
• Footswitch control enables/disables sub and crossover filter (footswitch not included)
• Redesigned cabinet with a lower profile and front-firing bass port
• Powerful, lightweight Class D amplification
• Optimized four-position crossover control
• Universal connectivity: XLR, 1/4″ TRS, and RCA inputs and outputs
• Polarity and input sensitivity controls
• Ground lift switch prevents ground loops

• CONFIGURATION: FRONT-LOADED, VENTED SUBWOOFER
• SYSTEM TYPE ACTIVE SUBWOOFER: 12” KEVLAR ARAMID FIBER COMPOSITE WOOFER, 2.5” VOICE COIL
• FREQUENCY RESPONSE (+/- 3dB): 26 Hz – 97 Hz
• FREQUENCY RANGE (-10dB): 23 Hz – 130 Hz
• MAX PEAK SPL: SPL 120 dB SPL
• AMPLIFIER POWER RATING: 220 W (1% THD+N)
• iNPUT iMPEDANCE: 9.4K OHMS BALANCED / 9.2k OHMS UNBALANCED

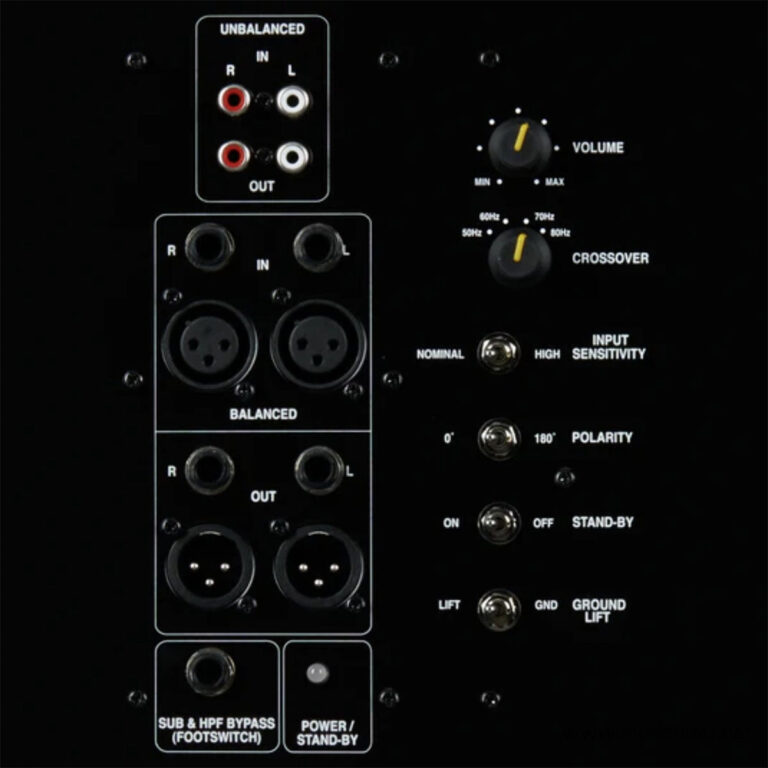

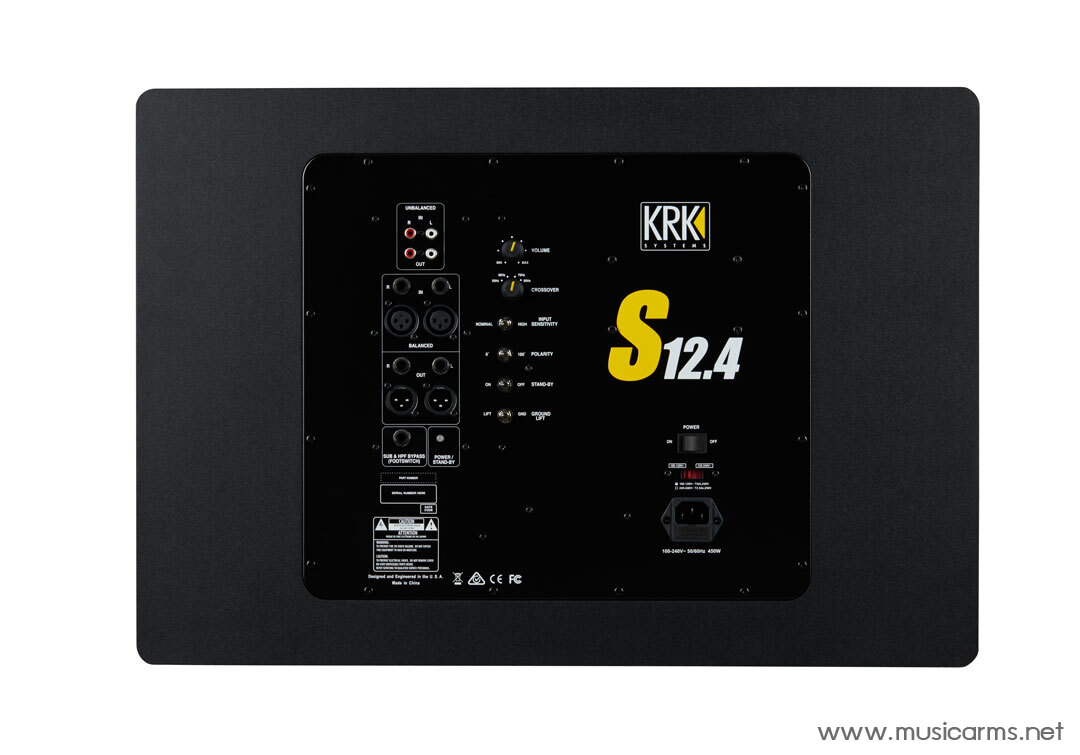

• CONNECTORS INPUT: XLR LEFT/RIGHT, 1/4” TRS LEFT/RIGHT, RCA LEFT/RIGHT, 1/4” FOOTSWITCH
• OUTPUT: XLR LEFT/RIGHT, 1/4” TRS LEFT/RIGHT, RCA LEFT/RIGHT
• CONTROLS:VOLUME, FOUR-POSITION CROSSOVER LPF/HPF CONTROL, INPUT SENSITIVITY(STANDARD AND HIGH), POLARITY (0 OR 180 DEGREES), STANDBY (ON/OFF),GROUND LIFT, SUB AND HPF BYPASS (WITH OPTIONAL FOOTSWITCH ONLY)
• ENCLOSURE CONSTRUCTION: 18 mm REINFORCED MDF
• FINISH BLACK: VINYL WRAP, BAFFLE – BLACK PAINT
• GRILLE (OPTIONAL): PERFORATED STEEL
• HARDWARE: EVA ISOLATION PAD
• DIMENSIONS (H X W X D): 16.375” (416 mm) x 23.875” (606 mm) x 14.375” (365 mm)
• WEIGHT: 62.5 Lb. (28.3 kg.)

Manual
