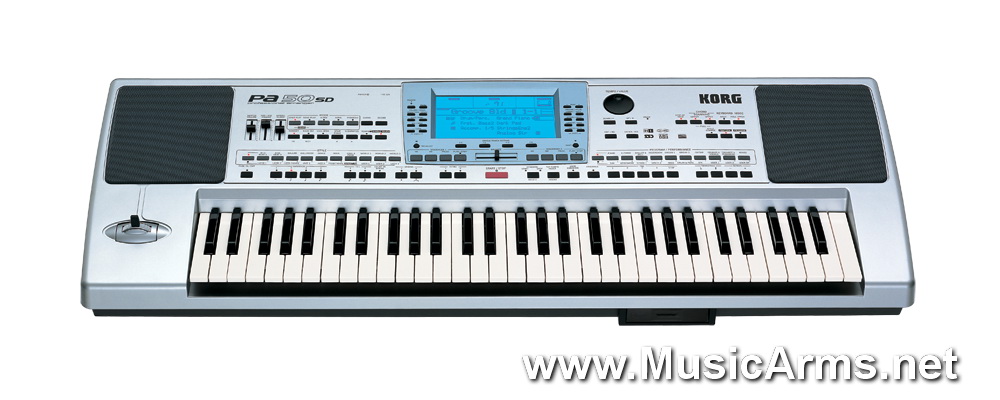

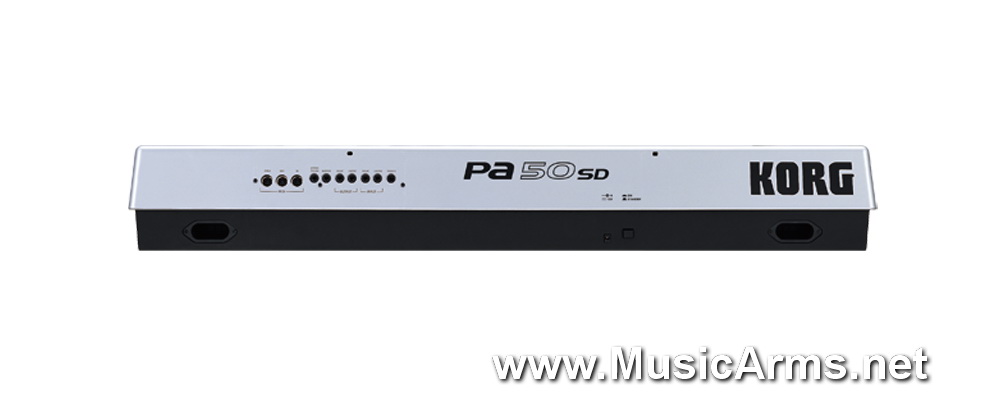

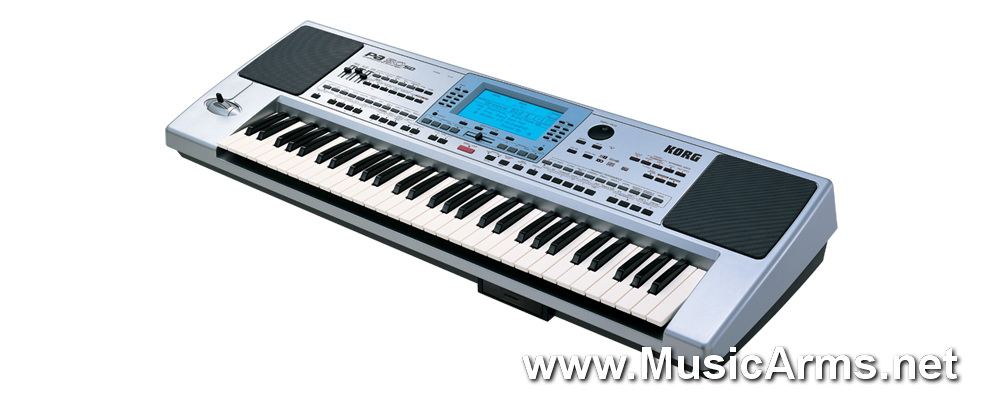

Korg PA50 SD

Based on the TRITON synth engine the Pa50SD sound quality is second to none! Included with its 660 editable sound programs is a set of very expressive solo instruments, sampled with a natural vibrato. Four studio-quality effect processors are available and feature 89 different effect types. Four assignable pads, an assignable footswitch, the joystick, sync start, fade in and out, tap tempo, accompaniment reset and other front panel functions are available at your fingertips.

Keyboard:
6 notes with velocity

System:
OPOS Objective Portable Operating System: Multitasking System, load while playing feature. Upgradeable Operating System. SSD Solid State Disk.

Tone generator:
HI synthesis (Hyper Integrated synthesis system)
62 voices, 62 oscillators
Filters with resonance.

Waveform Memory:
32 Mbyte PCM ROM (with Stereo Piano Sound).

Effects:
4 stereo digital Multi-Effect systems (90 effect types).

Programs:
More than 660 programs (including GM level 2 programs).
32 drum kits.
28 user programs + 64 user drum kits.

Styles:
Up to 304 Styles in Solid State Disk (256 preload +48 User).
All reconfigurable; 8 accompaniment tracks.
All Style Performances are programmable (includes 4 Single Touch Settings for each style).

Styles Controls:
4 Variations
2 Fills
2 Intros
2 Endings
Count In/Break
Synchro Start/Stop
Tap Tempo/Reset
Fade In/Out
Bass Inversion
Manual Bass
Tempo Lock
Memory
Accompaniment Volume
Accompaniment Mute
Drum Mapping
Snare & Kick Designation
Single Touch

General Controls:
Master Volume
Ensemble
Octave Transpose
Master Transpose
Split Point
Style Change
Tracks Volume
Quarter Tone Function
Programmable Slider
Joystick
Dial

Multi PAD:
4 assignable pads + Stop button.

Performance:
60 real-time Performances + up to 304 Styles Performances

Song Play:
XDS* Crossfade Dual Sequencer player 2 Sequencers with separate Start/Stop,
Pause, << Rew and >> FF controls.
Balance control. Lyrics are displayed on-screen.
Jukebox Function.
SMF Direct Player (format 0 and ).

Song /Backing Sequence:
Easy record 6 tracks SMF format.

Control Inputs:
Damper Pedal, Assignable pedal/switch.

MIDI:
In, Out, Thru.

Data Storage:
SD (Secure Digital) data cards.

Display:
Backlit custom LCD.

Options:
EXP-2 Foot Controller, XVP-0 Exp/Volume Pedal,
PS- Footswitch, DS-H Damper Pedal

Main Amplifier:
2×5 Watt

Speakers:
2 dual cone speakers
(in Bass Reflex Box- Auto Loudness control).

Audio Outputs:
Left/mono, Right.

Audio Inputs:
Left/mono, Right.

Power Consumption:
26 Watts

Dimensions:
4.5 W x 5.47 D x 5.9 H

Weight:
24.8 lbs
