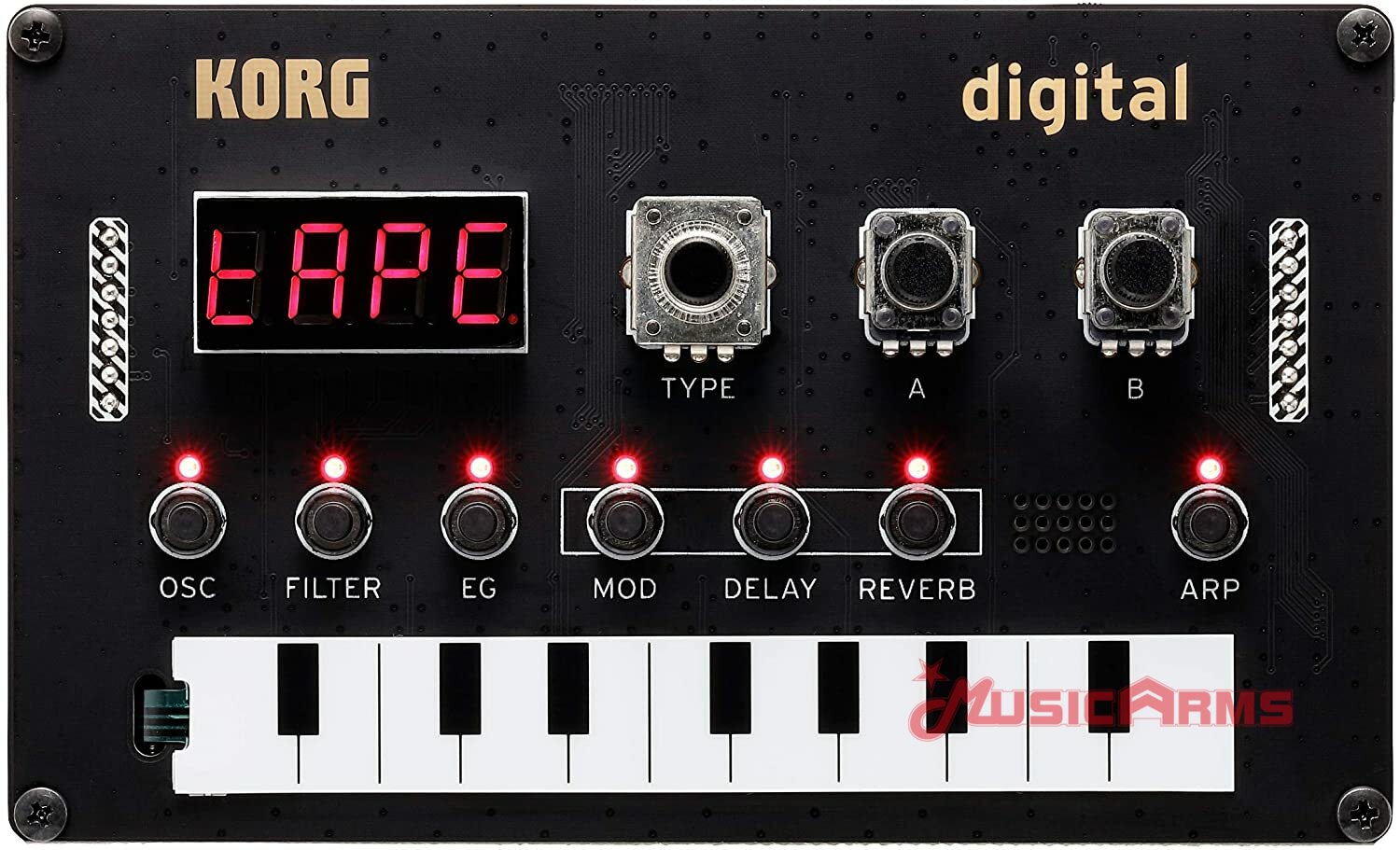

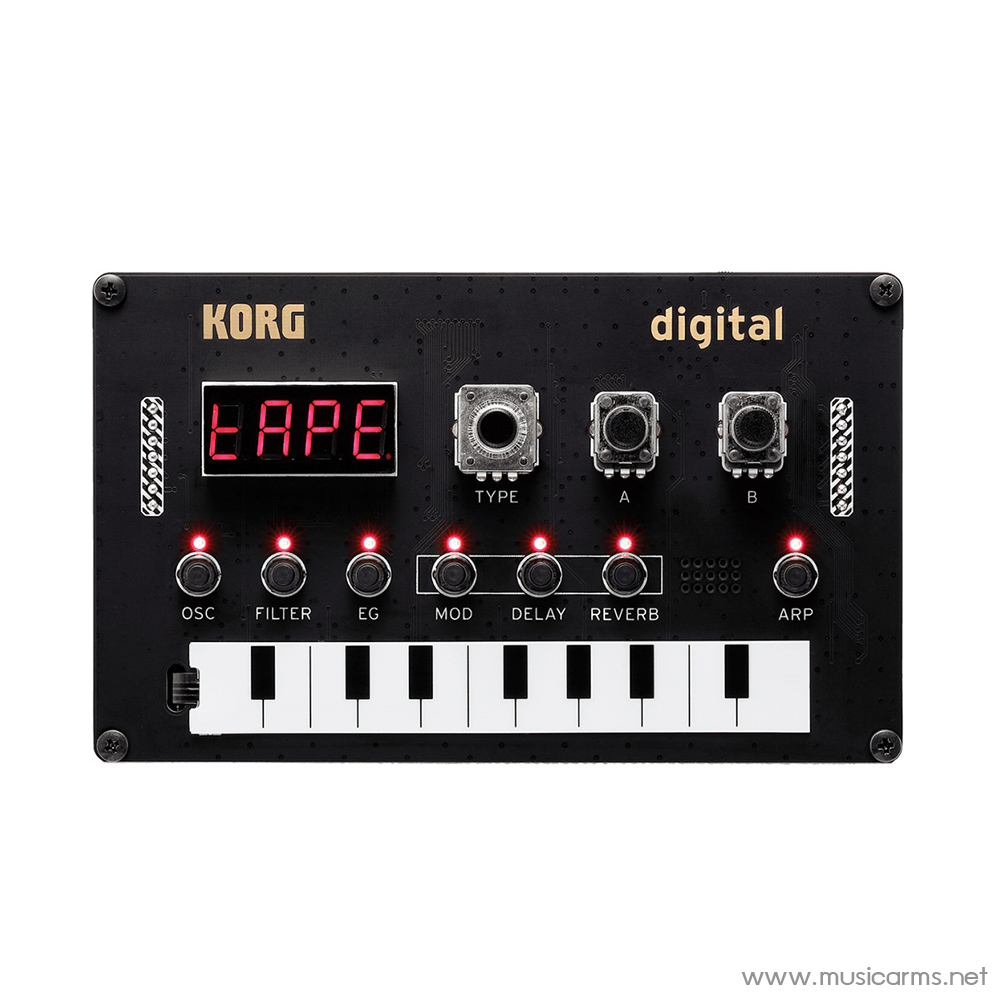

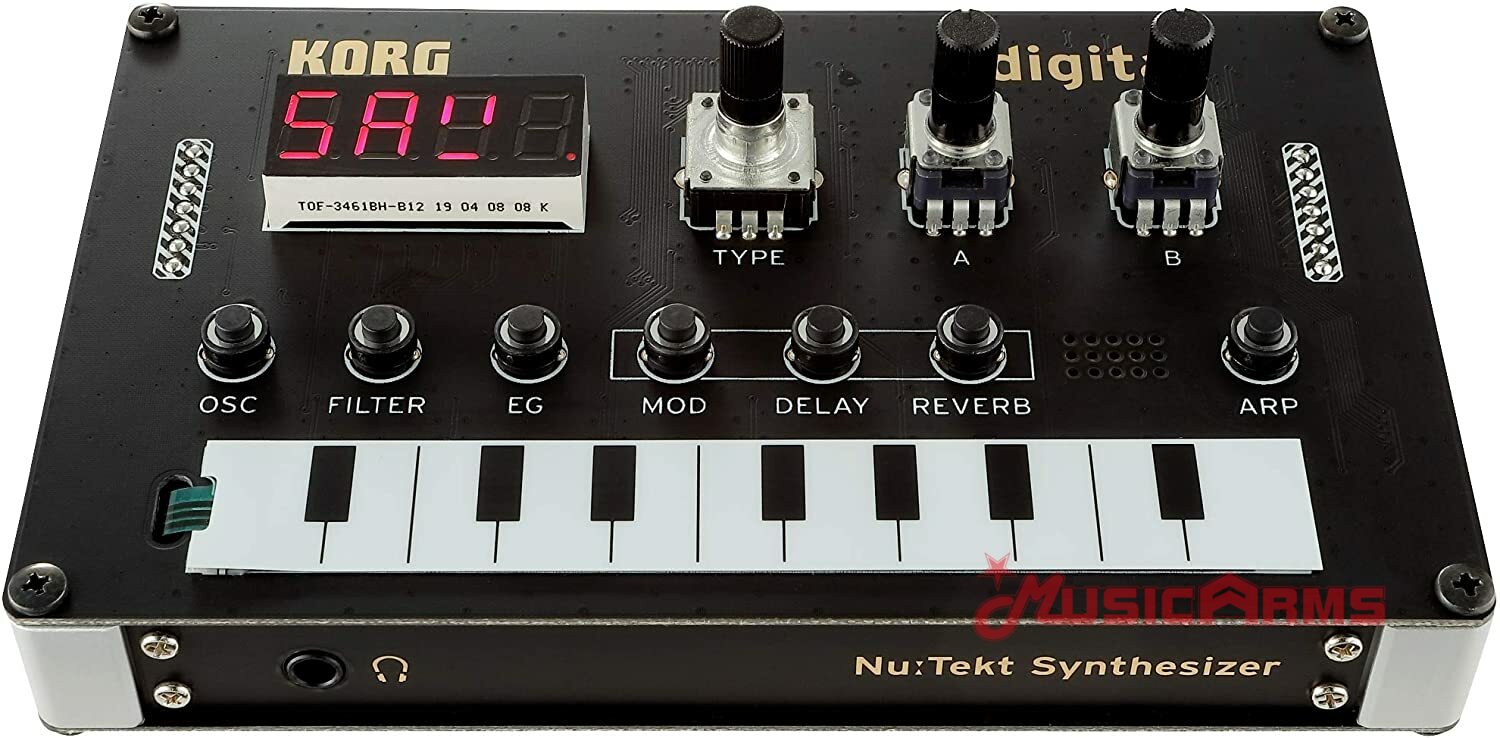

KORG NTS-1 DIGITAL KIT

Build Your Own Portable Synth Module

Have you built your own synthesizer yet? With the Korg Nu:tekt NTS-1 Monophonic DIY Synth Kit, there’s no excuse not to! It’s easy to assemble with the included tool, no soldering required. It’s based around a monophonic synth and multi-effects engine, complete with audio input, Sync I/O, and MIDI input for integrating with the rest of your gear. Best of all, the Nu:tekt NTS-1 is compatible with Korg’s logue-SDK, allowing you to run custom oscillator and effects content. Whether you were a fan of Korg’s monotron synth modules, or are simply looking for a fun music-related DIY project, Sweetwater can highly recommend the Korg Nu:tekt NTS-1 for adventurous synthesists.

Synth and multi-effects in a pocket-sized module

Derived from Korg’s minilogue XD and Prologue synthesizers, the Nu:tekt NTS-1 Monophonic DIY Synth Kit packs big sound into an ultra-portable format. It basically packs the digital oscillator and multi-effects engine from these flagship synths, and even supports custom content created for minilogue XD and Prologue. For a pocket-sized module, Nu:tekt NTS-1 offers big customization potential.

Korg Nu:tekt NTS-1 Monophonic DIY Synth Kit Features:

• Build-your-own synthesizer kit with included assembly tool
• No soldering required

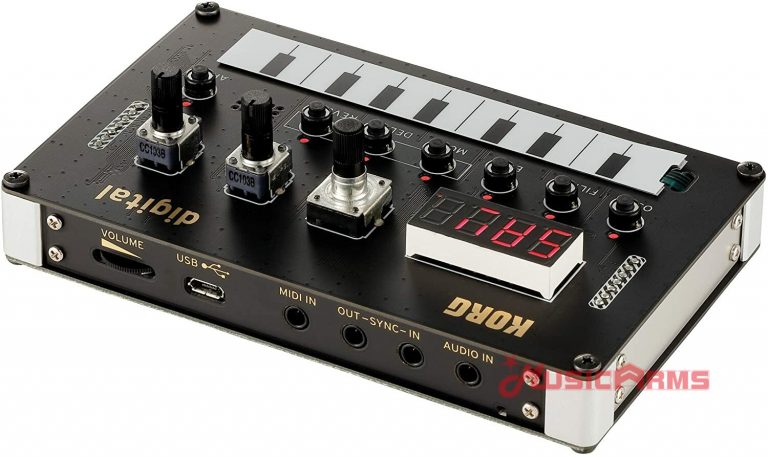

• Connectivity for audio input, headphone output, Sync I/O, MIDI In, and USB for power
• Derived from minilogue XD and Prologue synthesizers, can load custom content created for them
• Synth engine features one digital oscillator, one multimode filter, one envelope generator, and three LFOs
• Effects engine features chorus, ensemble, phaser, flanger, delay, and reverb
• Includes synth kit, screwdriver, USB cable, and owners manual

Tech Specs

• Type: Ribbon Keyboard Synth Kit
• Analog/Digital: Digital
• Type of Keys: Ribbon Strip with 18 keys
• Polyphony: Monophonic
• Oscillators: 1 x Digital Oscillator
• Waveforms: Sawtooth, Triangle, Square, VPM (virtual phase modulation)
• Envelope Generator: 1 x EG
• LFO: 3 x LFO
• Filter: 1 x Multimode Filter (lowpass, bandpass, highpass, open)
• Effects Types: Reverb, Modulation, Delay
• Arpeggiator: Yes
• Analog Inputs: 1 x 1/8″ (audio in)
• Headphones: 1 x 1/8″
• MIDI I/O: 1 x 1/8″ (in)
• Other I/O: 1 x 1/8″ (sync in), 1 x 1/8″ (sync out)
• USB: 1 x Micro-B
• Power Supply: USB bus powered
• Power Usage: 500mA
• Height: 1.54″
• Width: 5.08″
• Depth: 3.07″
• Weight: 4.37 oz.
