Korg MS-20 Kit

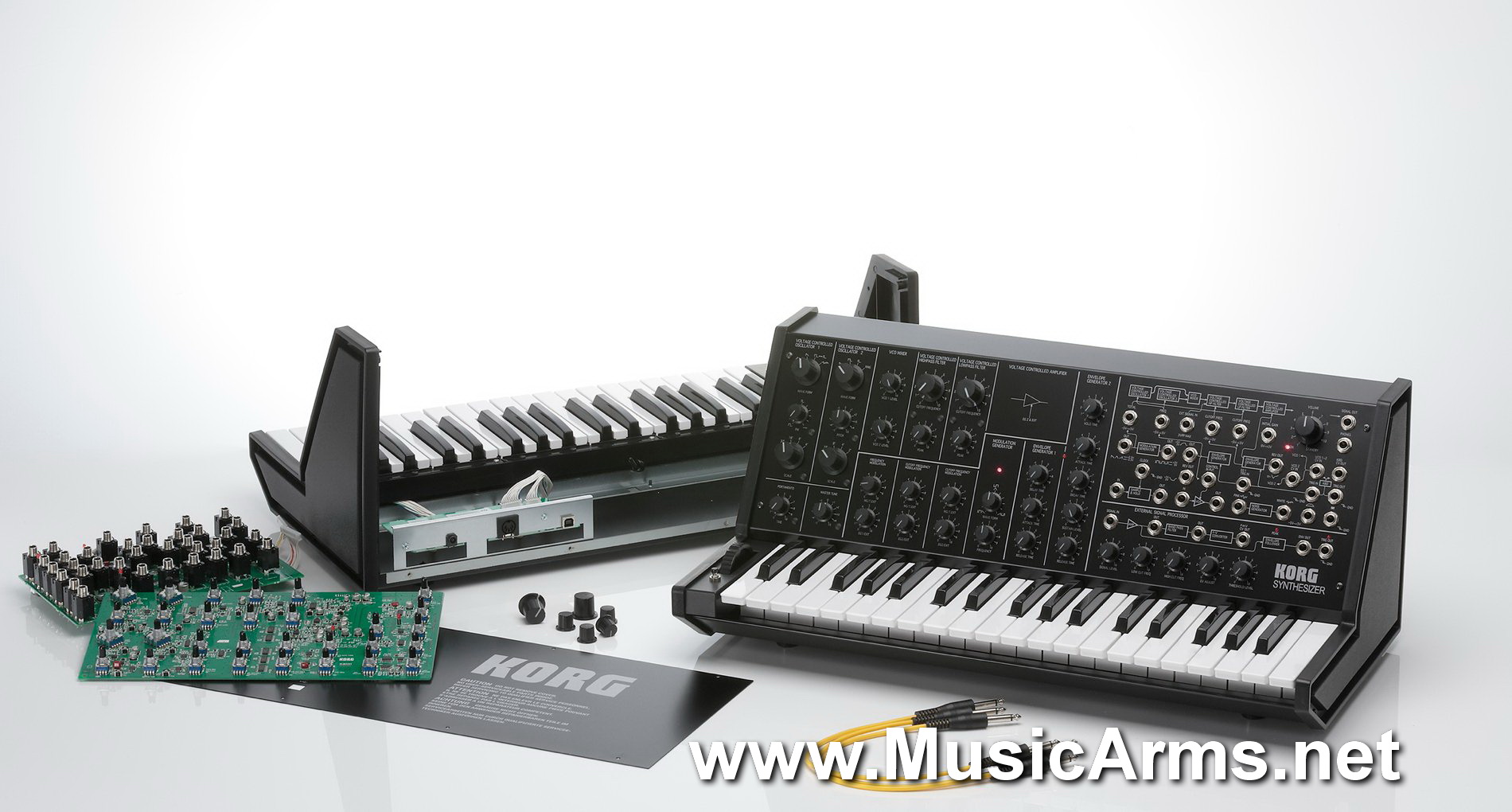

Creating an instrument with your own hands is part of the true enjoyment of this analog synthesizer. The MS-20 Kit lets you obtain a real, full-sized MS-20 by assembling it yourself. It goes without saying that, just like the MS-20 mini released in January 203, the engineers who developed the original MS-20 have overseen this project – ensuring that its historic sound is reproduced with complete fidelity.
In addition, the MS-20 Kit provides the filters from both the early and late versions of this classic instrument and it even allows you to switch between them.
Today, 36 years after this historic instrument was first unveiled in 978, the MS-20 returns to its true origin.
– A full-size MS-20 that you can assemble yourself
– Both the early and late versions of the filter are provided
– Overseen by the engineers of the original MS-20;
– a complete replication of the original analog circuitry:
– 2VCO / 2VCA / 2VCF / 2EG / LFO structure
– External signal processor (ESP)
– Extremely flexible patching system
– MIDI IN and USB connector
– Powered by an AC adapter
– Replicates every detail of the original, down to the package binding and the included -manual

SPECS

Keyboard
C C: 37-key (3 octaves)

Main Controller:
Control wheel (center click)
Momentary switch –>GND

Input/Output
Signal input (Monoral Phone Jack), Signal output (Monoral Phone Jack, 2V p-p output impedance 3.5k ), Head phones output (Stereo Phone Jack, 33 48mW), DC2V, MIDI IN, USB(Type B)

Power Consumption:
9W

Power Supply:
DC2V

Dimensions:
(W x D x H)
573 36 248 mm / 22.56 x 2.44 x 9.76 inches

Weight:
6.3 kg / 3.89 lbs.

Accessories:
AC adaptor (2V/.5A), Patch Cord x 0

Specifications in details

Control Section

. Keyboard
: C C 37Keys(3 octaves)

2. Voltage Controlled Oscillator (VCO )
: Scale (32′, 6′, 8′, 4′) (6 octaves, +cent, -cent)
: Wave form(Triangle, Sawtooth, PW-Square, White Noise) (4 modes)
: Pulse width adjust : :infinity

3. Voltage Controlled Oscillator 2 (VCO 2)
: Scale (6′, 8′, 4′, 2′) (6 octaves, +cent, -cent)
: Wave form(Sawtooth, Square, Pulse, Ring modulator) (4 modes)
: Pitch( octave)

4. VCO Master control : Master tune( 00cent)
: Portamento(max. 0sec)
: Frequency modulation intensity by MG/T.EXT(-5V +5V)
: Frequency modulation intensity by EG/EXT(-5V 0V)

5. VCO Mixer
: VCO Level
: VCO 2 Level

6. Voltage Controlled High Pass Filter (VCF HPF)
: Cutoff frequency(50Hz 5,000Hz)
: Peak(flat self OSC)
: Cutoff frequency modulation intensity by MG/T.EXT(-5V +5V)
: Cutoff frequency modulation intensity by EG2/EXT(-5V +5V)

7. Voltage Controlled Low Pass Filter (VCF LPF)
: Cutoff frequency(50Hz 5,000Hz)
: Peak(flat self OSC)
: Cutoff frequency modulation intensity by MG/T.EXT(-5V +5V)
: Cutoff frequency modulation intensity by EG2/EXT(-5V +5V)

8. Envelope Generator
: Delay time(0sec)
: Attack time(0sec)
: Release time(0sec)

9. Envelope Generator 2
: Hold time(20sec)
: Attack time(0sec)
: Decay time(0sec)
: Sustain level(0V 5V)
: Release time(0sec)

0. Modulation Generator (LFO)
: Wave form(Negative Sawtooth Triangle Positive Sawtooth, Wide Pulse Square Narrow Pulse)
: Frequency(0.Hz 20Hz)

. Manual controller
: Cntrol wheel(center click)
: Momentary switch –>GND

2. Power switch and Volume
: Volume

3. Indicator
: LED(KBD trigger, Modulation Generator rate, Power ON)

External Signal Processor

. Control section
: Input signal level
: Low cut frequency(50Hz 2,500Hz)
: High cut frequency(00Hz 5,000Hz)
: CV adjust
: Threshold level

2. Input and Output
: Signal In
: Amplifier Out
: Band pass filter Out
: CV Out(0 +8.4V)
: ENV Out(0 +5V)
: Trig Out(+5V–>GND)

3. Indicator(LED)
: Peak indicator
: Trigger indicator

Patch Panel

. Keyboard
: Keyboard control voltage output(Exponential) (0 – +8V)
: Keyboard trigger output(+5V–>GND)
: VCO- + VCO-2 control voltage input(Linear response)(0 – +8V)
: VCO-2 control voltage input(Linear response) (0 – +8V)

2. VCO
: VCO- + VCO-2 external frequency control input(OCT/V)(-5V – +5V)

3. VCF
: External signal input(3Vp-p max.)
: External High pass filter cutoff frequency control input(2OCT/V)(-5V – +5V)
: External Low pass filter cutoff frequency control input(2OCT/V)(-5V – +5V)

4. VCO + VCF
: Total external modulation input(T.EXT)(-5V – +5V)

5. VCA
: External initial gain control input(0 – +5V)

6. EG
: EG envelope signal normal output(0V – +5V)
: EG envelope signal reverse output(+5V – 0V)
: EG + EG 2 trigger input(–>GND)
: EG trigger input(–>GND)
: EG 2 envelope signal reverse output(+5V – 0V)

7. MG
: Triangle output(Negative Sawtooth – Triangle – Positive Sawtooth)(5Vp-p)
: Rectangle output(Wide Pulse – Square – Narrow Pulse)(0 – +5V)

8. Noise Generator
: Pink noise output(5Vp-p)
: White noise output(5Vp-p)

9. Sample and Hold
: Clock trigger input(–>GND)
: Sample signal input(5Vp-p max.)
: S/H output(5Vp-p max.)

0. Modulation VCA
: Control voltage input(0 – +5V)
: Signal input(-5V – +5V)
: Signal output(-5V – +5V)

. Manual controller
: Control wheel output(-5V<–0V–>+5V)
: Momentary switch output(–>GND)

2. Signal out
: Signal output(2Vp-p output impedance 3.5k )

3. Head phones
: Head phones output(33 48mW)

4. USB
: Type B, USB-MIDI Input/Output
*Only note messages (velocity is not used) can be transmitted and received.

5. MIDI
: MIDI Input
*Only note messages (velocity is not used) can be transmitted and received.

รายละเอียด

– เป็นขนาดเต็มของ MS-20 ที่ต้องมาประกอบเอง
– การควบคุม หรือ วัตถุทุกอย่างเหมือน MS-20
– หน่วยประมวลผลสัญญาณภายนอก (ESP)
– มีความยืนหยุ่นสูง
