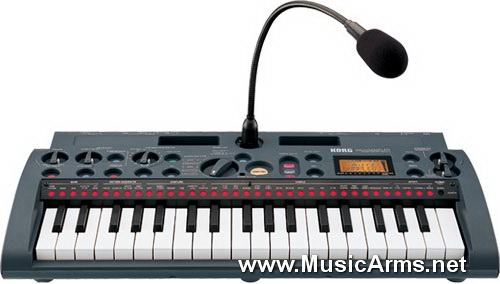

The latest addition to the Korg “micro” series serves up sampling with a powerful performance punch! The microSAMPLER delivers multi-mode sampling, resampling, Pattern Sequencing and over-the-top effects and all under a fun-to-use intuitive interface. More than just a sampler, the microSAMPLER is a complete sound design studio for creating up-to-the minute loops and phrases.
Loop sampling for recording grooves and phrases, drum loops, etc.
Gate sampling for playing a sound musically across the keyboard
USB-eautiful
Specifications
Keyboard:
37 Natural-Touch mini-keys, velocity sensing
Sampling Specs:
48 kHz: 60 seconds (mono) per bank; x 8 Banks = 2.33 minutes (max.)
24 kHz: 320 seconds (mono) per bank; x 8 Banks = 42.66 minutes (max.)
2 kHz: 640 seconds (mono) per bank; x 8 Banks = 85.33 minutes (max.)
6 kHz: 280 seconds (mono) per bank; x 8 Banks = 70.66 minutes (max.)
Sampling Rates: 48 kHz, 24 kHz, 2 kHz, 6 kHz
Bank Structure: 36 Samples per Bank (60 Seconds max.)
Available Banks: 9 Total (8 User + ROM)
Sampling Time:
Polyphony:
4 voices
Sampling Modes:
One-Shot; Gate; Loop; Key Gate; Auto-Next
Resample in any mode
Keyboard Modes:
Sampling Mode: 36 Sample Playback Keys + Audio Input
Keyboard Mode: Single sample assigned chromatically across the keyboard
Effects:
Structure: Master FX
Effect Types: 2 (Compressor, Filter, 4-Band EQ, Distortion, Reverb, Delay, L/C/R Delay, Auto-Panning
Delay, Modulation Delay, Tape Echo, Chorus, Flanger, Vibrato, Phaser, Tremolo, Ring Modulation, Grain
Shifter, Pitch Shifter, Talking Modulator, Looper)
Pattern Sequencer:
Patterns: 6 Patterns per bank; x 8 Banks
Note Count: 64,000 notes total; 6,000 per bank
Resolution: 480 ppq (parts per quarter note)

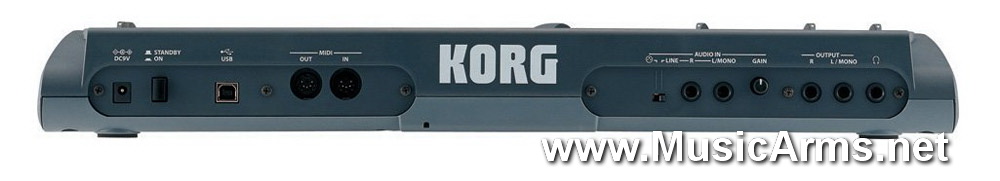

Audio Connections:
Input: ” Jack (rear); XLR Balanced (top); with Mic/Line switch; Level knob
Outputs: L/Mono, R; ” unbalanced
Phones: ” Stereo Jack
Other Connections:
MIDI: In, Out
USB: Type B
Display:
Custom LCD; 37 LEDs above keys
Power Supply:
9 VDC (AC Adapter); 6 AAA Alkaline batteries approx. 4 hours (sold separately)
Dimensions:
W x D x H: 20.3″ x 9.37″ x 2.56″
Weight: 4.9 lbs
microSAMPLER Editor Librarian Software:
Operating Requirements:
PC: Microsoft Windows XP (SP3 or later); Windows Vista (SP or later); USB port
MAC: OSX Version 0.4 or later; USB port
Korg Micro Sampler MS-1 – Korg Micro เป็นตัวใหม่เป็นซินที่มีประสิทธิภาพในการทำงาน ด้วยมีหลายโหมด เช่น resampling, Pattern Sequencing and over-the-top effects ทั้งหมดนี้ใช้งานได้ง่ายมาก และมีลูปให้อีกด้วย
