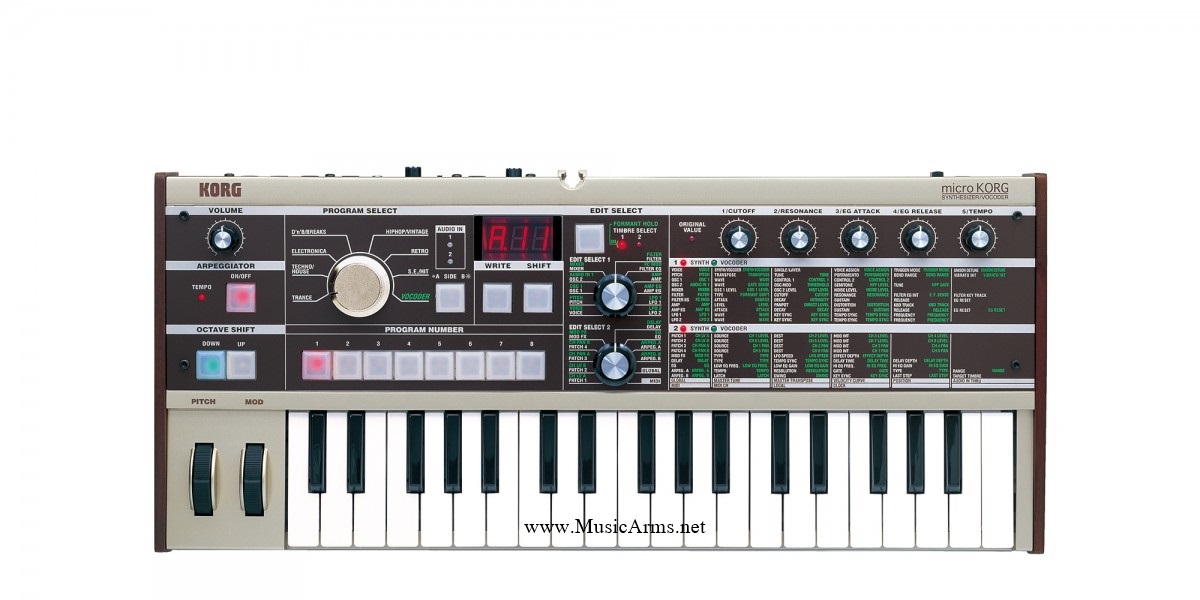

Korg microKORG

With the microKORG analog modeling synthesizer, hardware matters. The built-in vocoder and selectable-step arpeggiator add a new dimension to performing and recording without the need to master new technologies. External sounds can be processed by the microKORGs filter and more. With dedicated knobs and an index to the sound-editing parameters available on the front panel, microKORG allows each player to go as deep into the sound engine as desired. But for many musicians, just choosing the sounds from the convenient categories provides instant satisfaction.

Sound Generation Method:
Analog Modeling Synthesis System

Synthesizer Program:
Multi Timbral:
2 (max, Normal/Dual Mode)

Voices:
4 voices

Sound Source:
2 Oscillator + Noise Generator
Multi Mode Filter (-24dB/oct LPF, -2dB/oct LPF/BPF/HPF)
EG x2, LFO x2, Virtual Patch x4

Vocoder Program:
Voices:
4 voices

Sound Source:
Oscillator + Noise Generator
EG x
LFO x2
8 Channels vocoder
Level and pan of each channel can be edited
Formant Shift function

General Specifications:
Programs:
28 programs

Effects:
Modulation effects (3 types)
Delay (3 types)
Equalizer

Arpeggiator:
6 types

Keyboard:
37 Keys (mini-keyboard, velocity sensitive)

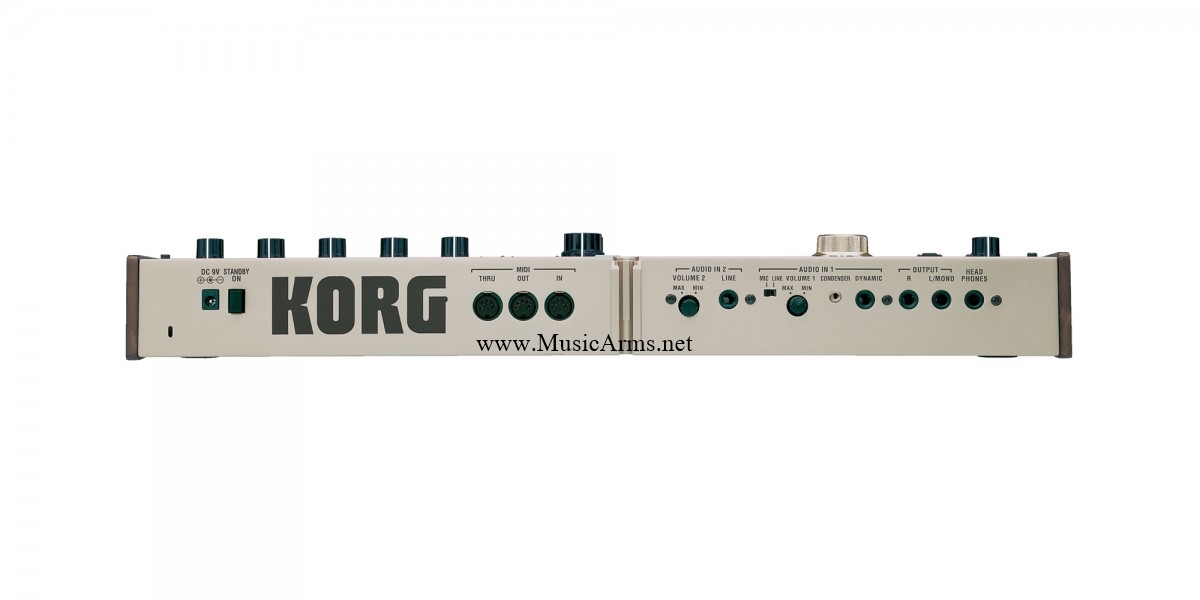

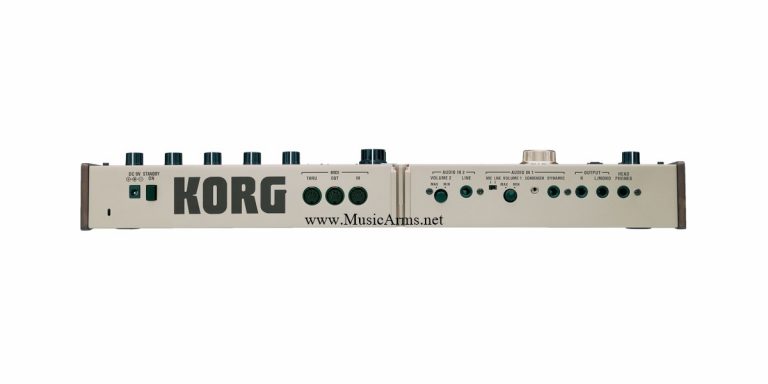

Inputs:
AUDIO IN , and 2

Level switch:
LINE/MIC
[AUDIO IN , 2 (LINE)]
[AUDIO IN 2 (MIC)]

Outputs:
L/MONO, R and Headphones

MIDI:
IN, OUT and THRU

Display:
3 characters x line with 8 segment LED

Power Supply:
DC 9 V (AC adapter), or six AA alkaline batteries (sold separately)

Power Consumption:
6.4 Watt maximum

Dimensions:
20.63″(W) x 9.3″(D) x 2.76″(H) 524mm(W) x 232mm(D) x 70mm(H)

Weight:
4.85 lbs. 2.2 kg

Accessories:
AC adapter (DC 9 V, 600 mA)

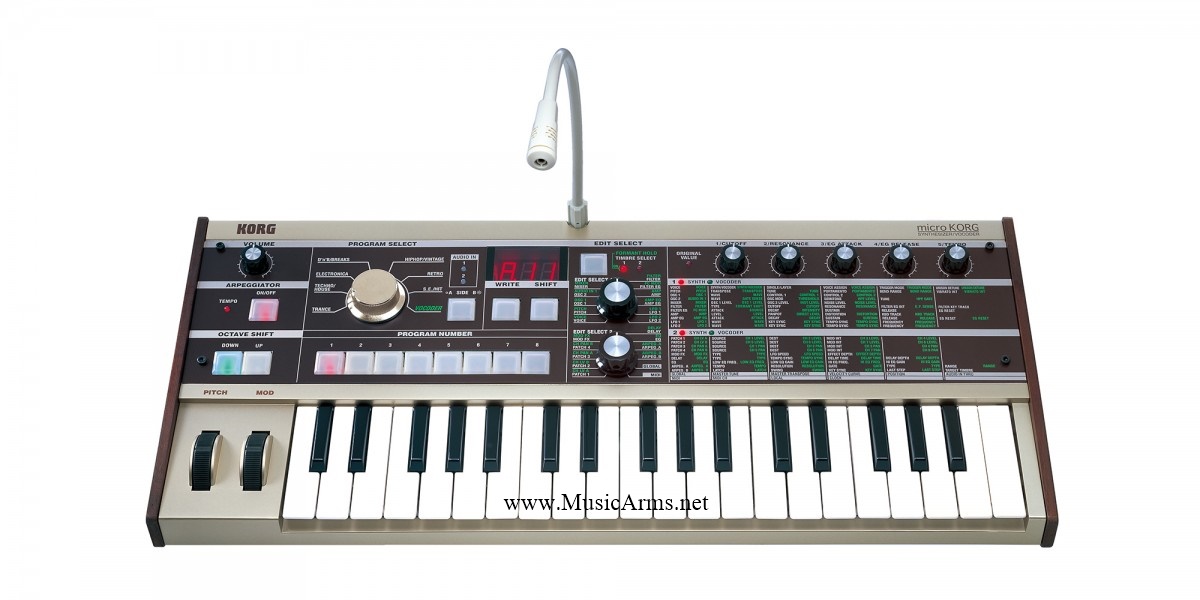

Condenser Microphone
