Korg DS DAC 100

Beautiful sound and beautiful design – DS-DAC-00

If we’re talking about beautiful sound, we also want the appearance to be beautiful.

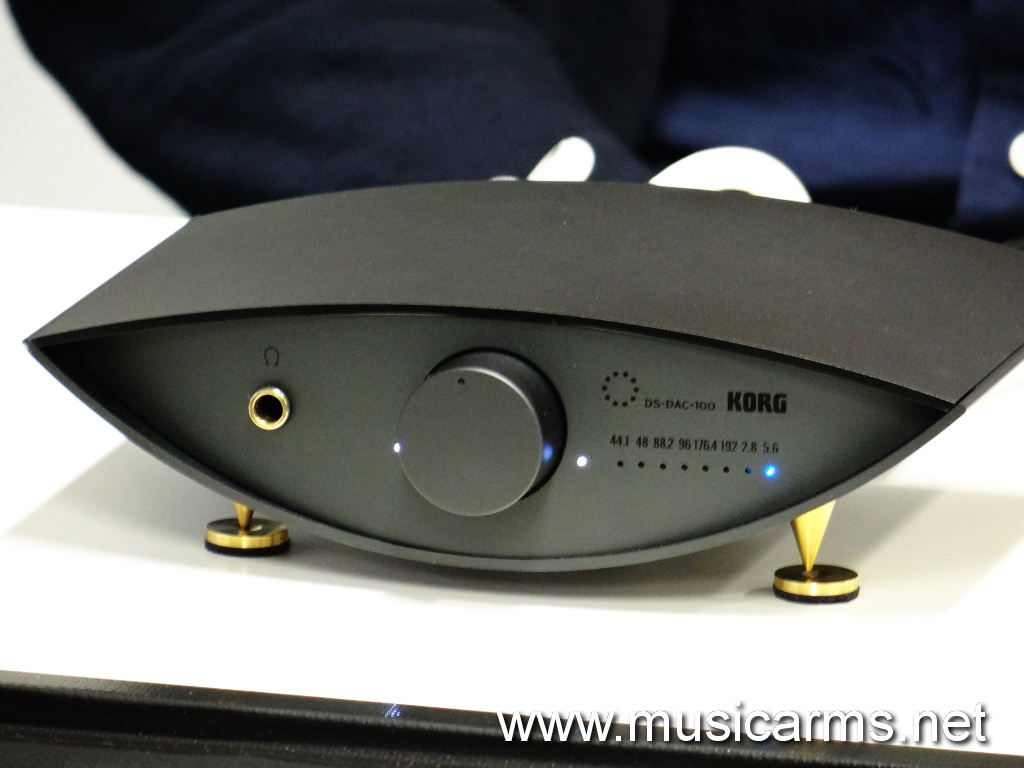

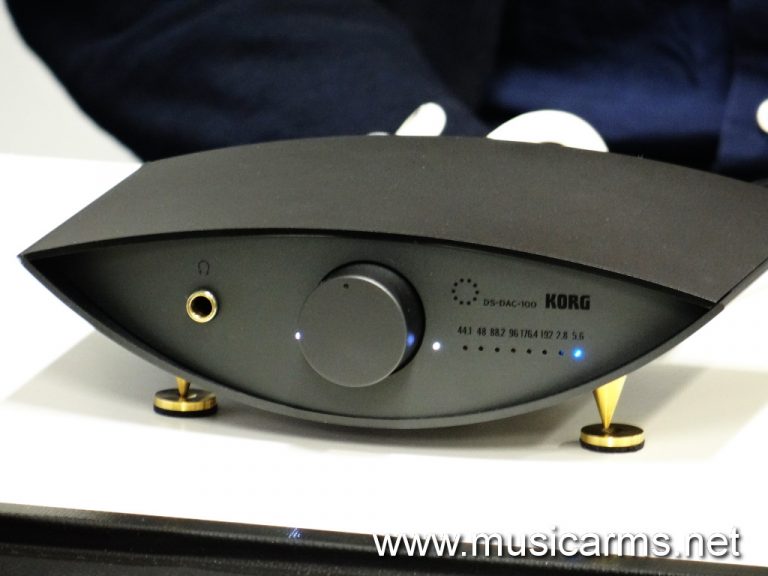

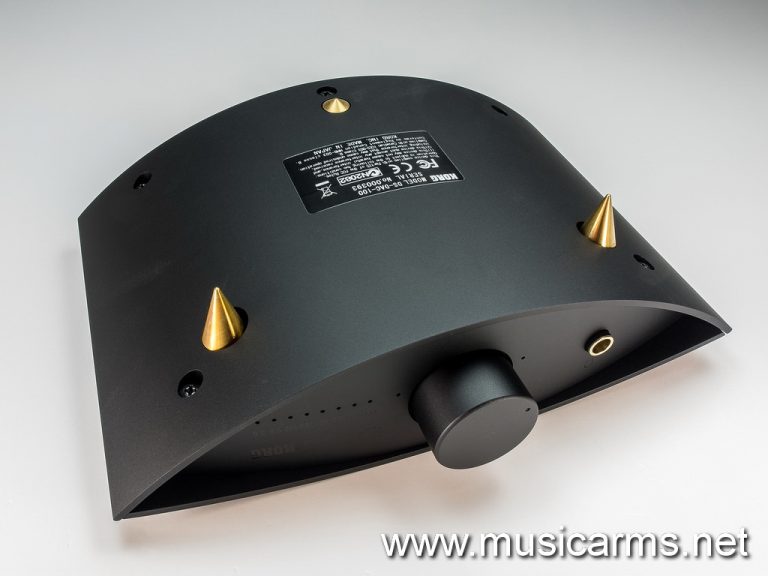

Leave behind the bustle of everyday life, and spend a holiday afternoon deeply immersed in the music you love. Audio equipment lacking a professional aesthetic is not going to transport the listener to a world that’s distant from reality. The DS-DAC00 is housed in an elegant and curvaceous body, with a simple front panel with a volume knob, LED indicators, and a headphone jack. The influence of vibration is minimized by a bottom panel with gleaming metal spiked feet (as found on other high-end audio equipment).

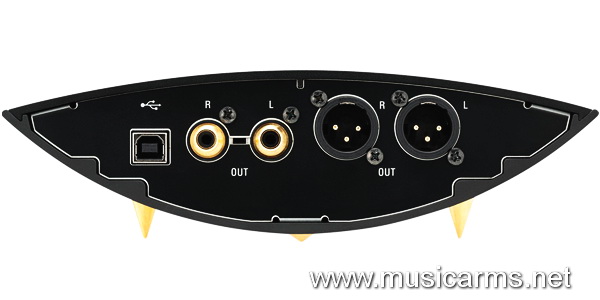

In response to numerous requests from audio aficionados and studio engineers, we’ve provided XLR connectors for balanced outputs as well as RCA outputs.

Beautiful sound and beautiful design
AudioGate 3 and the DS-DAC interfaces provide the simplest and yet most comprehensive high-quality playback system available
Realtime DSD conversion delivers optimum sound
Native DSD playback of 2.8224 MHz or 5.6448 MHz DSD files
Pro-quality hardware design that builds on the achievements of the MR series DSD recorders
Stable, dedicated Win/Mac drivers developed specifically for AudioGate 3 and the DS-DAC series
PHONON SMB-02 DS-DAC EDITION is available. — Made exclusively for the KORG bit USB DAC products —

DA Converter
Cirrus Logic CS4398

Audio Interface

Number of Channels:
2

Input Format (USB):
DSD2.8224MHz/5.6448MHzbit
PCM44.kHz/48kHz/88.2kHz/96kHz/76.4kHz/92kHz6bit/24bit

Host Interface:
USB2.0 (High Speed)

Audio Driver:
AASIO (DSD playback is supported by the DSD option of ASIO 2. and later), WDM, Core Audio

General

Indicator:
Power indicator x 2 (LED), Sampling frequency indicator x 8 (LED)

Power:
USB bus power (5V, Max: 500mA)

Power Consumption:
Max: 2.5W

Dimensions:
(W x D x H)
207 x 60 x 60.0 mm / 8.5 x 6.30 x 2.36 inches (including protrusions)

Weight:
862 g / .90 lbs.

Main Standards

Frequency Response Characteristics:
0Hz – 20kHz dB (fs=44.kHz/48kHz)
0Hz – 40kHz dB

S/N
05dB(TYP.) 20Hz – 20kHz, IHF-A

THD+N
0.005%(TYP.) 20Hz – 20kHz

LINE OUT L/R

Connector:
RCA pin Jack (unbalanced) / XLR (balanced)

Load Impedance:
More than 0k

Nominal Level:
-6dBV

Maximum Level:
+6dBV (0dBFS 0dB-SACD)

PHONES

Connector:
6.3mm stereo phone jack

Load Impedance:
More than 6

Maximum Level:
85mW + 85mW @32

USB (Device)

Connector:
Type B

Format:
USB 2.0 compliant high-speed

Accessories:
USB cable, Spike mount x3

Options:

Headphone
PHONON SMB-02 DS-DAC EDITION

* “DSD” is a trademark.
* All product, company, and standard names are trademarks or registered trademarks of their respective holders.
* Appearance and specifications of products are subject to change without notice.

รายละเอียดของ Korg DS DAC 100

– ให้เสียงที่ไพเราะและรูปแบบที่สวยงาม
– มีระบบ AudioGate 3 และอินเตอร์เฟซ DS-DAC
– ระบบ DSD playback of 2.8224 MHz or 5.6448 MHz DSD files
– ระบบ Realtime DSD conversion delivers optimum sound
– สามารถใช้ได้ทั้ง Win และ Mac ด้วยผ่านระบบ AudioGate 3 and the DS-DAC series
