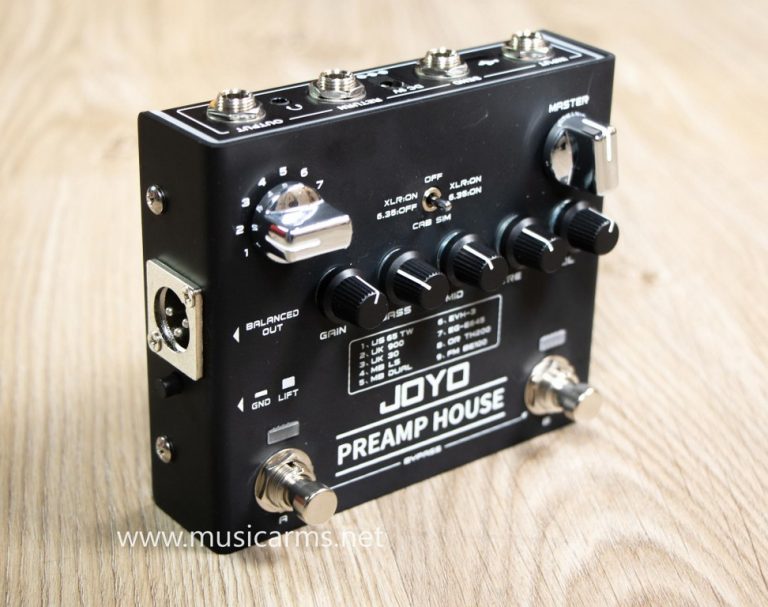

Joyo R-15 Preamp House

Joyo Preamp House 18 Guitar Amp Simulators in 1

The JOYO Preamp House delivers 9 classic guitar amp preamps in one pedal!

Turn the dial to select the amp simulation and you can switch from a vintage fendery clean to a dirty Mesa-ry drive, 9 different amps & 2 channels.

We dropped in a built in Impulse Response loaded 4 x 12 cab simulation with 3 controls to turn it off or switch it between the 6.35 out or the balanced XLR output. The Headphone out uses the cab simulation all the time.

Each preamp has 2 channels, clean / distortion and allows you to save your settings on both channels for all amps. Select between the 2 amp settings Clean or Distortion using the A & B footswitch, pressing both together will give you Bypass mode.

Select from the following Guitar PreAmp Simulations:

F 65 Twin Reverb
M JCM 900
V AC 30
MB LONESTAR
MB DUAL RECTIFIER
EVH 5150
ENG POWERBALL
OR TH 200
OR BE 100

The guitar pedal has a built in FX LOOP interface for external FX pedals so you can position your modulation, delay, reverb and Eq as you would with your classic head.

The JOYO Preamp House is a user friendly tone solution, the design is a result of 10 years of our best selling amp simulator guitar effect pedals. The JOYO AmpHouse transforms those classic & vintage guitar amp tones we crave straight onto your board and into your ears, without the expensive amp !

JOYO Amp Simulators can be used as a DI (Direct Interface) directly into a mixing console, audio recording interface, or in front of a clean amp for a tonal drive, pushing your existing amp to a whole new level.

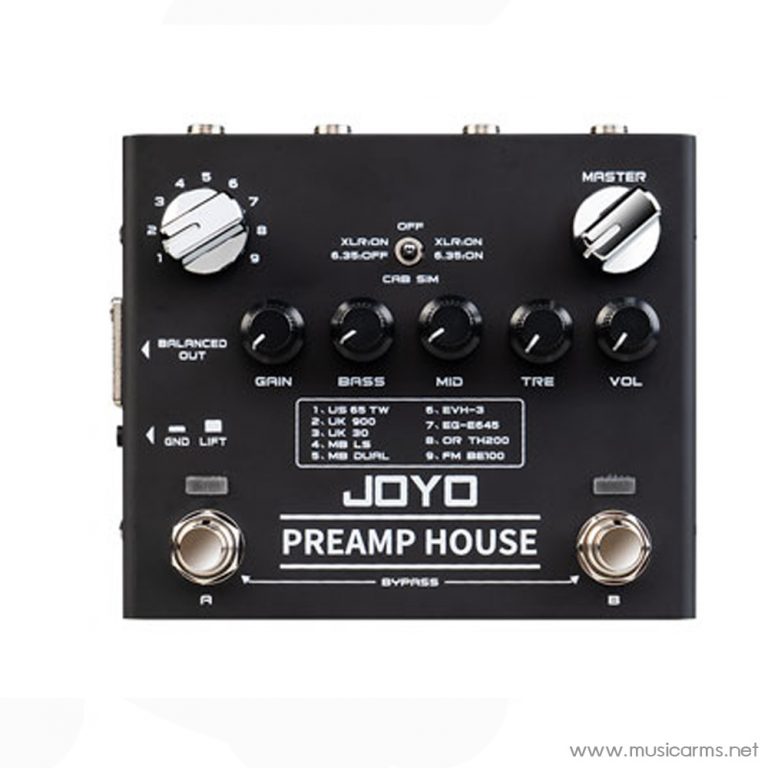

Control

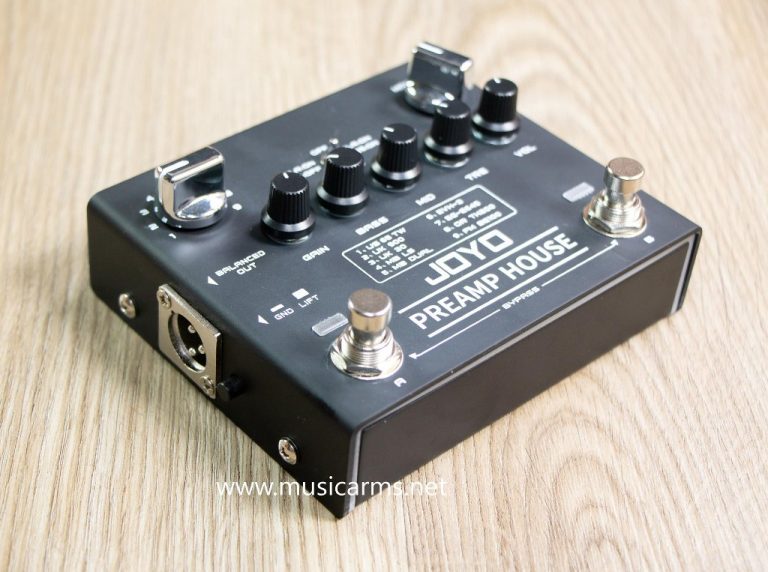

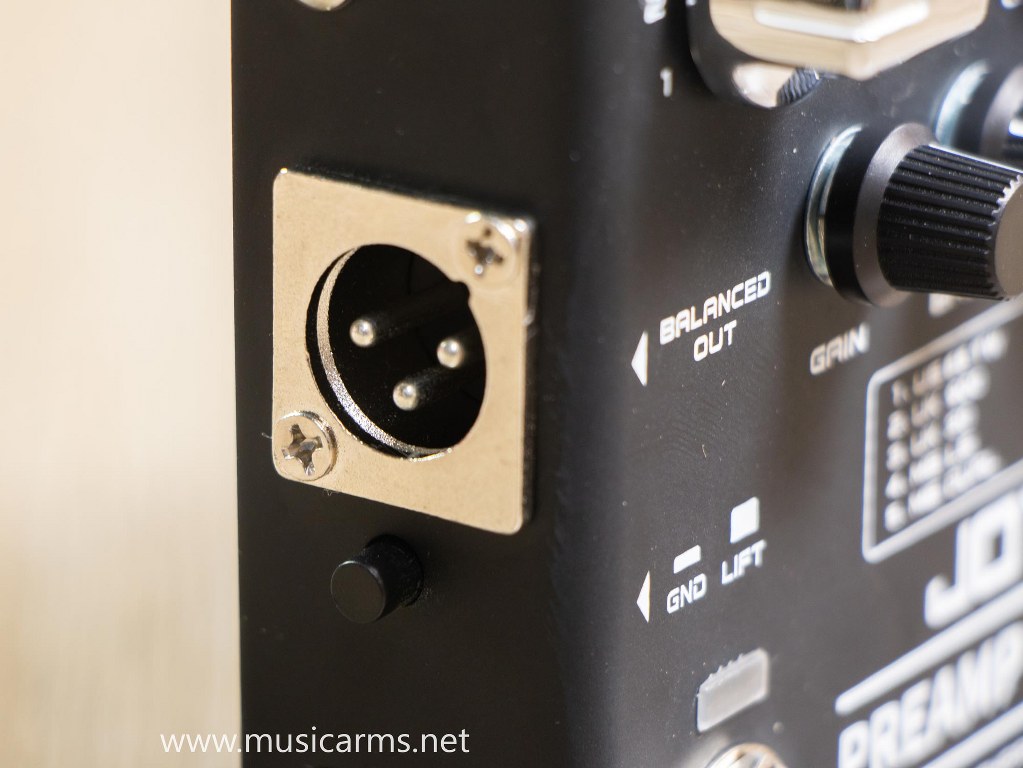

XLR Output
9 Position Amp Selector
Gain

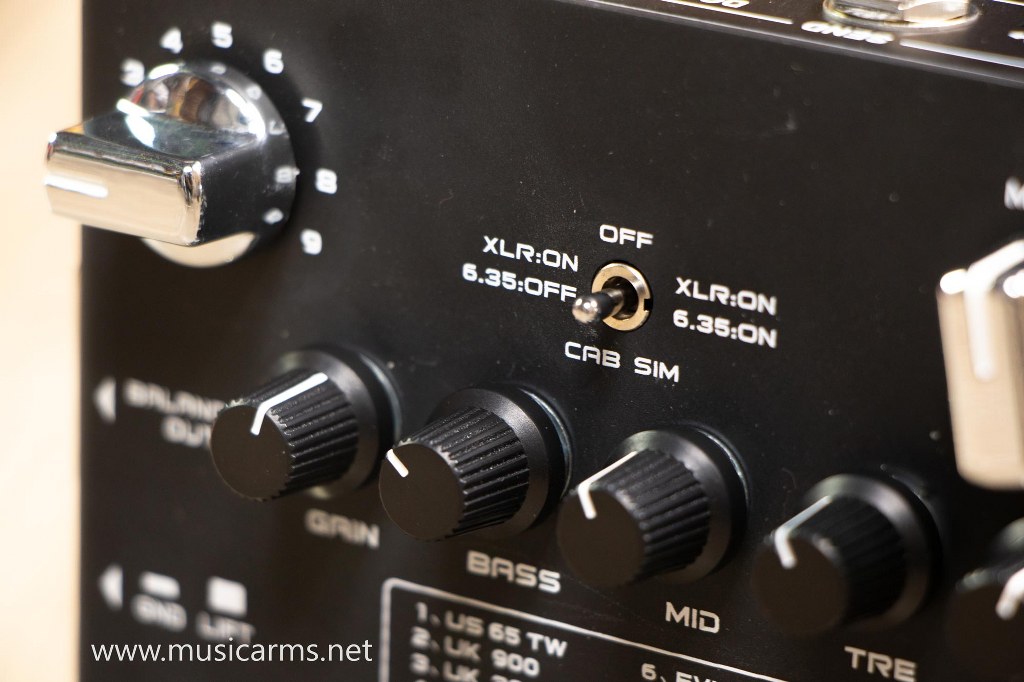

Cab Sim toggle
Treble
Master Guitar Volume
Lift Switch
Footswitch A Clean
Footswitch B Distortion

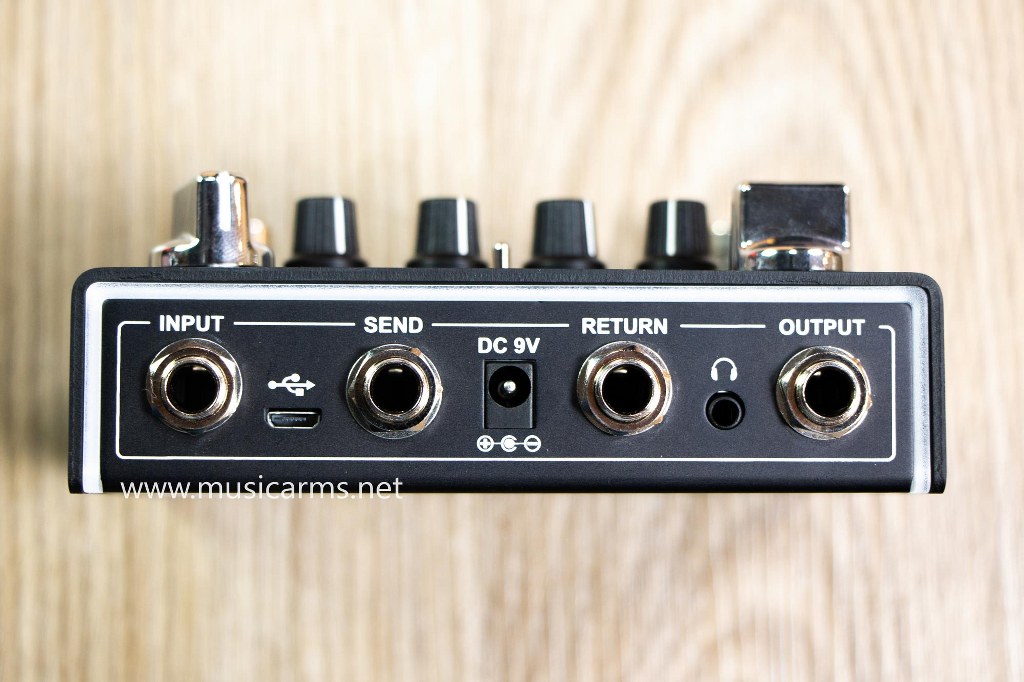

Mono Input / Output
Headphone output
USB for firmware updates.
Groovy Ambient Lighting

Specs

Dimensions: 130mm * 110mm * 50 mm
Weight:450g
Input Impedance: 1MΩ
Output Impedance: 600Ω
XLR Output Impedance: 600Ω
Sample Rate 44.1l
Sample Resolution : 24bit

Rated Current Consumption: 320mA
Delay Time: about 500ms
Working Voltage: DC 9V (center minus)

รายละเอียด Joyo R-15 Preamp House

• จำลองแอมป์ทั้งหมด 18 แบบ
• ซีเล็คเตอร์แอมป์ 9 รุ่น
• แต่ละแบบมีเสียงคลีนและเสียงแตก
• แผงคอนโทรล Tone Selection, Master, Gain, Bass, Mid, Tre, Vol
• มีปุ่ม GND/Lift
• มีสวิทช์ Cab Simulation
• มีไฟ LED บอกสถานะเอฟเฟค
• ต่อฟุตสวิทช์ได้
• ช่องต่อ XLR
• ต่อคอมพิวเตอร์ได้
• ต่อ Send/Return ได้
• กำลังไฟ 320 mA
• ใช้อแดปเตอร์ DC 9V
