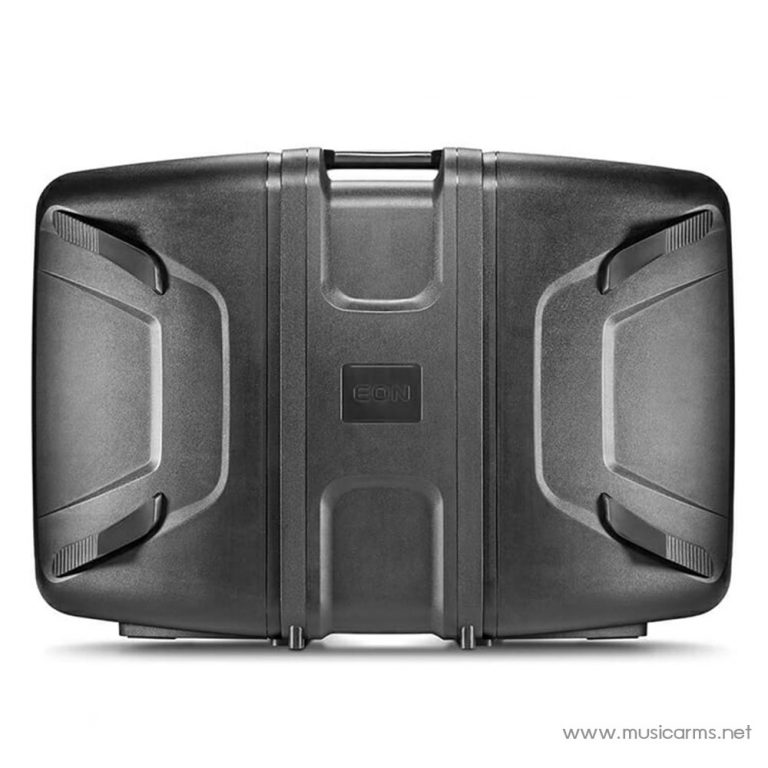

JBL EON208P ลำโพง PA

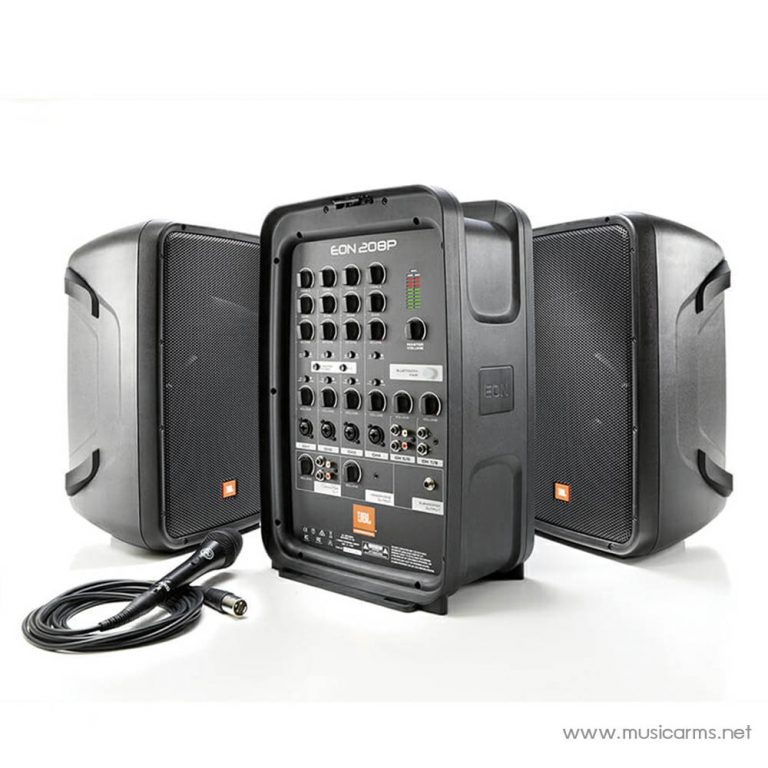

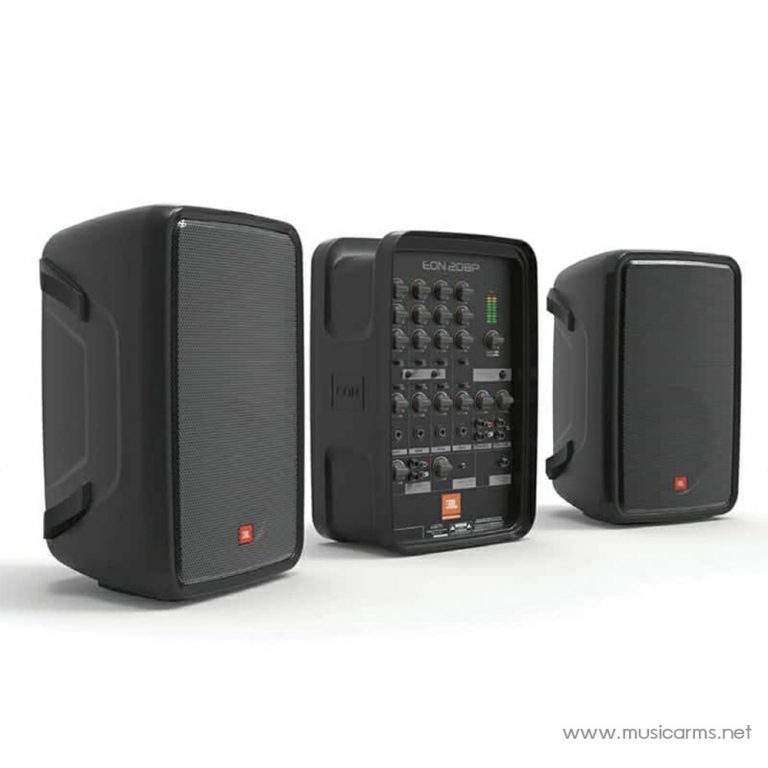

JBL EON208P Portable 8 in. 2-Way PA with 8-Channel Powered Mixer and Bluetooth

Everything You Need to Be Heard

Specification

• Dimensions (W × D × H) : 15.6 x 30.3 x 22.5 in
• System Type : Portable 2-way full-range loudspeakers with powered mixer
• Maximum SPL Output : 121 dB peak
• Frequency Range (-10 dB) : 60 Hz – 20 kHz
• Frequency Response (+/-3 dB) : 70 Hz – 18 kHz
• AC Input : 100-120 V, 220-240 V 50/60 Hz
• Amp Design : Class D
• System Power Rating : 300 W (2x 150 W stereo)
• Output Connector : 2 x 1/4″ TS (unbalanced) amplifier outputs

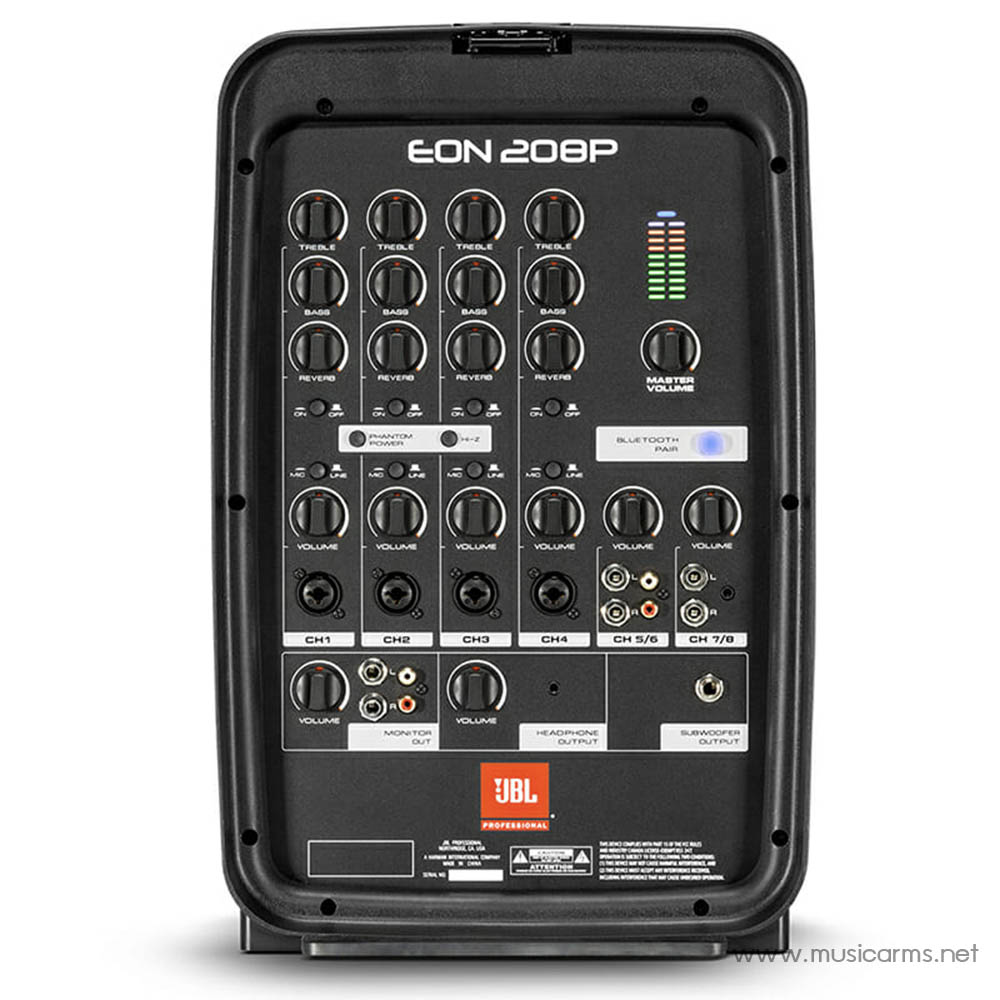

• Channels : 1-4 = XLR/1/4″ jack combo connectors, 5-6 = one pair of 1/4″ balanced TRS jacks (stereo), and one pair of RCA jacks (stereo), 7-8 = one pair of 1/4″ balanced TRS jacks (stereo), and a 3.5mm stereo jack
• Phantom Power : CH1 and CH2 have phantom power control and share the same selection switch
• Hi-Z Selection : CH3 has a Hi-Z selection switch used for guitar signal input
• Treble/Bass EQ :  Per-channel high- and low-shelf filters; +/- 12dB cut and boost
• System Limiter : On-board DSP limiting

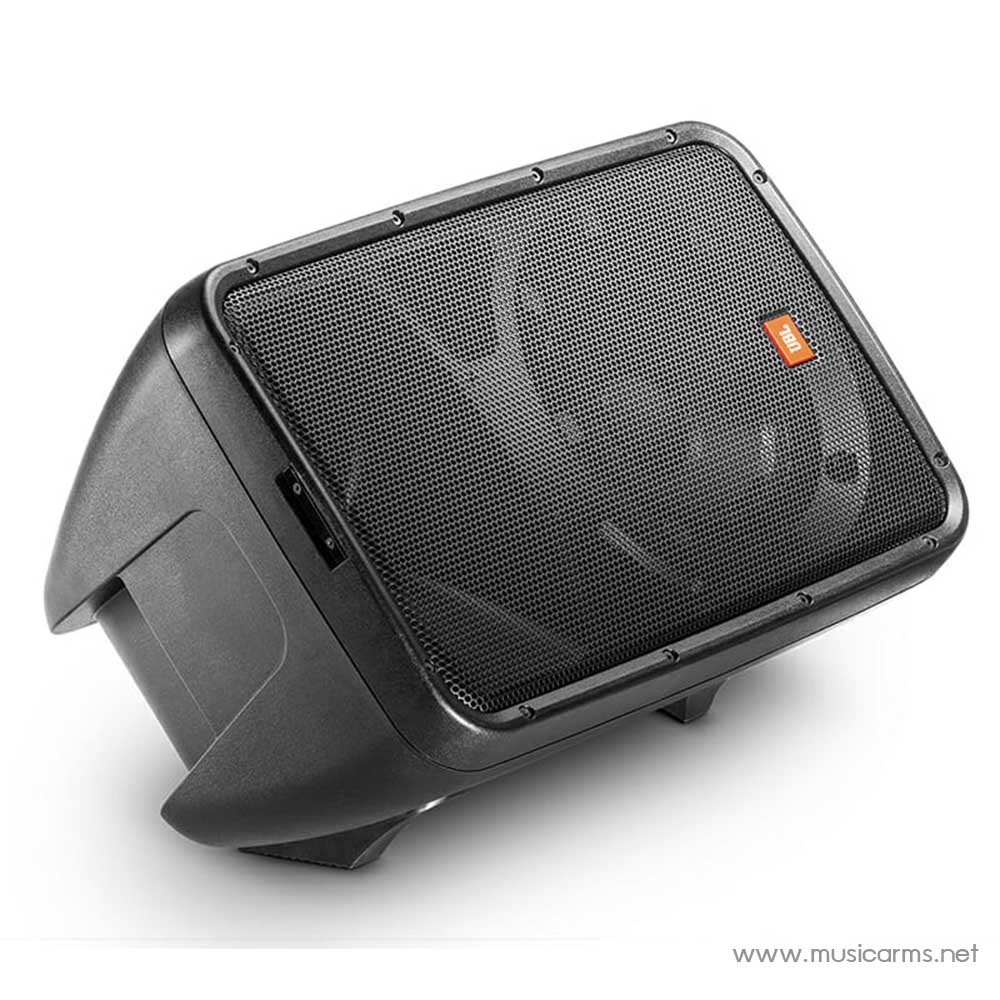

• LF Driver : 1x JBL 8″ (203mm) woofer
• HF Driver : 1x 1″ Neodymuim black aluminum dome tweeter
• Coverage Pattern : 100° horizontal x 60° vertical
• Crossover Frequency : 2 kHz
• Crossover Type : 2-way passive network, 2nd order filters (12dB cutoff per octave)
• Enclosure : Polypropylene
• Suspension/Mounting : 36 mm pole socket
• Handles : One on top
• Speaker Grille : Powder-coated perforated steel
• Shipping Package（HxWxD） : 22.6″ (575 mm) x 30.5″ (775 mm) x 15.7″ (400 mm)
• Net Weight : 38.8 lbs (17.6 kg)

Audio Specifications

• Monitor Out : one pair of RCA jacks (stereo), and one pair of 1/4″ balanced TRS jacks (stereo)
• Headphone Out : 3.5mm stereo jack
• Subwoofer Out : 1/4″ balanced TRS jack

What’s in the box?

• 1 x EON208P
• 1 x AKG microphone
• 1 x Speaker cables
• 1 x IEC Cable
