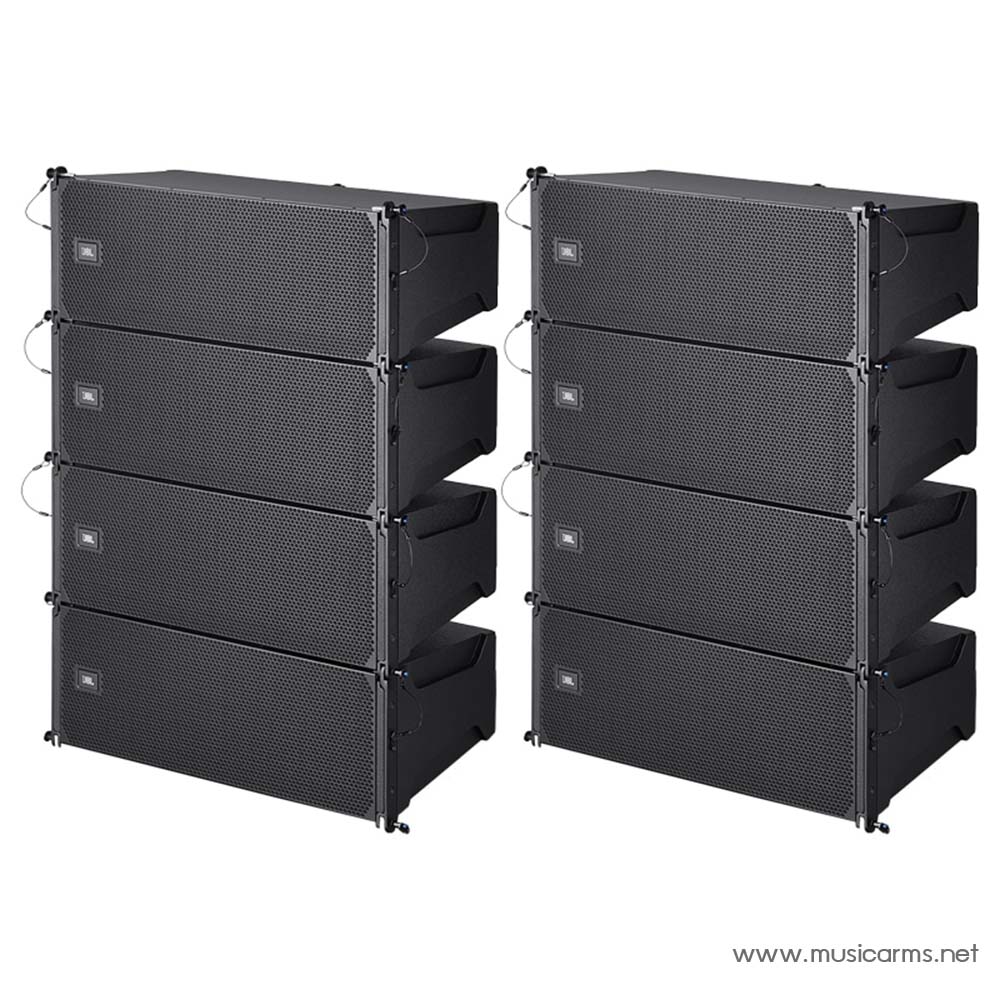

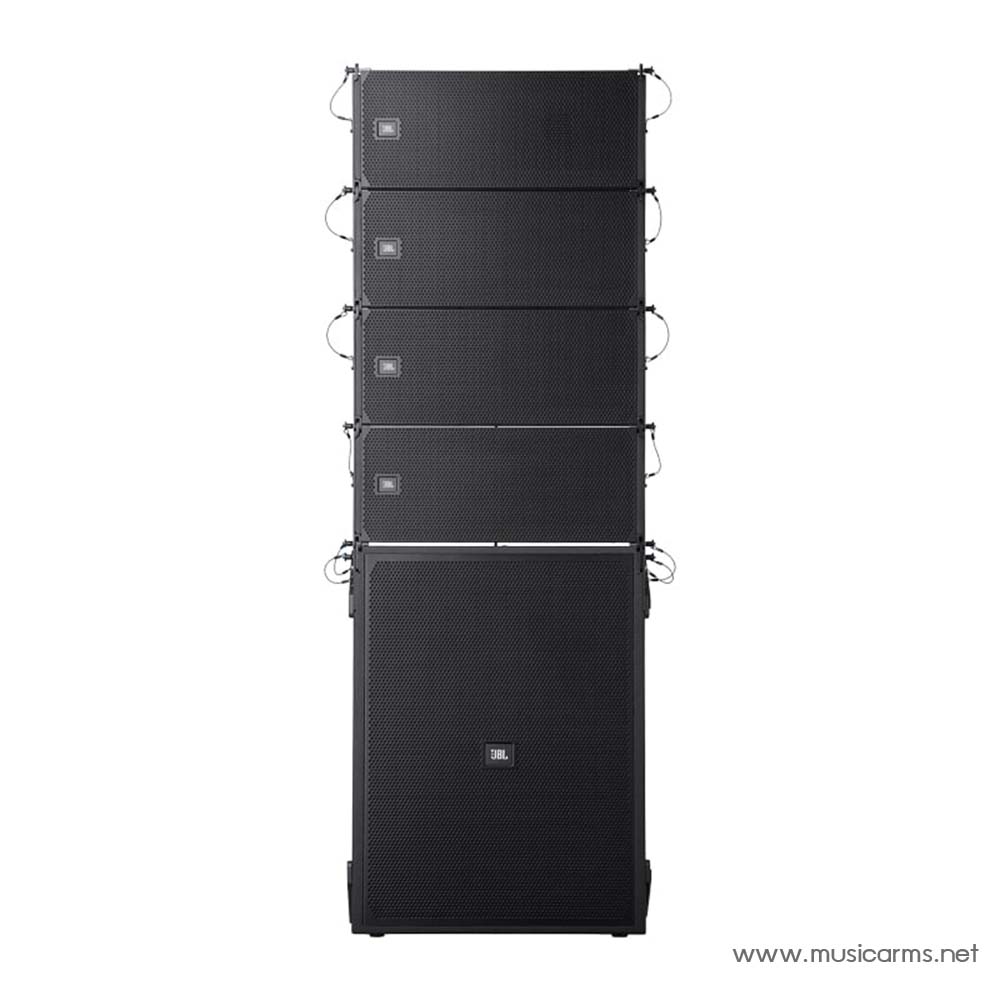

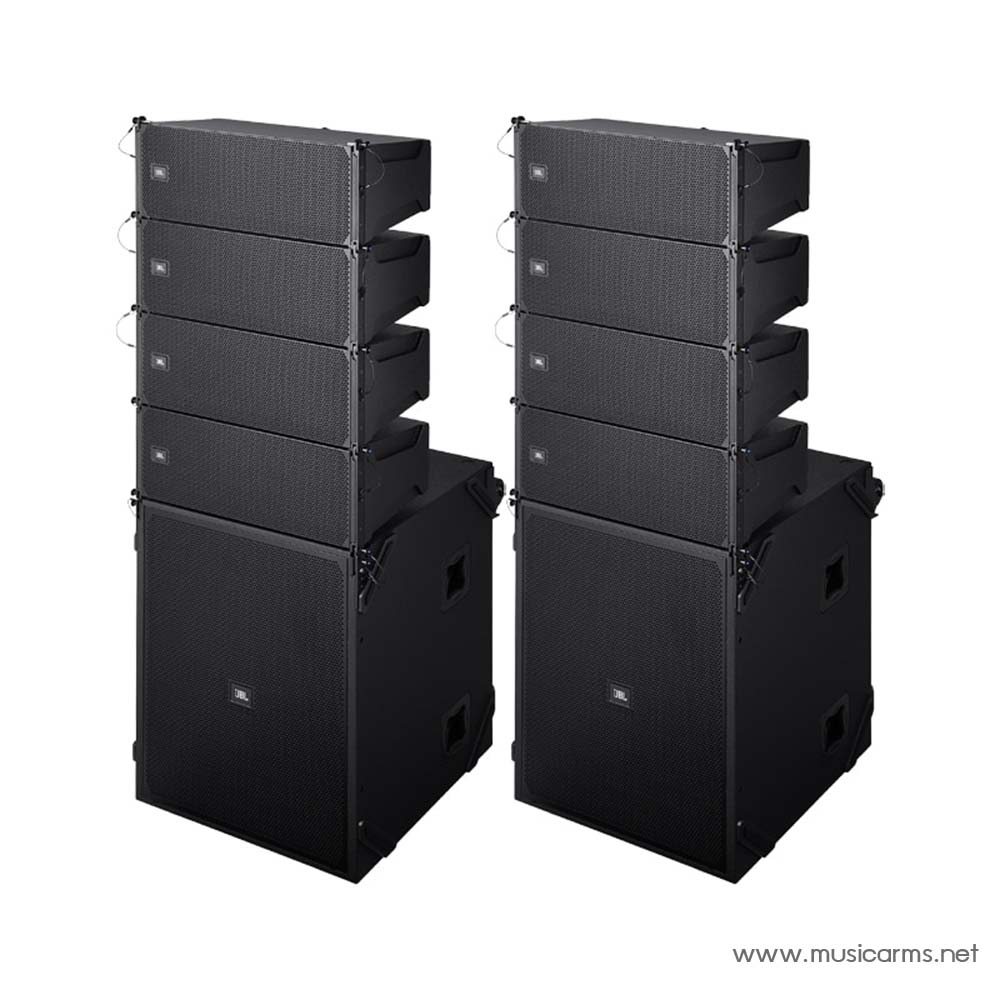

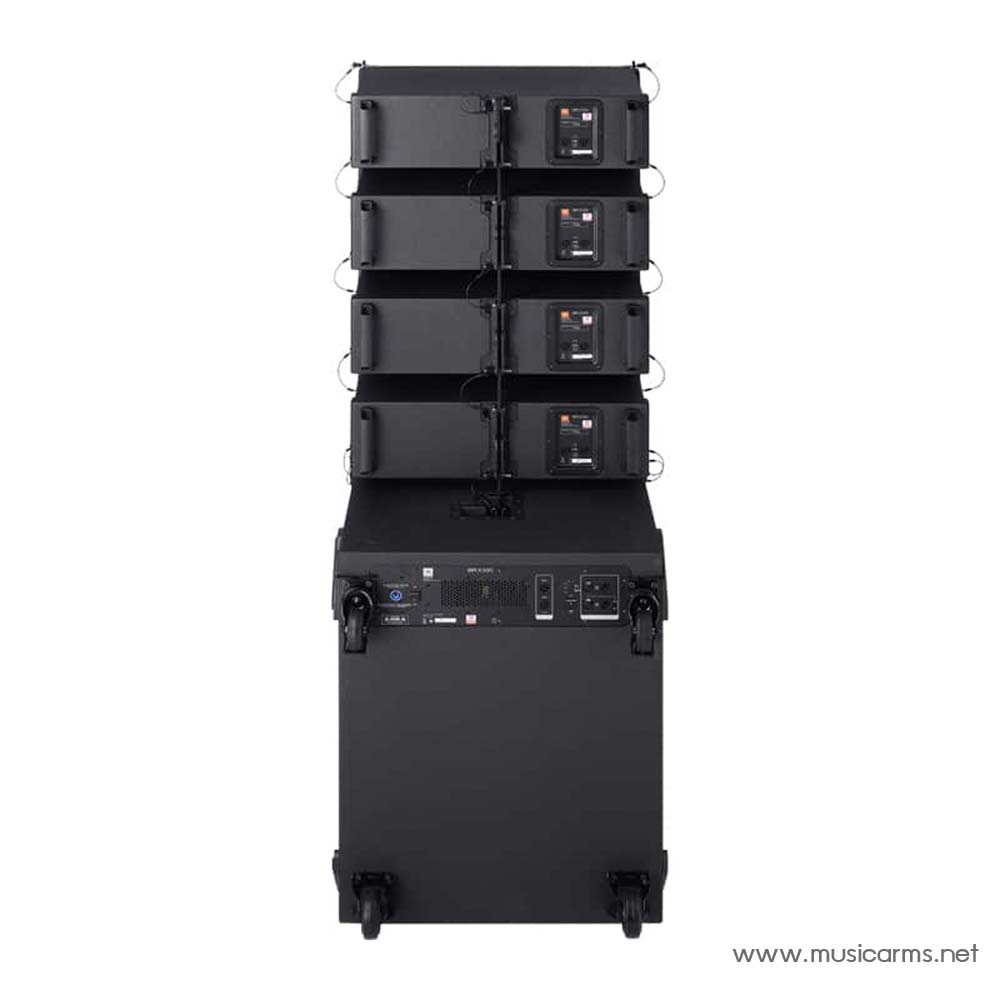

JBL BRX308-4LA System BRX300 Series ชุดลำโพงไลน์อาร์เรย์แบบ Ground Stacked

The BRX300 Series is a versatile line array for bands, DJs, rental firms, houses of worship and anyone who needs a compact, portable system that provides superior fidelity, high output and consistent coverage in a range of soundreinforcement scenarios.

The modular BRX300 Series makes the power of line array technology accessible to customers who are not trained audio engineers, thanks to its plug-and-play simplicity, built-in corrective signal processing, smart transport system and hassle-free rigging hardware. Deploy in minutes and enjoy optimal sound out of the box with components engineered for fidelity and ease of use.

For decades, the world’s top entertainment venues and touring productions have relied on the superior power and clarity of JBL Professional line array technology; now it’s easier than ever to bring that legendary sonic performance to small and mid-size productions.

JBL BRX308-LA

• Dual 8-inch LF drivers and 3-inch titanium compression driver

• Frequency range: 80 Hz–20 kHz (-10 dB)

• 110° horizontal x 12° (variable) vertical dispersion

• 136 dB maximum SPL

• Variable interbox angles

• I/O: two 4-pole NL4 connectors wired in parallel for IN/THRU use

• Dimensions (W x H x D): 662 x 299 x 376 mm (26 x 11.8 x 14.8 inches)

• Weight: 20.5 kg (45.2 pounds)

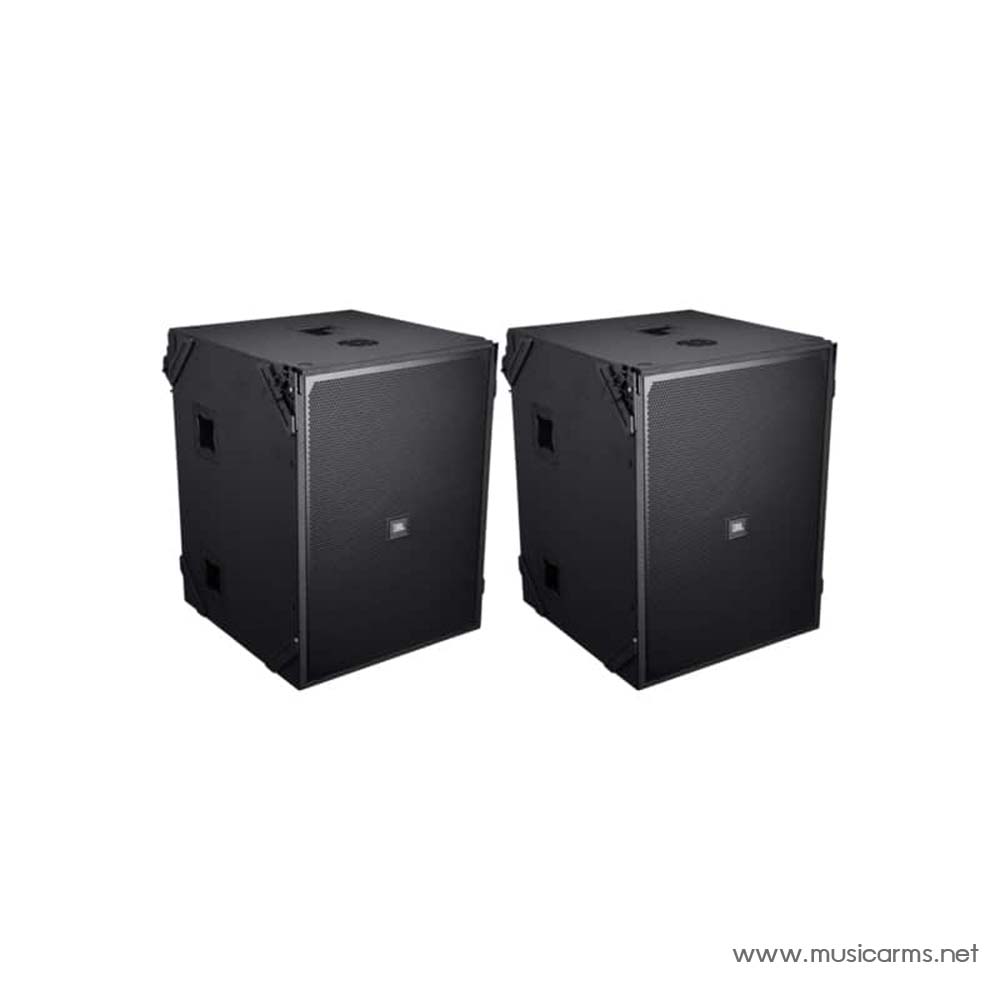

JBL BRX325SP

• Dual 15-inch woofers

• 136 dB maximum SPL

• Built-in DSP includes crossover management, EQ, limiting, correction filters, phase-corrected processing and driver-protection circuitry

• Integrated 1,000 watt-per-channel, 6-channel amplifier offers the most channels in its class

• Powers up to four BRX308-LA Line Array Elements

• Dual inputs with Input Y mode allow a single input for the subwoofer and tops or dedicated inputs for more advanced uses

• Supports ground stacking of up to four BRX308-LAs, or a single BRX325SP can be flown using the optional BRX308-AF Array Frame

• Casters provide ease of transport

• Power cable options for China, India and APAC regions
