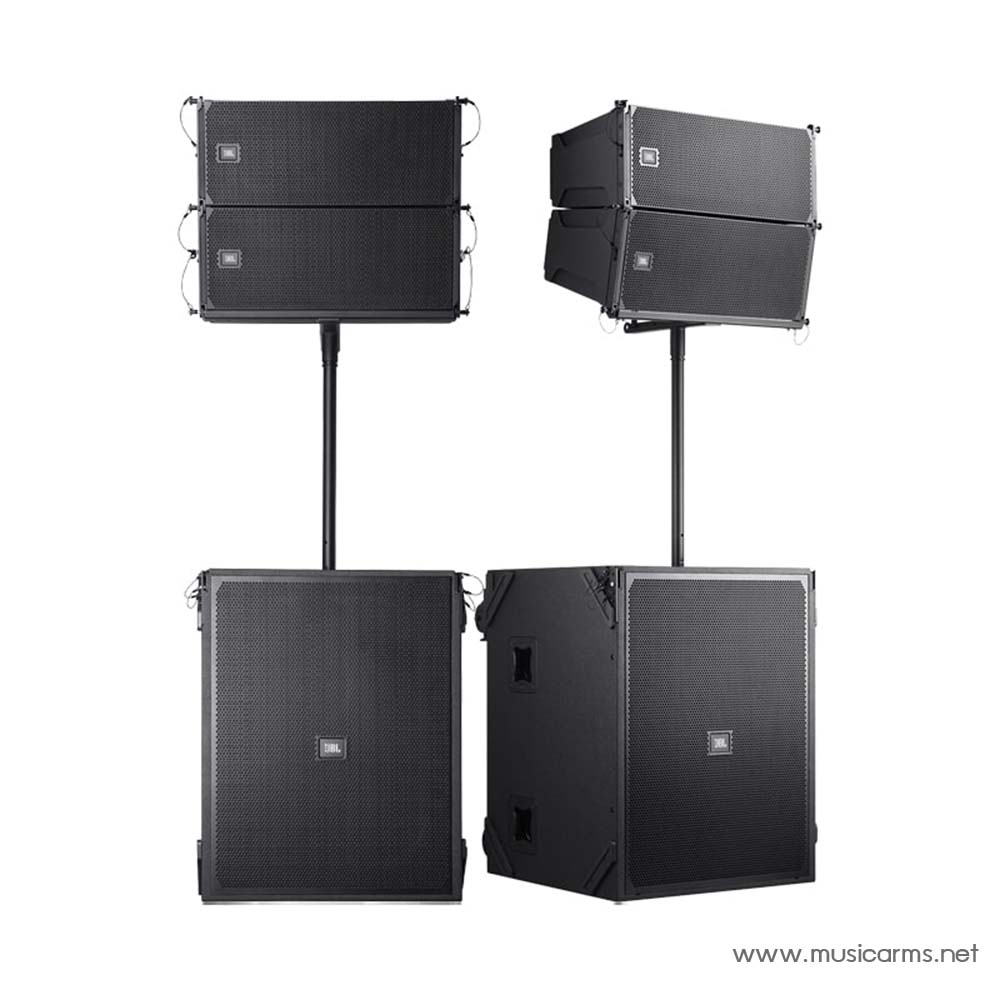

JBL BRX308-2LA System BRX300 Series ชุดลำโพงไลน์อาร์เรย์แบบ Ground Stacked

The BRX300 Series is a versatile line array for bands, DJs, rental firms, houses of worship and anyone who needs a compact, portable system that provides superior fidelity, high output and consistent coverage in a range of soundreinforcement scenarios. The modular BRX300 Series makes the power of line array technology accessible to customers who are not trained audio engineers, thanks to its plug-and-play simplicity, built-in corrective signal processing, smart transport system
and hassle-free rigging hardware. Deploy in minutes and enjoy optimal sound out of the box with components engineered for fidelity and ease of use. Systems are available in minimum one-subwoofer/two-top (BRX308-2LA) or one-subwoofer/four-top (BRX308-4LA) configurations, or subwoofers and tops can be purchased separately. Supported mounting options include groundstacking, pole mounting or flying, providing seamless coverage in a range of applications.

JBL BRX308-LA

• Dual 8-inch LF drivers and 3-inch titanium compression driver

• Frequency range: 80 Hz–20 kHz (-10 dB)

• 110° horizontal x 12° (variable) vertical dispersion

• 136 dB maximum SPL

• Variable interbox angles

• I/O: two 4-pole NL4 connectors wired in parallel for IN/THRU use

• Dimensions (W x H x D): 662 x 299 x 376 mm (26 x 11.8 x 14.8 inches)

• Weight: 20.5 kg (45.2 pounds)

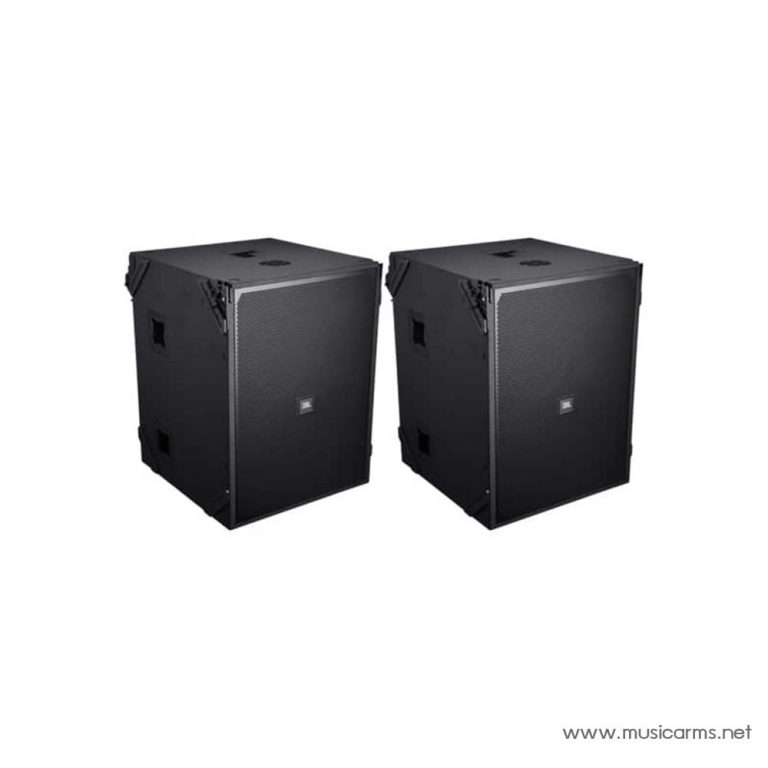

JBL BRX325SP

• Dual 15-inch woofers

• 136 dB maximum SPL

• Built-in DSP includes crossover management, EQ, limiting, correction filters, phase-corrected processing and driver-protection circuitry

• Integrated 1,000 watt-per-channel, 6-channel amplifier offers the most channels in its class

• Powers up to four BRX308-LA Line Array Elements

• Dual inputs with Input Y mode allow a single input for the subwoofer and tops or dedicated inputs for more advanced uses

• Supports ground stacking of up to four BRX308-LAs, or a single BRX325SP can be flown using the optional BRX308-AF Array Frame

• Casters provide ease of transport

• Power cable options for China, India and APAC regions

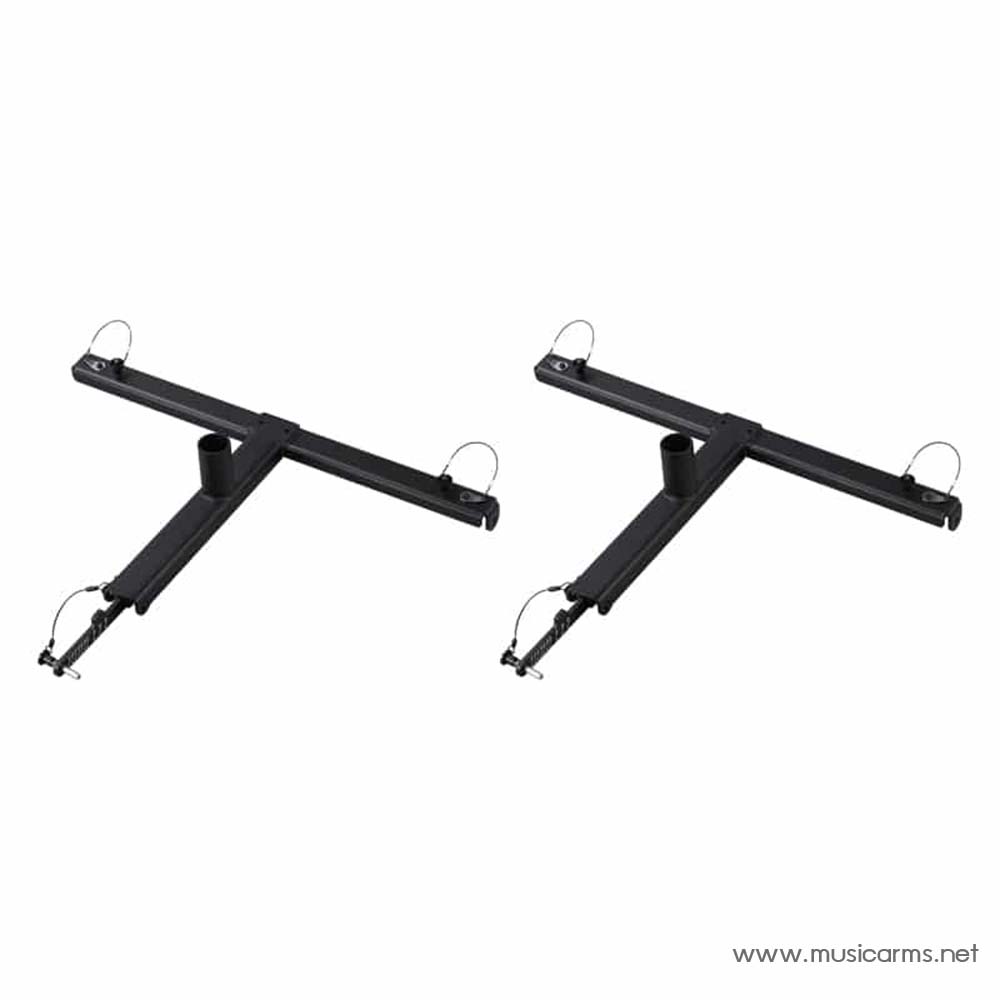

JBL BRX308-PM

BRX308-PM Pole Mount and Adapter Kit expands system configuration options.

• Pole mount and adapter allow mounting of up to two BRX308-LA Line Array Elements
