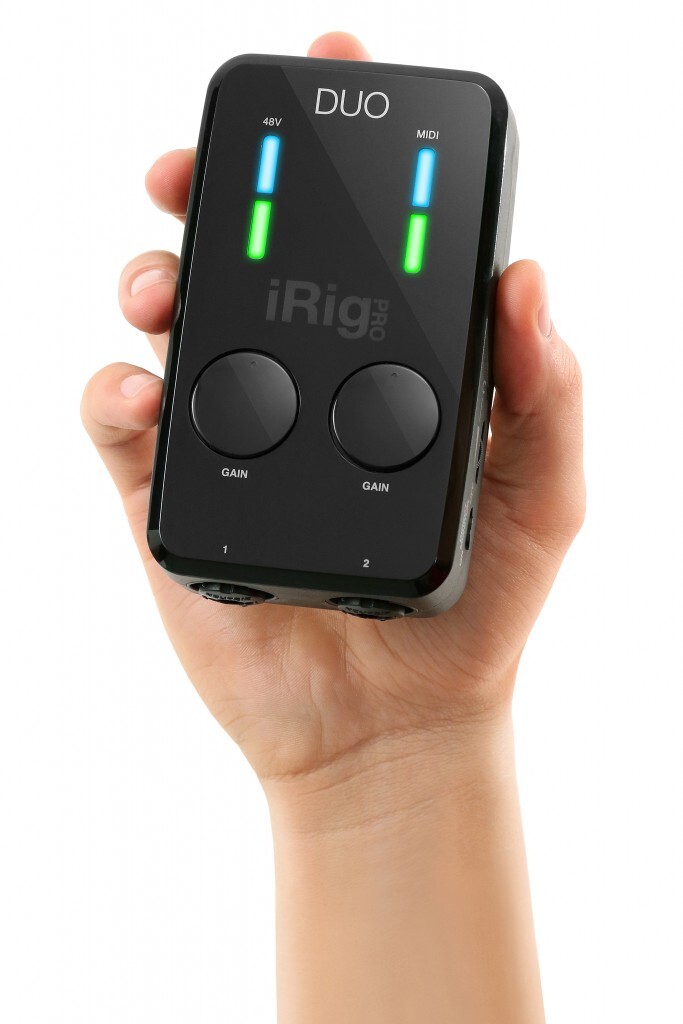

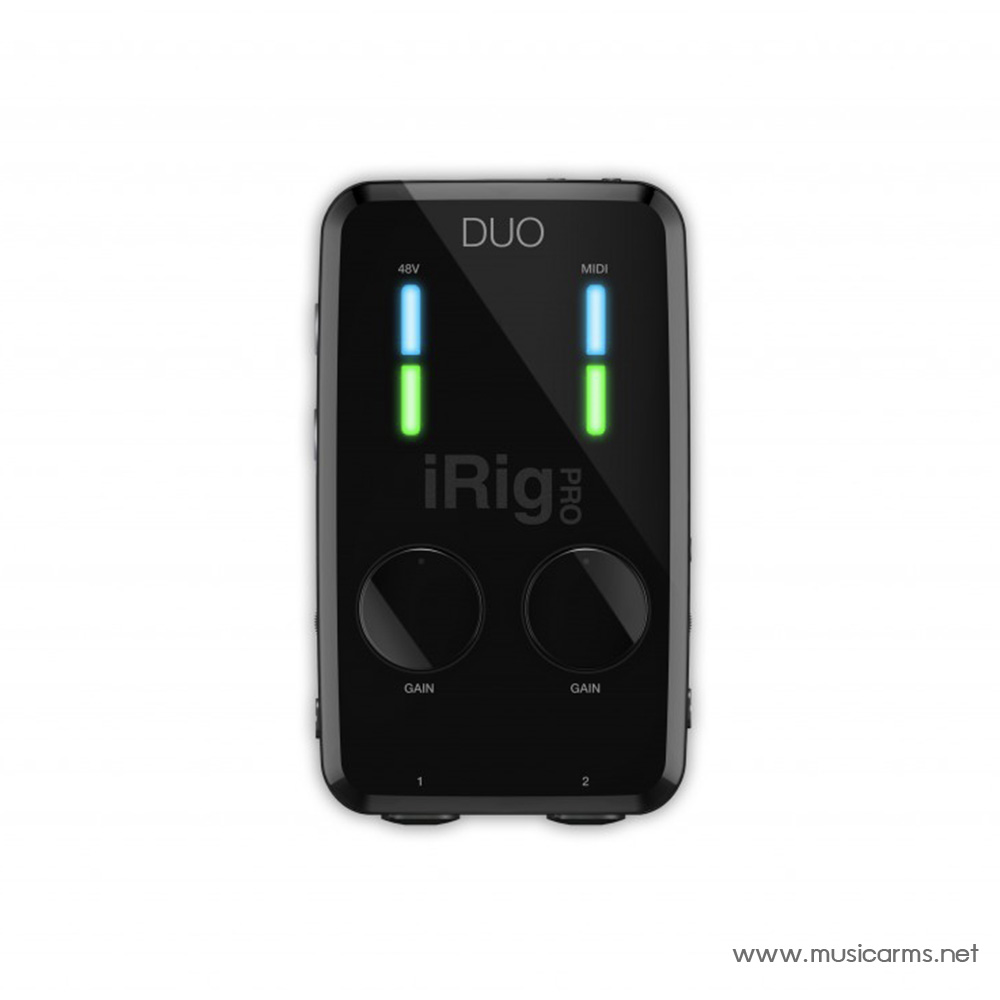

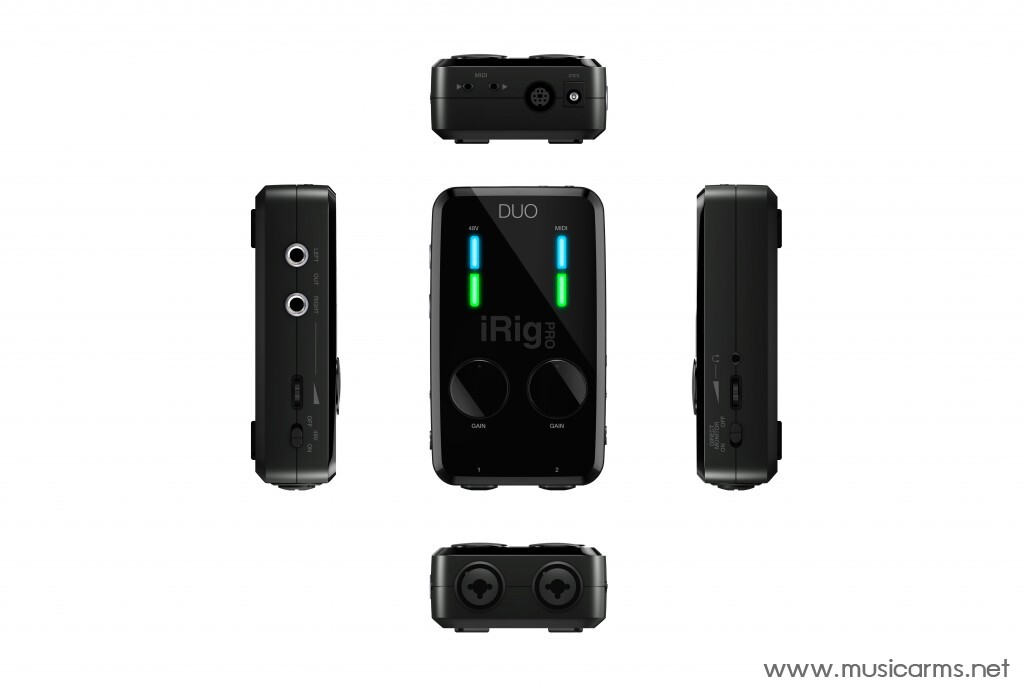

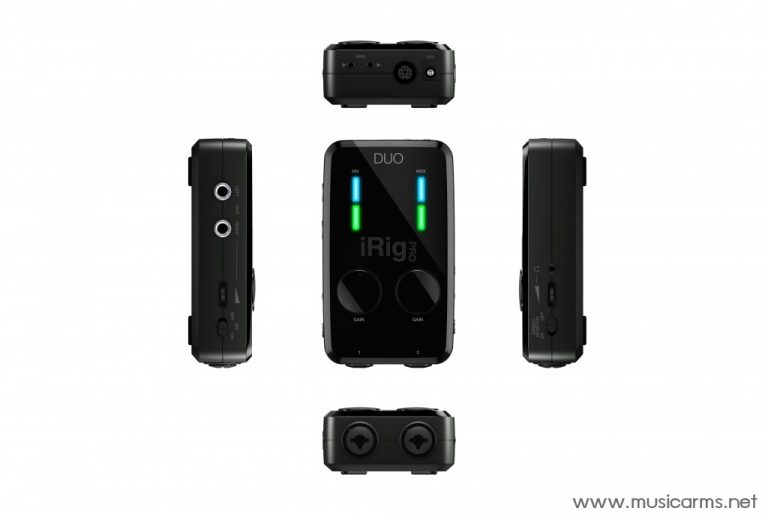

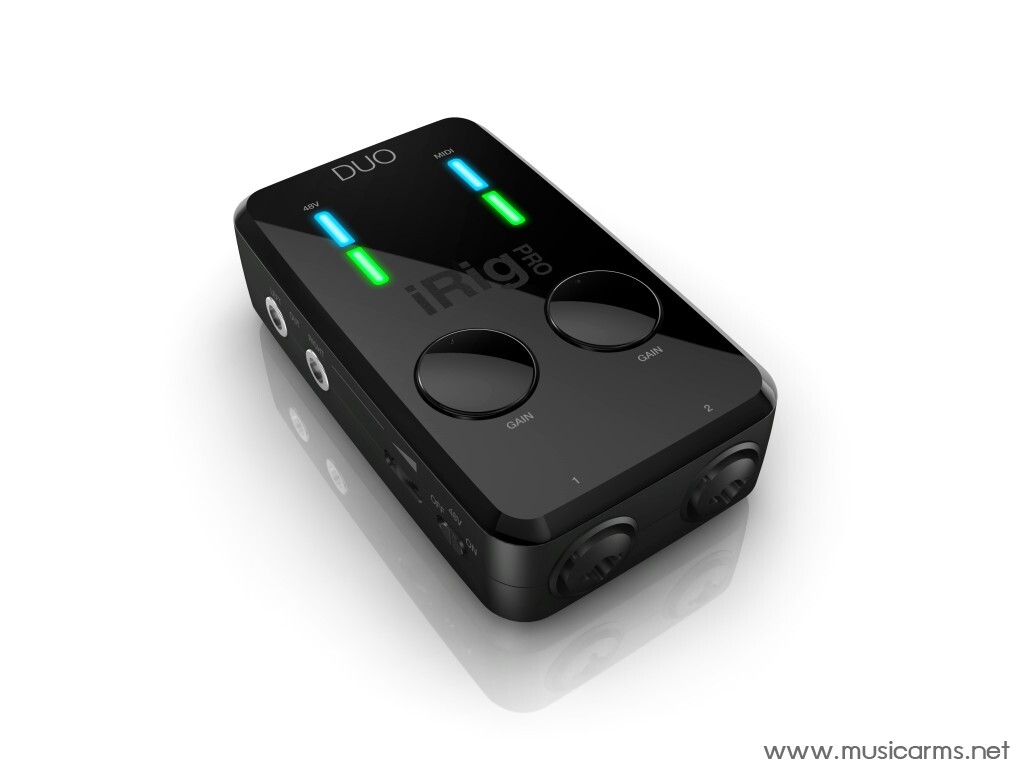

IK iRig Pro DUO
ราคา : 9,190 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
วีดีโอ
Description
Record On the Go!
Want to make sure you’re able to catch inspiration as it happens? No problem. With the iRig Pro DUO I/O, you get a battery-powered, professional-quality interface you can chuck in a travel bag, so you’re always ready to record. The iRig Pro Duo I/O is equipped with two combo mic/instrument inputs with incredible sounding Class A mic preamps that ensure you won’t have to sacrifice audio quality for portability. Lighting, USB-C, and USB-A compatible, the iRig Pro DUO I/O works with nearly any mobile device, and it includes two 1/4″ TRS outputs, MIDI I/O, and a 3.5mm headphone jack with a switchable direct monitor mode. Artists and engineers at Sweetwater are impressed by the iRig Pro DUO I/O’s combination of superior sound and durable design. It’s the road-ready interface you’ve been waiting for!
IK Multimedia iRig Pro Duo I/O Interface Features:
- Road-ready interface perfect for capturing inspiration when it strikes
- 2 combo mic/instrument inputs with Class A mic preamps with 48v phantom power
- MIDI connectivity via 2.5mm I/O jacks (breakout cables included)
- Compatible with iOS, Android, Mac, and PC (Lightning, USB-C, and USB-A cables included)
- Power options: 2 AA Batteries (included), USB bus power, or additional power supply

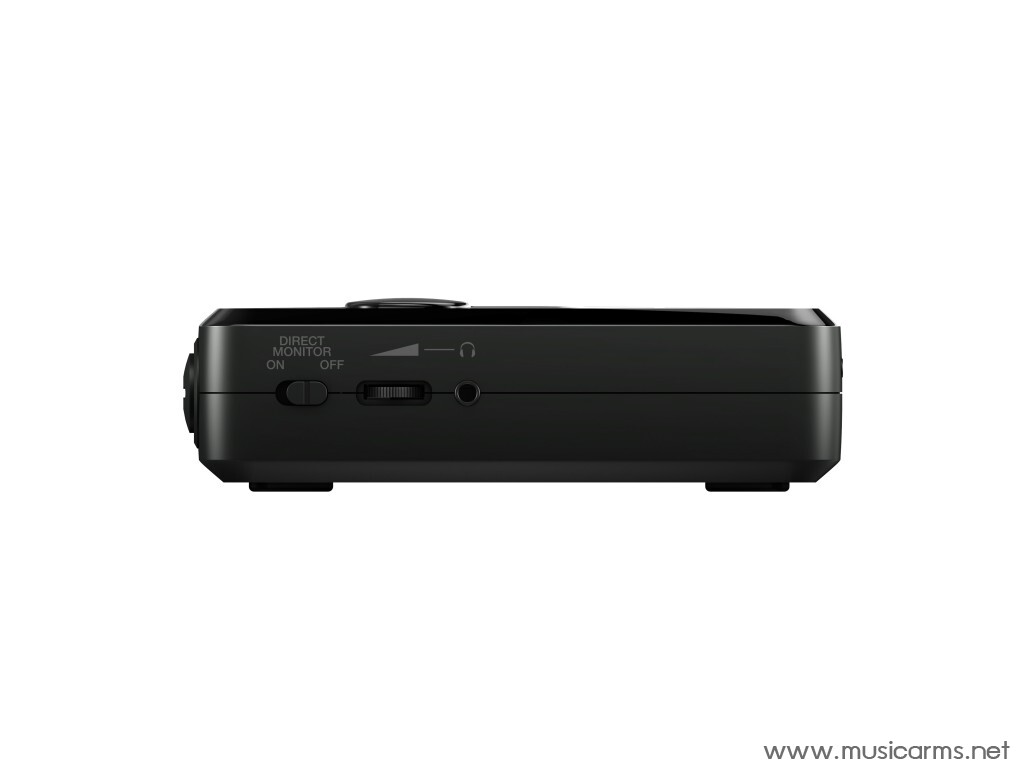

- 1/4″ TRS Outputs and 3.5mm headphone jack with switchable direct monitor mode
- Bundled software and app package included
Specification
Microphone Input

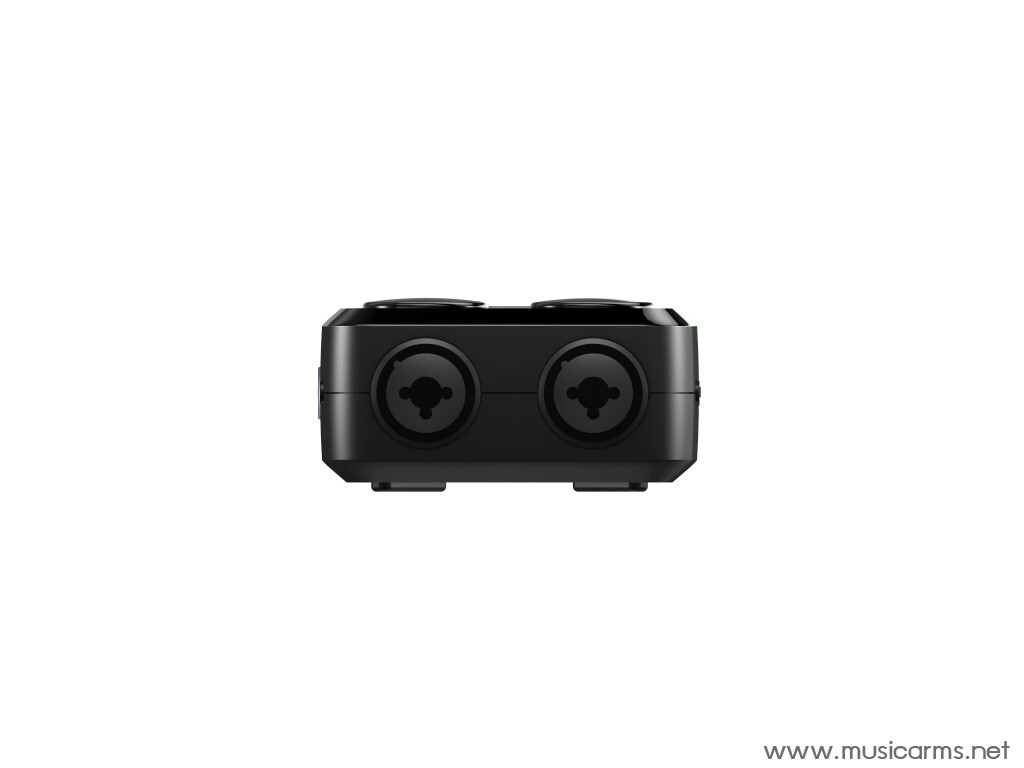

- Microphone Input: 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: approx 2 kOhms
- Gain Range: 48 dB
- Phantom Power: +48V ± 4V
- Frequency Response:
• from 5 Hz to 21 kHz (-3dB) Gain @ min
• from 30 Hz to 21 kHz (-3dB) Gain @ max - Input Noise: -103 dB(A) Gain @ min
-86 dB(A) Gain @ max
Instrument Input
- Instrument Input: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
- Instrument Input Level: from 30 mVpp to 6.9 Vpp
- Instrument Input Impedance: 1 MOhms
- Gain Range: 27 dB
- Frequency Response:
• from 2 Hz to 21 kHz (-3dB) Gain @ min
• from 5 Hz to 21 kHz (-3dB) Gain @ max - Input Noise:
• -104 dB(A) Gain @ min
• -102 dB(A) Gain @ max
Line Output

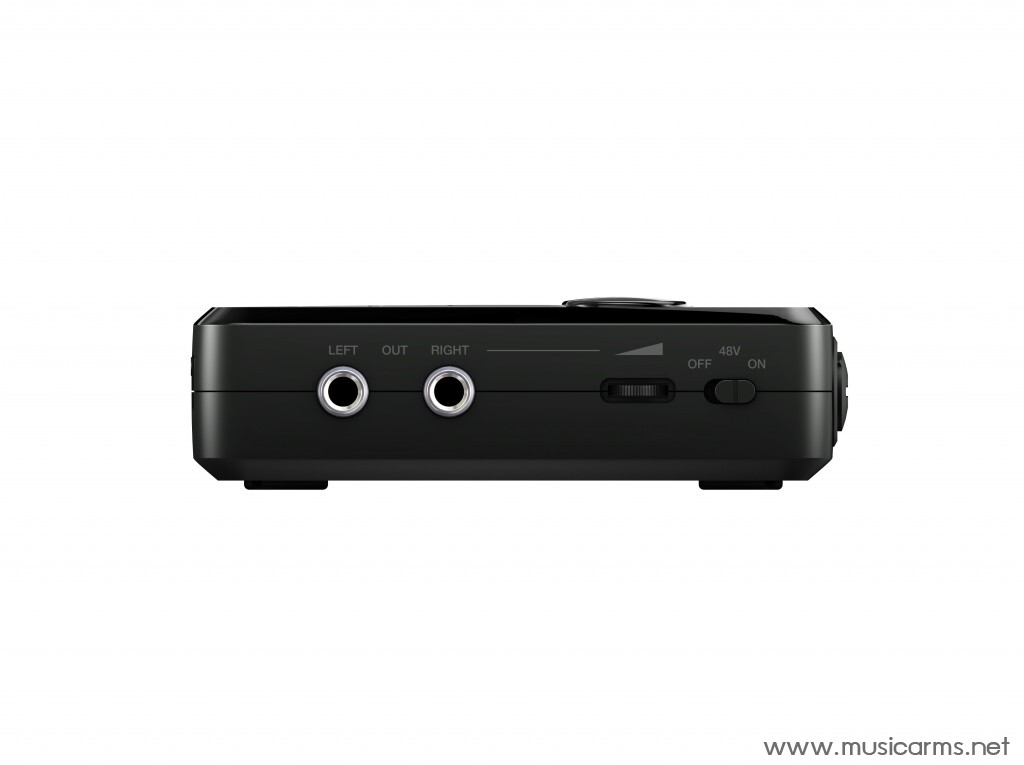

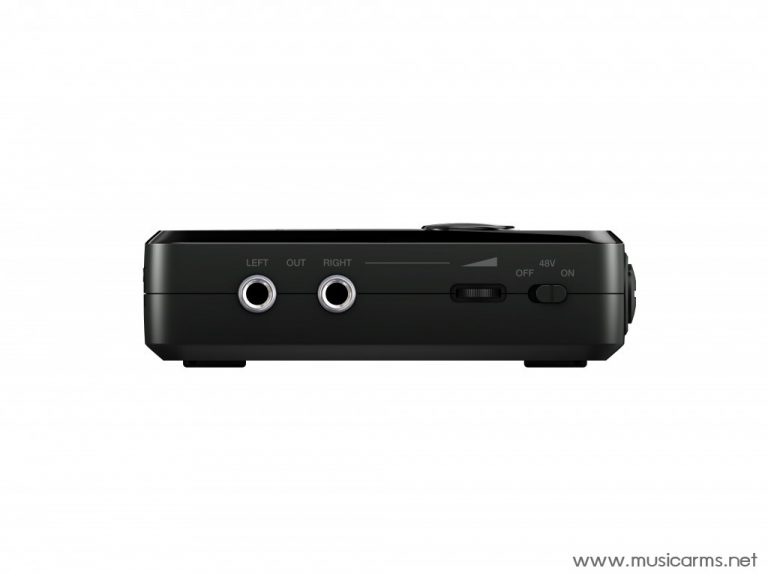

- Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
- Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
- Maximum Output Level: +16 dBu into 600 Ohms balanced load
- Frequency Response: from 10 Hz to 21 kHz (-3dB)
- Output Dynamic Range: 106 dB(A)
- Output Impedance: 150 Ohms balanced
Common
- AD and DA Resolution: 24-bit
- Sampling Rate: 44.1 kHz and 48 kHz
- Power: USB bus power, battery power (2xAA – included), or DC power supply (9VDC, from 500mA up, positive outside – not included)
- Metering: Multicolor LED)
- Size: 75mm/2.95″ x 127mm/5″ x 37mm/1.46″
- Weight: 197.2g/6.96oz (batteries excluded)
- Battery Life:
• Recording – Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline)
• Playback – Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline)
*Max load condition: both inputs connected to two 1,5mA phantom powered loads, input gains set to maximum, outputs set to maximum.
**Min load condition is as follows: music playing, phantom power OFF.
Package includes
- iRig Pro Duo universal dual channel Audio-MIDI interface
- Lightning to Mini-DIN connection cable (60cm/23.62″)
- Micro-USB-OTG to Mini-DIN connection cable (60cm/23.62″)
- USB to Mini-DIN connection cable (60cm/23.62″)
- 2 x 2.5mm jack to MIDI cable (160cm/63″)
- 2 x 1.5V AA Battery
Dimensions
- Size: 75mm/2.95″ x 127mm/5″ x 37mm/1.46″
- Weight: 197.2g/6.96oz (batteries excluded)
- Lightning to Mini-DIN connection cable: 60cm/23.62″
- Micro-USB-OTG to Mini-DIN connection cable: 60cm/23.62″
- USB to Mini-DIN connection cable: 60cm/23.62″
- 2.5mm jack to MIDI cable: 160cm/63″
