iCon Duo22 Live

• Pristine Audio: 2-in/2-out USB recording interface with premium converters for world-class 24-bit/192kHz recording and mixing with ultra-low latency
• Live Streaming: simultaneous desktop and mobile connectivity enables you to live stream audio from the computer to a mobile device with analog (TRRS) and digital (USB-C) connections for any smartphone, adjustable onboard inputs level and monitoring
• Compatibility: Fast USB 2.0 connection (bus-powered) is compatible with Mac and PC.
• Virtual Plug-In Rack: iCON ProDriver software redirects audio from any source on the computer and enables hosting of AU, VST, VST3 or Direct X plugins without a DAW. Save plugin chains as presets and recall them during a session
• Built To Last: Rugged aluminum construction
• Bitwig Studio 8-Track DAW is also included

Main features include:

• 24-Bit 192KHz 1 mic-In/1 inst-In, 2-Out USB Recording Interface
• Professional & Hi-end grade DA/AD provides high dynamic range
  • DAC: Dynamic Range: 114dB
  • ADC: Dynamic Range: 114dB
• Supporting Mac/PC connectivity operating simultaneously with SmartDevice
• Live session possible with audio signal processing via ProDriver4 virtual plug-in rack
• 2×2 analog I/O full duplex recording and playback
• Compatible with iOS and Android Digital I/O jack (Type C) & Analog I/O jack (3.5mm stereo TRRS) for direct connection with SmartPhone

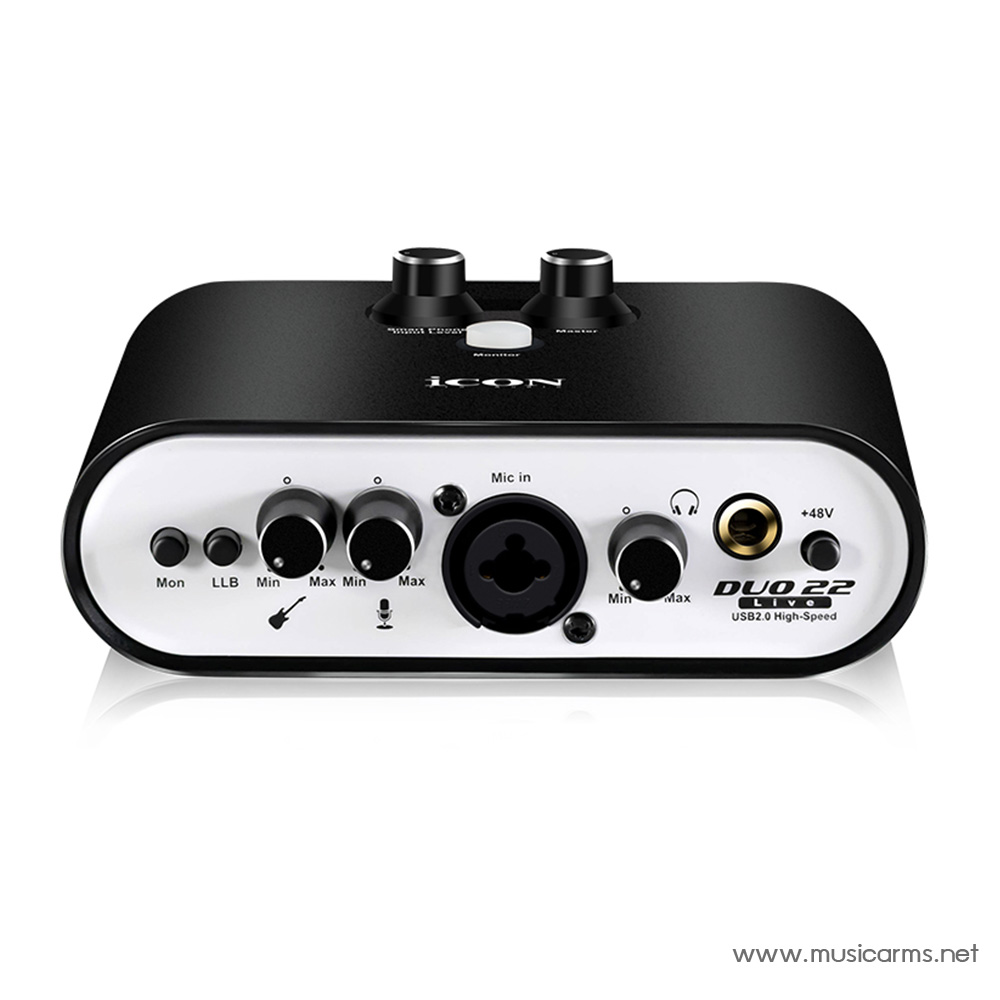

• Mic/Instrument preamps with individual gain control and phantom power switch

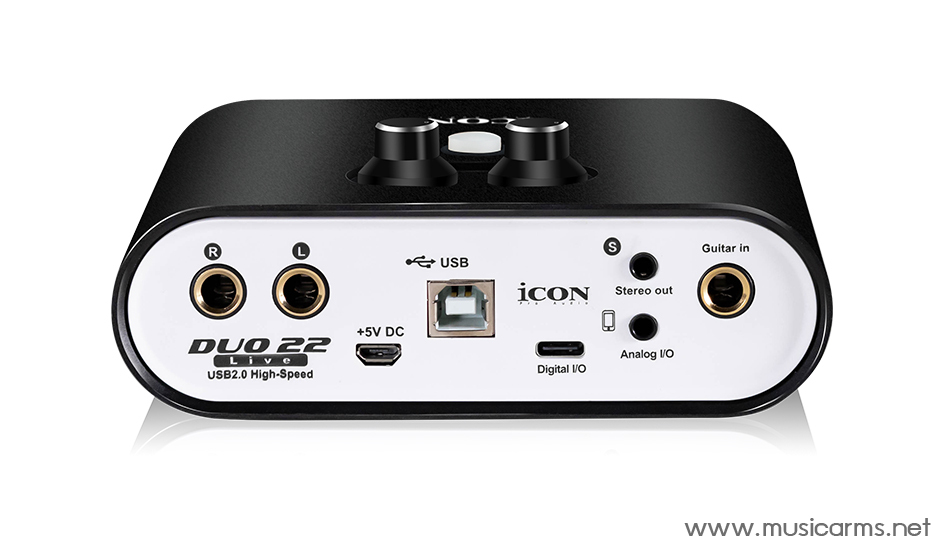

• 2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector
• Smart phone input level control on the top panel
• Direct monitor button control on the top panel
• 1 headphone output with assignable source and individual volume control
• Flexible channel routing via the ProDriver4 software control panel
• iCON Pro Audio developed ultra low latency ProDriver™ driver is provided
• iCON ProAudio innovative and user friendly plug-in hosting rack software is built-in with ProDriver™
• USB2.0 High Speed equipped and USB bus-powered
• Supports DirectSound, WDM and ASIO2.0
• Compatible with mac OS (Intel-Mac) 10.11 and later, iOS 9 or above, Andriod  and Windows 7, 8 & 10 (32-bit/64-bit)
• Full duplex, simultaneous record/playback
• +5VDC power supply connector is equipped for external power supply when using with iOS
• Rugged aluminum construction
• Bitwig 8Track included
• Dotec audio plugins included

Mic Input:

• Frequency Response: 22Hz to 22kHz (+/-0.1dB)
• Dynamic Range: 112dB, A-weighted
• Signal-to-Noise Ratio: -112dB, A-weighted
• THD+N: -98dB
• Crosstalk: -97dB@1kHz
• Input Impedance: Mic in: 1.8K Ohms, typical
• Adjustable Gain: +34dB

Inst Input:

• Frequency Response: 22Hz to 22kHz (+/-0.1dB)
• Dynamic Range: 112dB, A-weighted
• Signal-to-Noise Ratio: -112dB, A-weighted
• THD+N: -98dB
• Crosstalk: -97dB @ 1kHz
• Input Impedance: Inst in: 500K Ohms, typical;
• Adjustable Gain: +31dB

Line Outputs 1/2 (Stereo, Unbanced):

• Frequency Response: 22Hz 22kHz (+/-0.1dB)
• Dynamic Range: 114dB, A-weighted
• Signal-to-Noise Ratio: -114dB, A-weighted
• THD+N: -100 dB
• Crosstalk: -97dB @ 1kHz
• Nominal Output Level: Unbalanced: +4dBV, typical;
• Maximum Output Level: +11dBV, typical;
• Output Impedance: 150 Ohm
• Load Impedance: 600 Ohm minimum
• Headphone Outputs: (at Maximum Volume; Into 100 Ohm load):
• Frequency Response: 22Hz to 22kHz (+/-1dB)
• Power into Ohms: 90 mW into 100 Ohms
• THD+N: <0.06% (-66dB)
• Signal-to-Noise Ratio: -100dB, A-weighted
• Max Output Level into: 100 Ohms +2.0dBV, typical
• Output Impedance: 75 Ohm
• Load Impedance: 32 to 600 Ohms
• Weight: 0.443 KG（0.98lb）
• Dimensions: 131mmx127mmx40mm
• Dimensions: 5.16″(L)x5″(W)x1.57″(H)
