Ibanez EWP12EWB

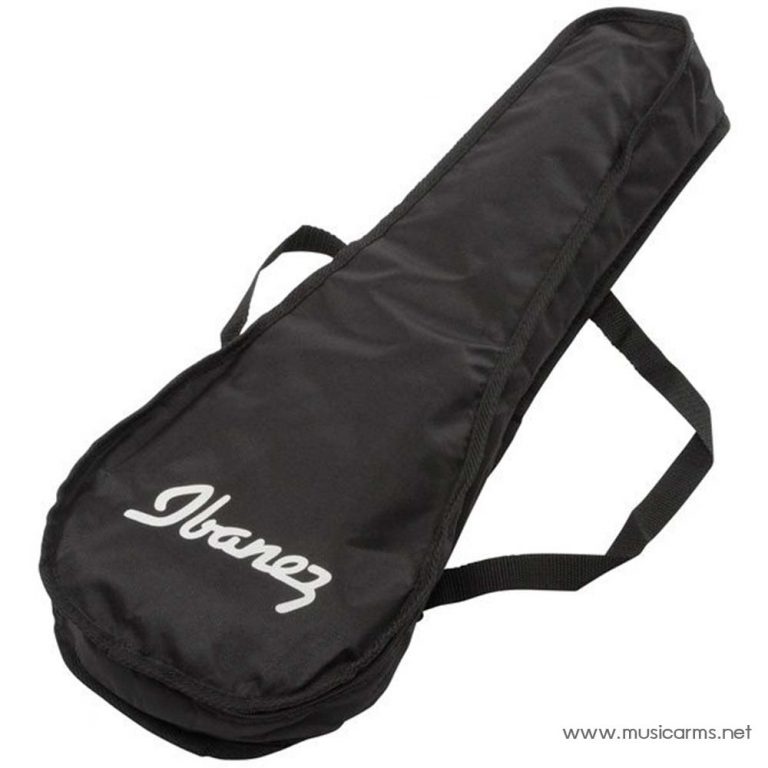

The EWP12E is an EWP series acoustic-electric piccolo guitar model introduced by Ibanez for 2023. It is made in China. It is also sold with a soft case as the EWP12EWB.

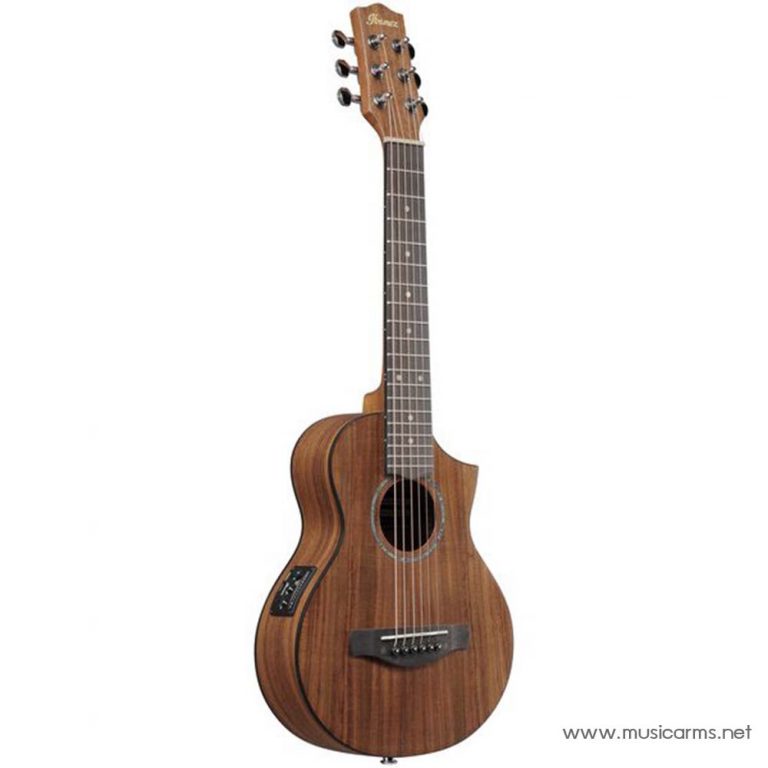

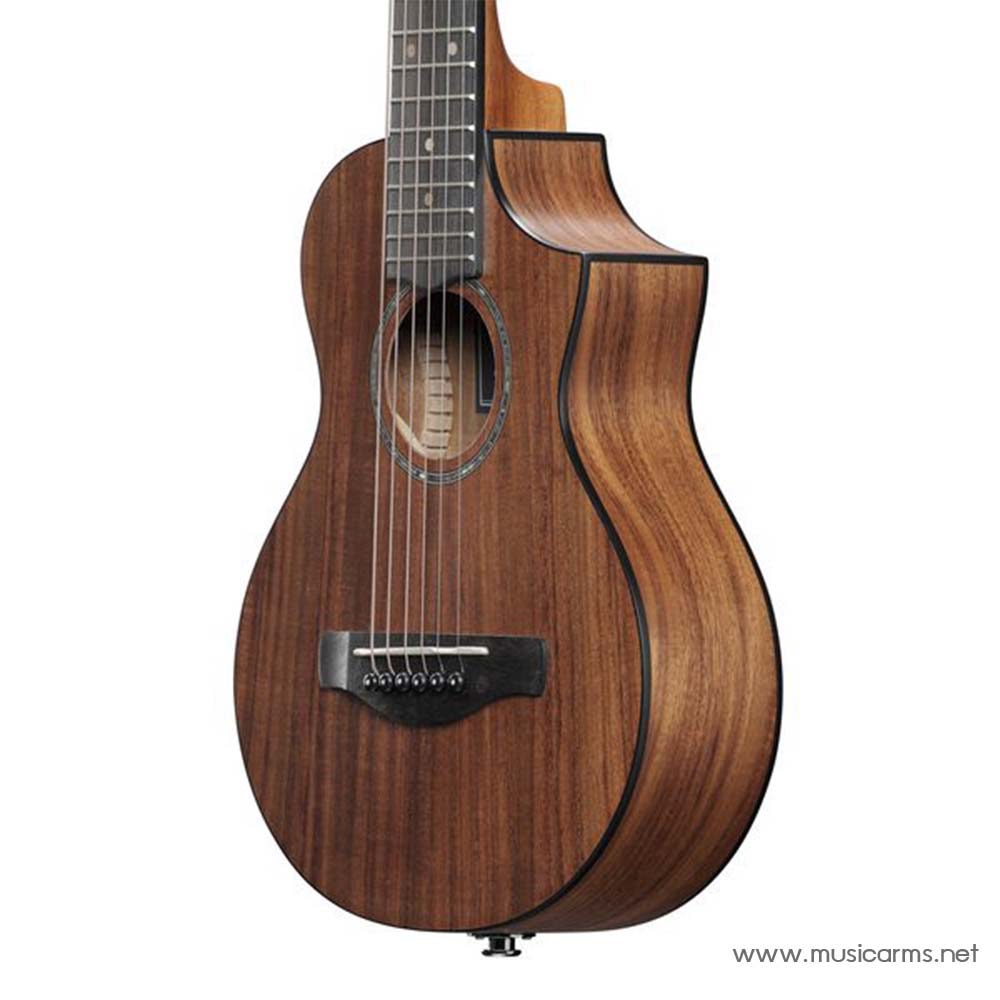

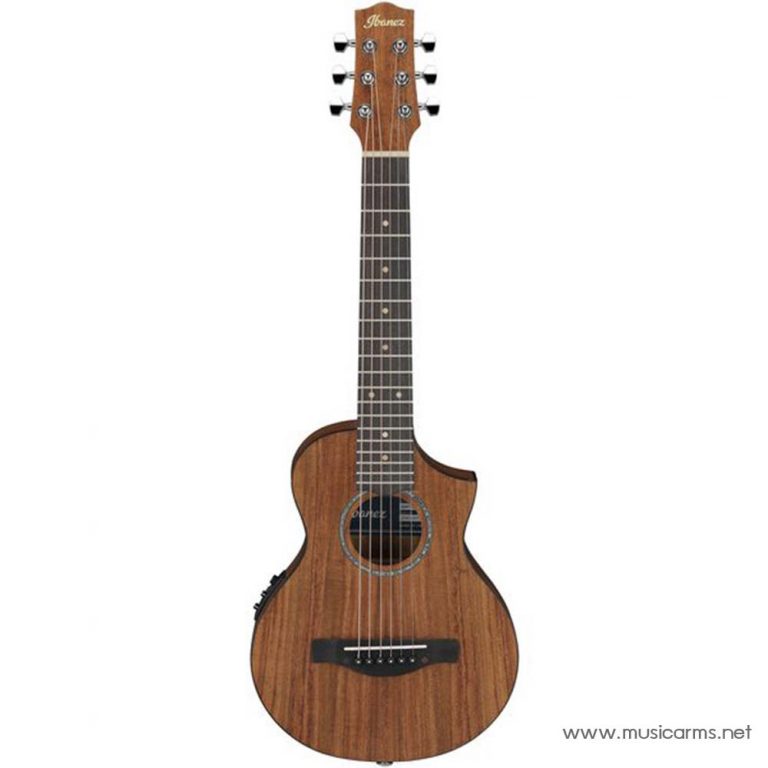

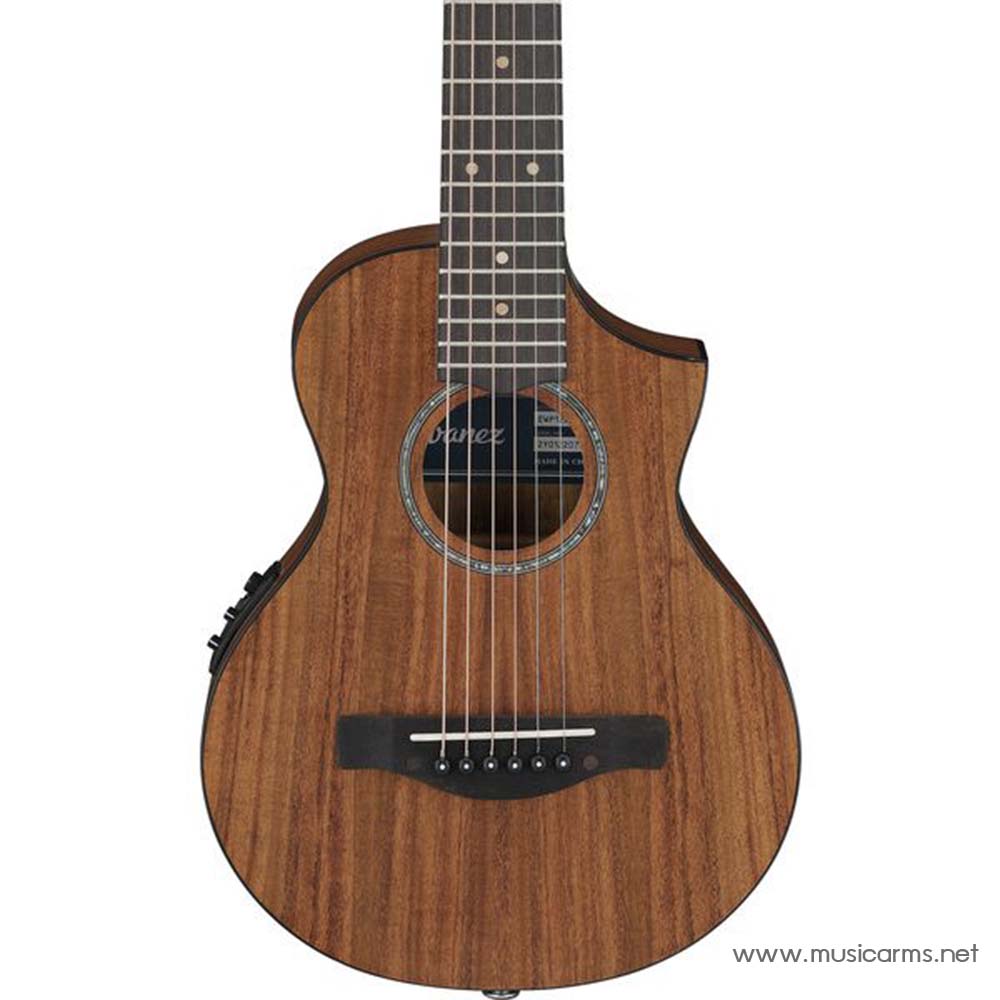

The EWP12E features a tenor-style EW shape with a soft Florentine cutaway and a laminated acacia top with black binding on acacia back and sides with an open pore finish. The round soundhole has an abalone rosette. It has an okoume neck with a 19-fret purpleheart fingerboard with black binding and maple dot position markers. Components include an ivory plastic saddle in a purpleheart bridge, a plastic nut and chrome die-cast tuning machines. Electronics consist of an undersaddle pickup connected to an AEQ-2U preamp powered by 2 coin cells and feeding a ¼” endpin output

• body shape
• Cutaway Tenor Style EW body

• top
• Acacia top

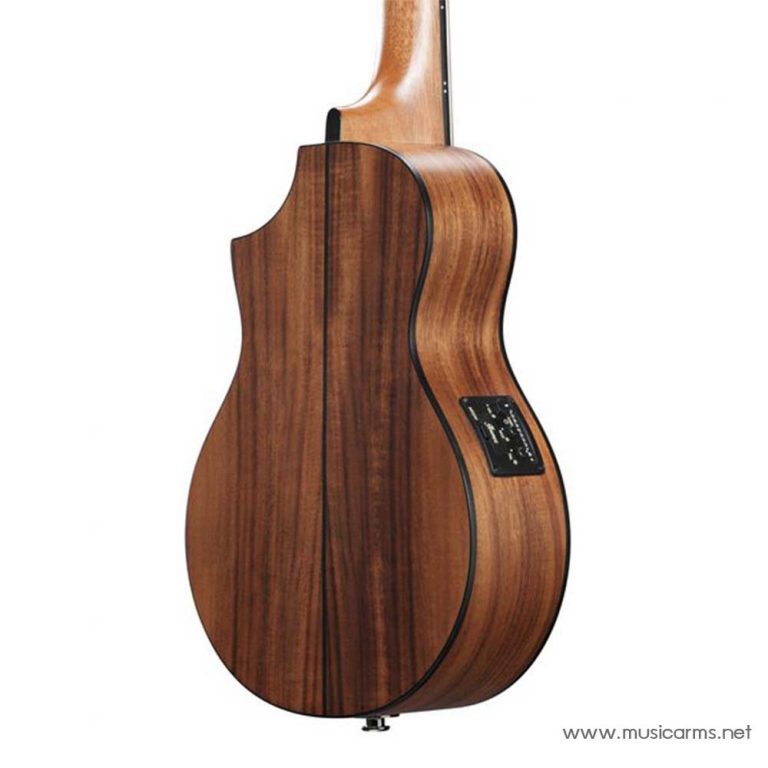

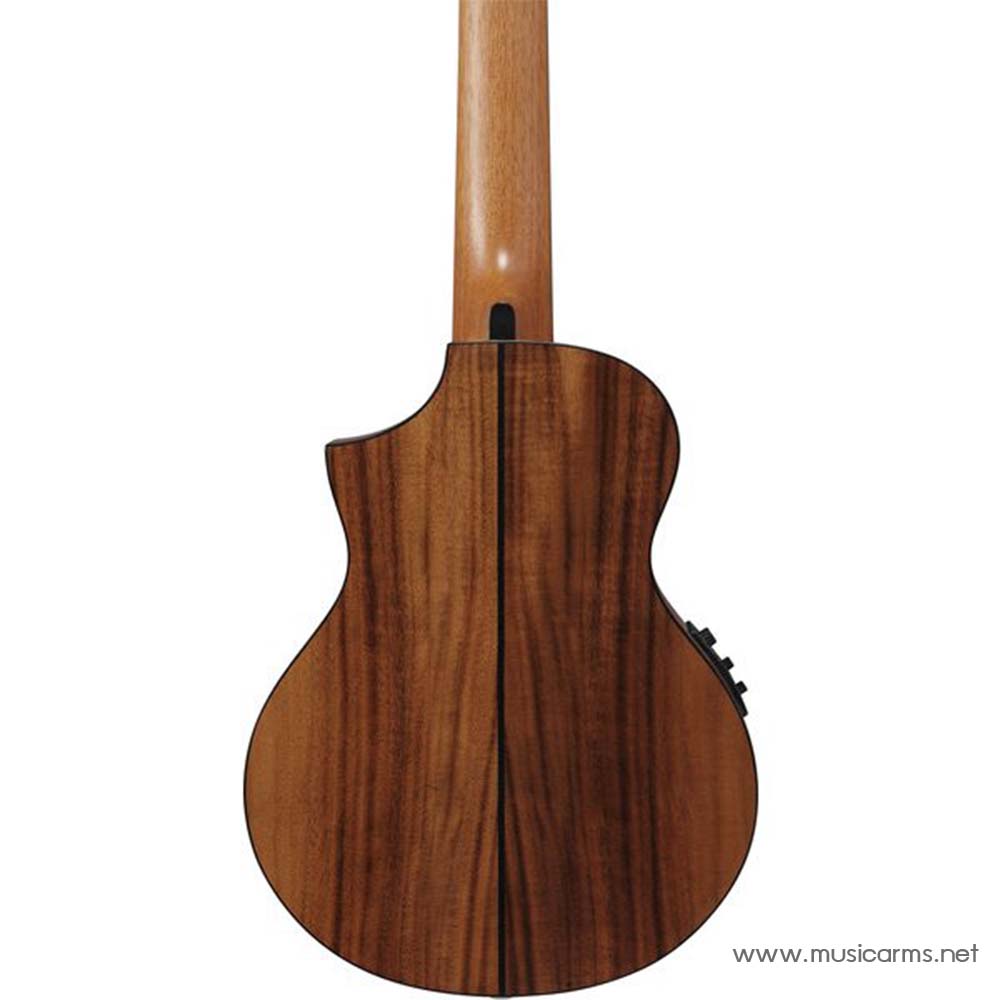

• back & sides
• Acacia back & Acacia sides

• neck
• EWPOkoume neck

• fretboard
• Purpleheart fretboard

• bridge
• Purpleheart bridge

• inlay
• Maple dot inlay

• soundhole rosette
• Abalone

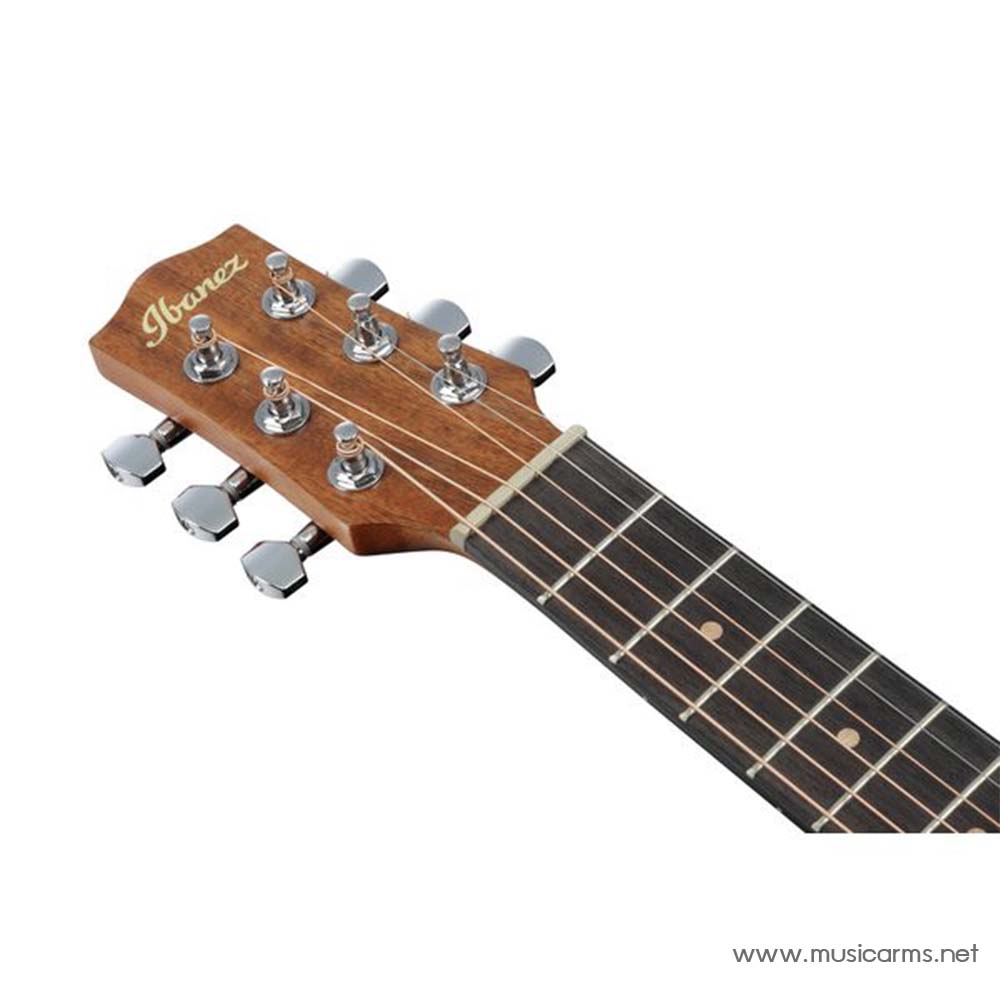

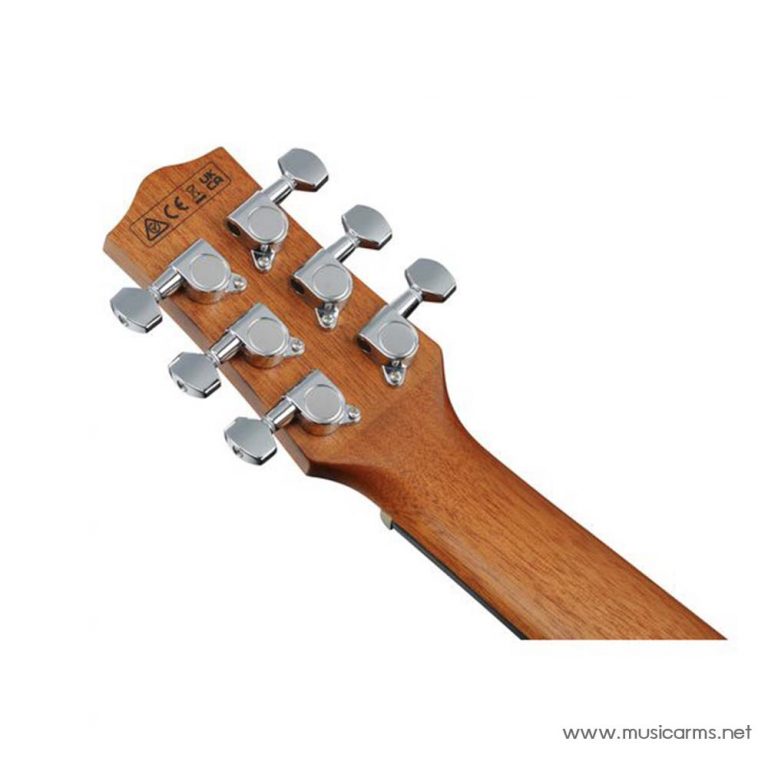

• tuning machine
• Chrome Die-cast tuners

• number of frets
• 19

• bridge pins
• Ibanez Advantage™

• string gauge
• .010/.014/.023/.030/.039/.047

• string space
• 9.6mm

• factory tuning
• 1A,2E,3C,4G,5D,6A

• pickup
• Ibanez Undersaddle

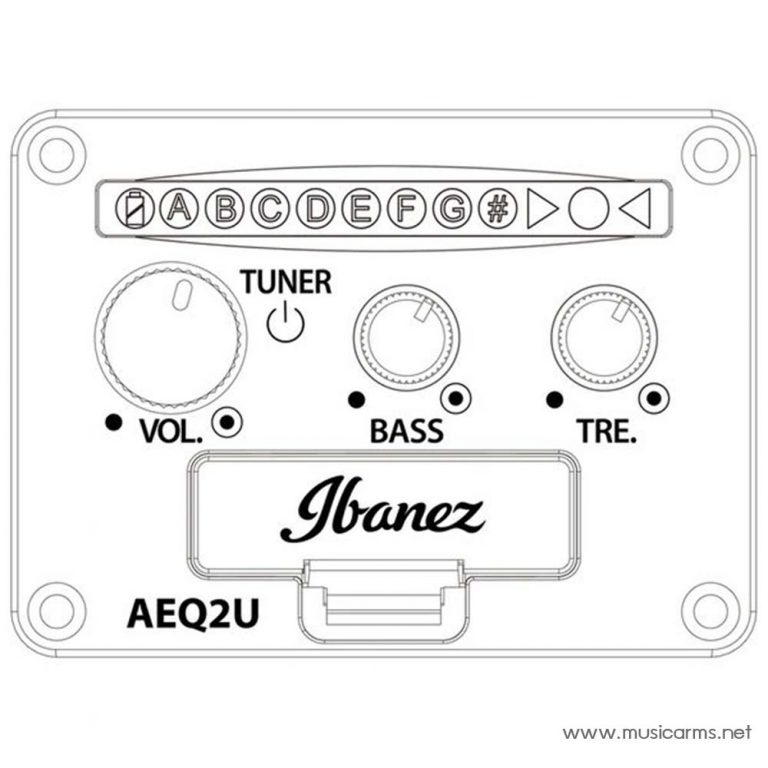

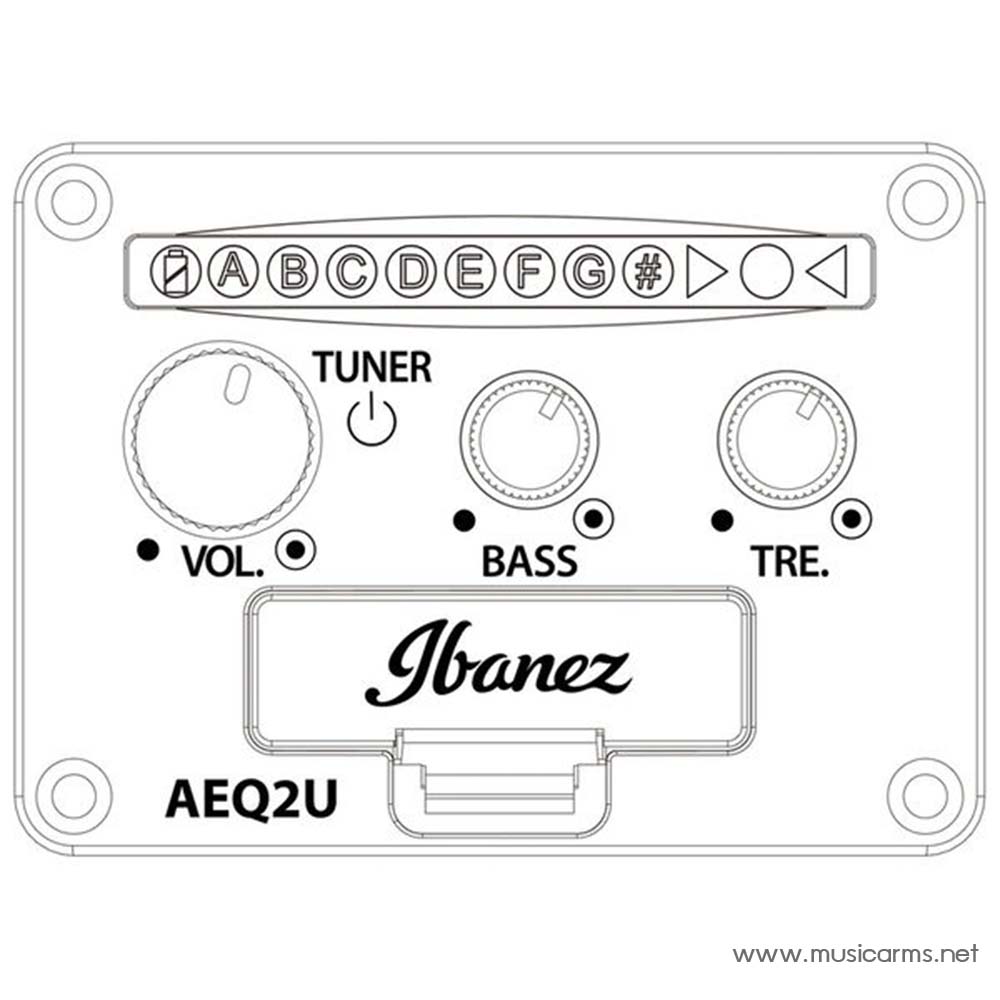

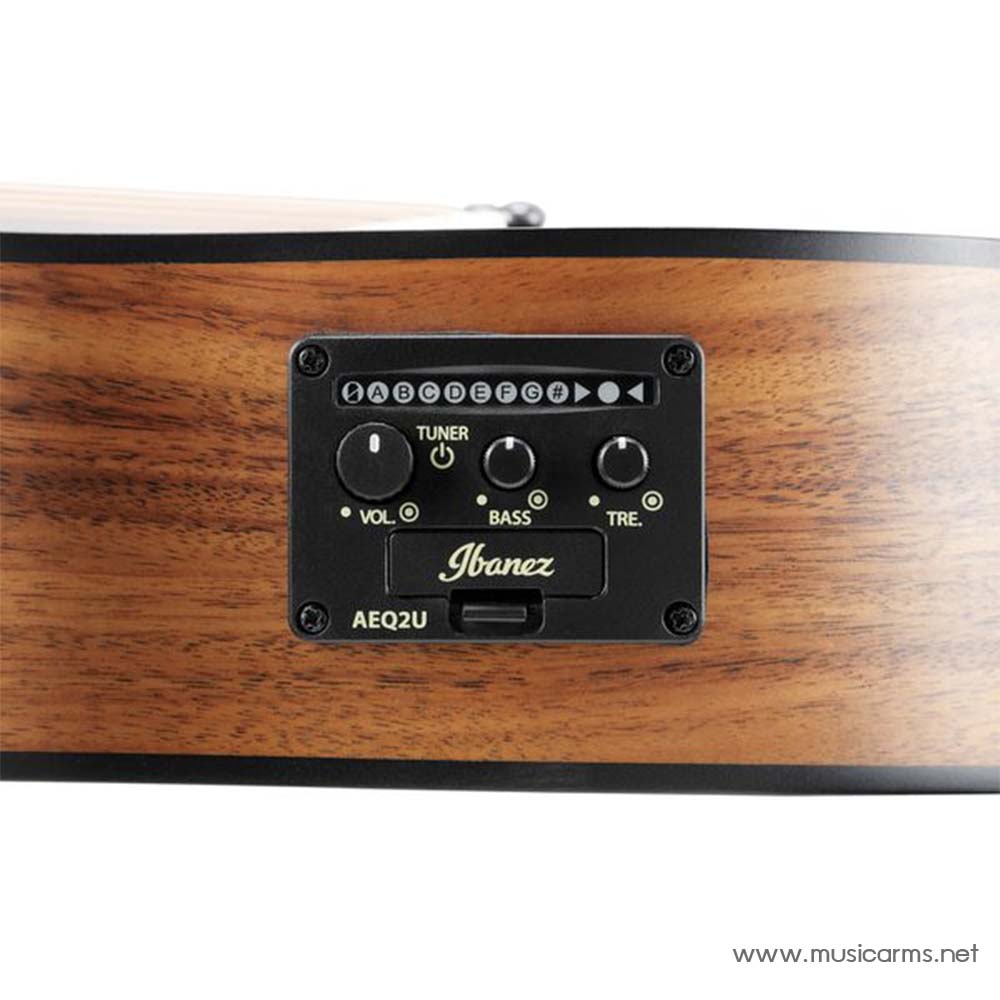

• preamp
• Ibanez AEQ2U preamp w/Onboard tuner

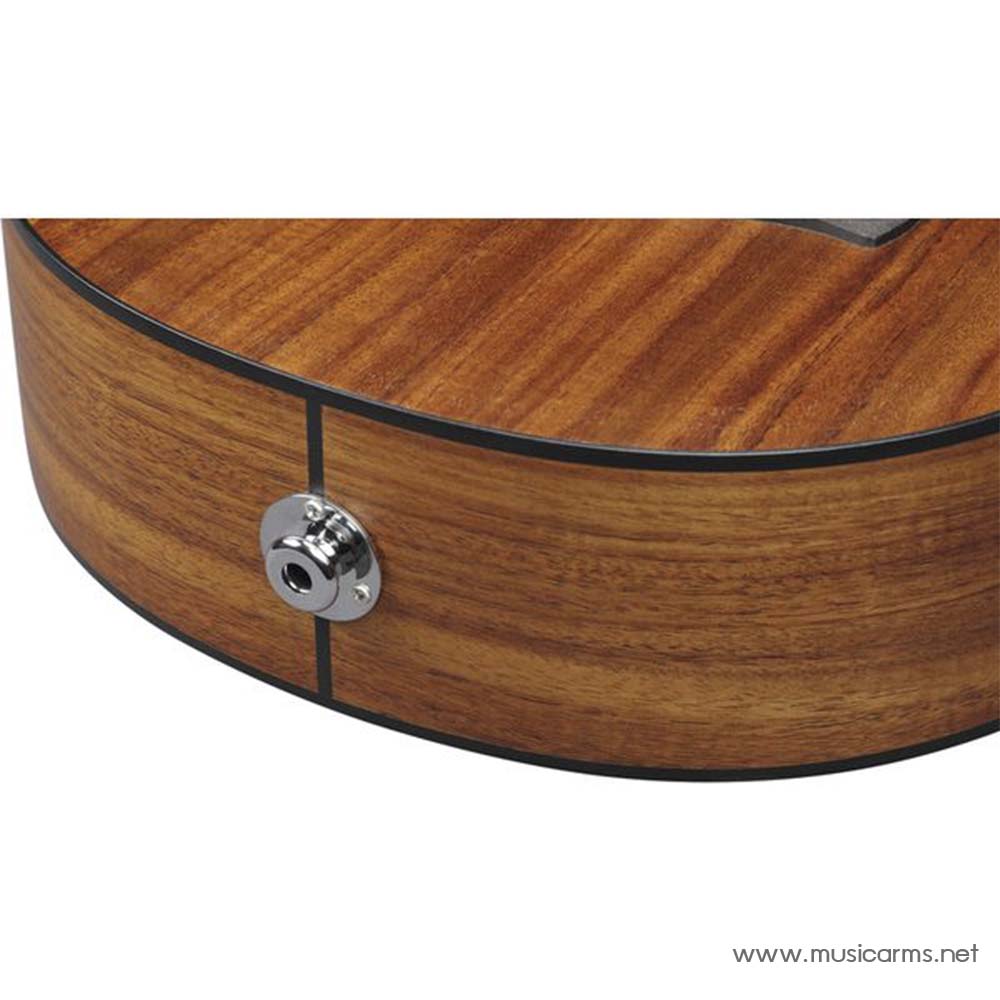

• output jack
• 1/4″ Endpin Jack
