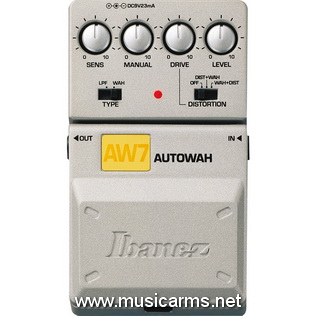

IBANEZ AW7

The Ibanez AW7 from the Tone-Lok series isn’t just any autowah. First, a Cry Baby-style wah with both low and high frequencies cut. Second, an LPF-style wah with only high frequencies cut. The Ibanez AW7 guitar effects pedal also works as a notch filter with the Sens at 0, similar to having a wah turned on but not “rocked.” Built-in distortion circuit can be switched to either pre or post wah.

Power Supply ; 9V Battery
Other power : Adapter
Current Consumption : 23mA maximum
Switchable effects : 2 types Cry Baby-style wah, an LPF-style wah

Dimensions
Dept : 125
Wide : 75
High : 53
Weight : 460g (with battery)

Internal distortion connecting
Off: Distortion will not be applied.
Dist+wah: Connect in the order of distortion => Wah. This intensifies the effect of the wah.
Wah+Dist: Connect in the order of wah => distortion. This is the most commonly-used connection.
