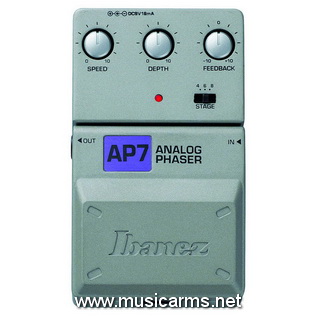

IBANEZ AP7

The Tone-Lok Series AP7 Analog Phaser Pedal from Ibanez has a pure analog circuit producing very warm, lush vintage phase tones. Speed, depth, and feedback control allow you to dial in a wide range of tones. The 3-way switchable phase circuit allows you to select 4-, 6-, or 8-stage phasing. When switched to 4-stage phasing, the effect pedal recreates the sounds of a vintage phaser. When switched to 8-stage phasing, the guitar pedal produces aggressive and deep phasing characteristics.

Power supply: 9V battery
Other power : AC adapter AC109, AC309, AC509
Current consumption : 22mA maximum
Warm analog phasing : 3 modes
Mode switch : 3-position
Controls : Speed, Depth, and Feedback controls
Controls types : Tone-Lok locking

Dimensions
Wide : 3″
High : 2-1/10″
Depth : 4-9/10″
