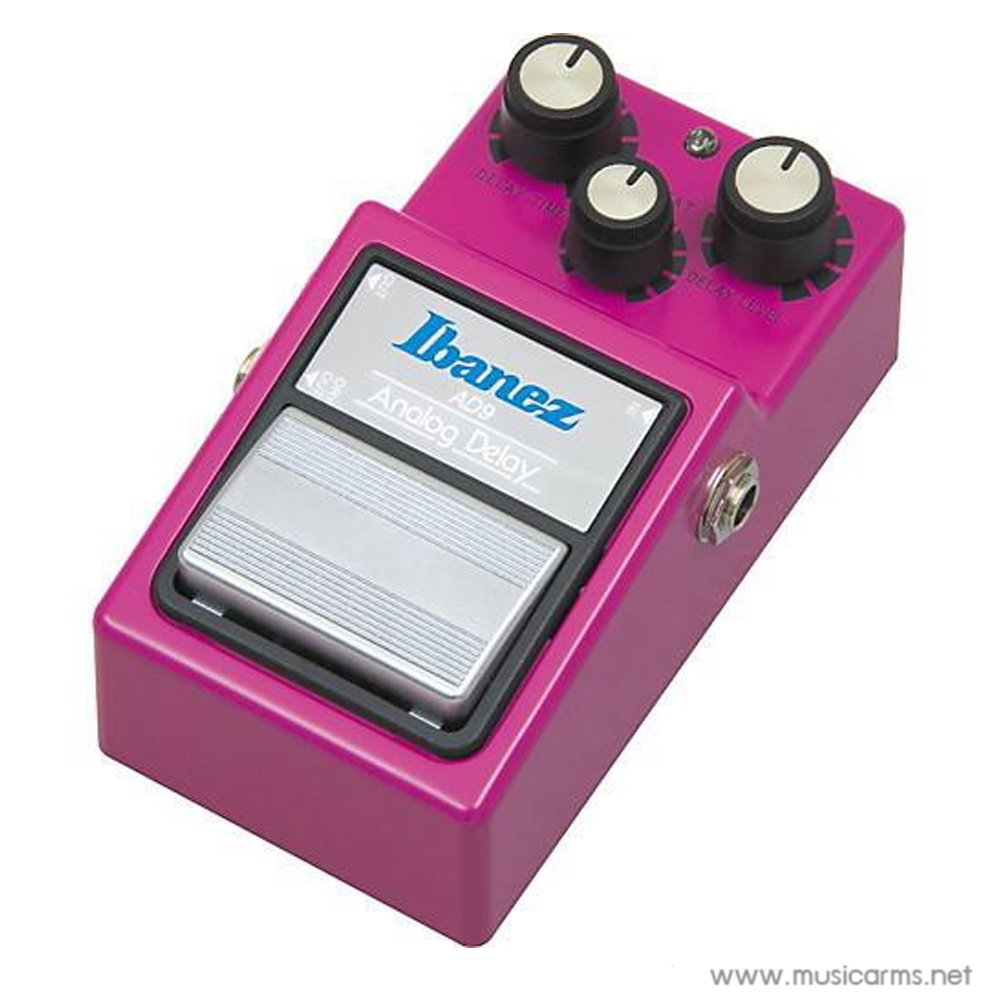

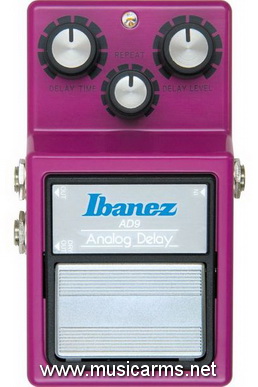

IBANEZ AD-9

The Ibanez AD9 Analog Delay Effect Pedal uses a compander with pre- and de-emphasis for an exceptionally clean delay. Time and level controls allow mixing between dry and delayed signals. Repeat control lets you adjust the number of repeats without runaway. 2 outputs enable dry and delayed signals to be routed separately.

Knobs : DELAY TIME, DELAY LEVEL, REPEAT
Repeat controls : delay signal feedback
Delay time rang : 10 ms up to a maximum of 300 ms
Delay circuit : Panasonic MN3205 and MN3102 BBD
Power supply : 9V battery
Other power : external 9v DC
Signals power AC : diode LED
Delay level control : 100% dry to 100% wet mixing
Outputs : 2 (dry and delayed signals)
Case : Tough metal housing
Stereo setup : 2-amp true stereo setup
Terminal connectors : mono signal input, wet output, mixed output
