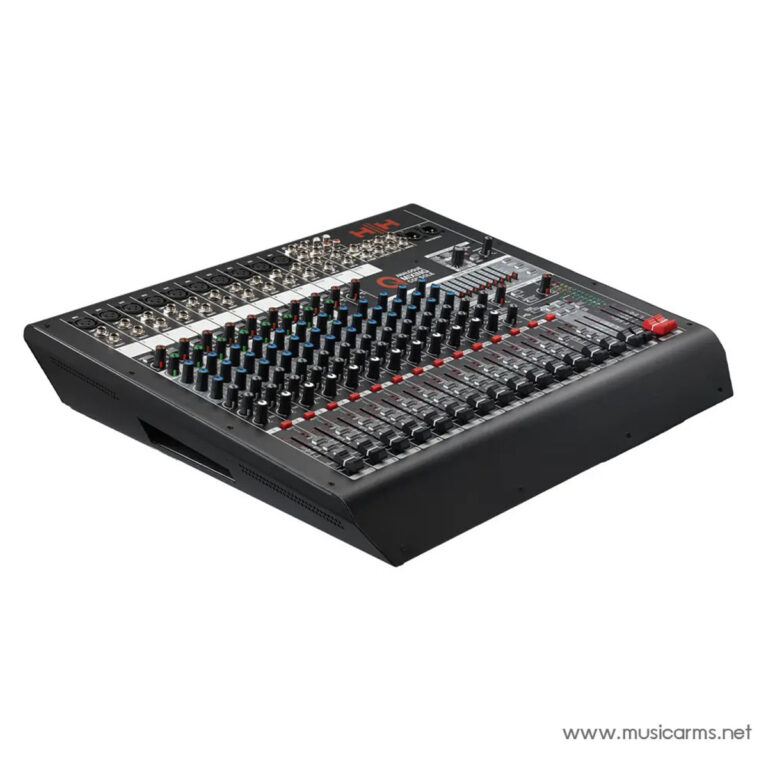

HH Audio Q16FX Analog Mixer

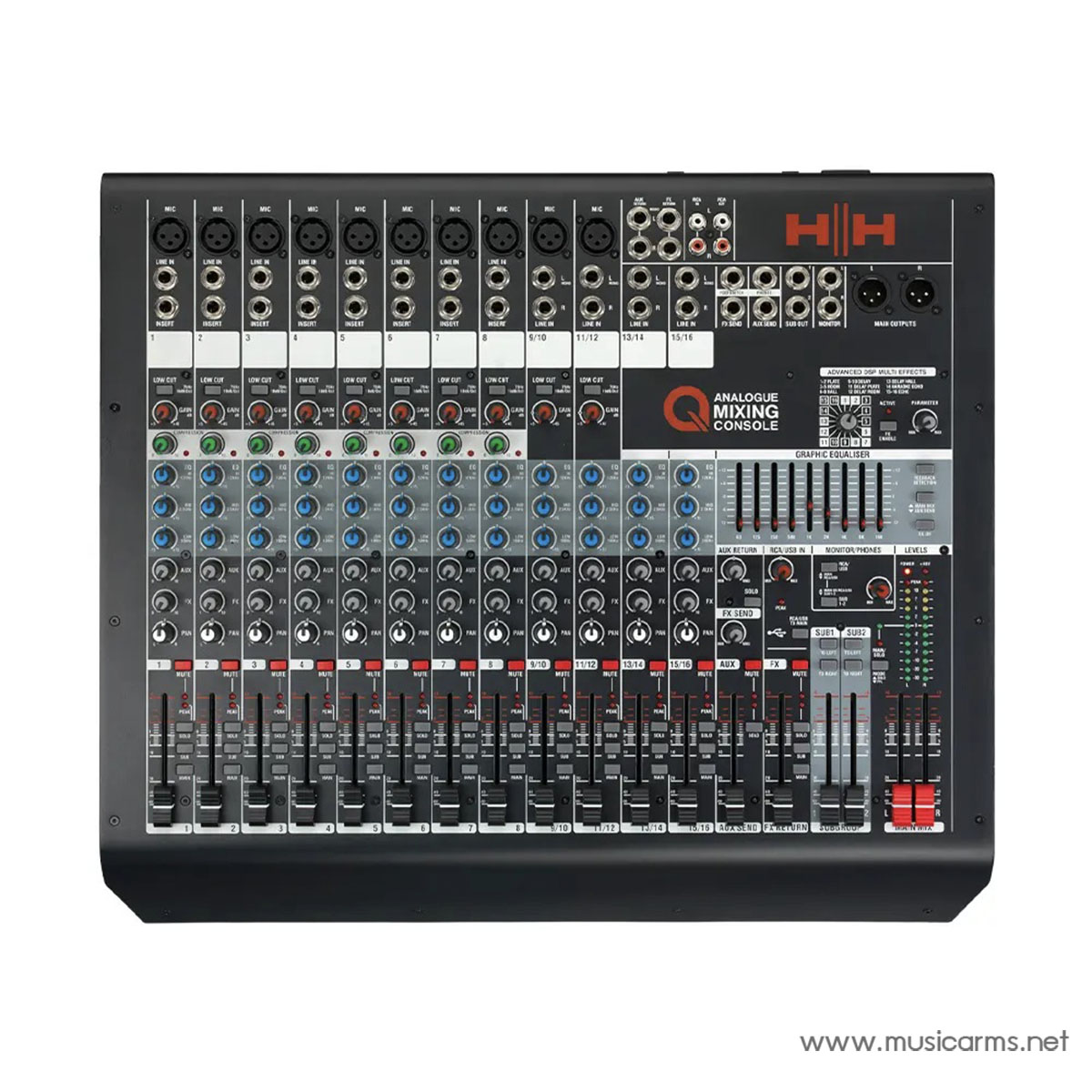

The Q16FX is a 16-channel analogue mixing console designed and engineered in the UK. The Q16FX consists of 16 input channels: 10 mono channels with microphone inputs utilising low-noise microphone preamps plus a line-in option on each channel alongside 4 stereo line input channels perfect for electric pianos, synthesizers, drum machines, audio from external media players or any other line level sources.

Channels 1 to 8 feature an easy-to-use single-knob compressor giving you full control over the dynamic range of your input sources. A low cut at 75Hz plus a 3-band EQ is available on each channel allowing you to shape the tone of individual sound sources helping you to create a beautifully balanced mix.

16-high-quality DSP effects offer even more options for your audio productions with multiple reverbs, delays and echoes to choose from. The 9-band graphic EQ with feedback detection allows you to grasp the sound of your mix as a whole and adjust accordingly before sending it to front of house.

The Q16FX also offers 2 Subgroups to give you further control, allowing you to adjust the level of the channels routed to each group with ease. 2in/2out USB functionality makes the Q16FX the perfect tool for recording performances, podcasts, and music production.

All of this combined with comprehensive monitoring, 2 auxiliary sends, RCA in and out, global phantom power, pan on each channel, and a 12-point LED meter for your main mix all housed in a robust chassis make the Q16FX a complete portable powerhouse for traveling musicians and engineers alike.

• Mic Inputs
  10 x XLR CH1-12
• Line Inputs (Mono)
  8 x ¼” 6.3mm TRS CH1-8
• Line Inputs with Mic (Stereo)
  2 x Stereo ¼” 6.3mm TRS CH9-12
• Line Inputs (Stereo)
  2 x Stereo ¼” 6.3mm TRS CH13-16
• EQ
  3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel
• Low Cut
  75Hz cut off @ 18dB/Octave (CH1-12)
• Compressor
  2:1 ratio 9dB makeup gain, -8dBu input threshold (max compression, Ch1-8)
• Main Outputs
  Balanced Stereo XLR
• Monitors
  Stereo ¼” 6.3mm TRS Sockets
• Sub Outputs
  2 x ¼” 6.3mm TRS Sockets
• FX Send
  Mono ¼” 6.3mm TRS
• Aux Send
  Mono ¼” 6.3mm TRS
• Phones
  Mono ¼” 6.3mm TRS
• RCA
  Stereo Phono Sockets
• Effects
  16 Reverb and delay effects with enable switch and parameter control.
• Graphic EQ
  Master 9 Band Graphic EQ with feedback detect, on/off toggle
• USB Audio
  Inputs/Outputs: 2-in/2-out, 24-bit, Sample Rate 48kHz

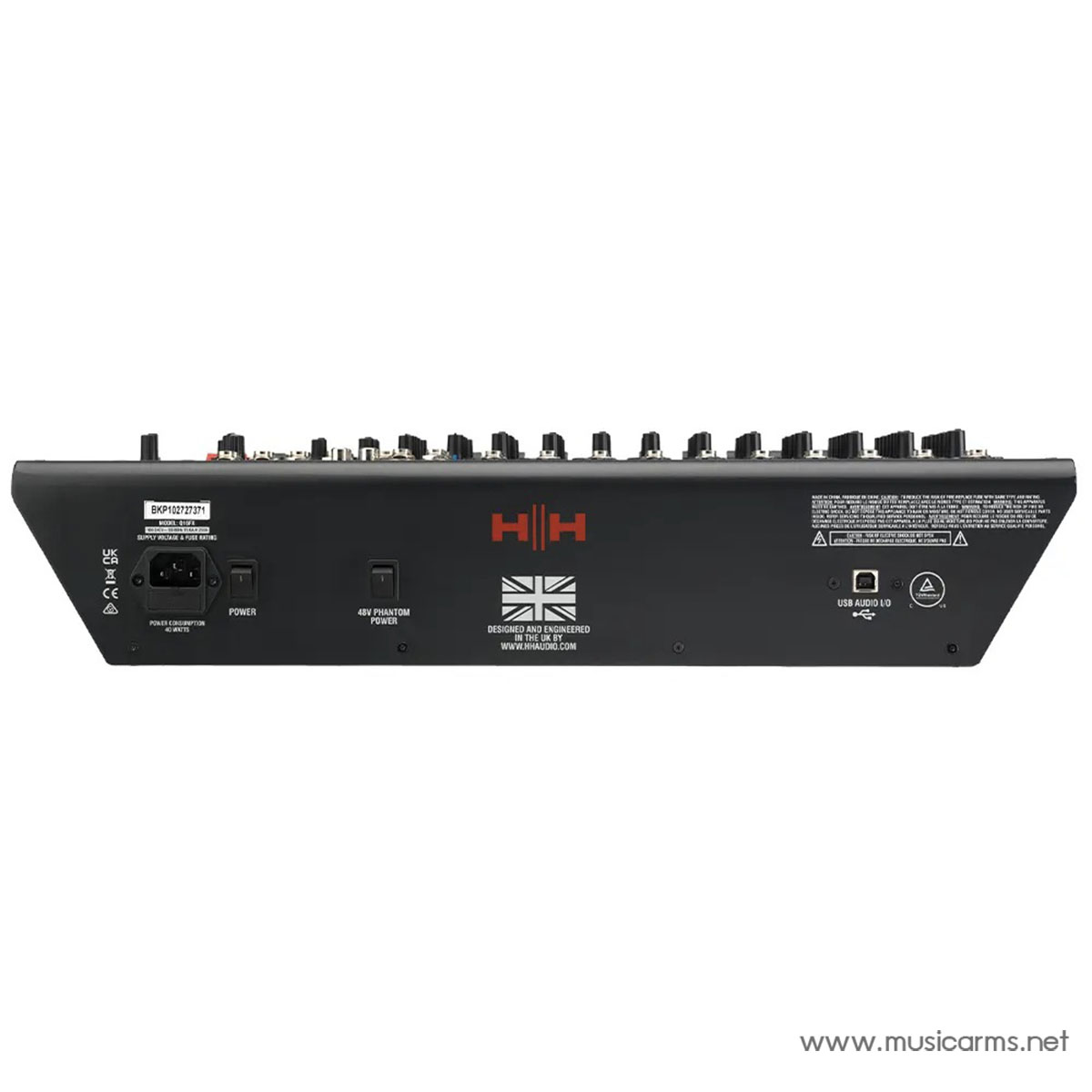

• AC Power
  Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included)
