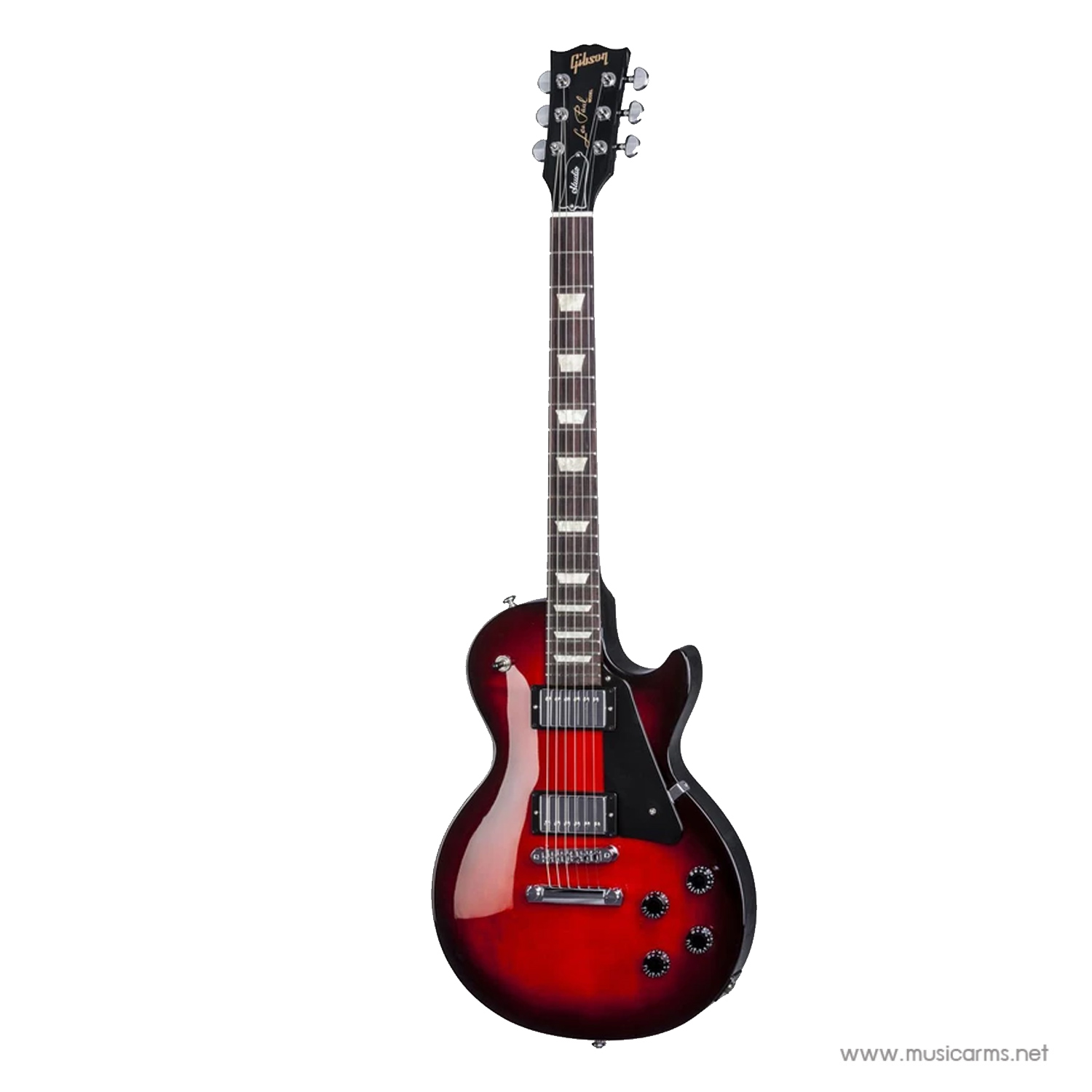

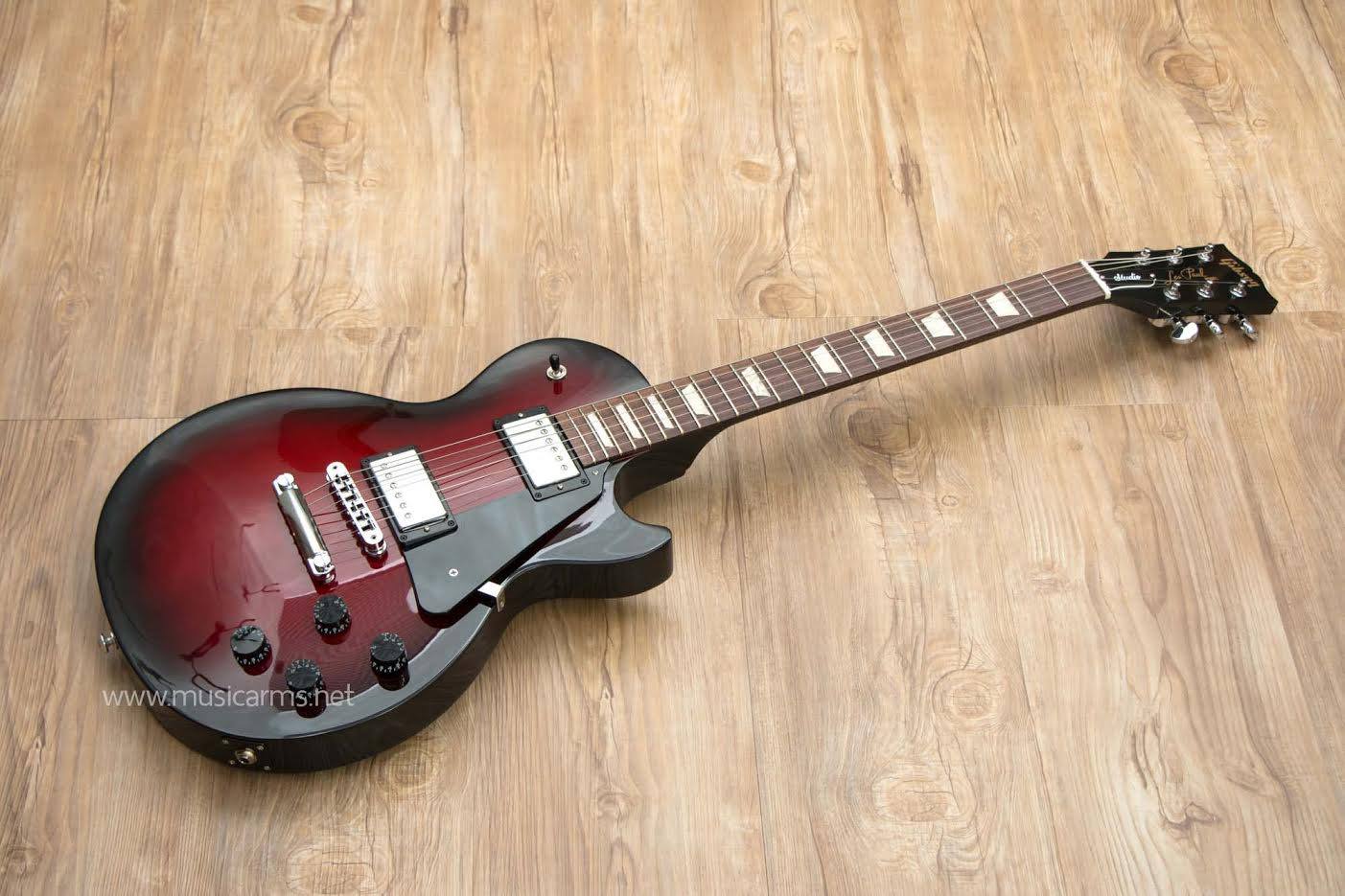

Gibson Les Paul Studio T 2017 กีตาร์ไฟฟ้า

A New Spin on a Studio Mainstay

The Les Paul Studio is as celebrated by live performers as it is by session players. The Gibson Les Paul Studio T treads new ground with its coil tapped complement of 498T/490R pickups. This combination unlocks plenty of creative textures to flesh out ideas in the studio or onstage, from classic cleans and modern drive to single-coil cluck. The Studio T benefits from an Ultra-Modern weight-relieved body. This reduction in weight of more than a pound provides extra comfort for those long nights spent bent over a console. And a feature your fingers will thank you for is the SlimTaper mahogany neck, which honors the fast style beloved by fans of ’60s Les Pauls. Dependable Grover kidney tuners keep this Les Paul Studio stable.

Top Features

• Grover kidney tuners: Durable and superbly efficient
• Tektoid nut: Dense and self-lubricating for great sustain and accurate return to pitch
• Thicker one piece rosewood fingerboard: High quality and outstanding sonic depth
• Slim taper neck: Fast, modern and comfortable to play
• A grade plain maple top: Hand-selected, solid maple top for authentic Gibson tones
• Mahogany body with Ultra-Modern weight relief: New weight relief method for an even lighter guitar and enhanced resonance
• 490R/498T humbuckers: Authentic Gibson tones straight from the golden era
• Classic Gibson controls with two push/pull: The added versatility of independent coil tapping
• Chrome plated aluminum TOM and aluminum Stop Bar: Durable and premium chrome finish over the best and most modern bridge and tailpiece ever used
• Classic Gibson hardshell case: Stylish and protective

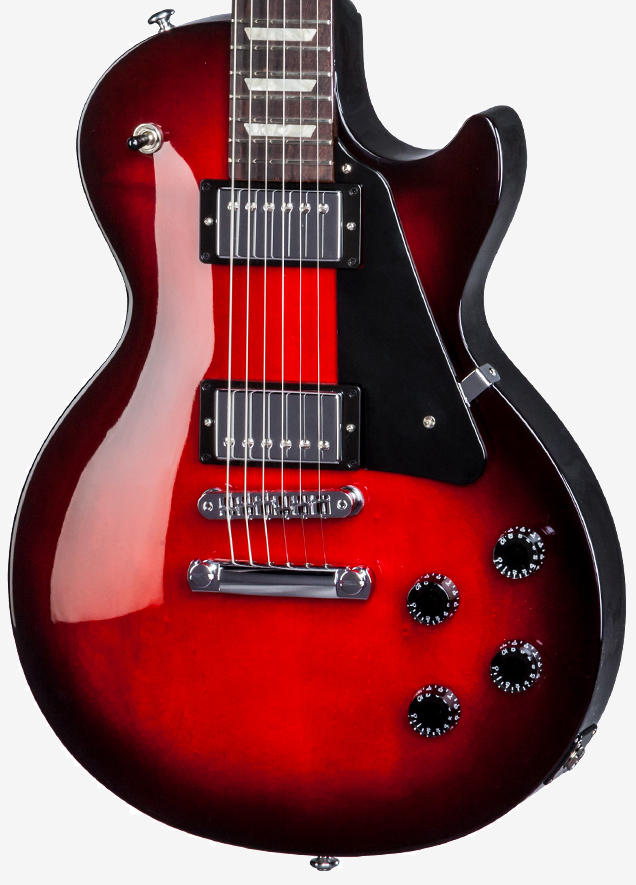

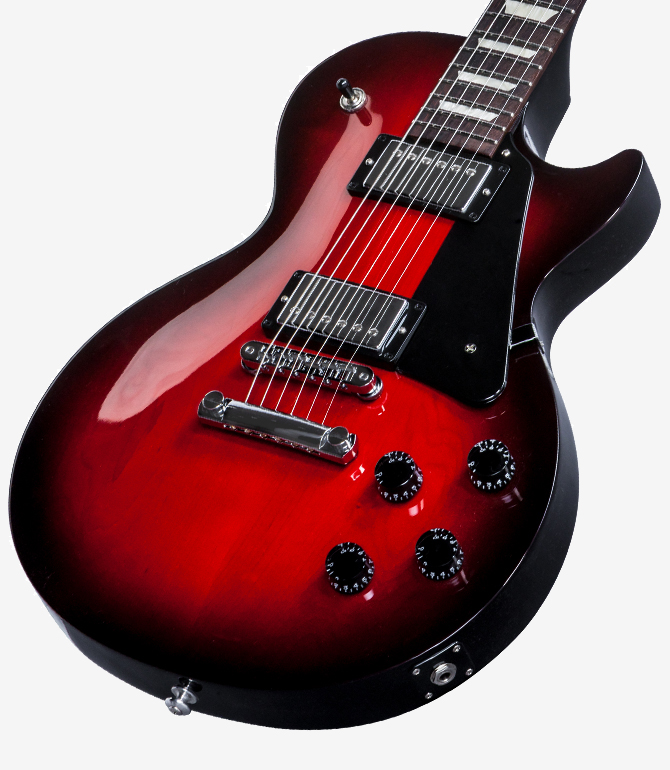

Body

Top
Wood Species:	Maple
Pieces:	2
Grade:	Plain A
Binding:	None

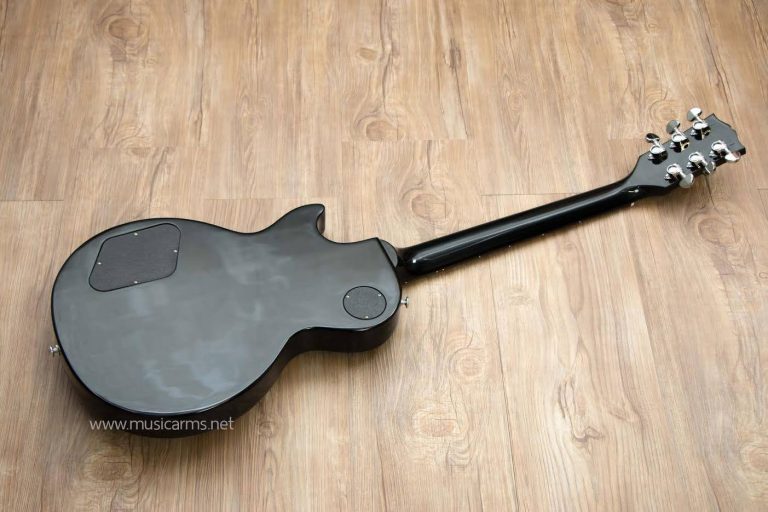

Back
Wood Species:	Mahogany
Pieces:	Multi-Matched
Density:	Medium
Binding:	None

Weight
Weight Relief:	Ultra-Modern
Average Weight (body only):	4lbs. 6.7oz
Materials Used
Glue:	Franklin Titebond 50
:
Tonal, Resonant, and/or Technical Effect:
Body Contour
Carve:	Classic

Neck

Neck
Wood Species:	Mahogany
Pieces:	1
Details
Truss Rod:	Les Paul
Profile:	Slim taper
Thickness at Fret 1:	.800″
Thickness at Fret 12:	.875″
Other Materials:
Average Weight:	1 lbs 2.0 oz

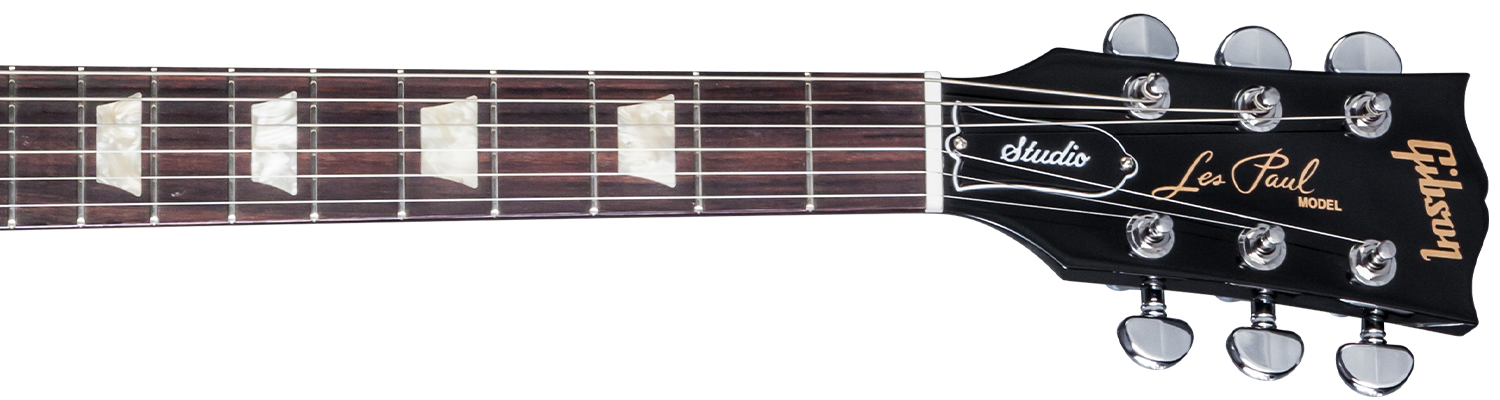

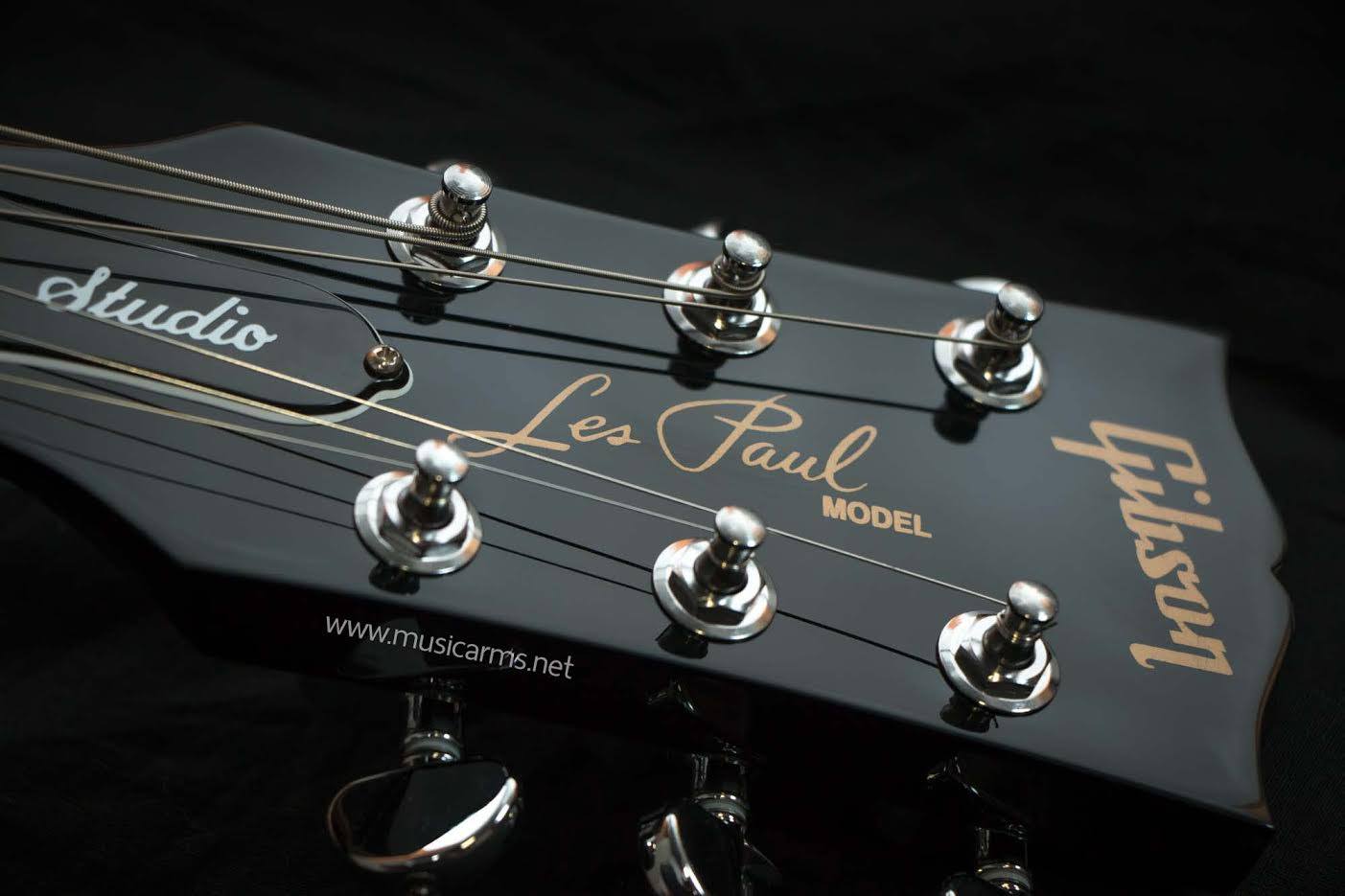

Peg Head
Type:	SP1-B
Inlay:	None
Peg Head Binding:	None
Logo:
Silkscreen:	Gold “Gibson” & “Les Paul Model”
Headstock Angle:	17 degrees
Tonal, Resonant, and/or Technical Effect:

Neck Fit
Joint Angle:	5.0 degrees
Joint Angle Tolerance:	0 deg 0 min 15 sec
Type:	Mortis and Tenon
Adhesive:	Franklin Titebond 50
Gauges Used:	Pitch Height Gauge and Alignment Gauge
Nut
Style:	Nut
Material:	Tektoid
Width:	1.695″
Slots:	E: 0.046″ A: 0.036″ D: 0.026″ G: 0.016″ B: 0.011″ e: 0.009″
Fingerboard
Wood Species:	Rosewood
Pieces:	1
Shade:	Dark

Fingerboard Details
Radius:	12″
Frets:	22
Nut/End of Board:	1.695″ @ nut, 2.260″ @ end of board
Scale:	24 3/4
Binding:	None
Side Dots (Color):	White
Fingerboard Inlays
Style:	Trapezoid
Material:	Acrylic
Dimensions:	0.66″ x 1.17″
Average Weight:	0.24″ x 1.56″

Finishes

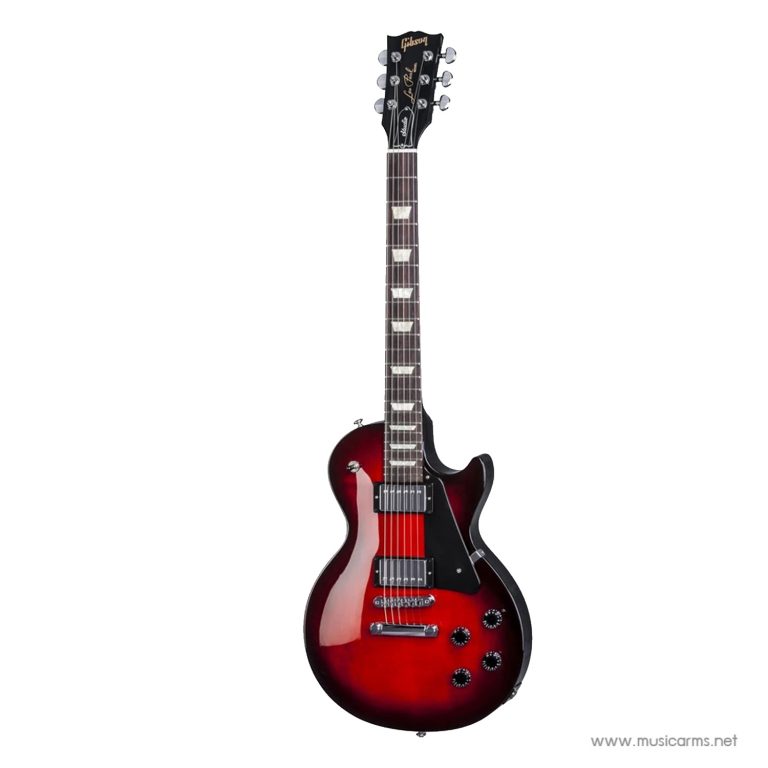

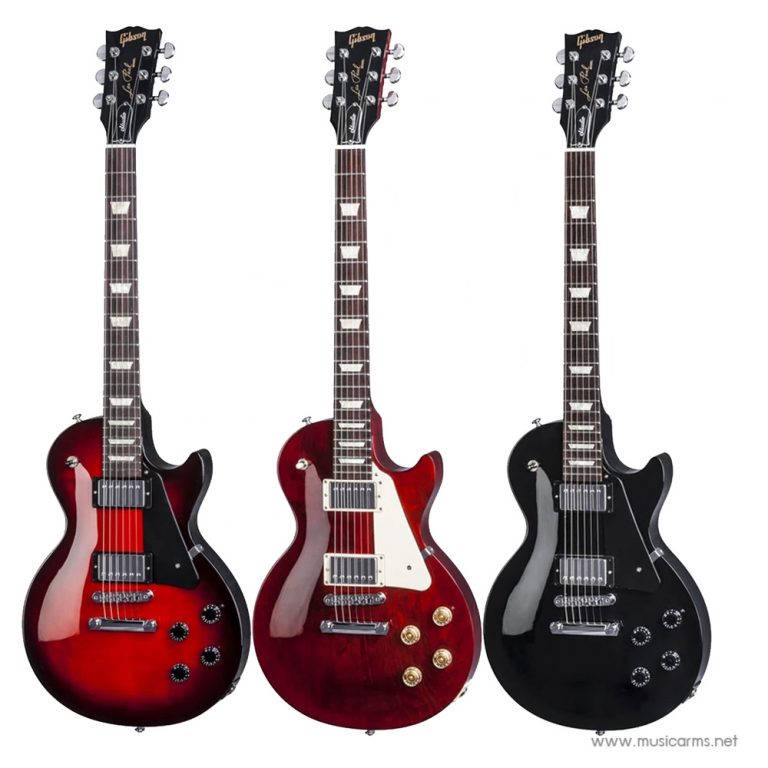

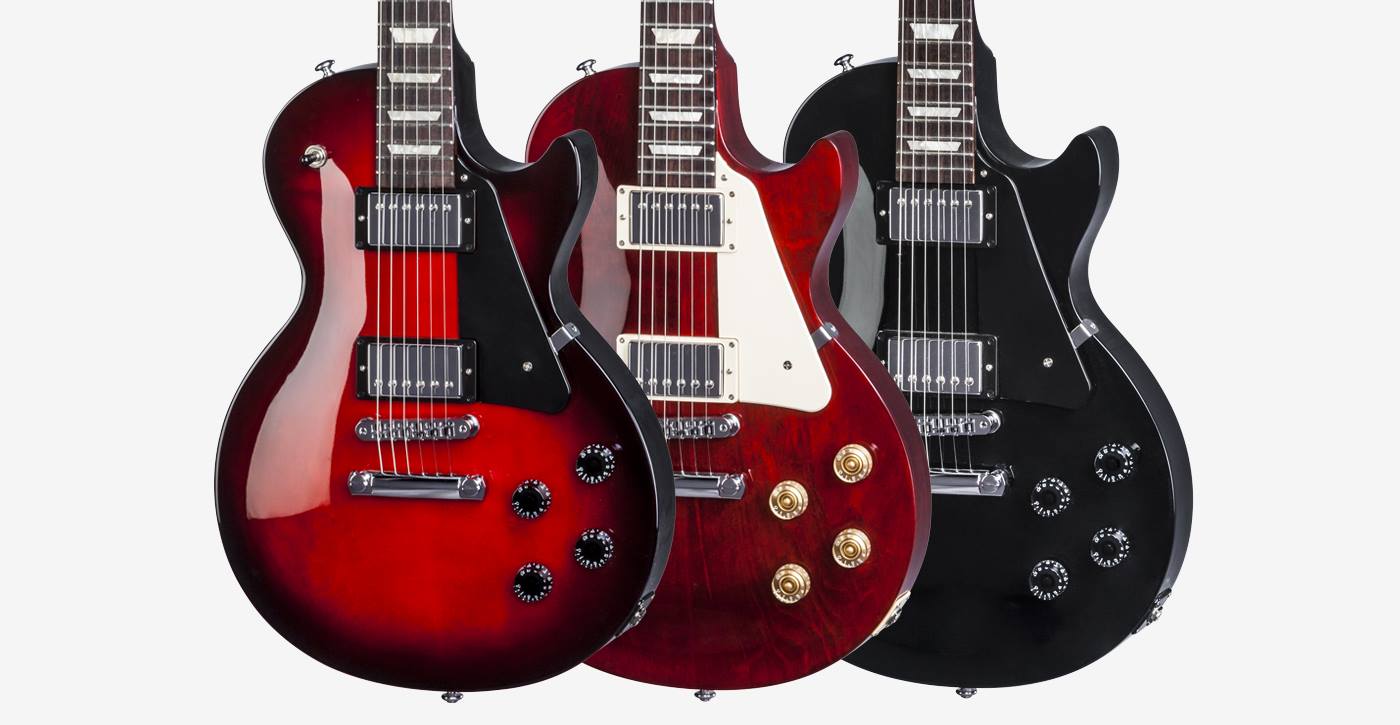

Black Cherry Burst

Color Code:	B6
Surface Texture:	90 Sheen
Filler:	Walnut
Sealer:	1.5 – 2 mils
Top:	Black Cherry Burst
Top Coat:	Hi Gloss Lacquer / 90 Sheen, 7-8 mils
Scraped:	Fingerboard and Nut

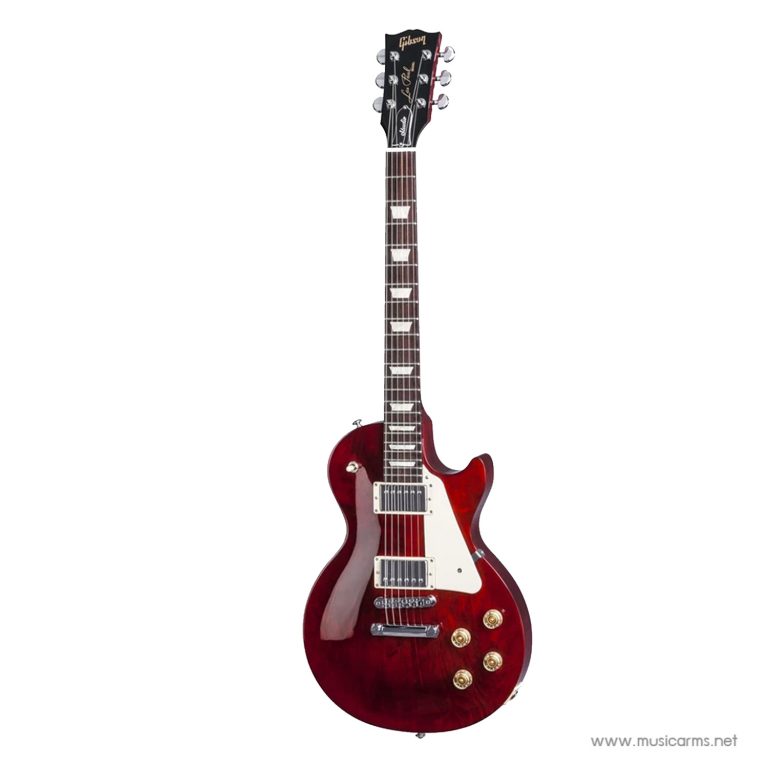

Wine Red

Color Code:	WR
Surface Texture:	90 Sheen
Filler:	Walnut
Sealer:	1.0 – 1.5 mils
Top:	Wine Red
Top Coat:	Hi Gloss Lacquer / 90 Sheen, 7-8 mils
Scraped:	Fingerboard and Nut

Ebony

Color Code:	EB
Surface Texture:	90 Sheen
Filler:	Walnut
Sealer:	1.5 – 2 mils
Top:	Ebony
Top Coat:	Hi Gloss Lacquer / 90 Sheen, 7-8 mils
Scraped:	Fingerboard and Nut

Electronics

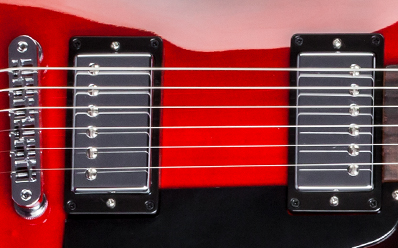

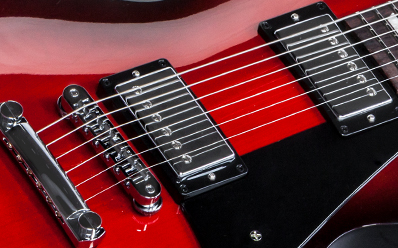

Pickups	Rhythm		Lead
Style:	490R		498T
Winds/Coil: Screw side/Slug side:	5250 / 5250		6900 / 6900
Material of Wire (gauge):	Copper (42)		Copper (43)
Coil Dimensions (per coil):	2.61 x 0.68 “		2.61 x 0.68″
Coil Material:	ABS		ABS
Coil Winding Process:	Machine Wound		Machine Wound
Pole Piece Material:	Nickel		Nickel
Pole Piece Position from Nut:	18 5/8″		23 7/16″
Slug Material:	Nickel		Bare Steel
Slug Dimensions (diameter x length):	0.187 x 0.489″		0.187 x 0.489″
Magnet Material:	Alnico II		Alnico V
Magnet Position from Nut:	19″		23 1/8″
Magnet Dimensions:	2.5 x 0.5″		2.32 x 0.5″
Polarities:	Screw side is the south pole of magnet		Reversed Polarity
Cover:	Chrome		Chrome
Qfactor:	5.62		4.07
ResistanceDC:	7803 Ohms		13980 Ohms
Resonant Frequency:	2715.71 Hz		2012.49 Hz

Tonal & Resonant Advancements:

Better Hum canceling w/rev polarity Better Hum canceling w/rev polarity

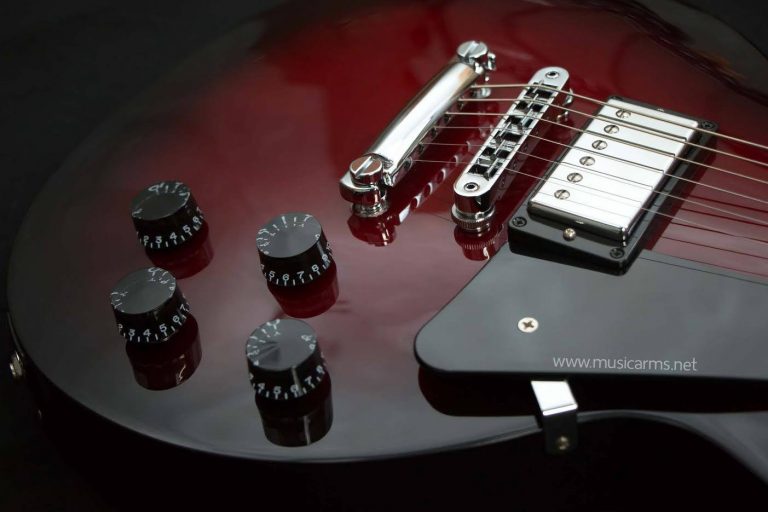

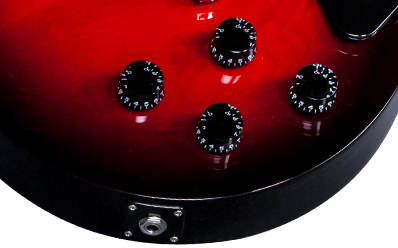

Control Pocket Assembly	Lead Volume	Rhythm Volume
Type:	500k Push/Pull “Coil-Tap”	500k Push/Pull “Coil-Tap”
Peak Voltage:	500V	500V
Range:	0-500K	0-500K
Power Rating:	1/4 watt above 100K ohms	1/4 watt above 100K ohms
Resistance Tolerance:	+/- 20%	+/- 20%
Minimum Resistance:	200 ohms	200 ohms
	Lead Tone	Rhythm Tone
Type:	500K Non-Linear	500K Non-Linear
Peak Voltage:	500V	500V
Range:	0-500K	0-500K
Power Rating:	1/4 watt above 100K ohms	1/4 watt above 100K ohms
Resistance Tolerance:	+/- 20%	+/- 20%
Minimum Resistance:	200 ohms	200 ohms
Capacitors:	Lead Value	Rhythm Value
	.022uF	.022uF

Hardware

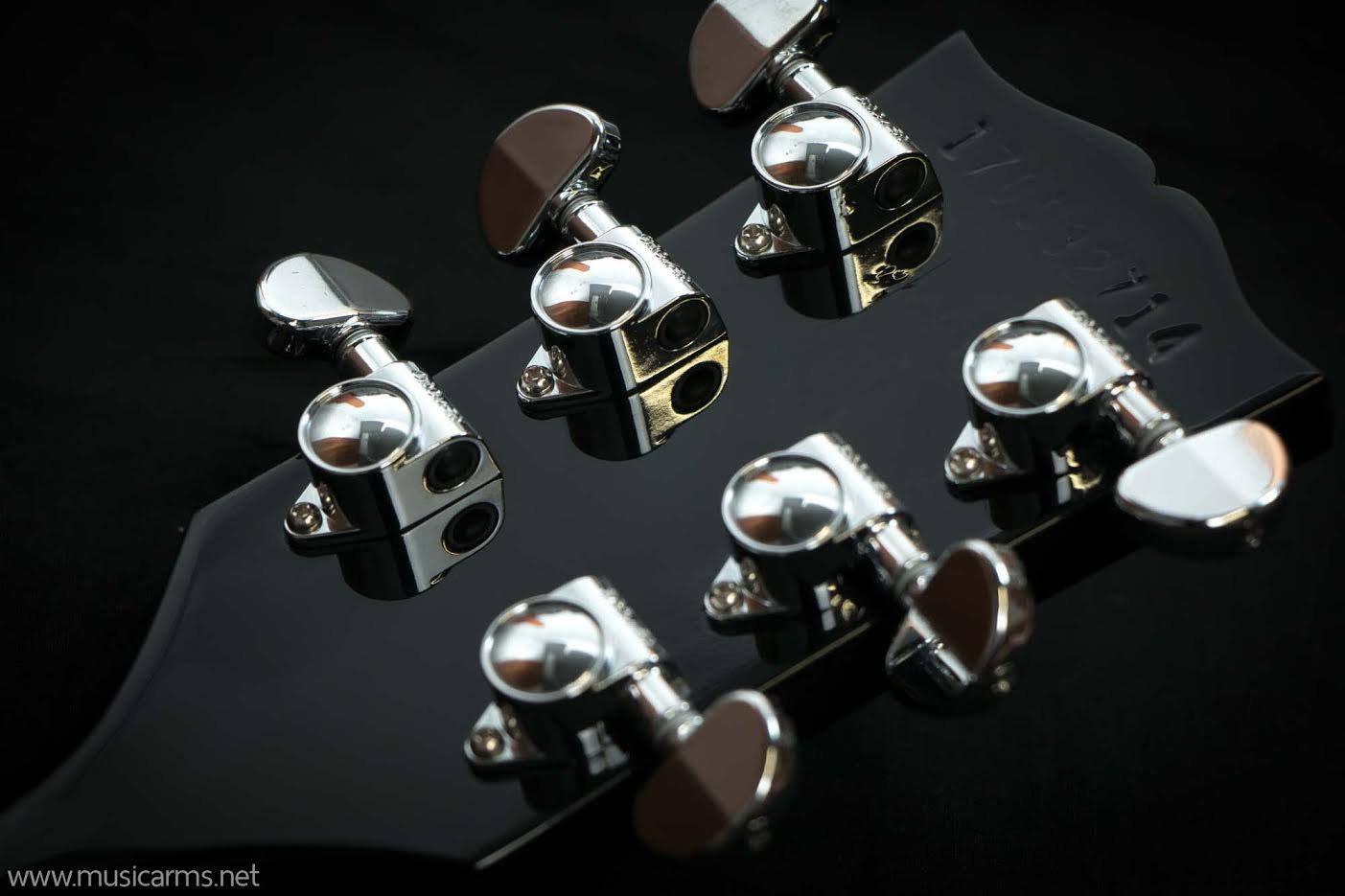

Tuning Keys
Style:	Grover Kidney
Material:	Proprietary
Weight:	.41 lbs
Tuning Keys Details
Tuning Ratio:	18:01
Gear Type:	Worm
What is allowable turn:	Proprietary
Plating specs:	Chrome
Part numbers:	430-14157 / 58
String Dimensions
E:	0.046″
A:	0.036″
D:	0.026″
G:	0.016″
B:	0.011″
e:	0.009″

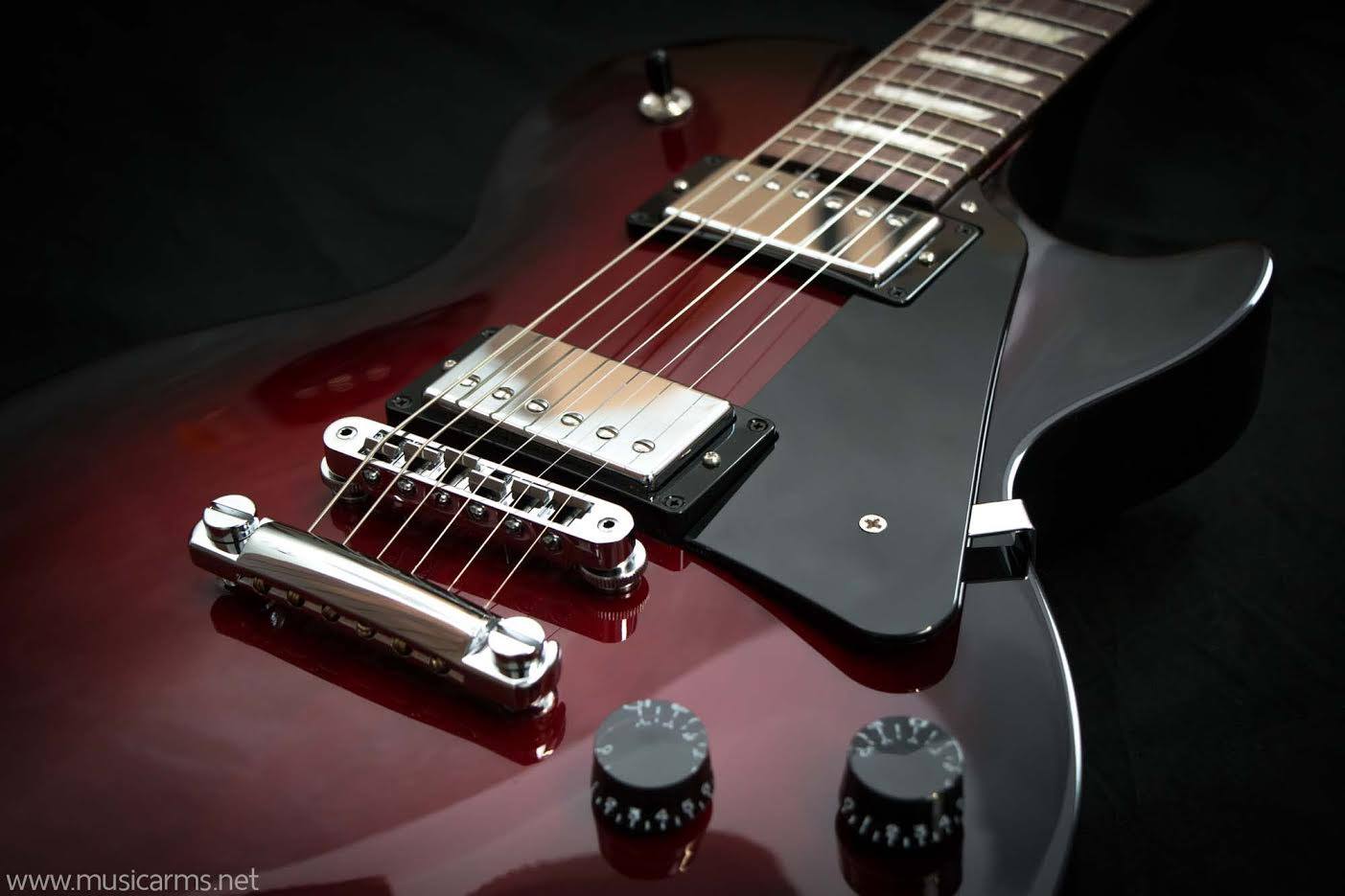

Bridge
Style:	Tune-o-matic
Material:	Aluminum
Plating Specs:	Chrome
Part number:	430-14450
Weight:	.96 oz

Dimensions of String Slots
E:	0.058″
A:	0.048″
D:	0.038″
G:	0.028″
B:	0.019”
e:	0.014″
Tailpiece
Style:	Stop Bar
Compensated:	No
Material:	Aluminum
Plating Specs:	Chrome
Part number:	430-14451
Weight:	1.12 oz
Output Jack
Style:	1/4″ mono gold plated positive contact
Jack Plate
Style:	Les Paul Square
Material:	ABS Black
Part Number:	430-19385
Weight:	0.21 oz
Strap Buttons
Material:	Aluminum
Plating Specs:	None
Part numbers:	430-19160 / 60E
Weight:	0.14 oz

Plastics

Pick Guard
Style:	Les Paul
Part Number:	430-12689

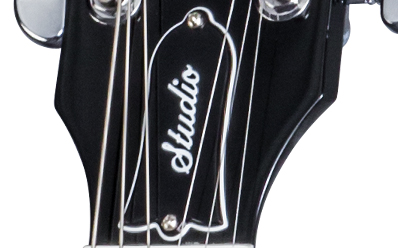

Truss Rod Cover
Style:	Black/White bell, Stamp “Studio”
Part Number:	430-19708

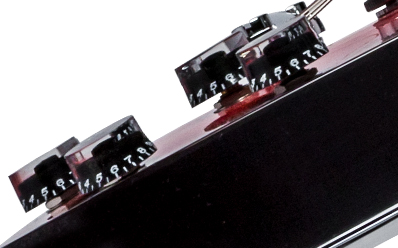

Knobs
Style:	Speed Knobs Gold
Part Number:	430-19264
Dial Pointers
Yes/No:	No

Control Plate(s) (Backplate Cover)
Style:	SS infused polycarbonate for ESD protection
Part Number:	380-12209
Control Plate(s) (SwitchPlate Cover)
Style:	SS infused polycarbonate for ESD protection
Part Number:	380-12211
Switch Washer
Style:	None
Part Number:	n/a
Trim Rings
Style:	Black Humbucker Low/High and Cream Humbucker Low/High
Part Number:	440-13884 / 440-13851

Accessories

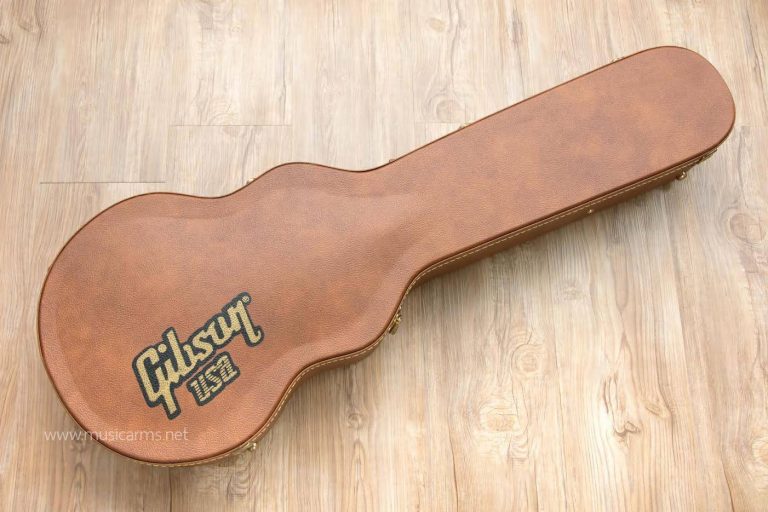

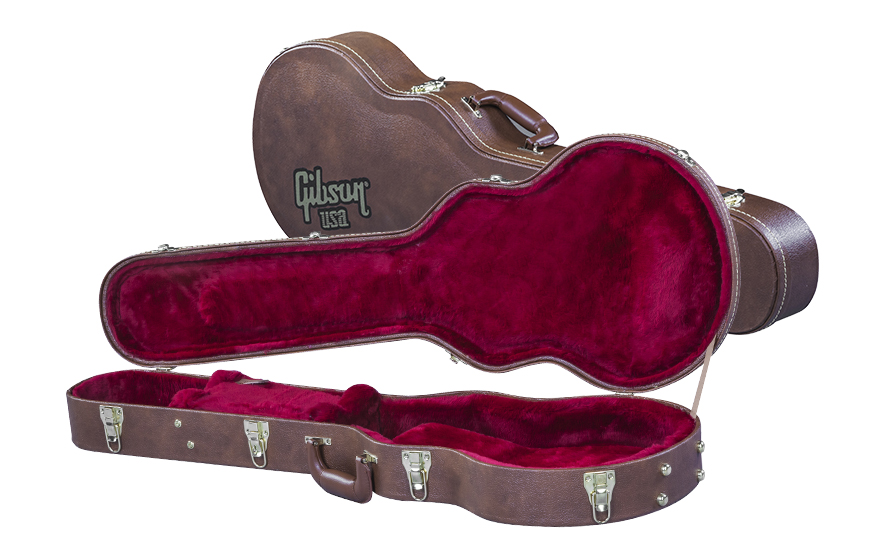

Case
Style:	LP Hard Shell
Color:	Brown
Strap Locks:	None
Tools:	Gibson USA Multi Tool, Gibson USA Premium Strap, Gibson USA Polishing Cloth
Manual:	Gibson USA’s owners
COA/Other:	None

Tech Specs

รายละเอียดกีต้าร์ Gibson Les Paul Studio 2017

• บอดี้ทรง Les Paul แบบ Solid-body
• ไม้ส่วนบอดี้เป็นไม้มะฮอกกานี น้ำหนักเบาแบบโมเดิร์น
• ไม้หน้าเป็นไม้เมเปิ้ลเกรด A
• เคลือบเงาบอดี้ด้วยไนโตรแลคเกอร์
• สี Black Cherry Burst, Ebony และ Wine Red
• คอทำจากไม้มะฮอกกานี ทรงคอ Slim
• ความโค้งของฟิงเกอร์บอร์ด 12 Radius
• ฟิงเกอร์บอร์ดทำจากไม้โรสวู้ด อินเลย์ลายสี่เหลี่ยมคางหมู
• จำนวนเฟรต 22 เฟรต
• ความยาวช่วงสาย 24.75 นิ้ว
• ความกว้าง Nut ส่วนคอ 1.695 นิ้ว
• Nut ทำจากวัสดุ Tektoid
• ตัวบริดจ์และหย่องแบบ Tune O-matic ทำจากอะลูมิเนียมชุบนิกเกิลยึดด้วยตะปูโลหะ
• ลูกบิดของ Grover Kidney
• ปิ๊กอัพคอรุ่น 490R Humbucker
• ปิ๊กอัพบริดจ์รุ่น 498T Humbucker

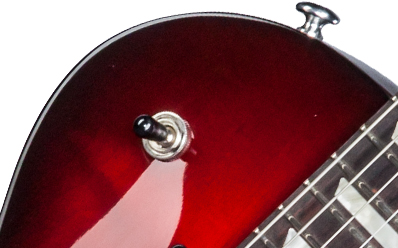

• แผงควบคุม 2 โวลุ่ม 2 โทน สวิทช์ปิ๊กอัพปรับได้ 3 ทาง
• สายกีต้าร์เบอร์ 0.90
• อุปกรณ์แถมเป็น Hard Case
