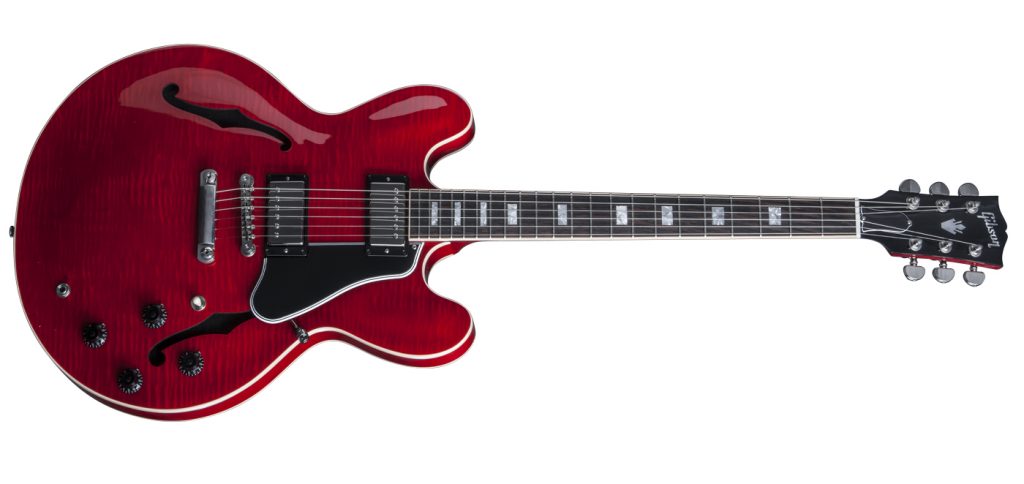

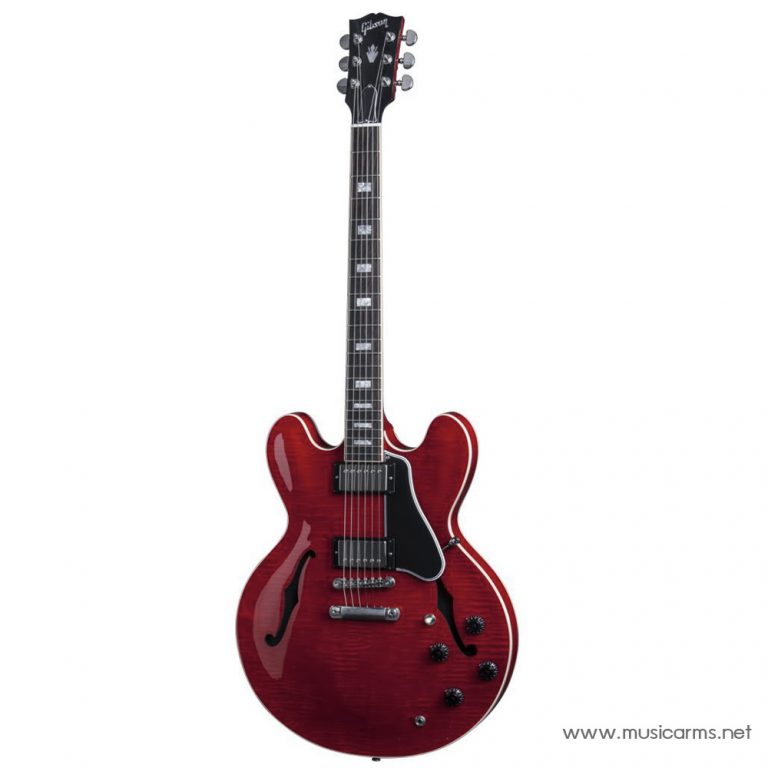

Gibson ES-335 Figured กีตาร์ไฟฟ้า

The Light And Loaded ES-335

The Gibson ES-335 Figured is the perfect blend of form and function. Crafted with a thermally engineered maple centerblock, and thermally engineered quarter-sawn Adirondack spruce bracing, players will be impressed by the lightweight feel and expanded range of tonal capabilities. Equipped with high-end appointments like our hand-wired control assembly with orange drop capacitors, Gibson’s new Calibrated T-Type humbucking pickups, Vintage Deluxe style tuners and light weight Aluminum ABR-1 bridge and stop bar tailpiece anchored with steel thumb-wheels and studs. The AAA figured maple is set off by staggering gloss finishes including Sixties Cherry, Antique Natural, and Iced Tea.

ABR-1 Tune-o-matic Bridge

The standard for simplicity & functionality

The ABR-1 Tune-o-matic bridge was the brainchild of legendary Gibson president Ted McCarty in 1954, setting a standard for simplicity and functionality that has never been bettered. The ABR-1 is slotted directly into the body of the guitar using a separate stud and thumbwheel, providing a firm seating for the strings and allowing players the ability to adjust and fine tune intonation and string height in a matter of minutes. It also yields a great union between the strings and body, which results in excellent vintage tone and sustain.

Body

Body Shape

335

Top

3-ply AAA Figured Maple/Poplar/Maple

Back

3-ply AAA Figured Maple/Poplar/Maple

Bracing

Thermally Engineered Quarter-Sawn Adirondack Spruce

Centerblock

Thermally Engineered Maple

Binding

Single-ply Cream

Finish

Gloss Nitrocellulose Lacquer

Neck

Material

Mahogany

Profile

Rounded “C”

Scale Length

24.75″ / 628.65mm

Fingerboard Material

Rosewood

Fingerboard Radius

12″

Number Of Frets

22

Frets

Medium Jumbo

Nut Material

Graph Tech

Nut Width

1.7″ / 43.053mm

End of Board Width

2.26″ / 57.404mm

Inlays

Acrylic Small Blocks

Hardware

Finish

Nickel

Bridge

ABR-1 Tune-O-Matic

Tailpiece

Aluminum Stop Bar

Tuning Machines

Vintage Deluxe w/ Keystone Buttons

Pickguard

Black 5-ply

Control Knobs

Black Top Hats with Silver Reflector

Switch Tip

Cream

Electronics

Neck Pickup

Calibrated T-Type, Rhythm

Bridge Pickup

Calibrated T-Type, Lead

Controls

2 Volumes, 2 Tones & Toggle Switch (Hand-wired with Orange Drop Capacitors)
