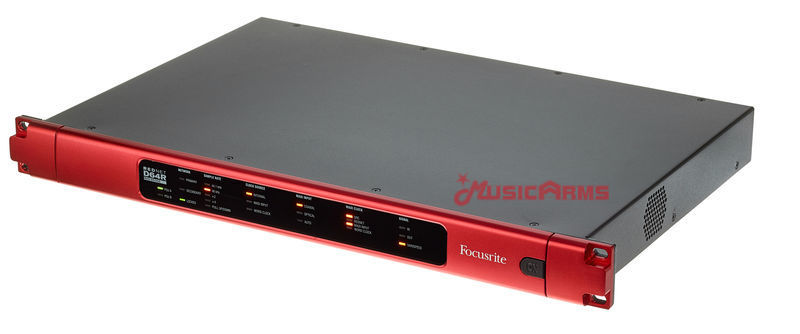

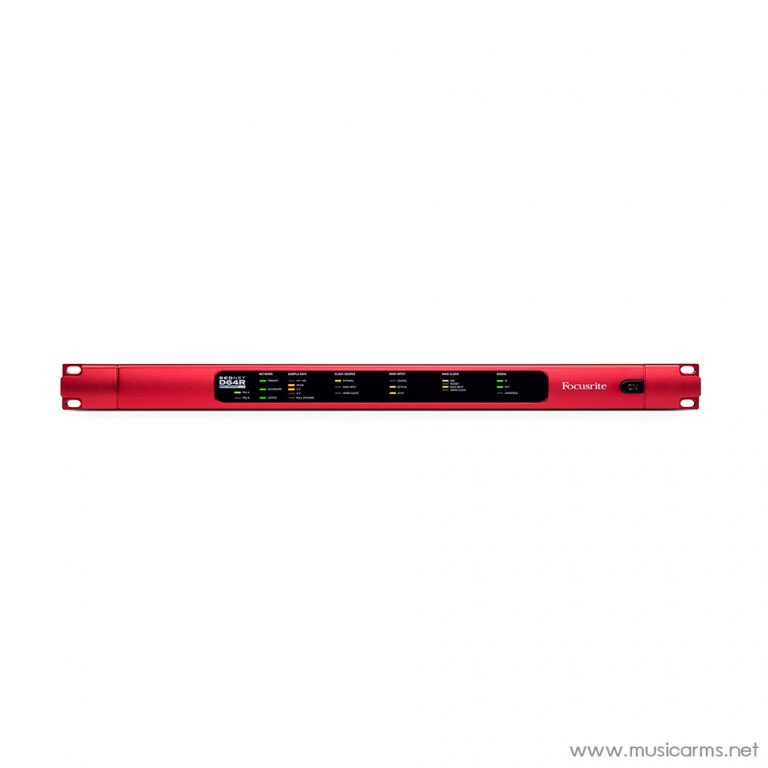

Focusrite RedNet D64R

64 Channels of MADI I/O with Redundancy

The Focusrite RedNet D64R brings together your RedNet-based audio system and any MADI/AES10 system. It serves the same function as the Focusrite RedNet 6, with the addition of redundant power supplies and redundant networking for maximum reliability in a live sound or broadcast environment. With support for up to 64 channels of coaxial and optical MADI I/O, RedNet 6 also features an asynchronous sample rate converter (ASRC) on every input and output. So you can interface between MADI and RedNet without worrying about whether every audio channel is at the correct sample rate. Connect your RedNet system to MADI-based digital consoles, computer cards, converters, and much more with the Focusrite RedNet D64R.

Focusrite RedNet D64R MADI-RedNet Bridge at a Glance:

• Expand your RedNet network with MADI
• Asynchronous sample rates throughout
• Convenient remote control via the RedNet network

Expand your RedNet network with MADI

One of the things we love about the RedNet system at Sweetwater is the ability to network many different audio interfaces in different locations via a simple Ethernet cable. The RedNet D64R makes it simple to expand your RedNet system further, with up to 64 channels of digital I/O via MADI-equipped mixing consoles and audio interfaces. For example, a school could connect the MADI output of a digital console running sound in the theatre to the RedNet D64R, and all audio could be accessed for recording in the school’s recording studios via the RedNet network.

Asynchronous sample rates throughout

When you’re dealing with dozens of channels of networked audio and the ability to easily interface with MADI systems, you don’t want to worry about sample rate mismatches. Thankfully, the RedNet D64R has asynchronous sample rate converters on each input and output. So even if your RedNet system is operating at 96kHz, and you’re connecting to a MADI system at 48kHz, you can expect seamless operation without having to adjust sample rates.

Convenient remote control via the RedNet network

Because you’ll be using the RedNet D64R as a component of a large-scale system, Focusrite makes it easy for you to control and re-route signals via a simple software control panel. No matter where you are in your facility, if you have access to the RedNet network from your computer you’ll have complete control over every RedNet device connected to that network.

Focusrite RedNet D64R MADI-RedNet Bridge Features:

• Add MADI to RedNet – or RedNet to MADI
• Supports both optical and coax interfaces, connect to any MADI equipment
• Slave either the RedNet systems or MADI streams to an external word clock
• Supports up to 64 channels of digital audio I/O at standard sample rates
• Asynchronous sample rate convertors (ASRC) allow MADI and RedNet systems to operate simultaneously at different sample rates
• Free Brainworx bx_console re-creation of Focusrite’s ISA 110 and ISA 130 modules
• Free Brainworx bx_console re-creation of Focusrite’s ISA 110 and ISA 130 modules
• 3-year warranty

• Computer Connectivity: IP Network
• Form Factor: Rackmount
• Simultaneous I/O: 64 x 64

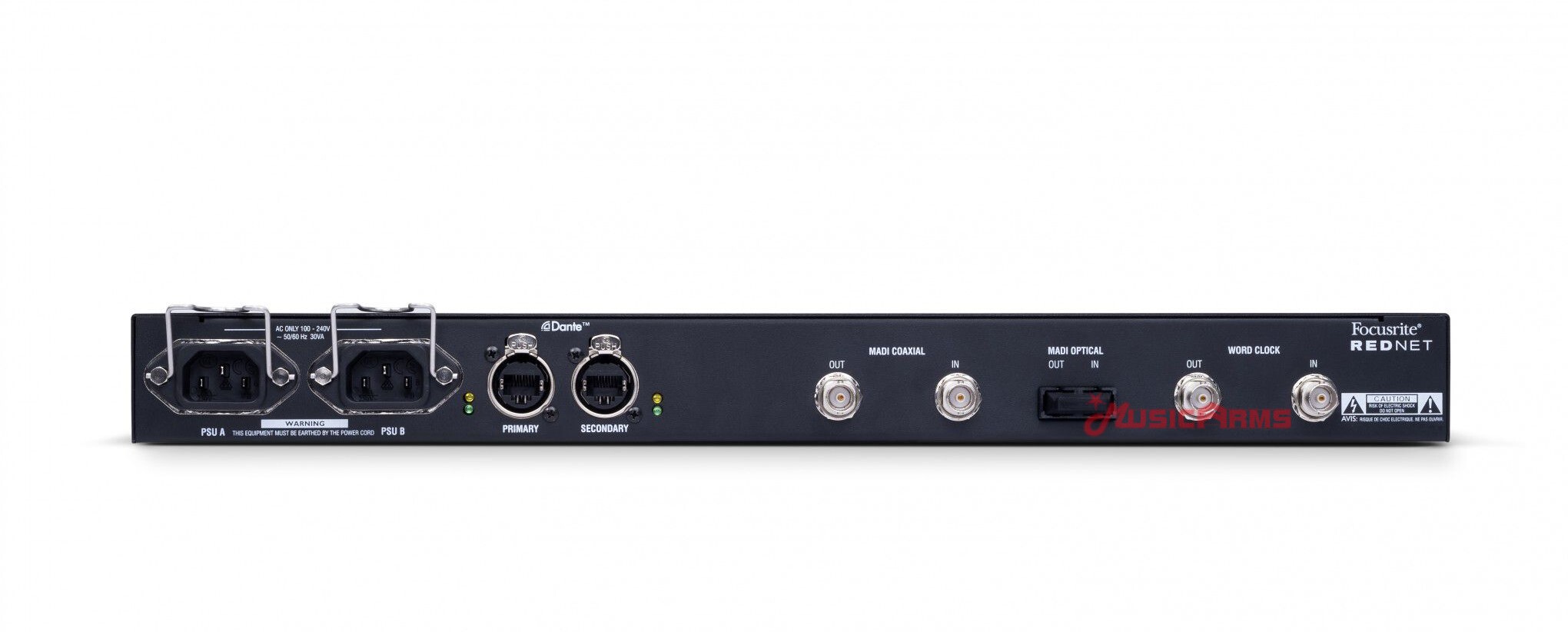

• Digital Inputs: 1 x BNC (MADI Coaxial), 1 x Optical (MADI)
• Digital Outputs: 1 x BNC (MADI Coaxial), 1 x Optical (MADI)
• Clock I/O: 1 x Word Clock (In), 1 x Word Clock (Out)
• Data I/O: 2 x etherCON Ethernet
• Rack Spaces: 1U
• Height: 1.75″
• Width: 19″
