Focusrite REDNET A8R

8×8 Analogue I/O With Dual PSUs

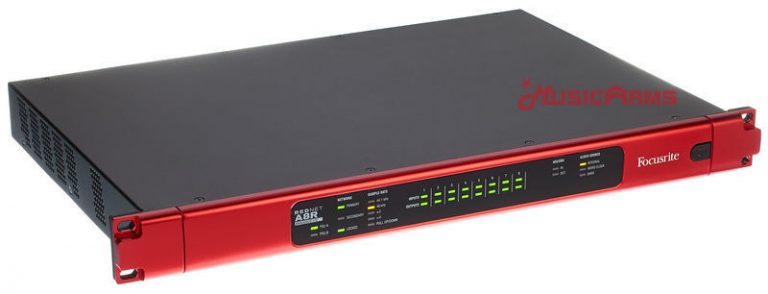

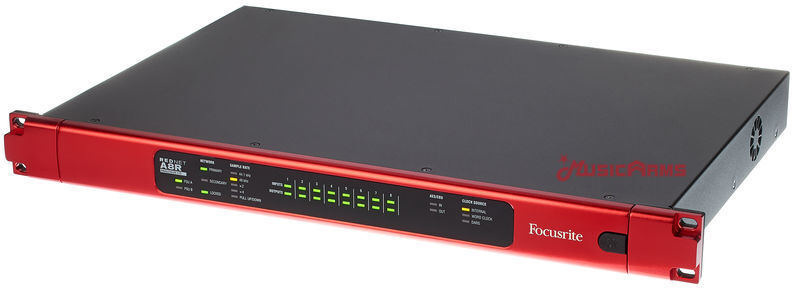

RedNet A8R is a 1U, 8×8 analogue line-level I/O interface for any Dante audio-over-IP network. Featuring network and power supply redundancy, RedNet A8R is the ideal choice for providing analogue I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.

High-quality conversion with up to 119dB of dynamic range is provided through two rear-panel DB25 connectors while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A8R, or alternatively allows RedNet A8R to act as a network clock grand master slaved to external input. Power is supplied through a pair of locking IEC power inlets, and network connections are provided with a pair of locking Neutrik etherCON connectors; providing redundant operation or daisy-chained operation.

• Eight channels of high-quality line-level analogue I/O for Dante audio-over-IP networks
• 24-bit precision conversion up to 192kHz
• 119dB dynamic range, flat from 20Hz – 20kHz, +/-0.15dB
• Software-selectable +24dBu or +18dBu level alignment
• AES67 compliant
• Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
• Word Clock I/O and DARS input for increased flexibility plus an additional two channels of AES3 I/O
• Analogue I/O to AES59 standard on DB25 connectors
• Comprehensive front-panel metering and indicators
• Remote monitoring software with powerful graphic user interfaceB
• rainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.

LINE INPUT

• 0 DBFS Reference Input Levels:elements 18 or 24dBu (switchable)
• Frequency Response Inputs:20Hz – 20kHz ± 0.1dB
• THD N Inputs:<-130dB (0.00003)
• EIN:-96dBu A-Weighted (typical)
• Signal-To-Noise Ratio:120dB A-Weighted (typical)
• Converter Dynamic Range
• 120dB A-Weighted (typical), 10Hz – 20kHz

LINE OUTPUTS

• 0 DBFS Reference Levels:18 or 24dBu (switchable)
• Frequency Response:20Hz – 20kHz ± 0.1dB
• THD N:<-100dB (0.001) unweighted, 20Hz – 20kHz; 23dBu input
• Noise In Presence Of Signal:-94dBu A-Weighted (typical)
• Dynamic Range:118 dB A-Weighted (typical)

CROSSTALK

• Input To Output Or Input:<-100dB unweighted, 20Hz – 20kHz; 23dBu input
• Output To Input Or Output:<-100dB unweighted, 20Hz – 20kHz; -1dBFS input

DIGITAL INPUT SAMPLE RATE CONVERTERS

• Sample Rate Range:32kHz to 216kHz
• Gain Error:-0.3dB
• Dynamic Range Inputs:>138dB
• Latency:11 to 45 samples (network and sample rate dependent)

DIGITAL PERFORMANCE

• Supported Sample Rates:44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
• Clock Sources:Internal or from Dante Network Master
• External Word Clock Range:Nominal sample rate ±7.5

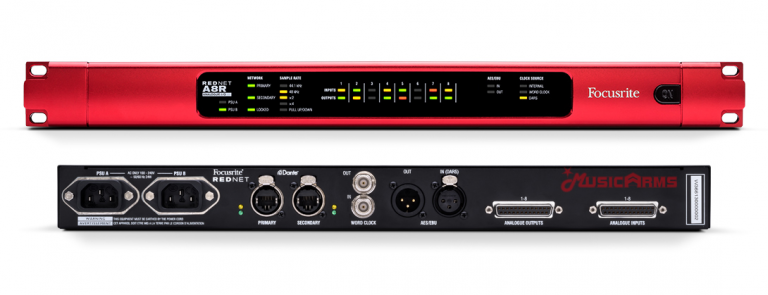

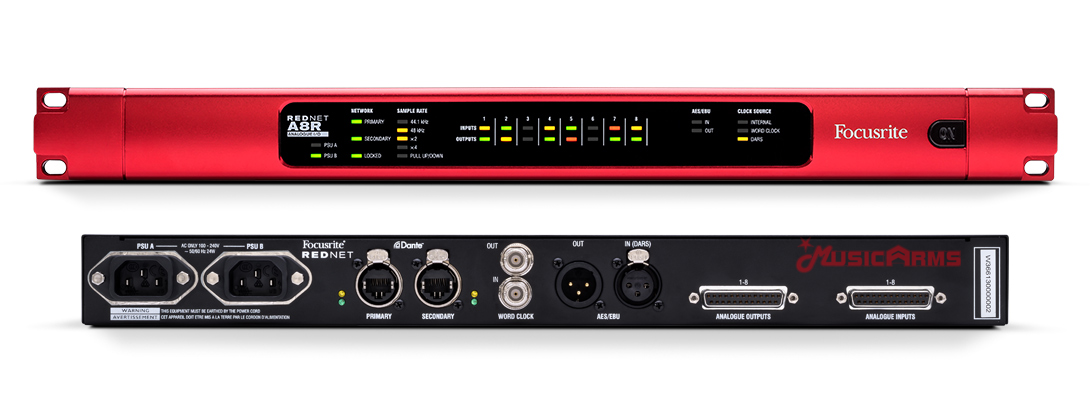

REAR PANEL CONNECTIVITY

• Line Inputs:1 x DB-25 connectors Analogue Outputs
• Line Outputs:1 x DB-25 connectors
• Channel Count:2 x 2 AES/EBU channels
• Input (Optional DARS):1 x Female XLR
• Output:1 x Male XLR
• Word Clock Input:1 x BNC 75O port (switchable termination)
• Word Clock Output:1 x BNC 75O port
• PSU:2 x Internal, 100-240V, 50/60Hz, consumption 24W
• Network:2 x etherCON NE8FBH, also compatible with standard RJ45 connectors

FRONT PANEL INDICATORS

• Primary PSU (A):Green LED
• Secondary PSU (B):Green LED
• Primary Network:Green LED
• Secondary Network:Green LED
• Network Locked:Green LED
• Sample Rate:Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
• Pull Up/Down:Orange LED
• Channel Signal Level:Green LED (> -42dB), Orange LED (> -6dB) and Red (> 0dB)
• AES/EBU Signal Indicators:2 I/O signal indicator LEDs
• Clock Source:Orange LED for each: Internal, Word Clock and DARS

NETWORK MODES

• Redundant:Allows unit to connect to two independent networks
• Switched:Connects both ports to integrated network switch allowing daisy-chaining of devices
