An all-Focusrite signal path from input to AD, and format conversion too.

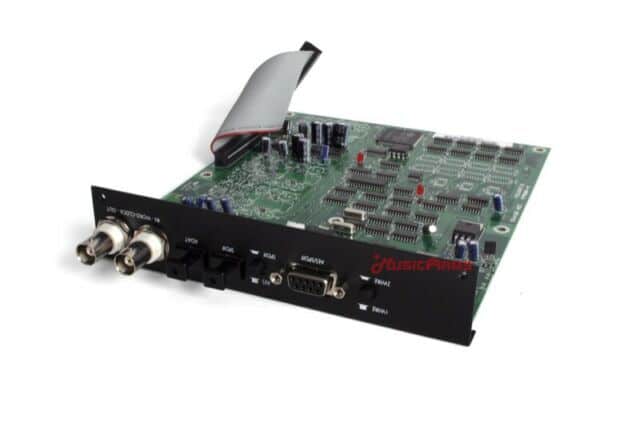

The Focusrite ISA 2-Channel 192kHz A/D Card allows the Focusrite ISA ONE preamp to be used as a high-quality two-channel ADC to convert analog signals to various digital formats (AES, S/PDIF and ADAT). And, since AD should be the last process on your input chain (before recorder), this system lets you insert a signal processor, such as a compressor or EQ, between the ISA Preamp and the ISA sound card. The ISA 2-Channel 192kHz A/D Card also has connections for word-clock in/out.

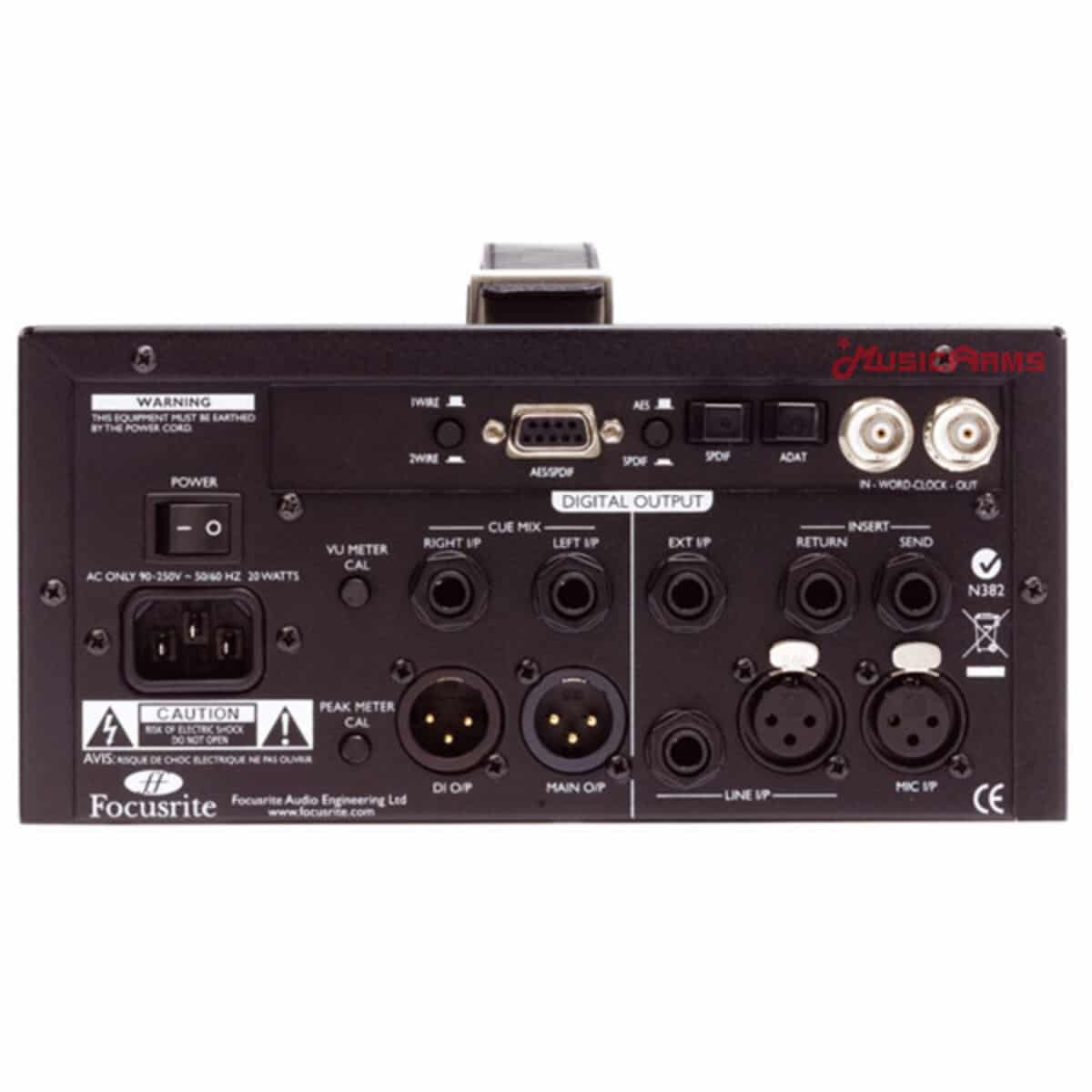

The card provides optical digital outputs for both ISA One ADC input channels, which operate over the sample frequency ranges 44.1, 48, 88.2, 96kHz (ADAT), 176.4, and 192kHz (S/PDIF). The card features an ADAT-type lightpipe output and S/PDIF TOSlink output connectors. The card also provides AES and S/PDIF format outputs via a 9-pin D-type connector on the rear panel. The full range of sample rates up to 192kHz are available.*
The card can be retrofitted to the ISA One at any time. Installation is simple and can be done by the user with no engineering experience necessary.
*To access the digital signals from the 9-pin D-type output connector, an AES or S/PDIF D-type conversion cable must be purchased separately in the following configurations:
- AES cable: 9-pin D-type to 4 male XLR
- S/PDIF cable: 9-pin D-type to 4 male RCA phono
Now comes with Brainworx bx_console Focusrite plug-in
This awesome plug-in recreates the analog signal paths of Focusrite’s revered ISA 110 and ISA 130 modules, which were a part of the Focusrite Studio Console. Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the new bx_console Focusrite VST/AU/AAX plug-in for Mac and PC faithfully captures the sound, feel and styling of the original iconic hardware.
If you purchased any Red, RedNet or ISA solution from January 2020 on, you will have the plug-in available in your Focusrite account as long as you’ve registered your product.
Features
- Stereo 24-bit / 192kHz AES/EBU, S/PDIF and ADAT ADC
- Cutting-edge conversion technology
- 2 channels of the highest quality 24-bit conversion at all sample rates up to 192kHz
- Incredibly low jitter significantly improves sound quality
- Focusrite offers a 2-year manufacturer’s warranty
Focusrite ISA One A/D Card ใช้ปรีแอมป์ Focusrite ISA ONE เป็น ADC สองแชนเนลคุณภาพสูงเพื่อแปลงสัญญาณแอนะล็อกเป็นรูปแบบดิจิตอลต่างๆ (AES, S / PDIF และ ADAT) สามารถใส่ตัวประมวลผลสัญญาณเช่นคอมเพรสเซอร์หรือ EQ ระหว่าง ISA Preamp และการ์ดเสียง ISA ISA 2-Channel 192kHz A / D Card ยังมีการเชื่อมต่อสำหรับ word-clock เข้า / ออก สามารถใช้งานคู่กับปลั๊กอิน Brainworx bx_console Focusrite ได้
