Focusrite ISA ADN8 Dante A/D Card

Upgrade Your Focusrite Mic Pre with This 8-channel A-D Card

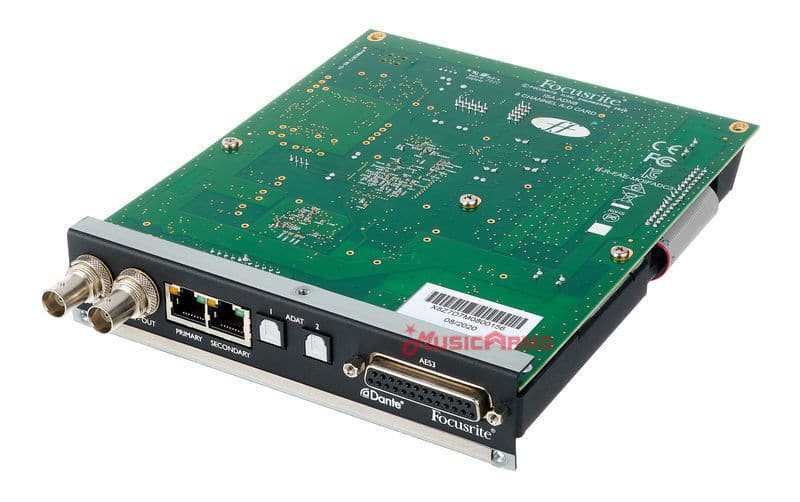

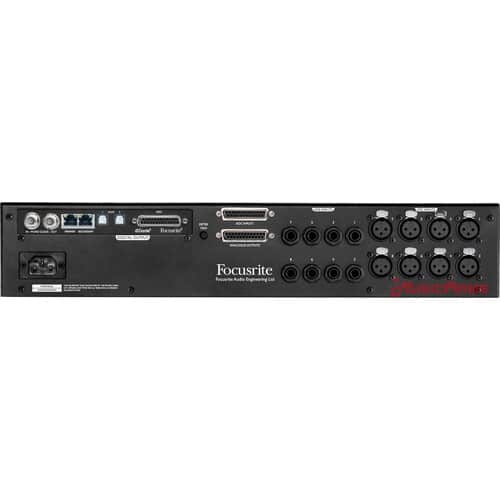

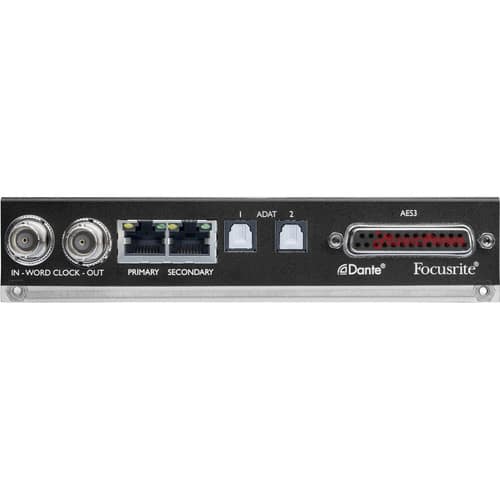

The Focusrite ISA ADN8 is an eight-channel A-D card that delivers high-quality analog-to-digital conversion for the Focusrite ISA 428 MkII and ISA 828 MkII mic preamps. The card operates at sample rates up to 24-bit/192kHz and provides Dante, AES3, and ADAT connectivity. The ISA ADN8 is fitted with primary and secondary RJ45 Dante Out ports, an AES59 DB-25 connector for AES3 output, plus two TOSLINK connectors for ADAT output. Word clock I/O on BNC connectors permits synchronization with multiple digital sources. This also allows the Dante network to be sync’d with house clock or external gear.

Redundant Network Connectivity

The Dante outputs on the ISA ADN8 enable your ISA 428 MkII or ISA 828 MkII to network with all Focusrite RedNet devices and Red interfaces, as well as Dante-equipped devices from other manufacturers. Metering and settings can be effortlessly accessed through RedNet Control, and routing is configured via Dante Controller software. The ISA ADN8 is equipped with redundant Dante connectivity via its primary/secondary Ethernet ports with auto switchover in the event of failure. At Sweetwater, we know we can rely on Focusrite equipment for day-in, day-out reliability and rock-solid mission-critical performance. You can too.

Focusrite ISA ADN8 Eight-channel A-D Card Features:

• 8 channels of high-quality analog to digital converter for ISA 428 MkII and ISA 828 MkII
• Sample rates: up to 24-bit/192kHz
• Redundant Dante connectivity via primary/secondary Ethernet ports with auto switchover
• Industry standard eight-channel AES59 DB-25 output connection for AES3
• 2 TOSLINK connectors for ADAT (8 channels at up to 96kHz; 4 channels at 192kHz)
• Word clock I/O on BNC connectors allows synchronization with many external devices
• RedNet Control and Dante Controller software allow Dante routing and control from computer; no hardware patching required
• Free Brainworx bx_console re-creation of Focusrite’s ISA 110 and ISA 130 modules
• 3-year worldwide Focusrite warranty

• Type: A/D Card
• Compatibility: Focusrite ISA 428/828 MKII
• Number of Channels: 8
• Data I/O: 2 x Ethernet (Dante: Primary, Secondary), 2 x Optical Toslink (ADAT), 1 x DB-25 (AES3)
• Clock I/O: In/Out
• Bit Depth: 24-bit
• Sample Rate: 192kHz

User Guide

รายละเอียด Focusrite ISA ADN8 Dante A/D Card

• ประเภทการ์ด A / D
• ใช้กับ Focusrite ISA 428/828 MKII
• 8 แชนแนล
• Data I/O: 2 x Ethernet (Dante: Primary, Secondary), 2 x Optical Toslink (ADAT), 1 x DB-25 (AES3)
• Clock I/O: เข้า / ออก
• ความลึกของบิต: 24 บิต
• อัตราตัวอย่าง: 192kHz
