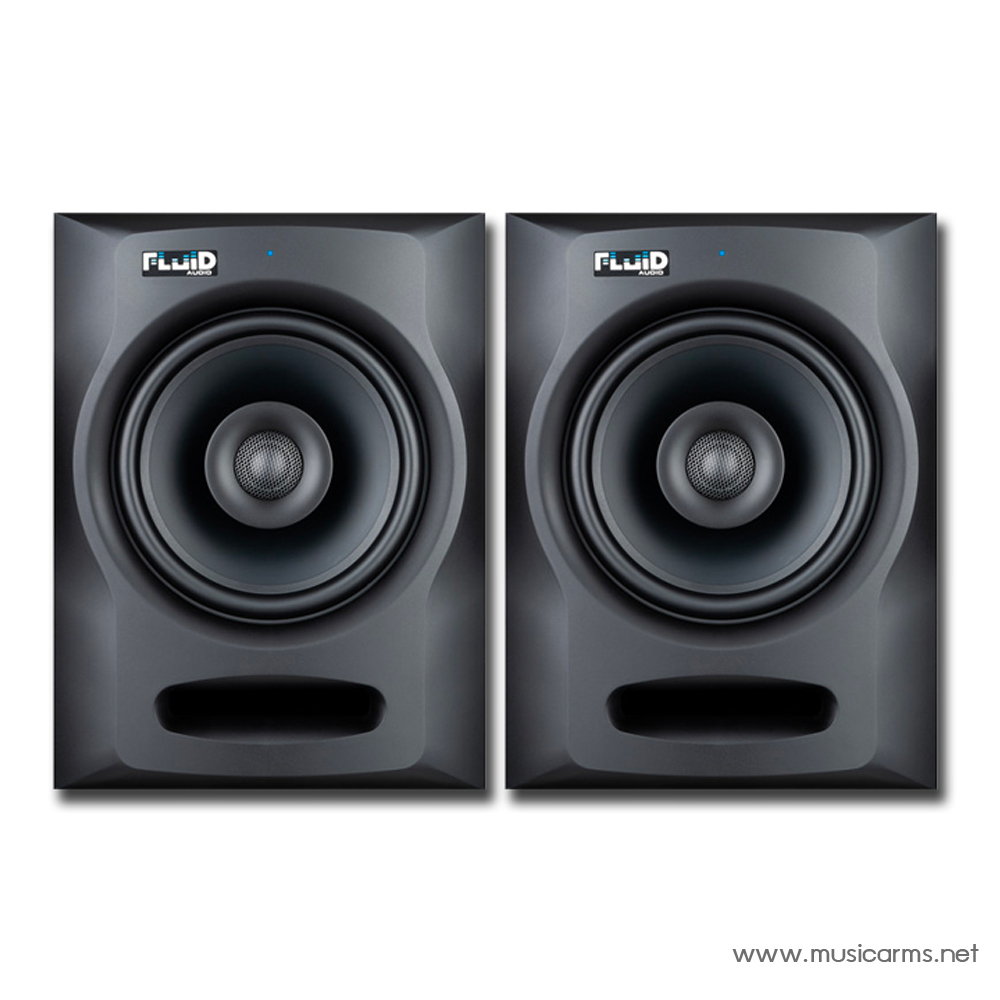

Fluid Audio FX80 ลำโพงมอนิเตอร์

Introducing our new FX series of coaxial studio monitors.
Improving on our successful FX8, we now introduce the FX80.
We have taken users feedback and improved on all points.
We will claim this is the best sounding studio monitor below $300

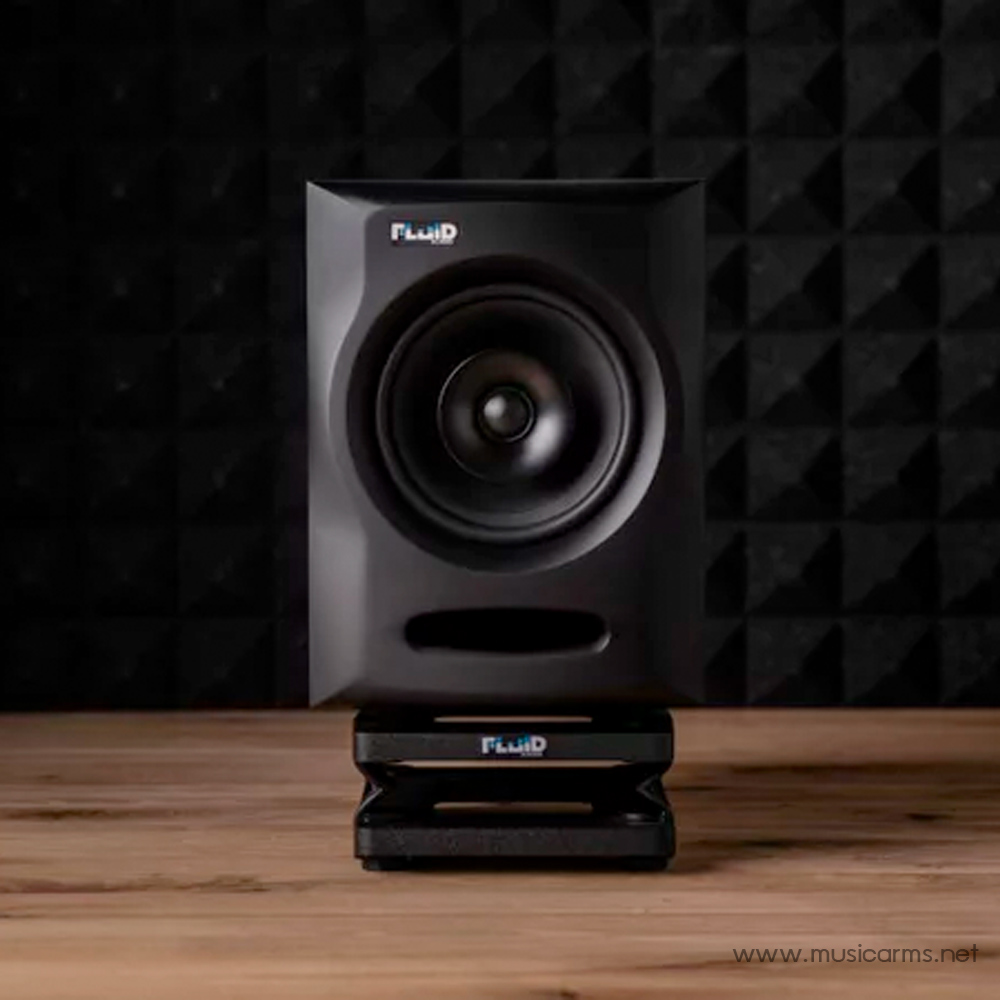

New, contoured baffle enclosure design
Keeping true to the original “keyhole” design, the FX enclosure has been updated with a complex radius front baffle, which not only looks pretty cool, it improves cabinet defraction.

Coaxial driver
Mounted in the center of the woofer is a 30mm silk dome tweeter in a coaxial configuration. Using this technology (unique in its price range) makes it a “point source” device, meaning that all the sound emanates from a single point – not points that are 10″ apart. This is crucial for improving off-axis response, but also allows for a more compact footprint cabinet.

Boundary compensation DIP switches
Sometimes the spaces where we mix aren’t the most forgiving acoustically
(especially if you’re in a home studio).

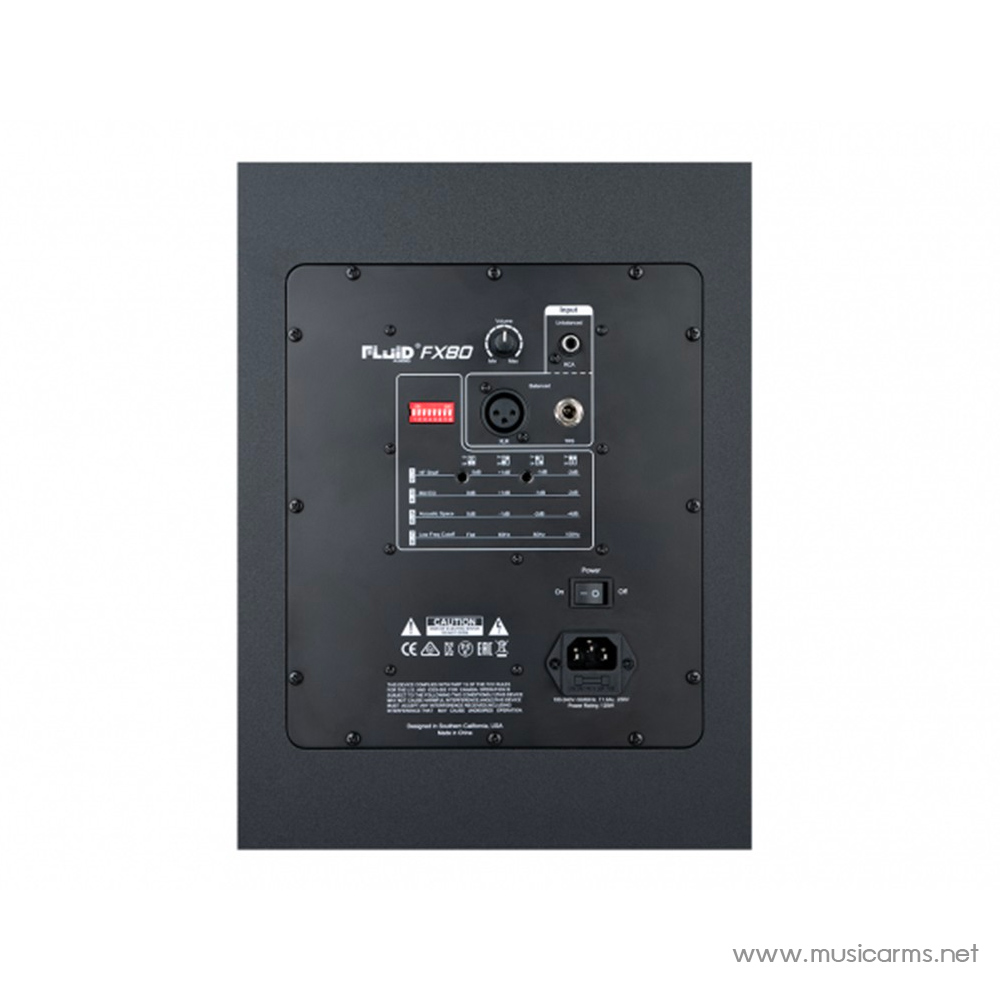

The FX series monitors come equipped with boundary control EQ switches, that allow you to compensate for spaces that may not have been “tuned” or just need to be adjusted due to their proximity to the wall behind them. There is also a guide conveniently printed on the rear panel to show how the DIP switches work, and a more detailed explanation in the user guide.

Class D and DSP powered
Another update from the Fader Series is Class-D amplification. More clean, reliable power, more headroom, and also a standalone powerful DSP integration.
The digitally controlled crossover makes each speaker more consistent. The new FX series is truly a 21st Century reference monitor at home in any recording studio.

Specifications

• Frequency response: 35Hz-22kHz (+/- 3dB)
• Crossover frequency: 2.4kHz
• Low-frequency amplifier power: 60 watts
• High-frequency amplifier power: 50 watts
• Signal-to-noise: 90dB (typical A-weighted)
• Polarity: Positive signal at + input produces outward LF one displacement
• Input impedance: 20 k ohms balanced, 10 k ohms unbalanced
• Input sensitivity: 85 mV pink noise input produces 95dBA output SPL @ one meter with volume control at maximum
• Power: 100V-240V ~50/60 Hz
• Protection: RF interference, output current limiting, over temperature, turn-on/off transient, subsonic filter, external mains fuse
• Cabinet: Vinyl-laminated MDF
• Size (single monitor): 340*254*295 / 13.4*10*11.6
• Weight (each): 7.8 kg / 17.2 lbs

รายละเอียด Fluid Audio FX80

• การตอบสนองความถี่: 35Hz-22kHz (+/- 3dB)
• ความถี่ครอสโอเวอร์: 2.4KHz
• กำลังขยายเสียงความถี่ต่ำ: 60 วัตต์
• กำลังขยายความถี่สูง: 50 วัตต์
• สัญญาณต่อสัญญาณรบกวน: 90dB (ทั่วไป A-weighted)
• อิมพีแดนซ์อินพุต: แบบบาลานซ์ 20 k โอห์ม แบบอันบาลานซ์ 10 k โอห์ม
• ค่า sensitivity: 85 mV
• ความดังสูงสุด 95 เดซิเบลที่ระยะ 1 เมตร
• กำลังไฟ: 100V – 240V ~ 50/60 Hz
• การป้องกัน: สัญญาณรบกวน RF, การจำกัดกระแสไฟขาออก, อุณหภูมิเกิน, เปิด/ปิดชั่วครา, ฟิวส์ไฟภายนอก
• ตู้: MDF เคลือบไวนิล
• ขนาด 340 x 254 x 295 มม.
• น้ำหนัก 7.8 กก.
