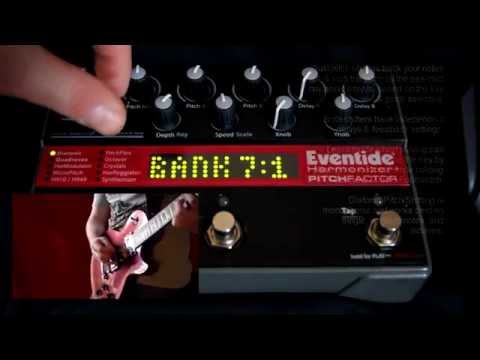

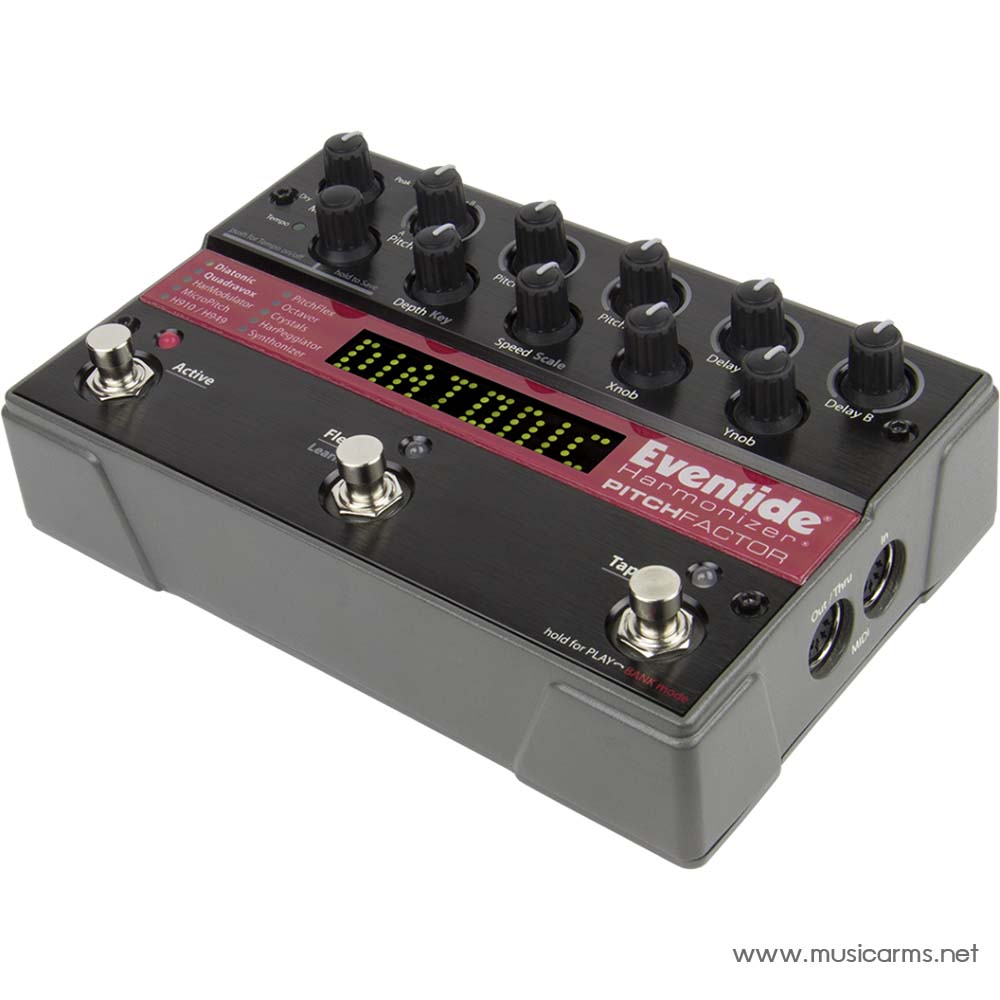

Eventide PitchFactor Harmonizer Guitar Effects

Studio Quality Effects at Your Feet
Top recording studios worldwide use Eventide effects on hit after hit. PitchFactor includes Eventide’s best pitch-changing effects from the past 36 years without compromising quality OR flexibility.

Flexibility Built-In
Plug-and-play expression pedal control of wet/dry mix or any combination of parameters. Control program changes and vary parameters continuously via MIDI. Supports instrument or line level inputs and outputs. Plays well with others; adapts seamlessly with a wide variety of amps and other foot pedals.

Reviews

• “All the most popular effects are available from this stomp-box, plus a few more that really aren’t available elsewhere. I like the way that both live guitarists and studio users are catered for, and applaud the friendly user interface.”
• “Pros: High-quality Eventide effects; easy to operate; compact & robust; instrument & line level inputs; Amp & line level outputs. Cons: External PSU with no battery operation.”
• “I’m not a big fan of pitch-shift effects… but Eventide have always done a better job than most in this regard, and the PitchFactor is no exception.”
• “The quality of the intelligent harmony-generation is good. The built-in delays and the ability to do micro-shifting mean that this box can stand in for a more conventional echo or pseudo-chorus unit too.”

Paul White, Sound On Sound –

• “With the 10 selectable effects types, it can yield up an incredible range of sounds – from the subtle (such as chorus-like thickening using the MicroPitch effect) to the freakishly outlandish.”
• “This stompbox offers a selection of pitchshifting and delay effects unparalleled in any other pedal.”
• “It’s the only game in town for floor-mounted, intricately editable, software-upgradeable studio-quality pitchshifting.”

Trevor Curwen – Guitarist Magazine. Read the whole review in the November 2009 issue.

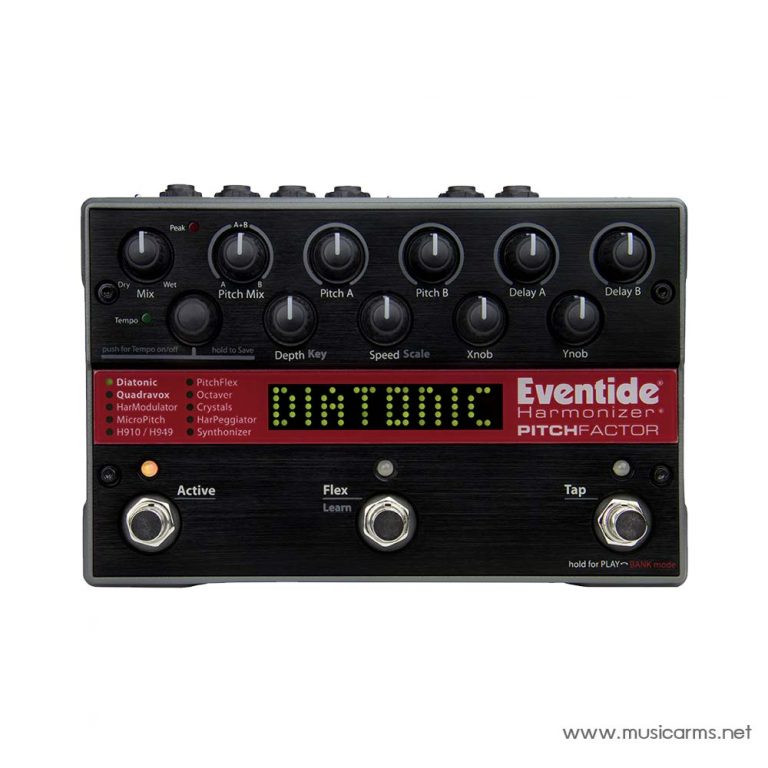

• 10 of Eventide’s signature stereo or mono pitch+delay effects:
• Diatonic
• PitchFlex;
• Quadravox;
• Octaver;
• HarModulator;
• Crystals;
• MicroPitch
• HarPeggiator;
• H910 / H949
• Synthonizer;
• Up to 4 voices of diatonic pitch shifting and up to 1.5 seconds of stereo delay
• Studio quality sound
• Guitar or bass compatible
• Built-in Tuner
• Software upgradeable via USB 2.0
• MIDI control via USB or MIDI in, out/thru
• Instant program change
• Real-time control with 10 knobs, MIDI, or expression pedal
• Tap tempo and MIDI clock sync
• 100 factory presets, unlimited through MIDI
• True analog bypass
• Rugged cast metal construction
• Reliable metal footswitches for instant preset access
• Mono or stereo operation
• Guitar or line level inputs and outputs

Specifications

Analog Input/Output

• Input impedance 500K ohms
• Output Impedance 470 ohms
• Recommended Load Impedance 10K ohms or greater

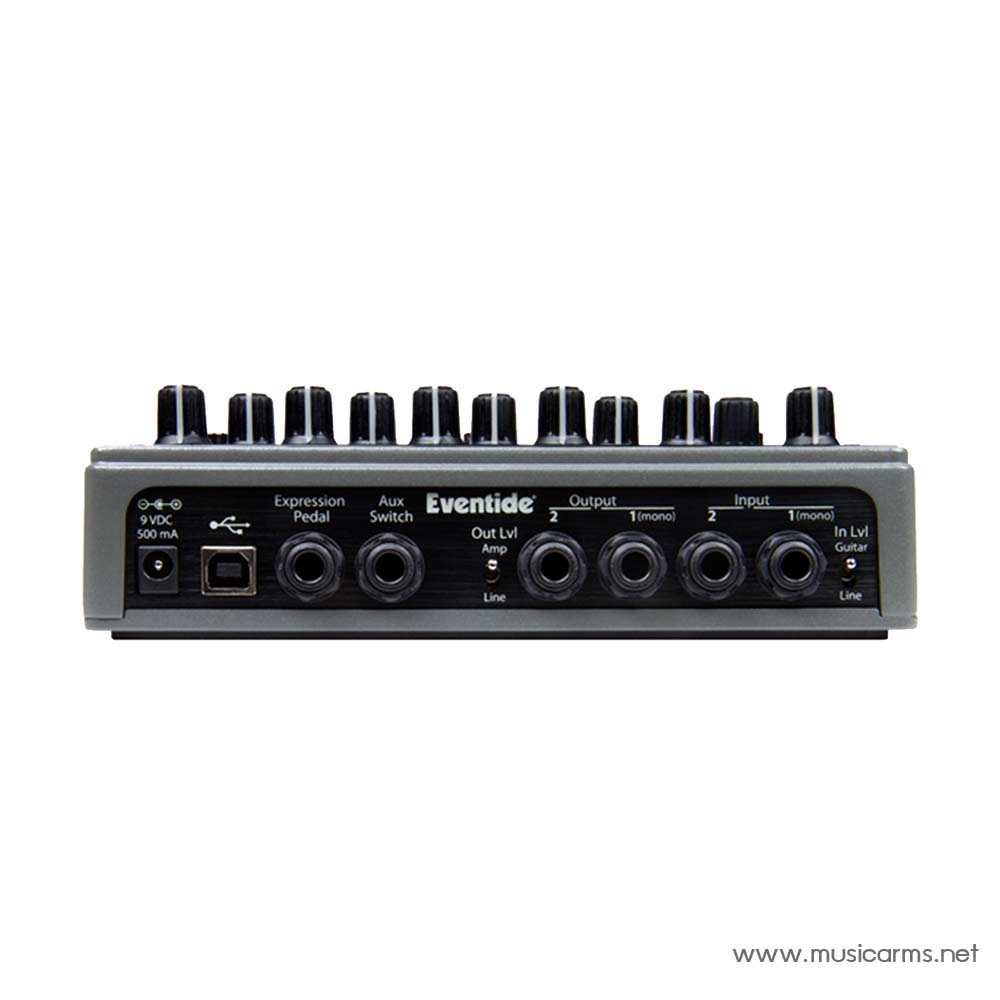

Connectors

• Input 1 (mono) ¼ inch mono phone jack
• Input 2 ¼ inch mono phone jack
• Output 1 (mono) ¼ inch mono phone jack
• Output 2 ¼ inch mono phone jack
• Expression Pedal ¼ inch mono phone jack
• Aux Switch ¼ inch stereo phone jack
• USB Type B Socket. Use 2.0 cables only.
• MIDI In Five pin DIN
• MIDI Out/Thru Five pin DIN
• AC Adapter Jack Power Supply included

Physical

• Power 9 VDC, 500 mA, Tip hot (+)
• Dimensions English: 4.8″ (H) x 7.5″ (W) x 2.12″ (D)
• Metric: 122 (H) x 190 (W) x 54 (D) mm
