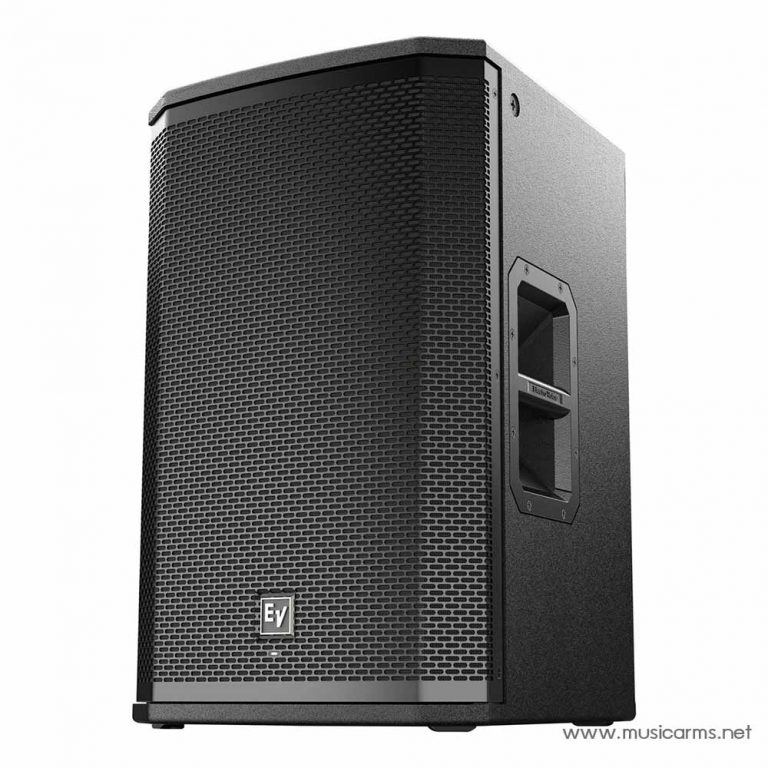

Electro-Voice ETX-12P-EU

Unmistakable sound quality

For the audiophile who demands the best. The ETX-12P achieves a linear response across an extended frequency range. From deep lows thanks to the 12” woofer, to a high frequency extension up to 20kHz from the 1.25” compression driver, you’ll get unrivalled sound reproduction in every scenario. And with maximum SPLs of 135dB, you’re sure to get pristine sound even at the loudest volumes.

Sound that everyone can enjoy

Consistent coverage guaranteed. Whether you’re stood at the front, sides, or back of the audience, you’ll hear everything in detail. The patented waveguide boasts uniform bandwidth response, allowing for ultra-wide dispersion. Placed at the front of the enclosure, the waveguide minimises latency correction, giving you smooth consistency in every situation. This is live sound with a difference.

Best-in-class performance and control

As easy as plug in and play. The system DSP features built-in presets for quick and easy setup. That includes selections for speaker application, crossover frequencies, and top/sub combinations. With boundary compensation filters, the ETX-12P is designed to sound the same in any application, whether as a floor monitor, on a tripod, or hanging. You’ll have full control of your sound with Adjustable delay, 3-band EQ, and high-crossover points not found on similar loudspeakers.

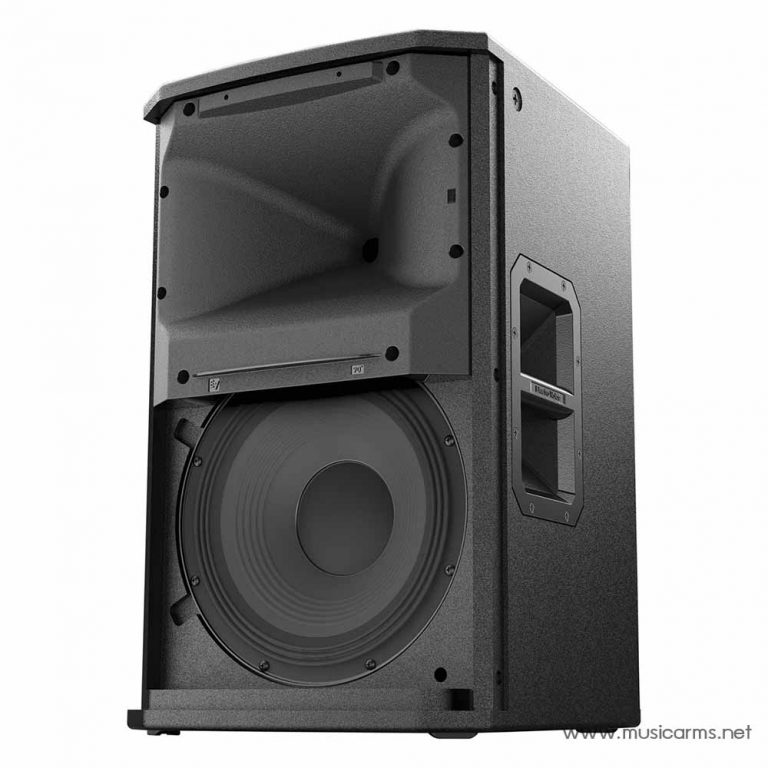

• 12-inch LF SMX woofer
• 1.25-inch HF titanium compression driver
• 2000 W Class-D power amplifier with integrated FIR-Drive DSP
• 135 dB peak SPL
• Frequency Range  43 Hz – 20 kHz
• Maximum SPL  135 peak dB
• Power Consumption  100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
• Power Rating  2000 W
• Frequency Response  55 Hz – 20 kHz
• Coverage (Nominal -6 dB) H  90 °
• Coverage (Nominal -6 dB) V  60 °
• LF Transducer  SMX2120 300 mm (12 in)
• HF Transducer  DH3-B 1.25-in titanium compression driver
• Crossover Frequency  1600 Hz

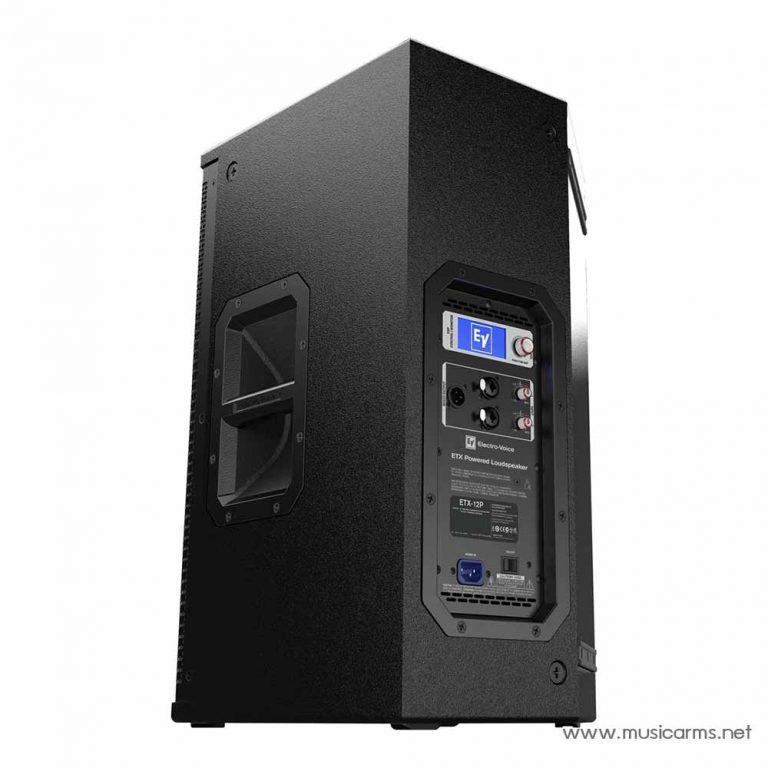

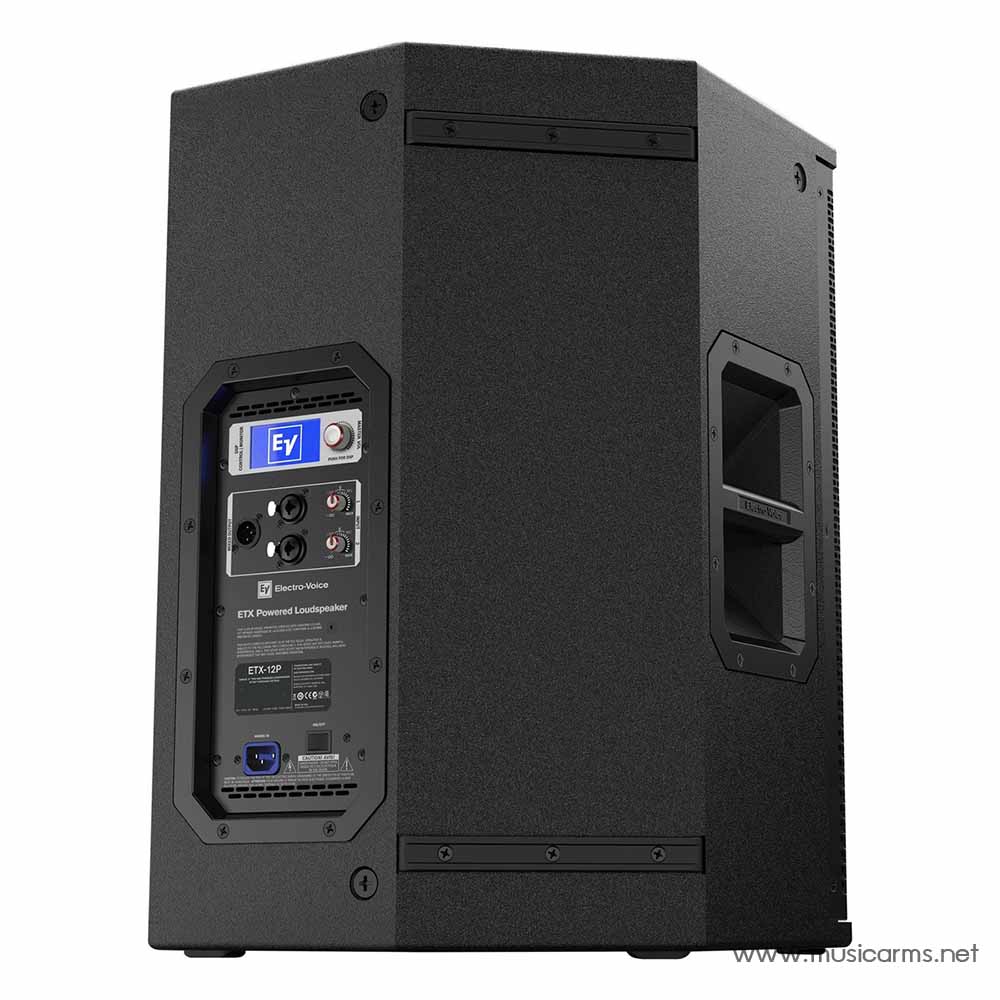

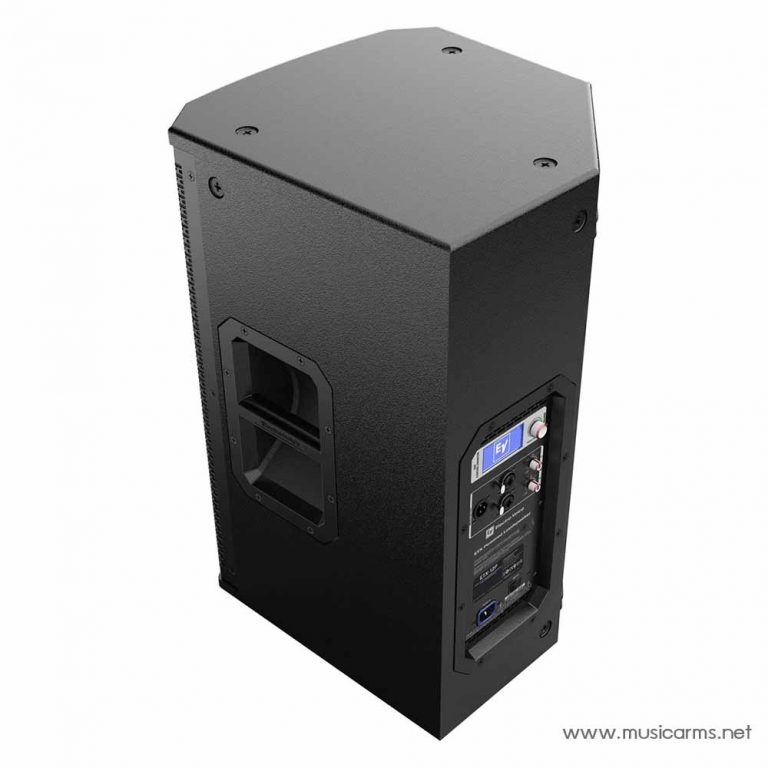

• Connector Type  (2) XLR/TRS combo jack and (1) XLR link output
• Enclosure Material  18-mm, 13-ply birch plywood with EVCoat
• Grill  16AWG steel with powdercoat

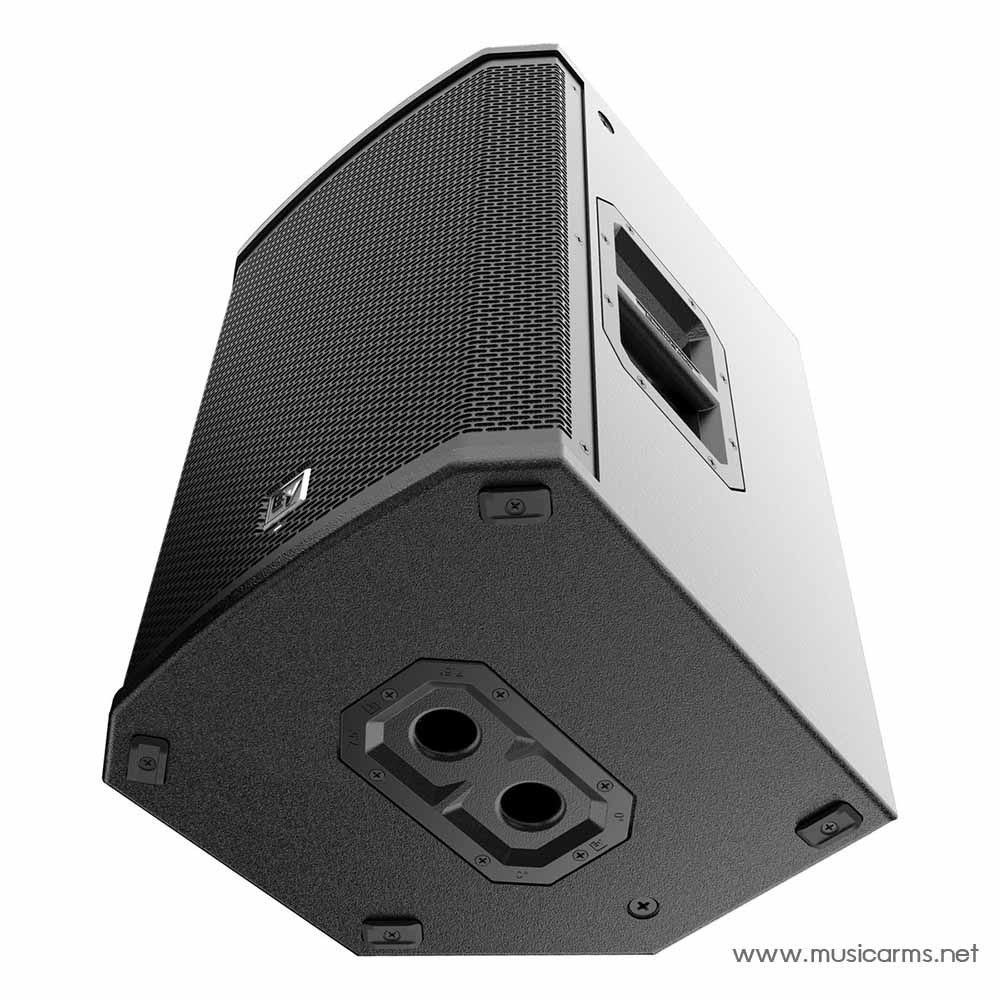

• Suspension  (8) M10 suspension points
• Height  613 mm (24.13″)
• Width  381 mm (15″)
• Depth  400 mm (15.75″)
• Weight Net  23.6 kg (52.03 lbs)
