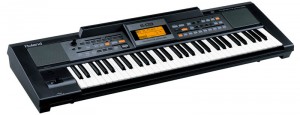

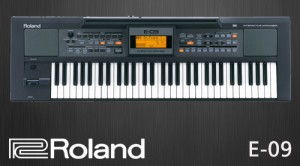

Roland E-09

International Appeal

With a global array of interactive musical accompaniments onboard, the E-09 puts a world of colorful and authentic music under your fingertips. Master programmers from around the world have created special Styles for the E-09, spotlighting the Western, Middle Eastern, and Asian cultures.

Low Profile, Big Sound

The E-09 introduces a new professional-grade industrial design to the E family. Its black metallic finish, coupled with a slim, streamlined chassis design, makes the E-09 eye catching and easy to transport. Despite its slim physique, the E-09 outputs an impressively big sound from its built-in stereo speaker system. You can enjoy playback three ways with the E-09: through headphones, through the built-in speakers, or through external amps and sounds systems via its line outputs.

6-Track Recorder

Keyboard

6 keys (with velocity)

Sound Generator

Maximum Polyphony 64 voices

Parts 6 parts + Keyboard part

Wave Memory 32 M bytes equivalent

Tones: 64 + 256 (GM2), Drum Sets: 6 + 9 (GM2)

Effects Multi-FX: 47 types, Reverb: 8 types, Chorus: 8 types

Transpose -2 to + 2 (in semitones)

Arranger

Tempo 20 to 250

Styles 30 Styles

Band Orchestrator 3 types: Drum & Bass, Combo, Full Band

User Program 100 program

One Touch Setting 2 setting / style

Control start/stop, sync start, intro original, fill in, variation, ending, tap tempo, Melody Intelligence: 8 types, Music Assistant: 30 types

Metronome

Signature /4, 2/4, 3/4, 4/4, 5/4, 6/4, 6/8, 9/8

Song Controls

Tracks 6

6-track Recorder Mode 4 easy modes (ALL, Keyboard, Single, Punch In/Out)

Control start/stop, reording, reset, rewind, forward, marker A-B, repeat A-B

Others

Rated Power Output 7.5 W + 7.5 W

Speaker Dimension 0cm

Controllers Pitch Bend/Modulation Lever:

Display Large backlit custom LCD

Connectors Output Jacks (L/MONO, R), Headphones Jack /2, MIDI Connectors (IN, OUT), Foot Switch Jack

Power Supply DC 9 V (AC Adaptor)

Current Draw 2,000 mA

Accessories Music rest, Owner’s Manual, AC Adaptor (PSB-U)

Options Keyboard Stand: KS-2, Pedal Switch: DP Series, Foot Switch: BOSS FS-5U

Size and Weight

Width (W) ,045 mm4-3/6 inches

Depth (D) 320 mm2-5/8 inches

Height (H) 28 mm5-/6 inches

Weight 7.3 kg6 lbs. 2 oz
