DSM & Humboldt Simplifier MkII Amp & Cab Simulator เอฟเฟคกีตาร์

Completely redesigned preamps with wider gain options:

• ‘AC Brit’ preamp minimises the Mid control range, resulting in a more accurate historic behaviour — akin to a Vox AC30 ’64 “Top Boost” channel.
• American ‘USA’ preamp is now based on a true classic, the Fender ’59 Bassman.
• ‘MS Brit’ delivers a new level of gain, just like a hot-rodded Marshall Plexi.

Power Amp Drive

• A new dedicated power amp drive allows you to dial-in the perfect amount of power amp compression, for that “sweet spot” that only a tube amp can achieve.
• The power amp is a highly-detailed reproduction of a Class A/B power stage, including the phase inverter. Each power type reconfigures the feedback path, PI gain and the effect of the power transformer on the emulated power tubes.
• A clip indicator shows when the emulated power tubes are clipping, helping you to find the desired sweet spot between power drive and preamp drive, as it would be on an actual tube amplifier.
• In combination with the Master Volume control, you can get any amount of pre and power amp drive at any volume level!

Master Section

• Master Volume control allows you to set any amount of pre and power amp drive at any volume level, avoiding unwanted FX loop distortion.
• Redesigned Presence control within the power amp feedback. Clockwise, it boosts the high mids like Marshall and Fender amps. Counter-clockwise, and it cuts the highs like a Vox amp.
• Redesigned Resonance control allows you to set the low-end thump straight into your PA system or audio interface.

Stereo Cab Simulator

After countless hours of comprehensive research, looking at hundreds of response curves from the most renowned speakers in the market, DSM & Humboldt completely redesigned the Simplifier’s Cab Sim section; replacing the Mic position control for a more useful and intuitive three-profile speaker control:

• Black: Based on the V30 Speaker.
• Blue: Based on the Blue Alnico Speaker.
• Green: Based on the G12 Greenback Speaker.

Effect Pedal for Electric Guitar

• Fully analogue preamp, power amp and cabinet simulator
• New improved MK-II version

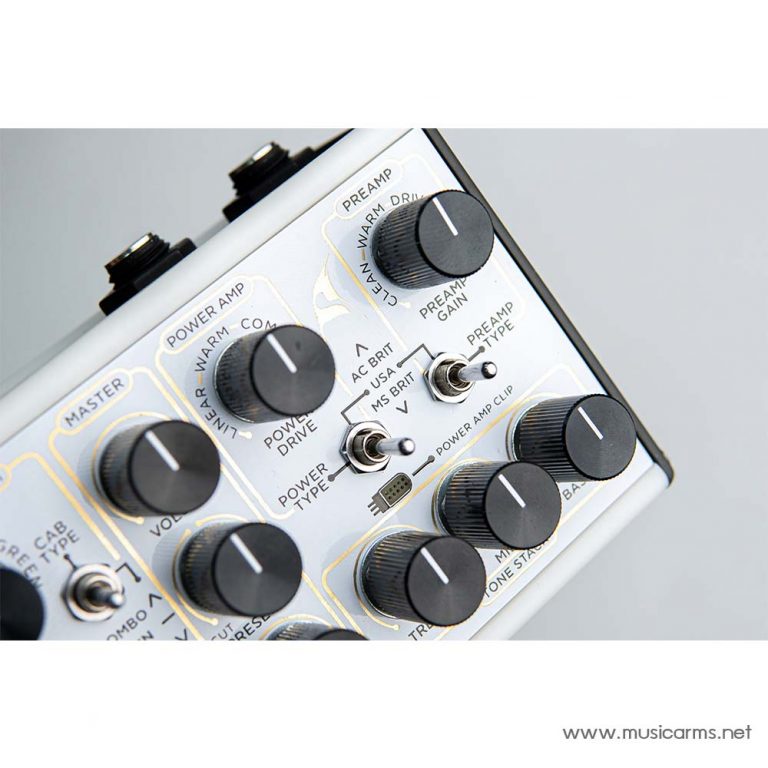

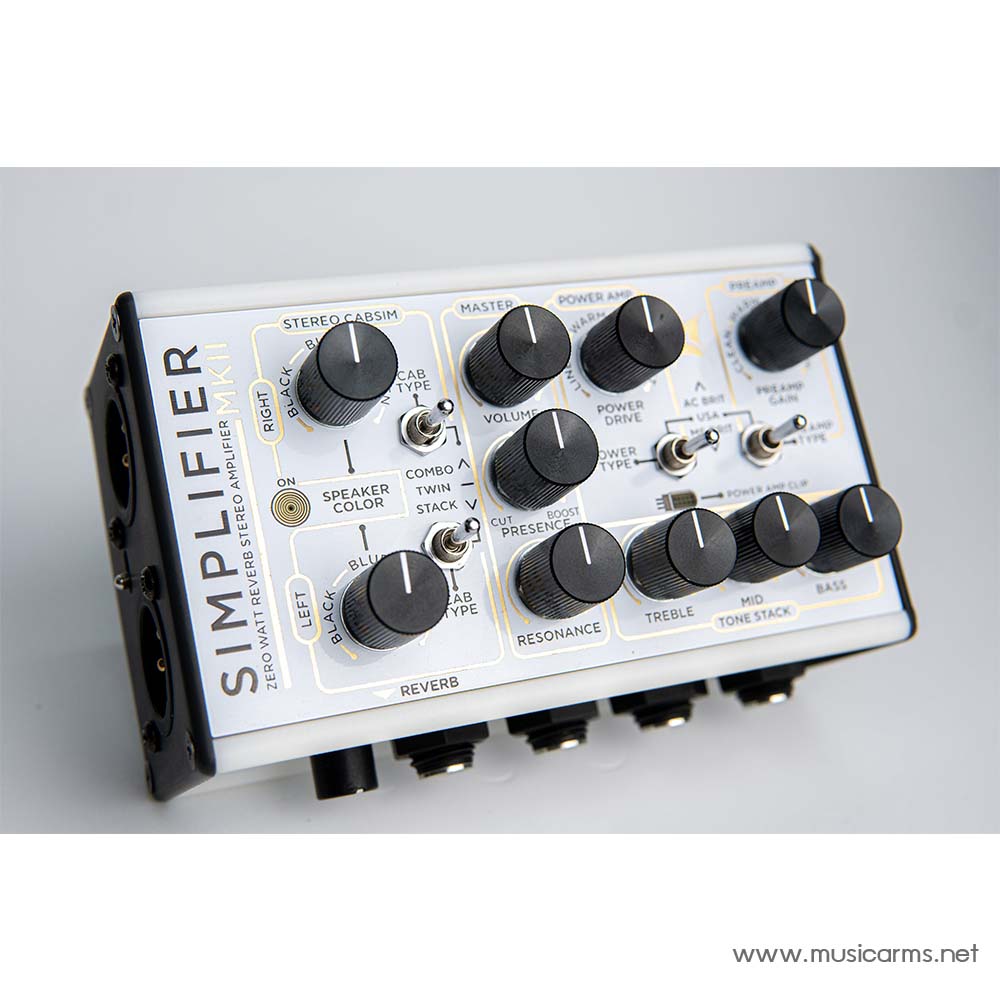

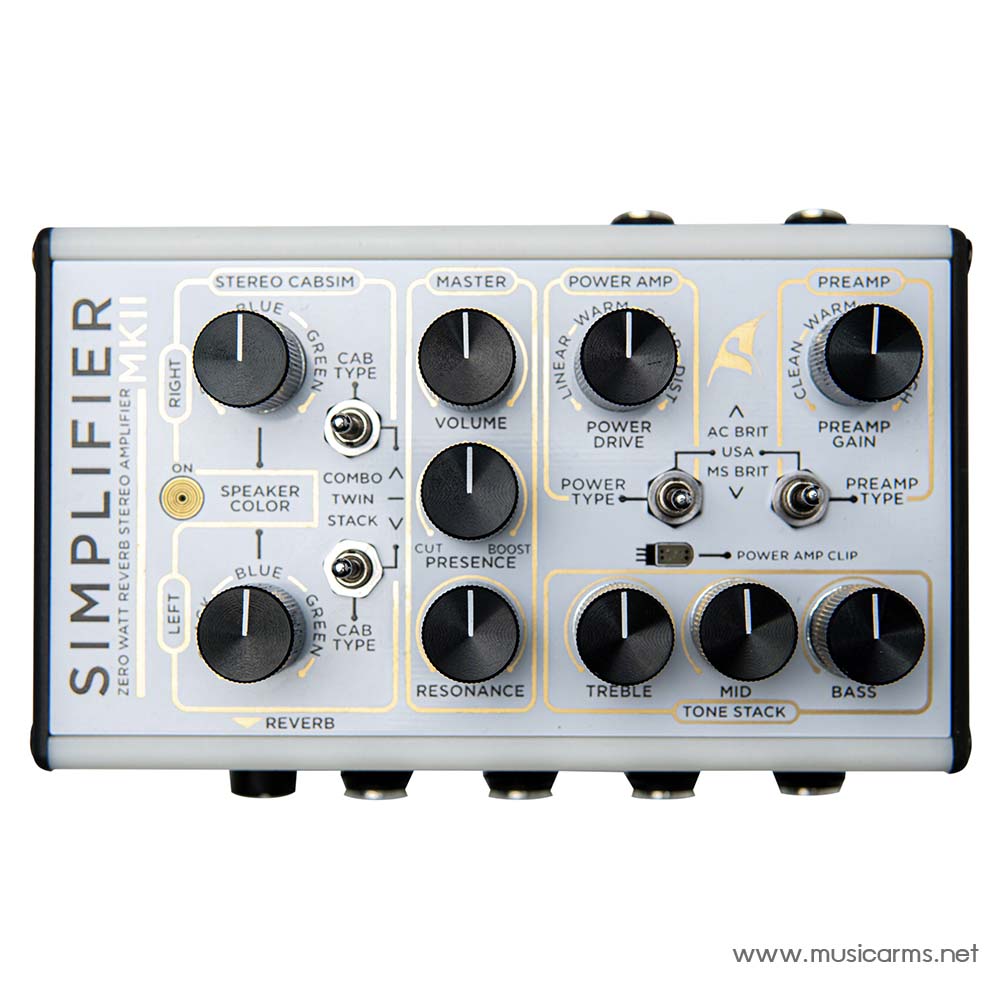

• Controls: Stereo Speaker Color (2x Black/Blue/Green), Volume, Presence, Resonance, Treble, Mid, Bass, Power Drive, Preamp Gain, Reverb, Headphones Level
• Switch: Pre-Amp Voicing: AC Brit/American/MS Brit, Stereo Cab Voicing, Spread On/Off, Ground Lift
• LED: On
• Power Amp Clip

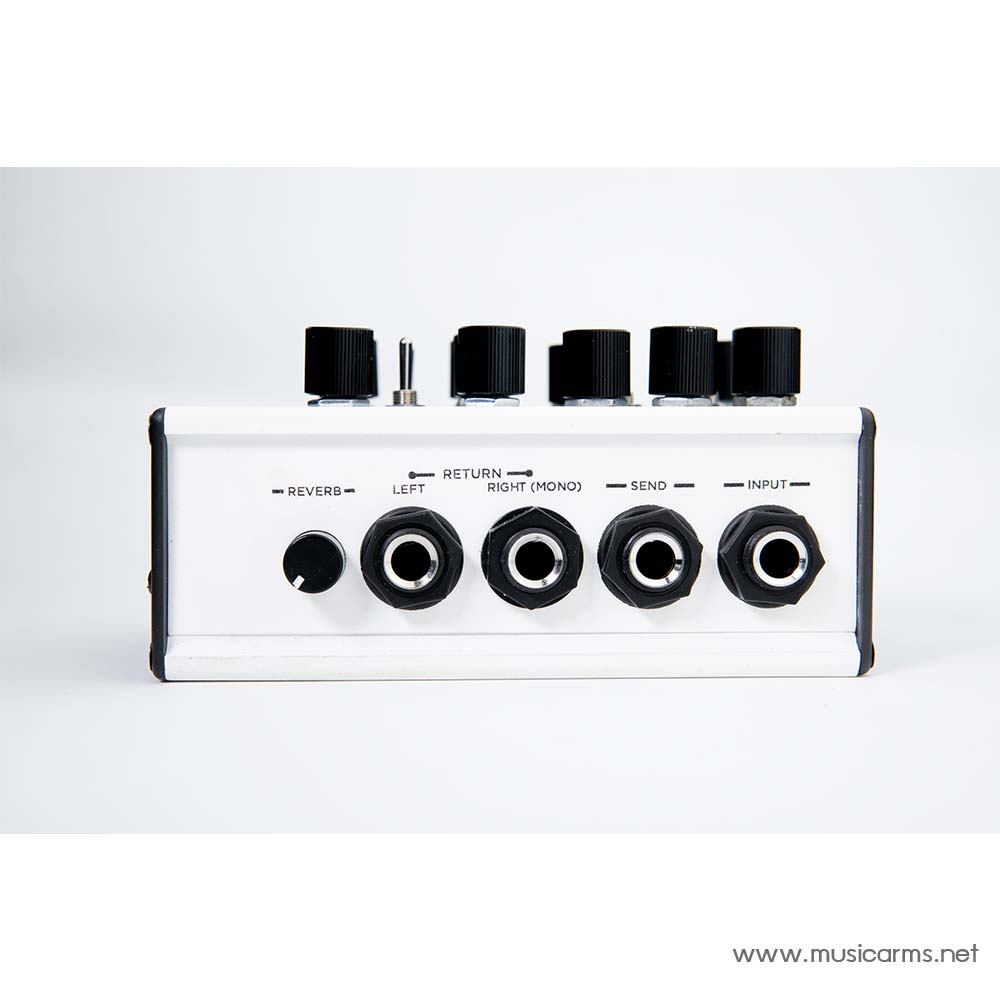

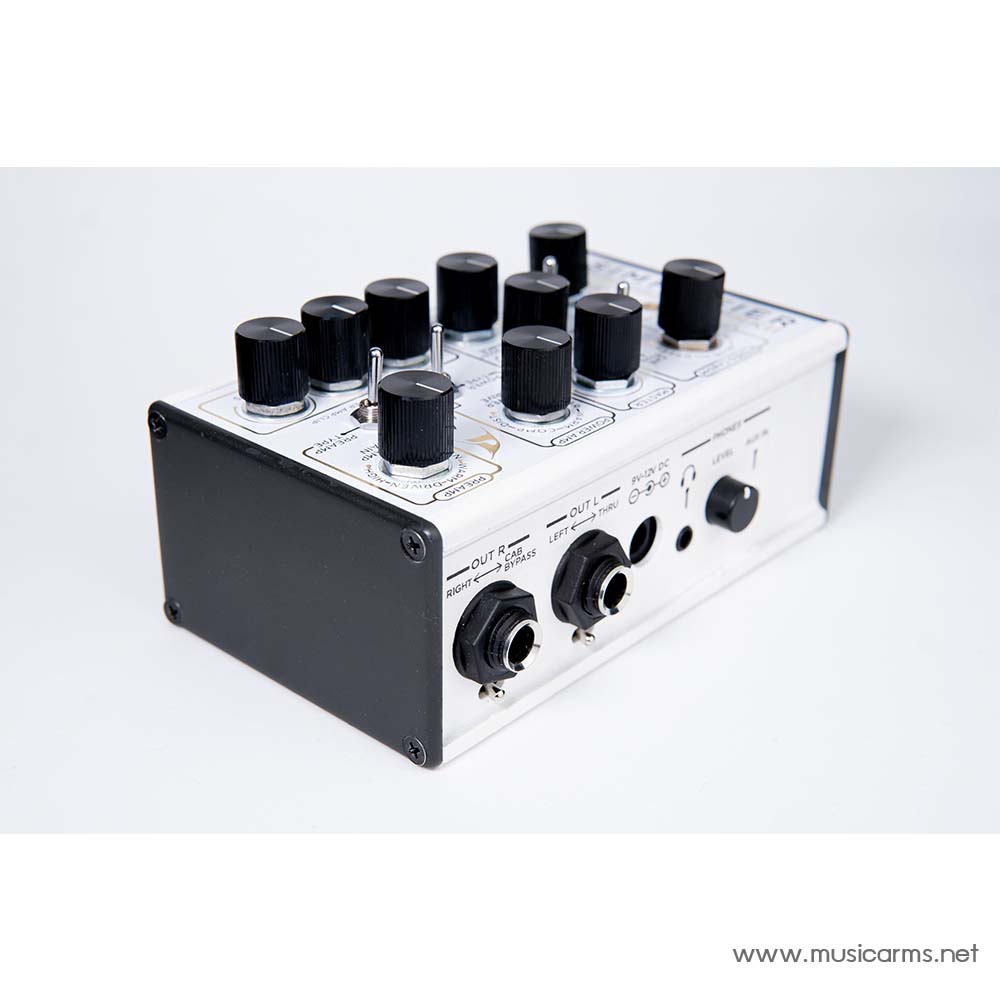

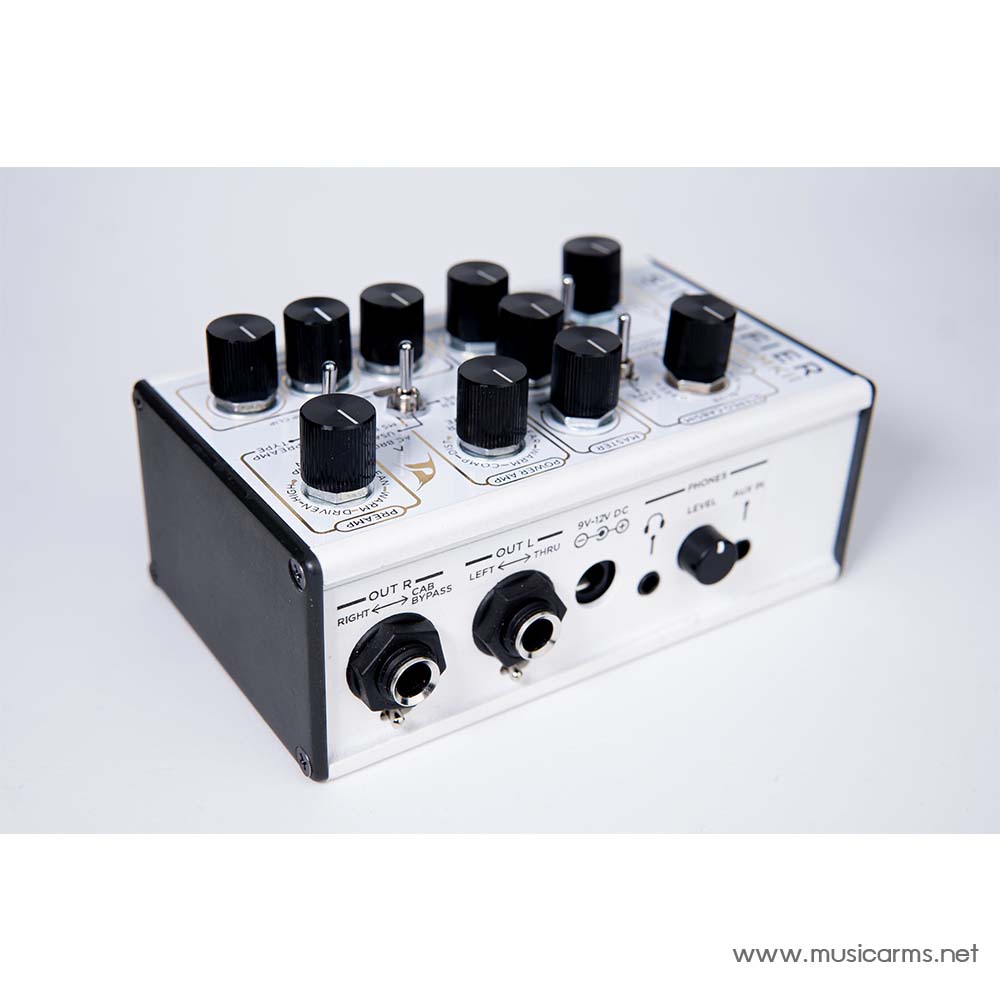

• Input: 6.3 mm jack

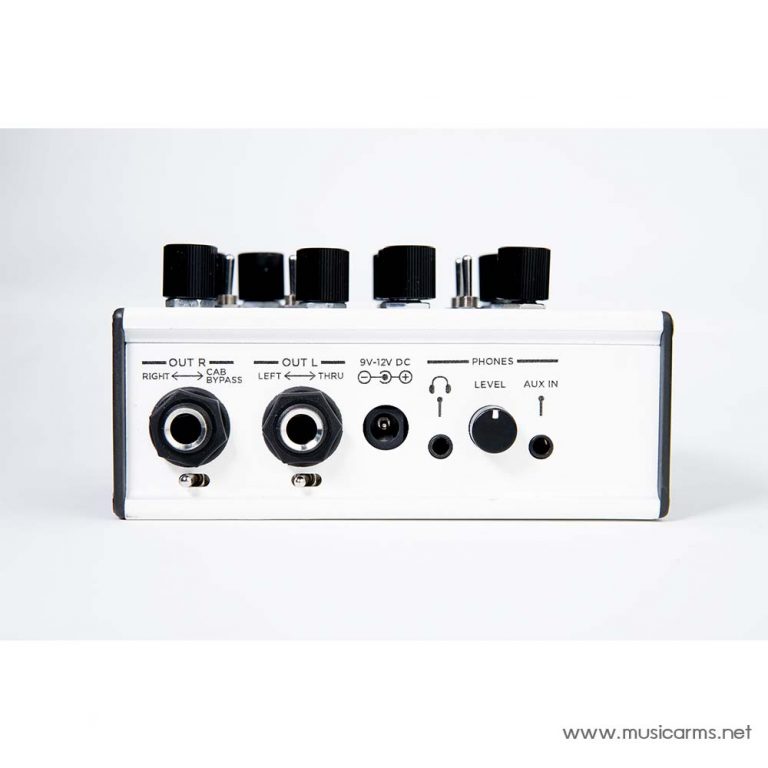

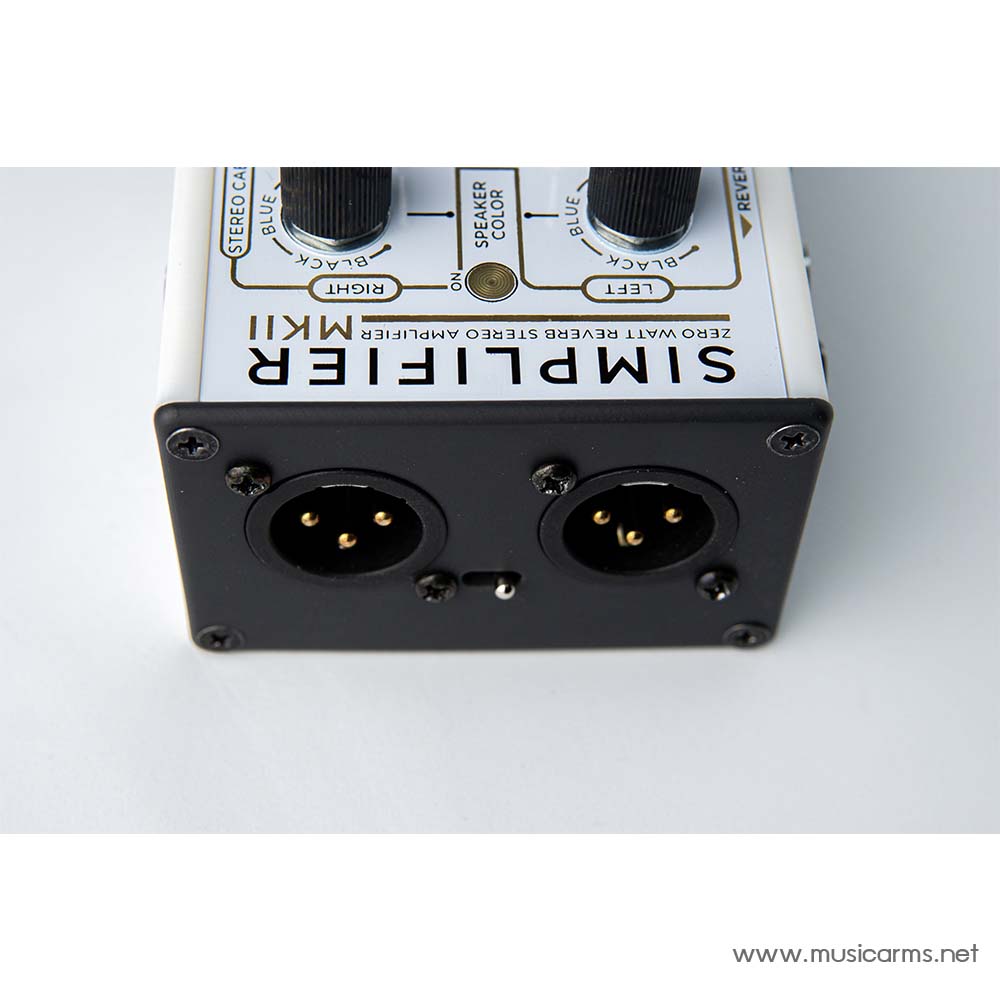

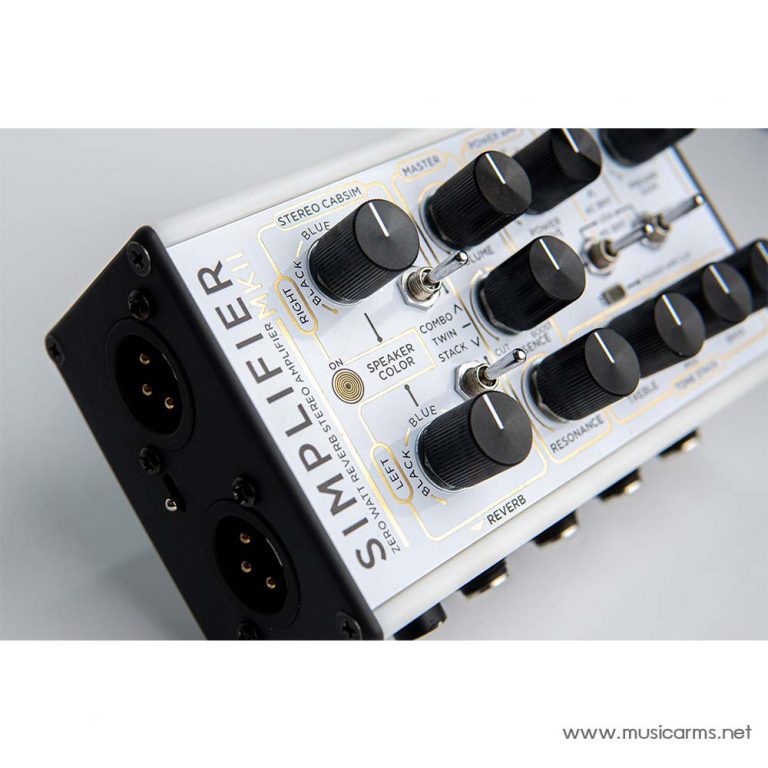

• Outputs L and R: 2 x XLR and 2 x 6.3 mm jack
• FX Send: 6.3 mm jack
• FX Return: L and R / mono: 2 x 6.3 mm jack
• Aux input: 3.5 mm stereo jack
• Headphone output: 3.5 mm stereo jack
• Mains adapter connection: Hollow female plug 5.5 x 2.1 mm, negative pole inside
• Power consumption: 150 mA
• Power supply with a 9-12 V DC mains adapter (not included, suitable mains adapter: art. 409939)
• Dimensions (W x D x H): 120 x 70 x 45 mm
• Weight: 360 g

• สำหรับกีตาร์ไฟฟ้า
• แอมป์อะนาล็อกเต็มรูปแบบ เพาเวอร์แอมป์ และตัวจำลองตู้
• MK-II รุ่นปรับปรุงใหม่
• การควบคุม: Stereo Speaker Color (2x Black/Blue/Green), Volume, Presence, Resonance, Treble, Mid, Bass, Power Drive, Preamp Gain, Reverb, Headphones Level
• สวิตช์: Pre-Amp Voicing: AC Brit/American/MS Brit, Stereo Cab Voicing, Spread On/Off, Ground Lift
• ไฟ LED บอกสถานะ
• Power Amp Clip
• อินพุต: แจ็ค 6.3 มม
• เอาต์พุต L และ R: 2 x XLR และแจ็ค 2 x 6.3 มม.
• FX Send: แจ็ค 6.3 มม.
• FX Return: L และ R / mono: แจ็ค 2 x 6.3 มม.
• อินพุต Aux: แจ็คสเตอริโอ 3.5 มม.
• เอาต์พุตหูฟัง: แจ็คสเตอริโอ 3.5 มม.
• การเชื่อมต่ออะแดปเตอร์หลัก: ปลั๊กตัวเมียกลวง 5.5 x 2.1 มม. ขั้วลบด้านใน
• การใช้พลังงาน: 150 มิลลิแอมป์
• แหล่งจ่ายไฟพร้อมอะแดปเตอร์หลัก 9-12 V DC (ไม่รวม)
• ขนาด (กว้าง x ลึก x สูง) : 120 x 70 x 45 มม.
• น้ำหนัก : 360 ก.
