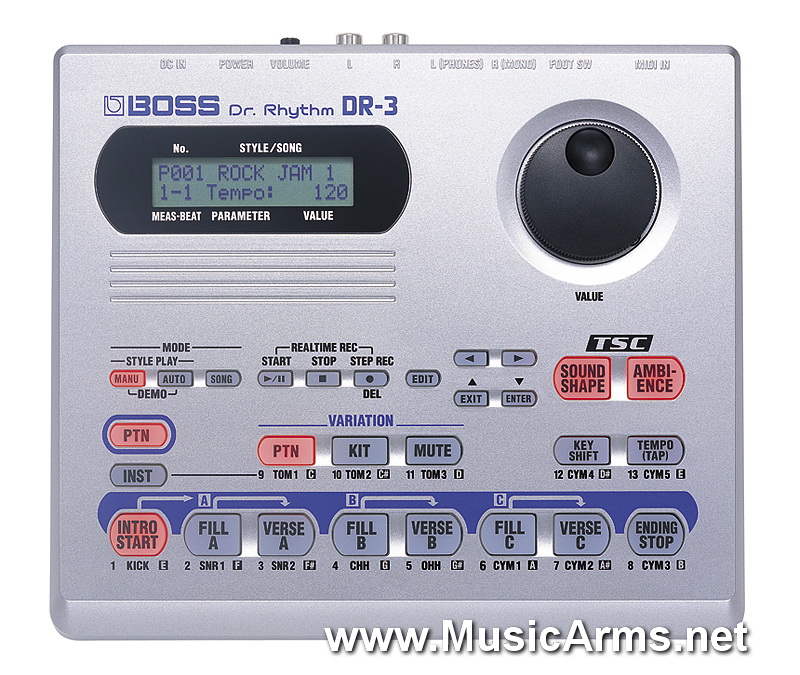

Boss DR-3 Rhythm Machines

DR-3: Dr. Rhythm

A FAST AND EASY SOLUTION FOR PROFESSIONAL-SOUNDING DRUMS.

Styles
User Style: 100, Preset Style: 100 * patterns for a style
Songs
User: 100, Song Length: Max. 250 patterns for a song
TSC (Total Sound Control)
Preset Patch: 8, User Patch: 8 Preset Patch: 8, User Patch: 8
Max. Polyphony
2 voices
Instrument
Drum and perc: 20, Bass: 2
Resolution
96 per quater note
Tempo
20 to 260 bpm
Recording Method
Realtime/Step
Pads
3 (Velocity-sensitive)
Display
Backlit LCD (6 characters x 2 lines)
Connectors
Output Jack: L, R (RCA Phono type), L(PHONES), R(MONO) (/4-inch phone type), Foot Switch Jack (Stereo /4-inch phone type), MIDI IN Connector, DC IN (AC Adaptor Jack)
Power Supply
DC9V: Dry Battery (R6/LR6 (AA) type) x 6, AC Adaptor (PSA-series)
Power Consumption
200 mA
* Expected battery life under continuous use: approx. 5 hours (This figure will vary depending on the actual conditions of use.)
Accessories
Dry Battery (Alkaline LR6 (AA) type) x 6, Owner’s Manual, Roland Service (Information Sheet)
Options
AC Adaptor: PSA Series, Foot Switch: FS-5U, Foot Switch Cable: Roland PCS-3
Size and Weight
Width
23 mm
8-7/6 inches
Depth
85 mm
7-5/6 inches
Height
53 mm
2-/8 inches
Weight
0.7 kg
lbs. 0 oz.
*The specifications are subject to change without notice.
