Donner PC-02 Control Surface

PC-02 Integrated Podcast Workstation – Multi-Person Live Broadcasting & 4-Person Band Performance

4 individually adjustable monitoring channels are capable of simultaneously recording multiple data sets. They can be configured to output a mixed recording, export mixed audio, and access storage reading functions, supporting either a two-person talk show or a four-piece band performance.

The two monitoring modes on each headphone can be switched to your need. During a performance, musicians can adjust the percentage of monitoring instruments be it their own instruments or the main out.

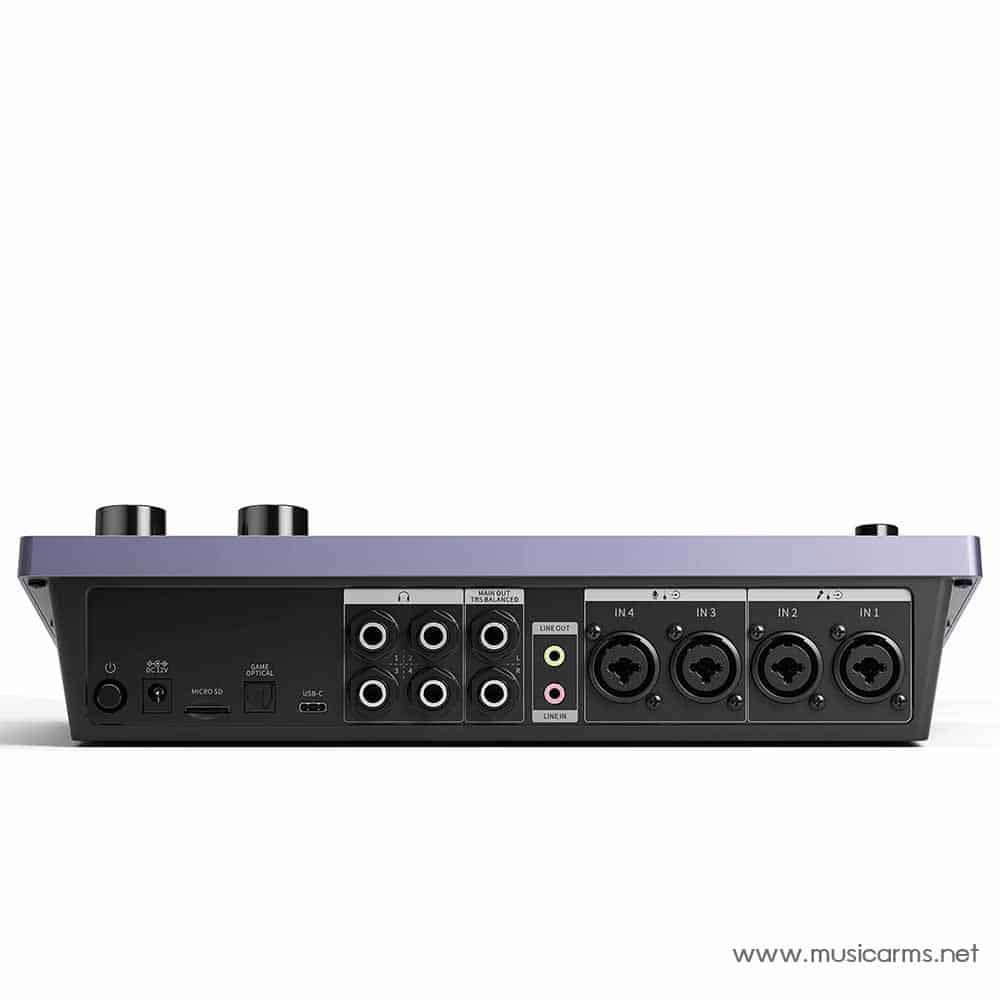

A Variety of Input / Output Connectors, More Benefits for Live Streaming

Thanks to dedicated interfaces for dynamic microphones, condenser microphones, musical instruments, and game console optical fiber, PC-02 works well for all contents and creators, the podcasters, the streamers, the room band or musicians, the stand-up comedians, the interviewers, the gaming host and so on.

Exclusive Vocal Algorithm by DONNER: Sound Module and Voice Optimization Solution

PC-02 employs DONNER’s exclusive technique, which is identical to its guitar effect technology. Noise Gate, Compressor, De-esser, EQ (Equalizer), Reverb, Delay, Autotune, Pitch, Megaphone, and RobotTalk are among the ten independent modules.

The vocal optimization solution, with 24bit High-End level Codec and premium low-noise mic preamp for professional broadcast quality. EQ, Compress, de-esser and noise-gating controls make your voice sound amazing. It allows the audience to focus on your charming voices. It is especially great for the talk show program.

Technological, Stylish and Cool Design

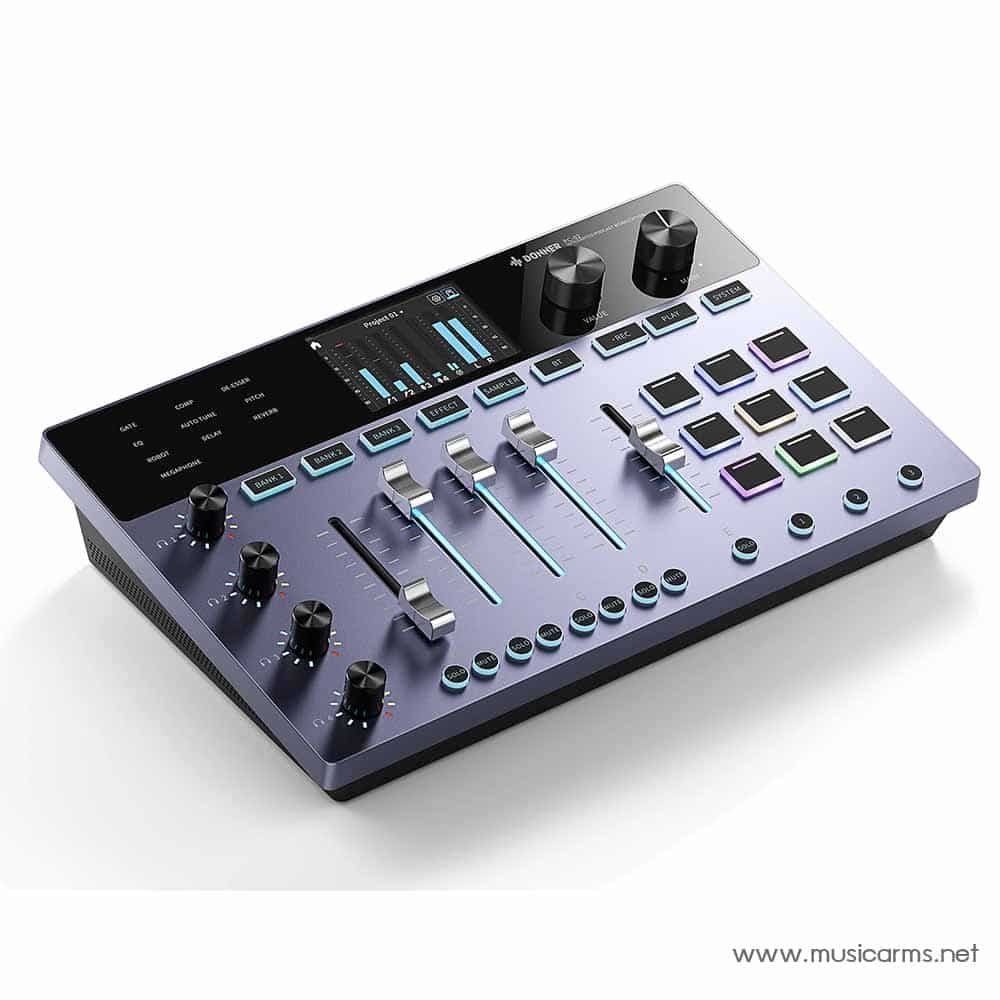

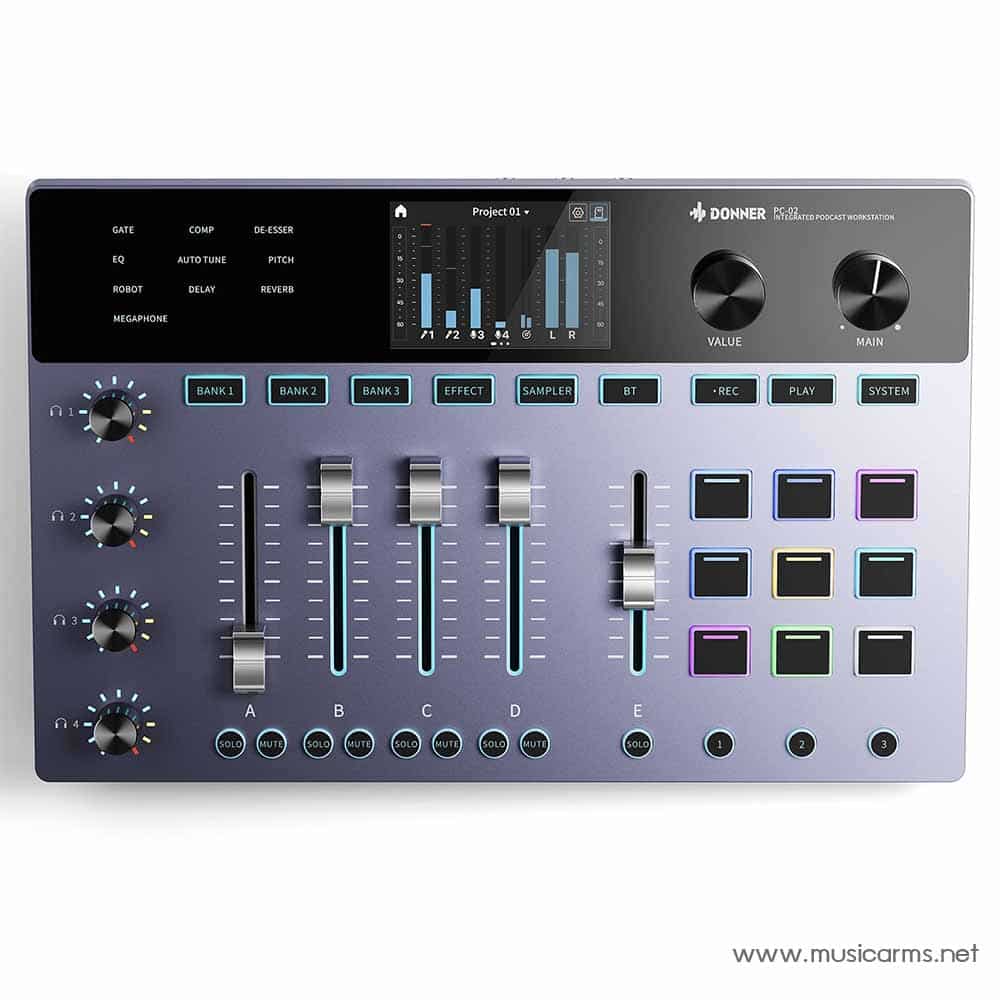

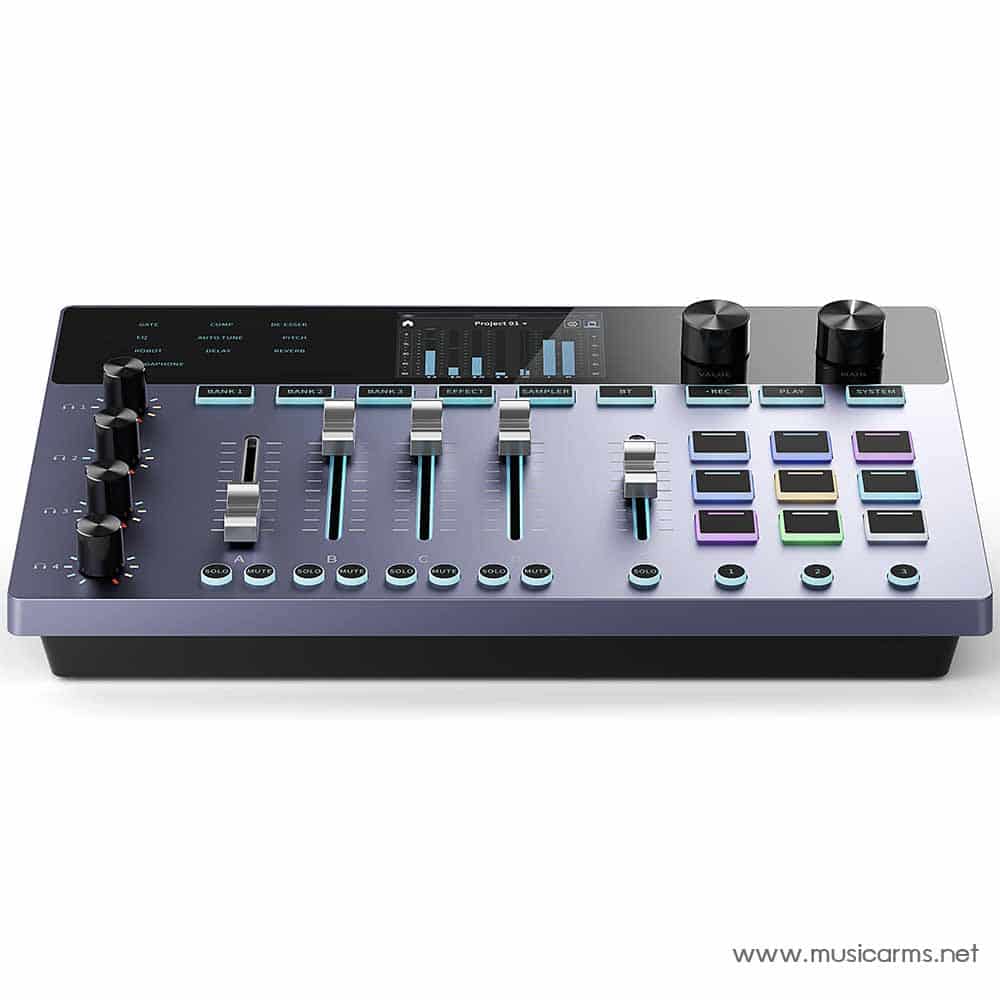

The PC-02 features a space purple metal spray paint finish, clear command buttons, and an LED display. When turned on, the stunning and ethereal lighting effect is amazing. From the layout of the operating panel to the keys and backlights, every aspect has been thoughtfully designed with the user experience in mind.

Dynamic Sound and Lighting Effects

The RGB LED lights can be customized and adjusted according to your preferences, aesthetics or usage habits, and the backlit color of the whole machine can be changed too.

Five electric faders have dynamic light strips to enhance interactivity. 9×3 customizable personalized PADs with four effect settings including Autotune, Pitch, Megaphone and RobotTalk. This mixing console emphasizes personalization, is highly entertaining, and playable. Create your own personal stage!

Motorized faders, One-click switch Mixer

When switching between numerous channels, you can be efficient and free to move around thanks to the humanistic design, one-click reset, and personal memory of the prior monitoring percentage.

• The four-way headphone monitor output have 4 independent mixers
• Multi-channel actual input, 4-way combo XLR input, 4-way high power headphone amplifier
• Multiple effects preset, 10 adjustable DSP sound processor
• SD card local record for standalone use with Win/Mac/Android/iOS support

SIZE AND WEIGHT

• Dimensions: 320X205X81mm
• Weight: 1.6kg

CONNECTORS

• Phones: Stereo, 4 x 1/4″TRS
• Main Out: Stereo, 1/4″Balanced TRS
• Input: XLR x 4, balanced / TS x 4, unbalanced

CHARACTERISTICS

• Gain Range: 0-60dB
• Frequency Response: 20Hz~20kHz @ -3dBF
• Sample Rates: 48kHz 24bit
• Headphone Output Power: 125mW @ 32Ω
• Faders: Motorized Faders x 5

รายละเอียด Donner PC-02

• เอาต์พุตมอนิเตอร์หูฟังสี่ทิศทางมีมิกเซอร์อิสระ 4 ตัว
• อินพุตหลายช่องสัญญาณ, อินพุต XLR คอมโบ 4 ทิศทาง, แอมพลิฟายเออร์หูฟังกำลังสูง 4 ทิศทาง
• พรีเซตเอฟเฟค โปรเซสเซอร์เสียง DSP ที่ปรับได้ 10 แบบ
• บันทึกในการ์ด SD สำหรับการใช้งานแบบสแตนด์อโลนพร้อมรองรับ Win/Mac/Android/iOS
• ช่วง Gain 0-60dB
• การตอบสนองความถี่: 20Hz~20kHz @ -3dBF
• Sample Rates: 48kHz 24 บิต
• เอาต์พุตหูฟัง: 125mW @ 32Ω
• เฟดเดอร์แบบมอเตอร์ 5 ตัว
• ขนาด: 320 x 205 x 81 มม.
• น้ำหนัก: 1.6กก.

ตัวเชื่อมต่อ

• โทรศัพท์: สเตอริโอ, 4 x 1/4″TRS
• Main Out: สเตอริโอ, 1/4″Balanced TRS
• อินพุต: XLR x 4, บาลานซ์ / TS x 4, ไม่บาลานซ์
