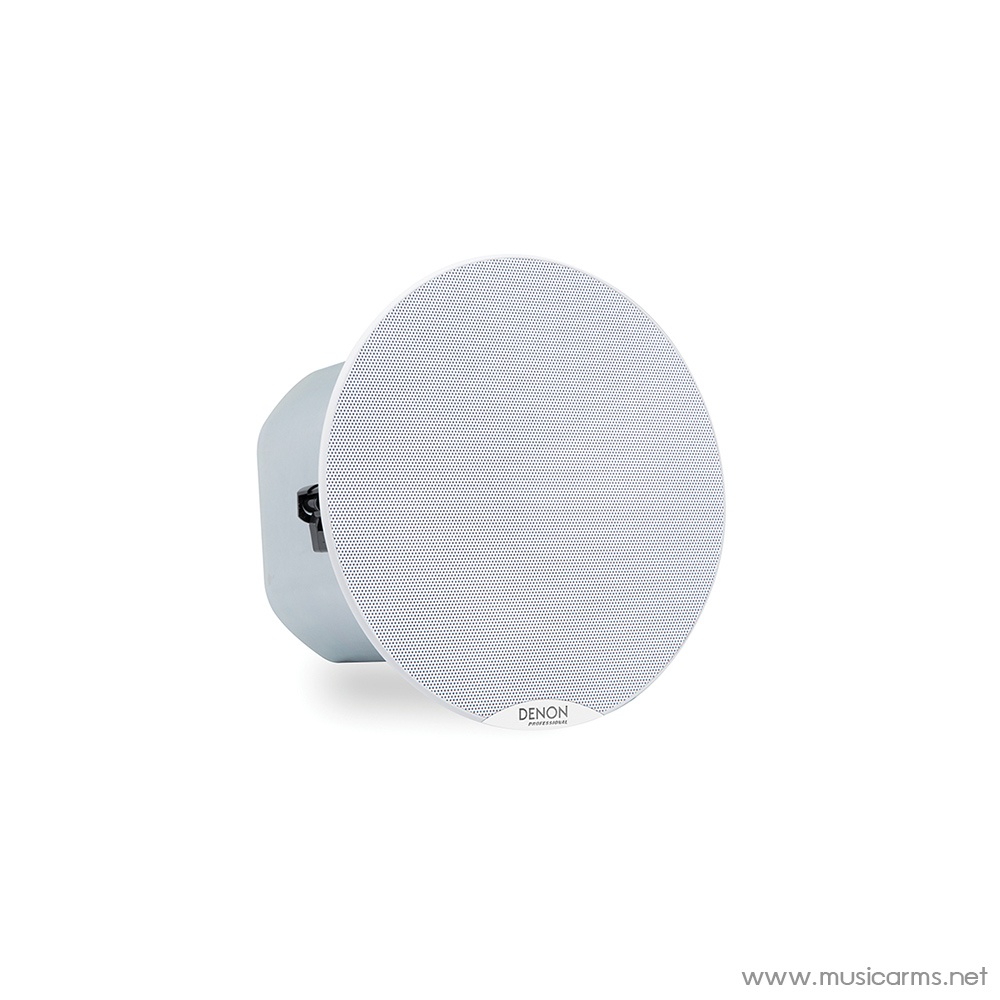

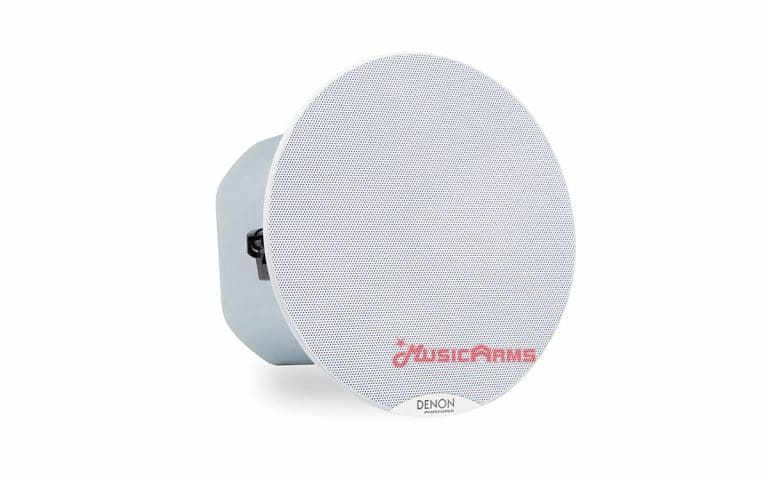

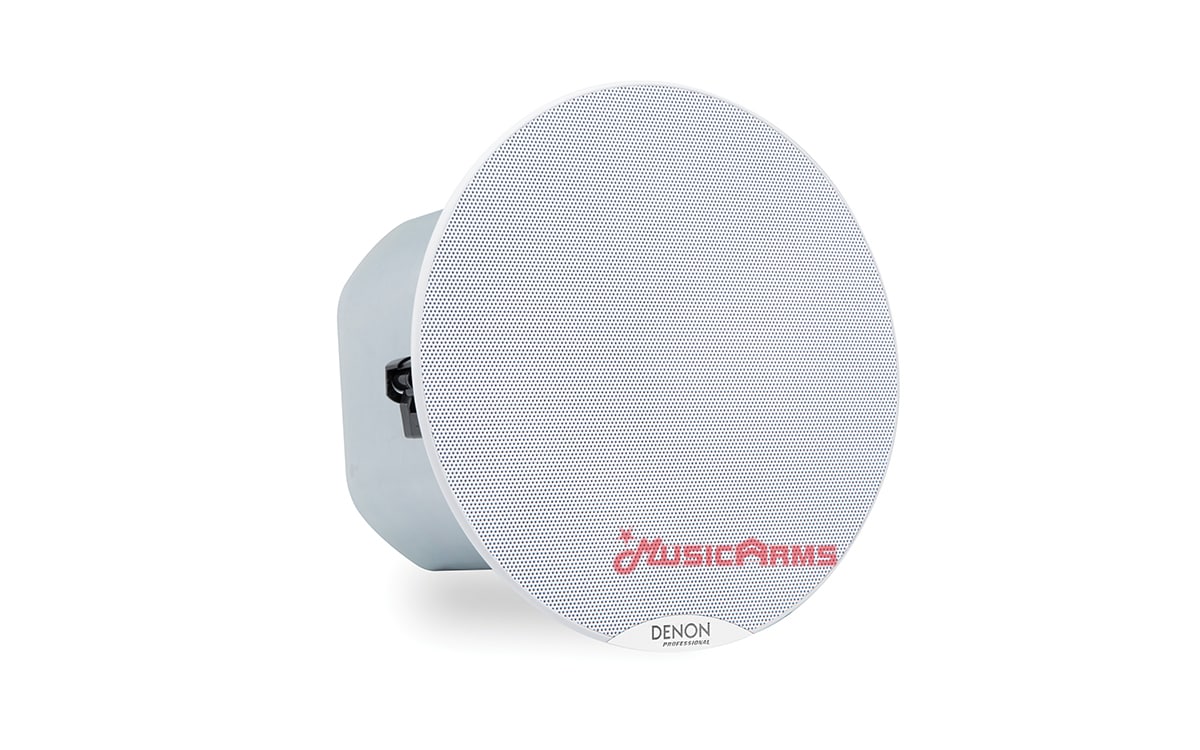

DENON PROFESSIONAL DN106S

Denon Professional’s range of ceiling loudspeakers is designed to deliver exceptionally accurate, articulate sound while easily meeting commercial requirements for fire-resistance (EN 54-24) and suitability for multiple unit installation.

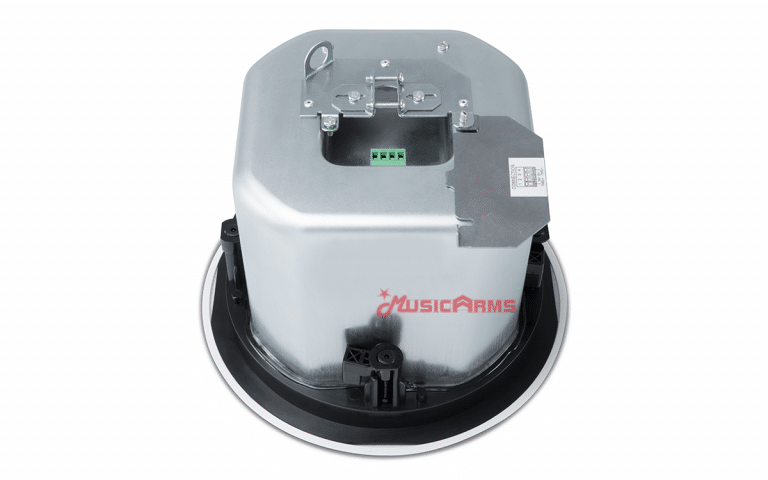

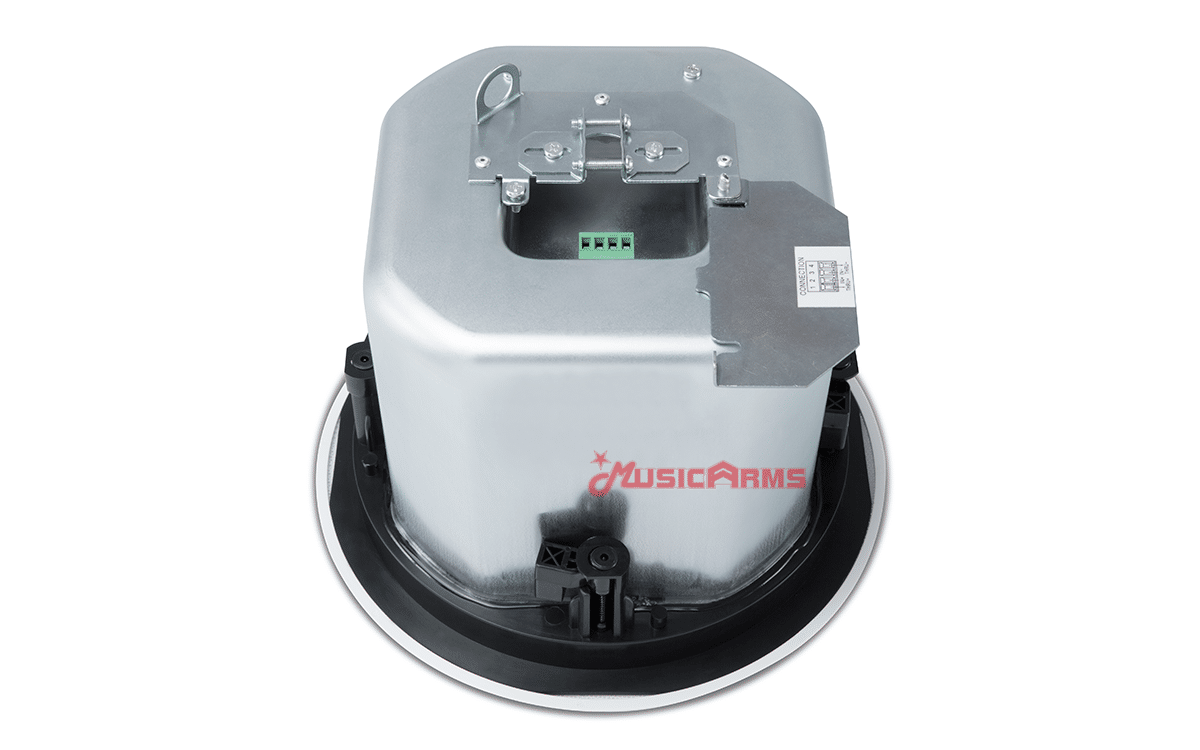

All three models feature a metal “can” rear enclosure, which provides a fire barrier behind the speaker to meet commercial fire codes. It also serves as the woofer’s enclosure to optimize its bass tuning and low frequency response. The speakers have 70/100-volt transformers to facilitate multiple unit installations without the impedance and level-matching concerns of paralleled transformerless speakers.

There are three different size models with 4-inch, 6 ½-inch and 8-inch woofers. All three utilize high quality drive units in tuned reflex enclosures and precision electronic crossovers to deliver clean, detailed sound, perfect for music, public address applications and business/educational presentations, while meeting all safety and fire codes as required by commercial venues.

• 6 ½-inch long-excursion woofers
• 20mm wide dispersion dome tweeter
• Driver Power: 60 W (RMS) 120 W (Peak)
• 70/100V transformers for multi-unit installations
• Metal rear enclosures meet commercial fire codes
• Frequency response: 57-20kHz

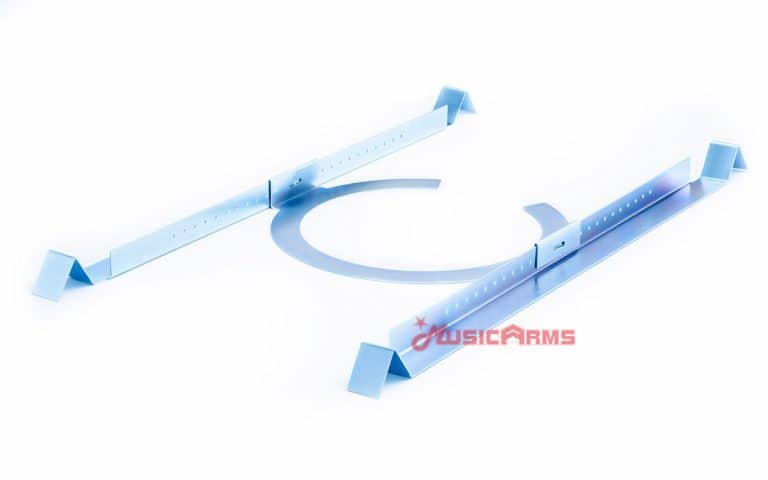

• Mounting Bracket Included
• EN 54-24 Compliant

System Specification

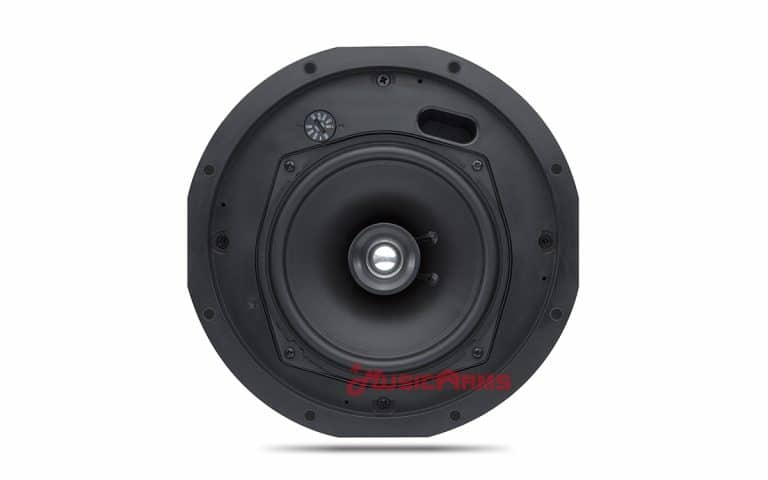

• LF Driver:6.5 inch (159mm) long-excursion woofer
• HF Driver:3/4 inch (20mm) wide dispersion tweeter
• Frequency Response:57- 20kHz
• Driver Power:60W (RMS) and 120W (Peak)
• Sensitivity:90dB (1W/1m)
• Regulatory Compliance:EN 54-24
• Power Taps:70/100V transformers for multi-unit installations
• 70V:60, 30, 15, 7.5W and 16Ω bypass
• 100V:60, 30, 15W and 16Ω bypass

Physical

• Cutout Hole Diameter:8.75 inches (222mm)
• Overall Diameter:10.12 inches (257mm)
• In-Ceiling Clearance Height:6.82 inches (173mm)
