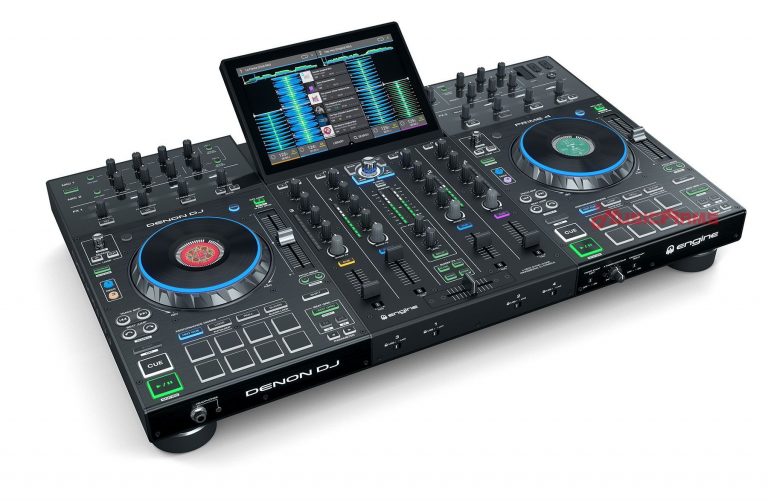

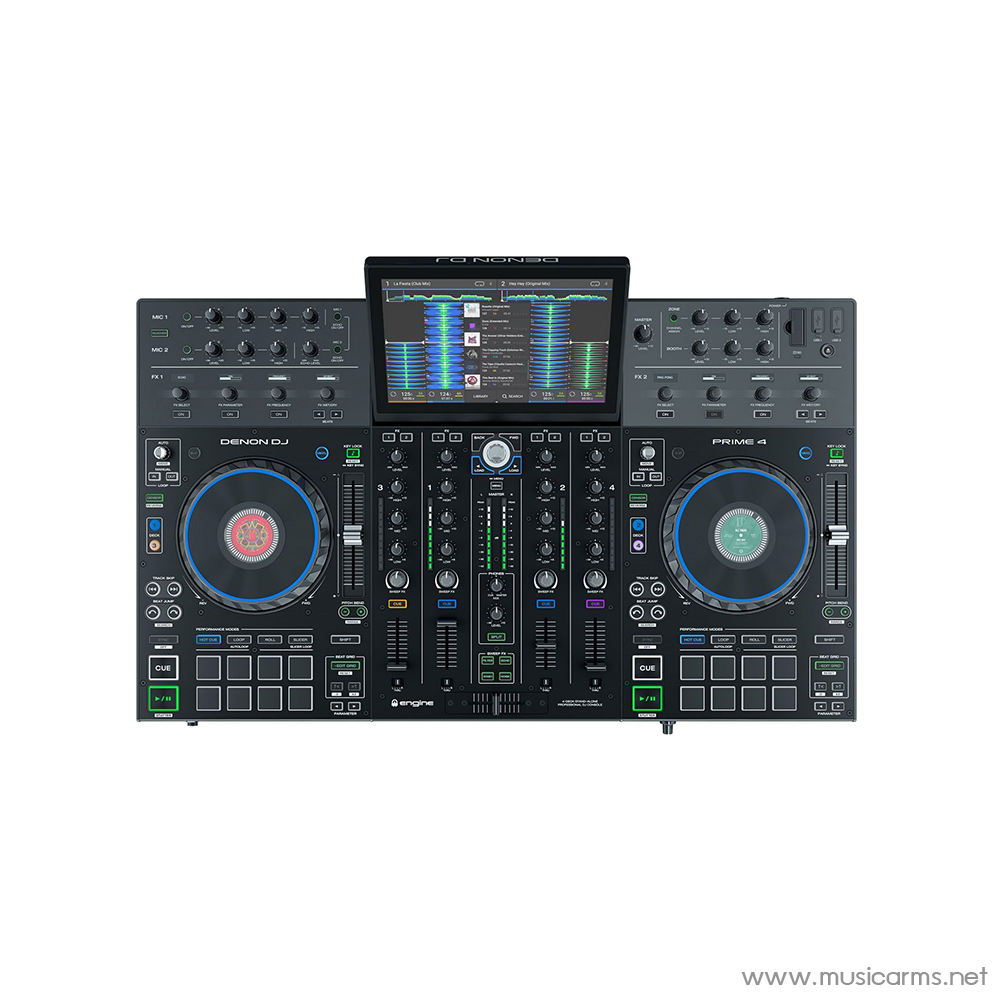

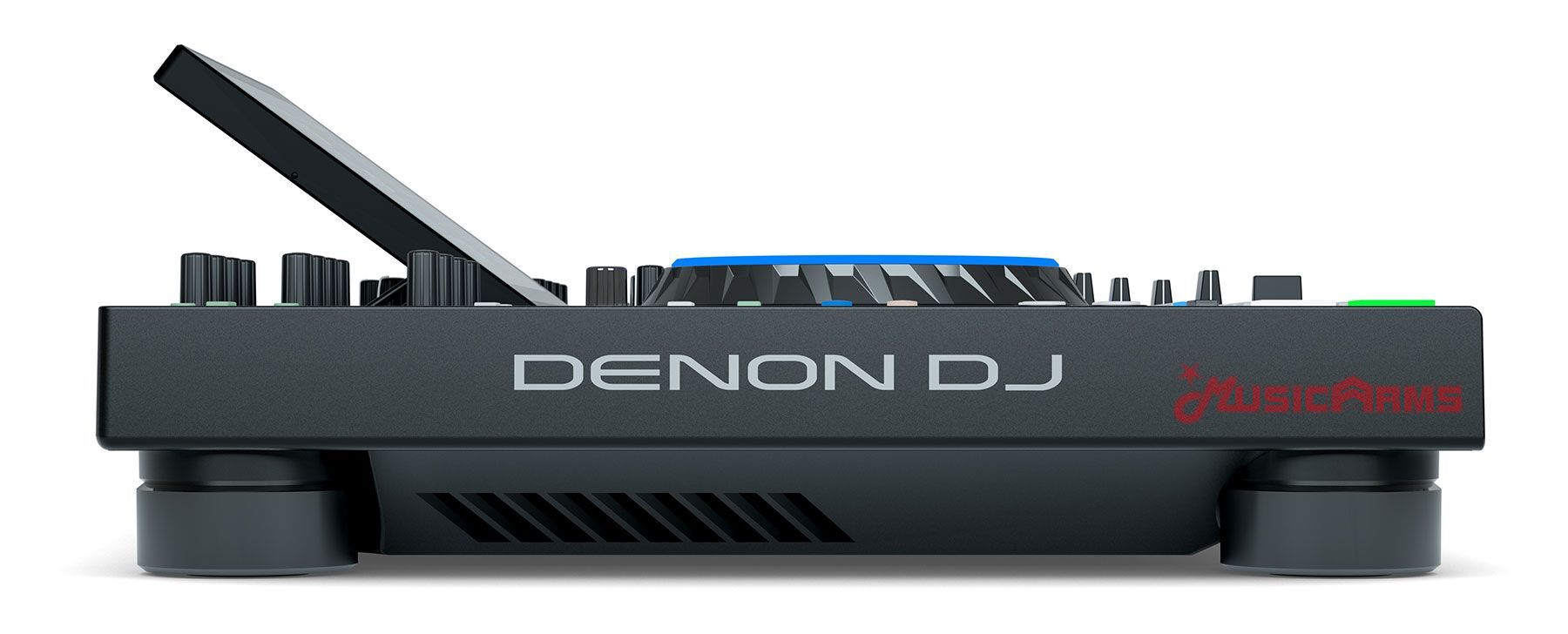

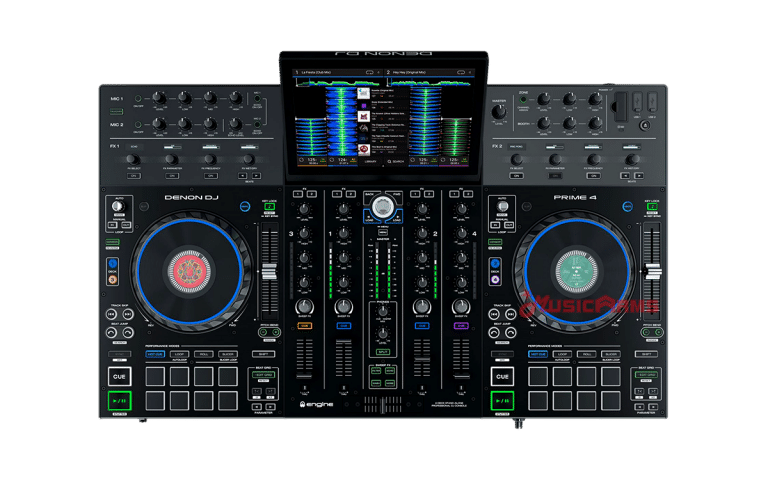

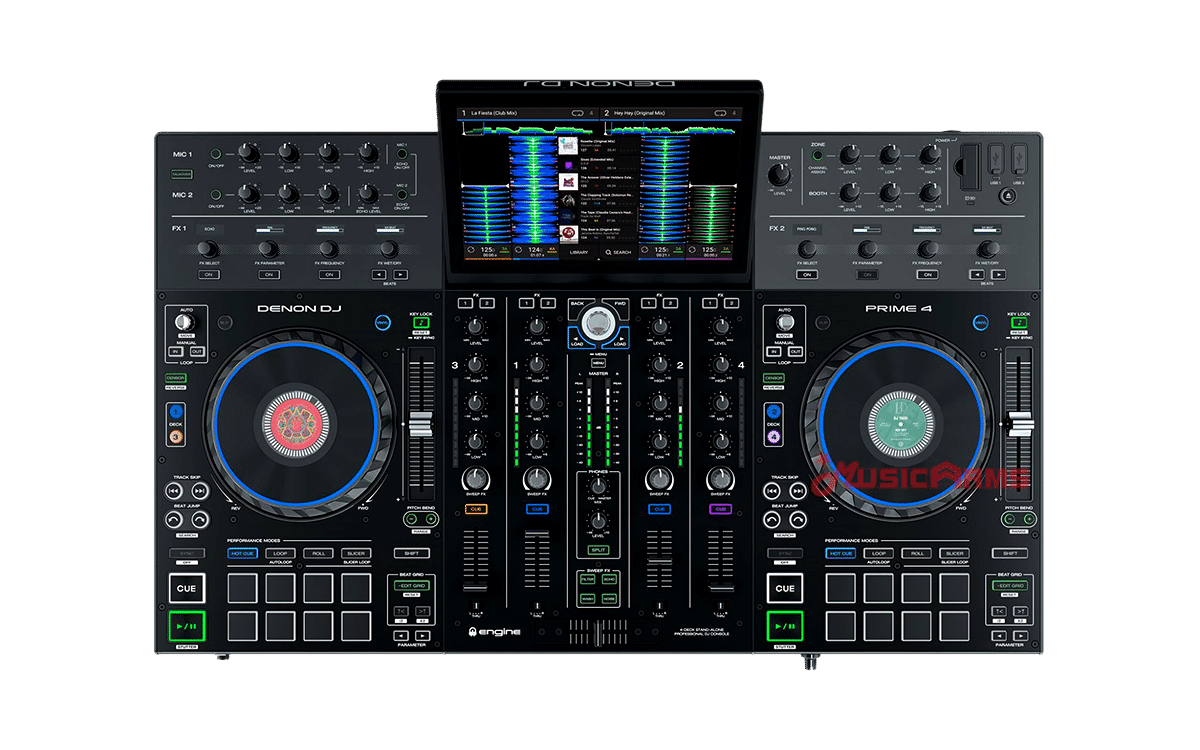

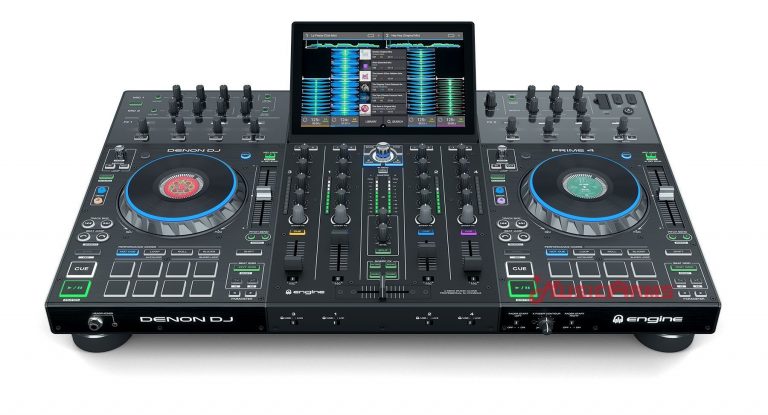

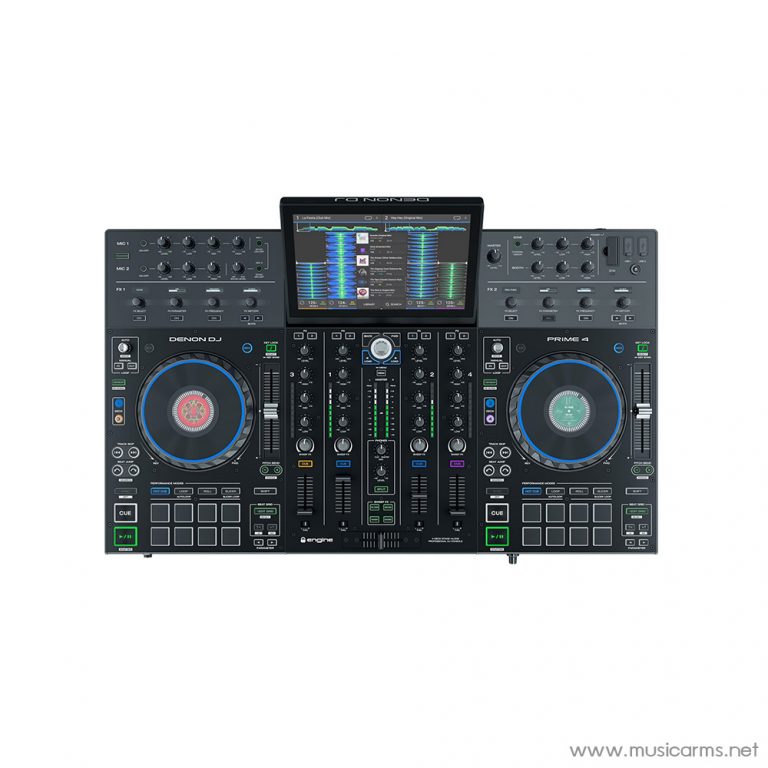

Denon DJ Prime 4 DJ Controller

The world’s most powerful, advanced DJ system

Command every gig, audience, genre, event and location! The multicore processor powered PRIME 4 makes your entire music collection available, with no laptop needed, transparently connecting you into your performance. With 4-deck hardware control and advanced touchscreen workflow, you’re all set to handle any DJ set, anywhere, anytime.

The PRIME 4, can also be used as a controller to control both Serato DJ Pro and Virtual DJ. Sideline the laptop and navigate your music library, view waveforms and select decks via PRIME 4’s 10.1” Touchscreen. Control and sculpt powerful FX directly from PRIME 4 and add multi-function performance pads to further spice up the mix.

4-Deck, ‘all-in-one’ Standalone DJ System

• Touch, move and orchestrate your digital music with the DJ world’s most advanced, multi-gesture touchscreen
• Entertain two separate audiences – Rock the dancefloor in one room and Zone output to a different location simultaneously
• Access and play your tracks, fully standalone, from literally unlimited sized music collections and media sources
• Built-in WiFi to connect and play music from streaming services or your personal cloud storage
• Multicore processor powered, gig ready, rugged metal chassis and renowned Denon DJ pristine audio quality

Multi-Gesture 10.1” Touchscreen: Feel Your Music

• View 4-deck, horizontal or vertical waveforms
• Search, select, preview and load your tracks
• Create playlists and crates on-the-fly
• Monitor all essential DJ parameters and info

Play Music in Two Separate Rooms

• Dedicated XLR Zone output with gain and EQ control
• Stream back-to-back music automatically into second room
• Assign either Deck 4 or Master signal to Zone output
• Party in one room, chill-out in the other

No Limits Media Sources

• Bring massive music libraries to gigs
• 4 USB inputs, 1 x SD card slot
• Futureproof storage with built-in 2.5” SATA drive bay
• Record a full DJ set to any connected source
• Stream directly from Beatport LINK, Beatsource LINK, SoundCloud GO+, and TIDAL
• Access your collection from the cloud with Dropbox support
• Plays compressed and uncompressed music file formats – including AIFF, FLAC, ALAC, and WAV
• Plug and play compatible with Rekordbox® prepared USB/SD media devices
  USB keyboard support for optional music search

Mix, blend and shape your sound

• 4-channel line faders, each with 3-band EQ and gain
• Single encoder, (4) sweep FX including filter control
• 14 Mainstage quality Post-Fader FX
• Inputs are assignable for external media sources
• User replaceable crossfader

Dual Microphone Control

• No compromise of line fader – 2 dedicated mic channels
• Control EQ, level and echo effects on both mics
• Punch in on/off and talkover option for pro-mobile use
• 2 dedicated TRS mic inputs

Stream or Play Music from the Cloud

With built-in Wi-Fi and an Ethernet Link port for hardwired internet connections, the PRIME 4 connects you with your favorite music streaming service or personal cloud storage without being tethered to a computer. Log in to your streaming account directly on the unit for instant access to the world’s largest music collections. The PRIME 4 offers a vast array of streaming service options including Beatport LINK, Beatsource LINK, SoundCloud GO+, and TIDAL, so whatever the genre the PRIME 4 has you covered. If that’s not enough, connect your Dropbox account to access your personal music collection remotely from anywhere in the world.

Engine Prime Music Management

Import your lovingly constructed digital music collections from Apple Music App/iTunes, Serato DJ Pro, Native Instruments Traktor Pro and rekordbox® using both Denon DJ’s free, Engine Prime music management software and the PRIME 4 itself

• Bring in existing playlists, folders, hot cues and loop information
• Create playlists, crates, audition mixes and edit track info
• PRIME 4 internally analyses music data with no laptop needed

Audio

• Bit Depth:24-bit
• Sampling Rate:44.1kHz
• Dynamic Range:> 117dB (A-weighted)
• Frequency Response:20Hz to 20kHz (+/-1dB)
• Signal-to-Noise Ratio:> 93dB (A-weighted)
• Headroom:
• Line: > 15dB
• Microphone: > 20dB
• Outputs: > 20dB

Channel Separation

• < -90dB (1kHz, unity)
• THD
• Line/Phono: < 0.01% (1kHz, unity)
• Microphone: < 0.02% (1kHz, unity)

Analog Input

• Line: 0dBV (unity), +15dBV (maximum)
• Microphone: -40dBu (unity), -60dBu (minimum)

Analog Output

• Master Balanced: +4dBu (unity), +24dBu (maximum)
• Master Unbalanced: 0dBu (unity), +20dBu (maximum)
• Zone Balanced: +4dBu (unity), +24dBu (maximum)
• Booth: +4dBu (unity), +24dBu (maximum)
• Headphone: < 150mW

Supported Media

• Type:SD/SDHC card
• USB mass-storage devices (flash memory, 2.5 internal SATA, and external HDD enclosures)
• File Systems:exFAT
• FAT32 (recommended)
• Supported Audio File Formats:AAC/M4A
• AIF/AIFF (44.1–192kHz, 16–32-bit)
• ALAC
• FLAC
• MP3 (32–320 kbps, VBR)
• MP4

Ogg Vorbis

• WAV (44.1–192kHz, 16–32-bit)

Displays

• Main:10.1” / 257 mm (diagonal)
• 8.5” x 5.5” / 216 x 139 mm (width x height)
• Full-color LED-backlit display with touch interface
• Jog Wheel:2.2” / 56 mm (diameter)
• Full-color LED-backlit display
• FX:128 pixels wide x 32 pixels high
• Black & White OLED display

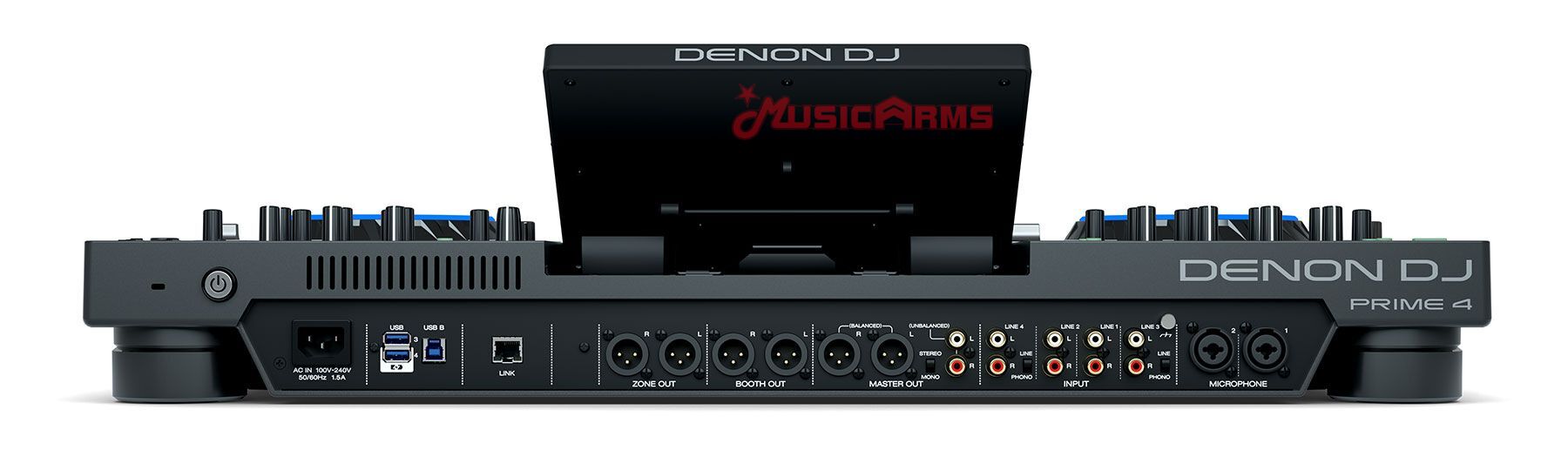

Connections

• Professional grade Neutrik XLR outputs (Master, Zone, and Booth)
• Professional grade Neutrik XLR+1/4″ (6.35 mm) microphone inputs
• RCA output pair (Master)
• RCA input pairs (line/phono channel 3 & 4)
• 1/8” (3.5 mm) output (headphone)
• 1/4” (6.35 mm) output (headphone)
• Ethernet link port
• IEC power inlet
• USB type A media port (female)
• USB type B host port (female)
• SD card slot
• SATA + power for internal 2.5″ hard drive

Power

• Connection: IEC
• Input Voltage: 110-240 VAD, 50/60 Hz
• Consumption:38W ~ 39W (without mobile device charging on USB port 4)
• 43W ~ 45W (with mobile device charging on USB port 4)
• Dimensions (Width X Depth X Height)
• 728.47 x 496.82 x 103.63 mm
• 28.68” x 19.56” x 4.08”

Weight

• 21.34 lb.
• 9.7 kg

รายละเอียด Denon DJ Prime 4 DJ Controller

• ระบบ Engine Prime DJ แบบสแตนด์อโลน 4 ชั้น
• จอแสดงผลมัลติทัช HD ขนาด 10 นิ้วพร้อมท่าทาง
• เอาต์พุต XLR Zone เฉพาะสำหรับส่งเพลงไปยังห้องแยกต่างหาก
• ช่องใส่ไดรฟ์ SATA ขนาด 2.5 นิ้วในตัวเพื่อจัดเก็บเพลงออนบอร์ด
• ล้อจ๊อกกิ้งโลหะทนทานขนาด 6 นิ้วพร้อมจอแสดงผลส่วนกลางแบบ HD
• (4) ช่องสัญญาณเข้าที่กำหนดได้สำหรับแหล่งสื่อภายนอก
• (2) อินพุต XLR เฉพาะสำหรับไมโครโฟนที่มีการควบคุมแยกกัน
• การเชื่อมต่อ StagelinQ สำหรับการจัดแสงและการควบคุมวิดีโอของ Event/Pro DJ
• เล่นรูปแบบเสียงที่ไม่มีการบีบอัด (FLAC, ALAC, WAV)
• เสียงต้นฉบับ Denon DJ 24 บิตที่คมชัด
• (4) อินพุตสื่อ USB และ (1) SD สำหรับการเล่นเพลง
• รองรับคีย์บอร์ด USB
