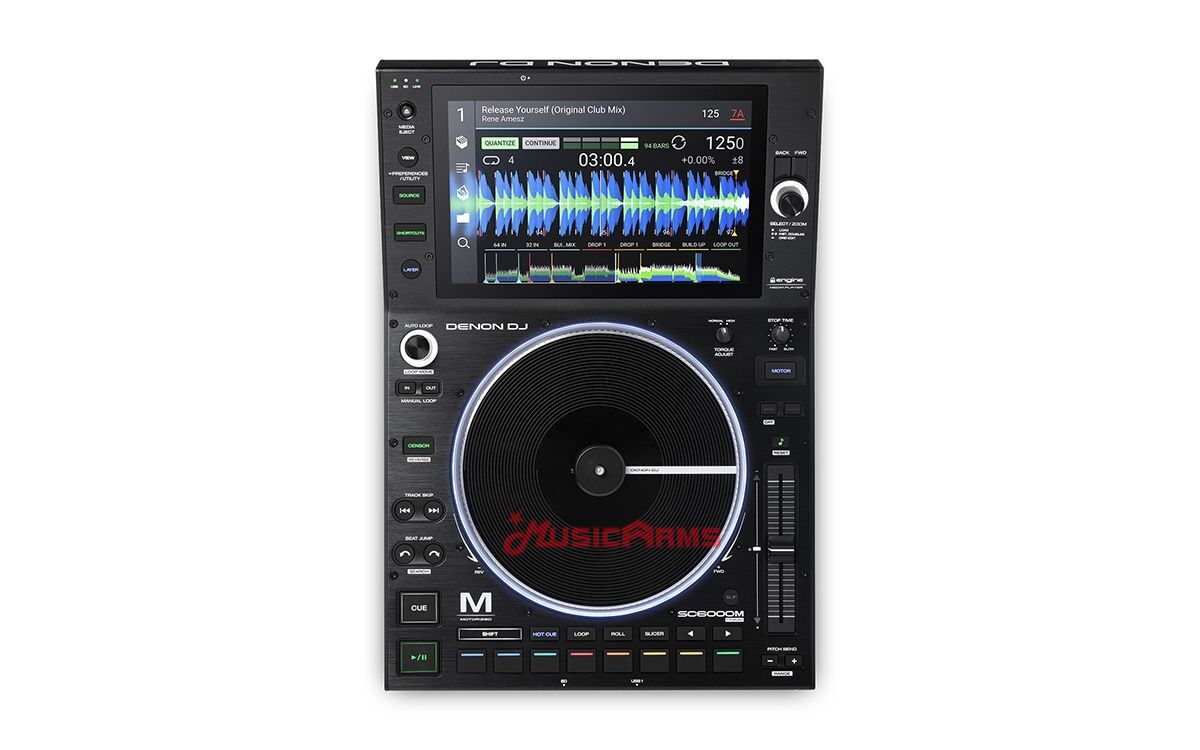

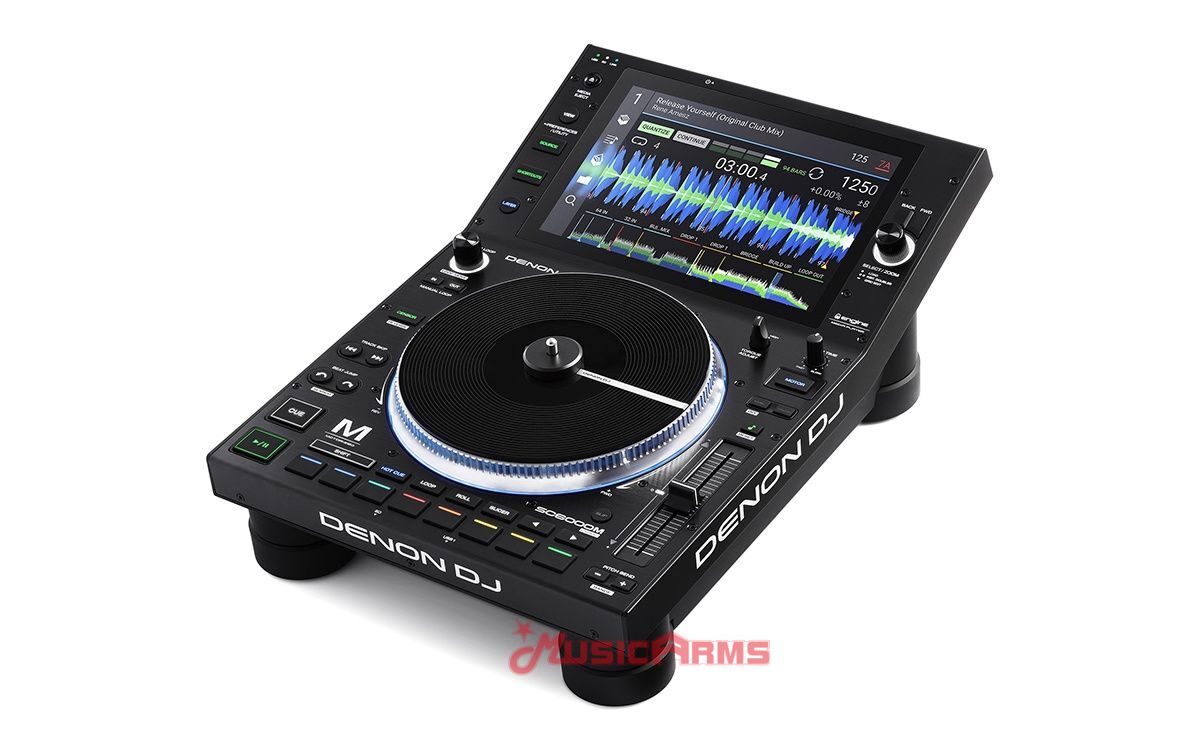

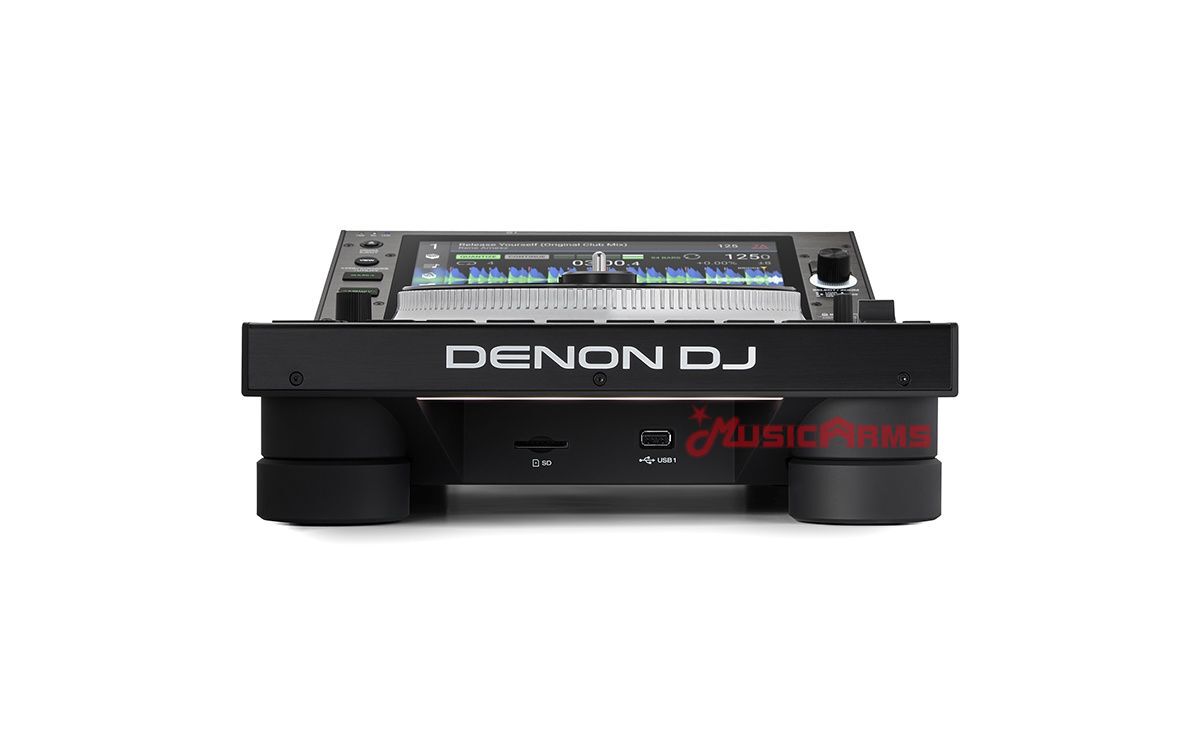

Denon DJ SC6000M Prime DJ Controller

True Legacy Vinyl Experience

The SC6000M’s 8.5″ motorized platter with a combo of ‘quick release’ slipmat and newly designed DJ vinyl, ensures DJ/Turntablists have that ‘true, mechanical spin’ beneath their fingertips. The uniquely engineered, brushless DC electric motor has a light/heavy torque range adjustment, for fine-tuning platter response to a scratch DJ’s exact performance needs.

Advanced Touchscreen Digital Workflow

Navigate, search, and load extensive music libraries plus edit tracklists with ‘on-board’ Crate management. Gesture manipulate large waveforms and scrub through overviews while visualizing essential DJ workflow info. Also, engage ‘on-the-fly’, internal analysis of music files directly within the SC6000M itself – simply ‘plug in & play out!’

The Power of Engine OS

Powered by a dedicated, multi-core internal processor, the SC6000M runs ‘Engine OS.’ A purpose-built embedded software platform built for DJs offering you super-fast track load times, intuitive navigation, management, and search, so you can be at your creative best. The mission for Engine OS is clear, to keep evolving, providing more creative features to enhance the DJ’s performance and experience.

Future Ready Media Playback

With dual output 24-bit, 96kHz digital audio quality, the SC6000 supports all major compressed and uncompressed music file formats – including AIFF, FLAC, ALAC, and WAV. With built-in WiFi and wired internet connectivity, DJs can now stream music, standalone, from Beatport LINK, Beatsource LINK, SoundCloud GO+, TIDAL, and even personal cloud music stored to Dropbox.

Stream or Play Music from the Cloud

With built-in Wi-Fi and an Ethernet Link port for hardwired internet connections, the SC6000 connects you with your favorite music streaming service or personal cloud storage without being tethered to a computer. Log in to your streaming account directly on the unit for instant access to the world’s largest music collections. The SC6000 offers a vast array of streaming service options including Beatport LINK, Beatsource LINK, SoundCloud GO+, and TIDAL, so whatever the genre the SC6000 has you covered. If that’s not enough, connect your Dropbox account to access your personal music collection remotely from anywhere in the world.

Audio

• Analog Output: 2.0 Vrms (0 dBFS, 1 kHz)
• Signal-to-Noise Ratio: 116 dB
• Distortion (THD+N): < 0.0015%
• Frequency Range: 22–22,000 Hz
• Digital Output:Sampling Rate: 96 kHz
• Bit Depth: 24-bit

Platter

• Material: Metal construction
• Diameter: 8.5″ / 216mm

Display

• 10.1″ / 257 mm (diagonal)
• 10.11″ x 6.9″ / 257 x 175 mm (width x height)
• Full-color LED-backlit display with touch interface

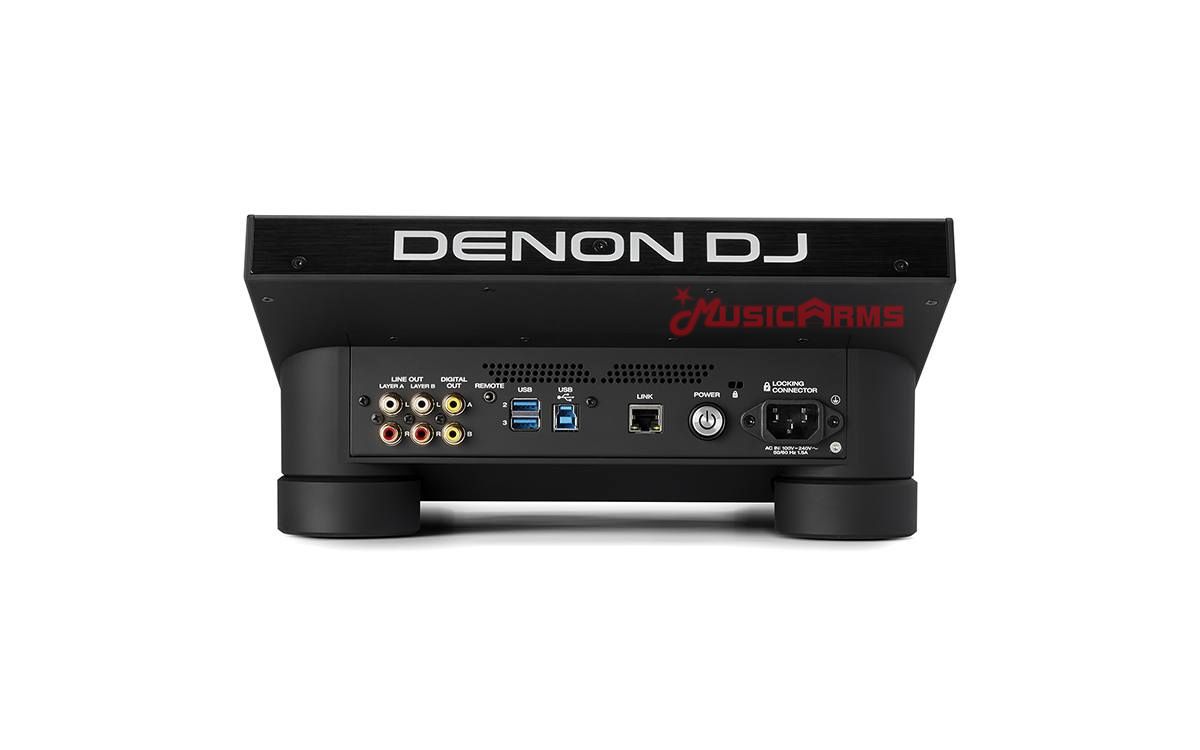

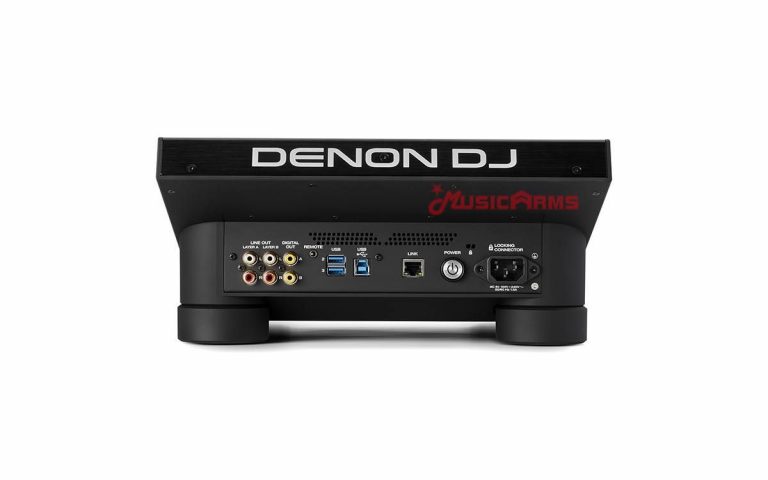

Connections

• RCA output pairs
• coaxial digital outputs
• 1/8” (3.5 mm) mini TS input (remote start)
• USB Type-A ports (for USB drives) (Rear-panel ports supply 900 mA for USB 3.0 devices, 500 mA for USB 2.0 devices. Front panel port supplies 500 mA for USB 2.0 devices only.)
• USB Type-B port (for computer connection)
• SD card slot
• Ethernet link port
• IEC power input
• 2.5″ SATA HD bay

Power

• Connection: Locking IEC
• Input Voltage: 110–240 VAC, 50/60 Hz
• Dimensions (Width x Depth x Height)
• 319.5mm X 463.3mm X 151.17mm
• 12.6” x 18.2” x 6”
• Weight (Without USB and Power Cable)
• 15.4 lbs.
• 7.01 kg

Supported Media

• Type:SD/SDHC card
• USB mass-storage devices (flash memory, external HDD enclosures)
• 2.5″ SATA hard drives
• File Systems:exFAT
• FAT32 (recommended)
• File Formats:AAC/M4A
• AIF/AIFF (44.1–192 kHz, 16–32-bit)

ALA

• FLAC
• MP3 (32–320 kbps)
• MP4
• Ogg Vorbis
• WAV (44.1–192 kHz, 16–32-bit)

User Guide
