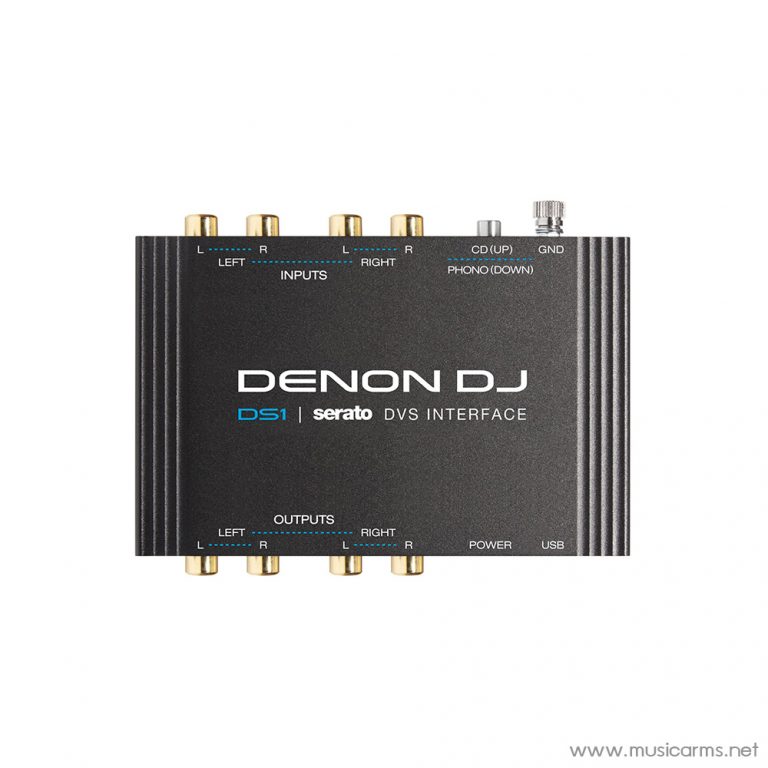

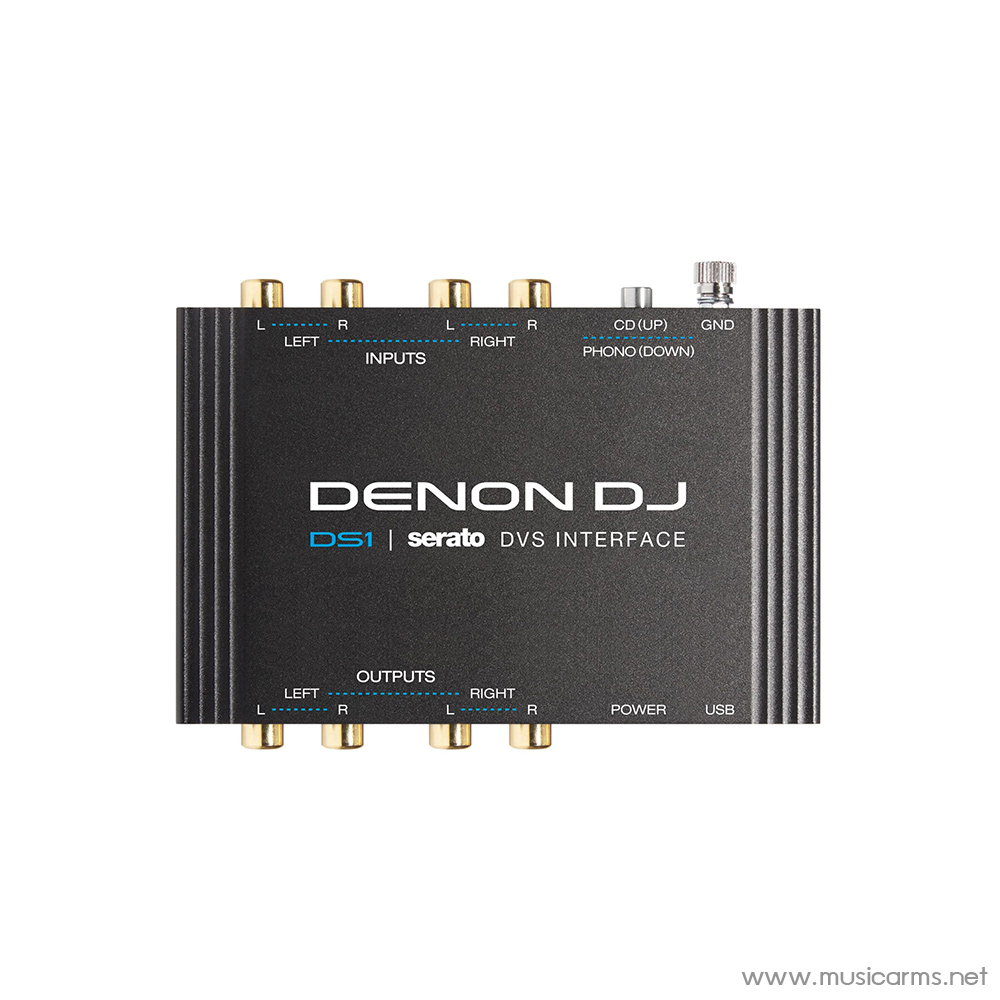

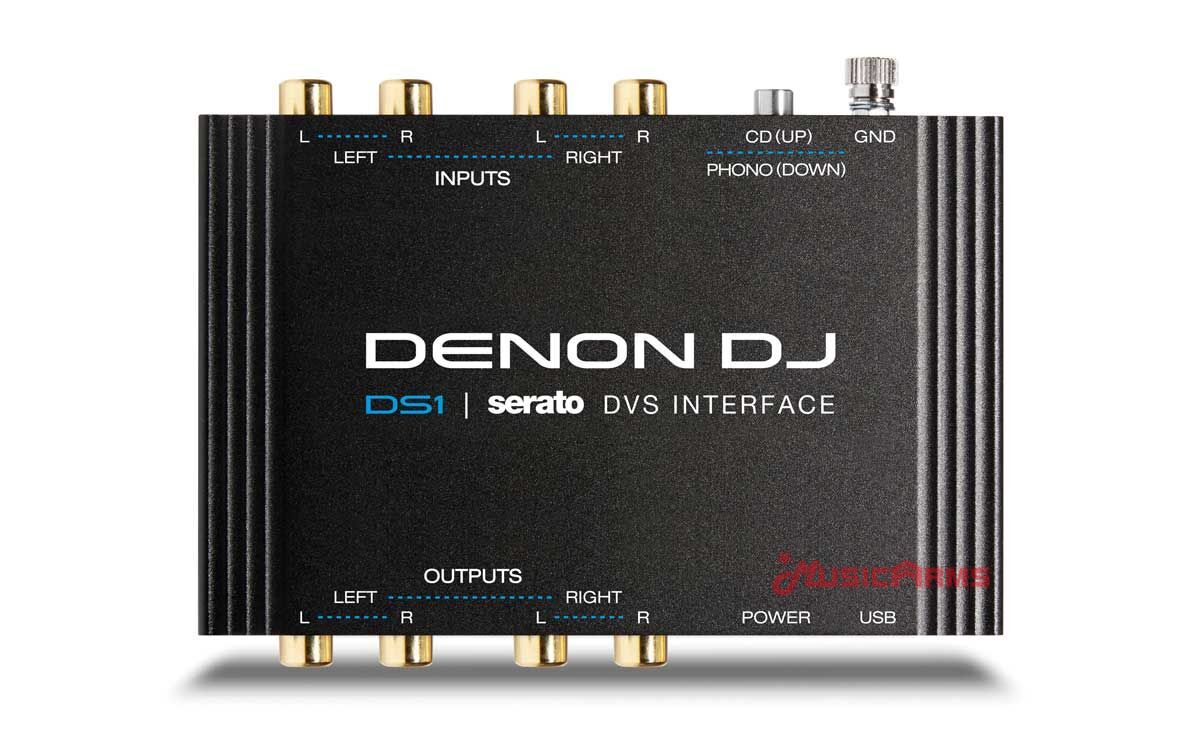

Denon DJ DS1 Audio Interface

FOR THE LOVE OF VINYL

For Pro DJs and Turntablists! Get truly ‘hands-on’ and control your Serato digital music collection, with the touch and feel of real vinyl records

2-Channel audio interface

• Ultra-compact, rugged metal build

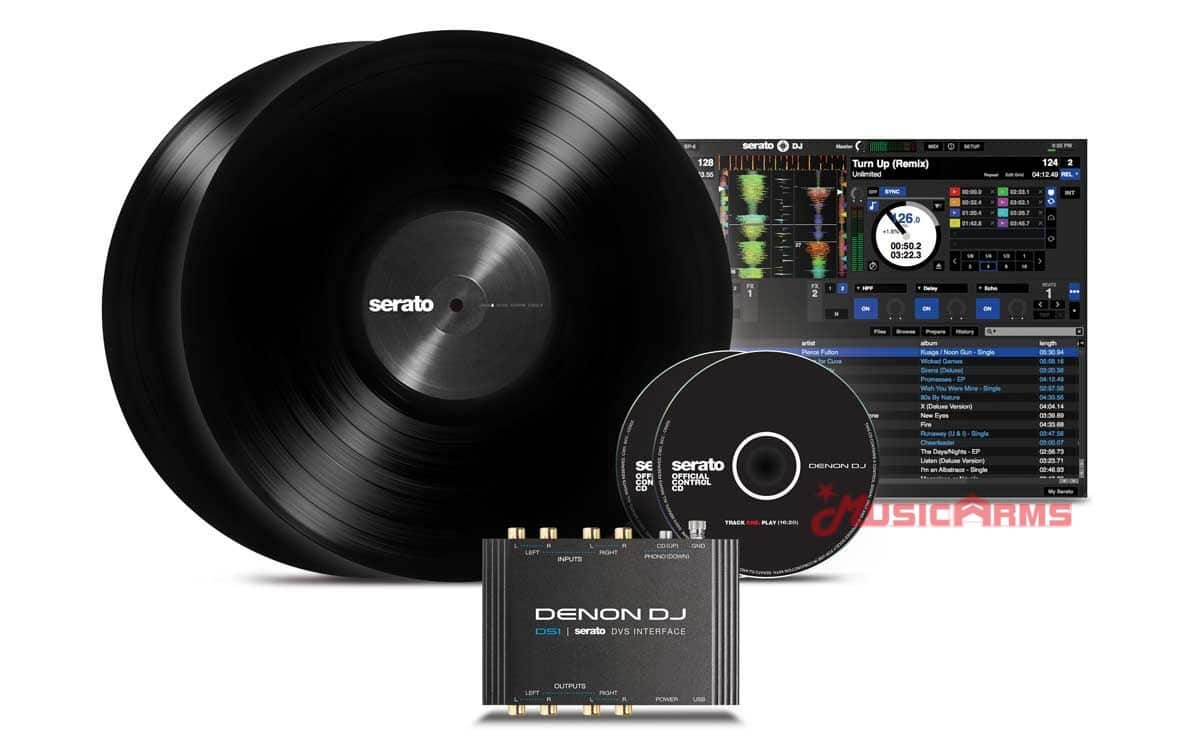

• Supports Serato NoiseMap™ Control Vinyl and CD

CONNECT – PLAY – SIMPLE

USB powered and with quick, ‘plug-and-play’ connectivity, DS1 unlocks Serato DJ Pro for instant DVS control via any DJ mixer

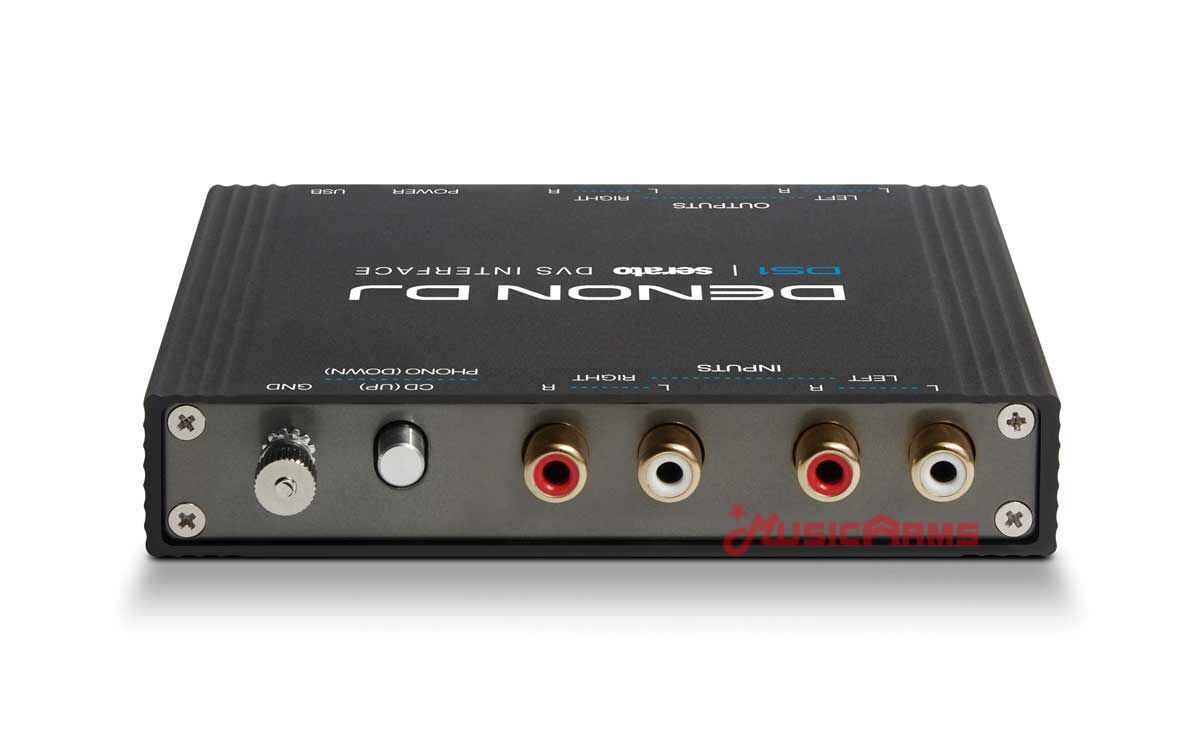

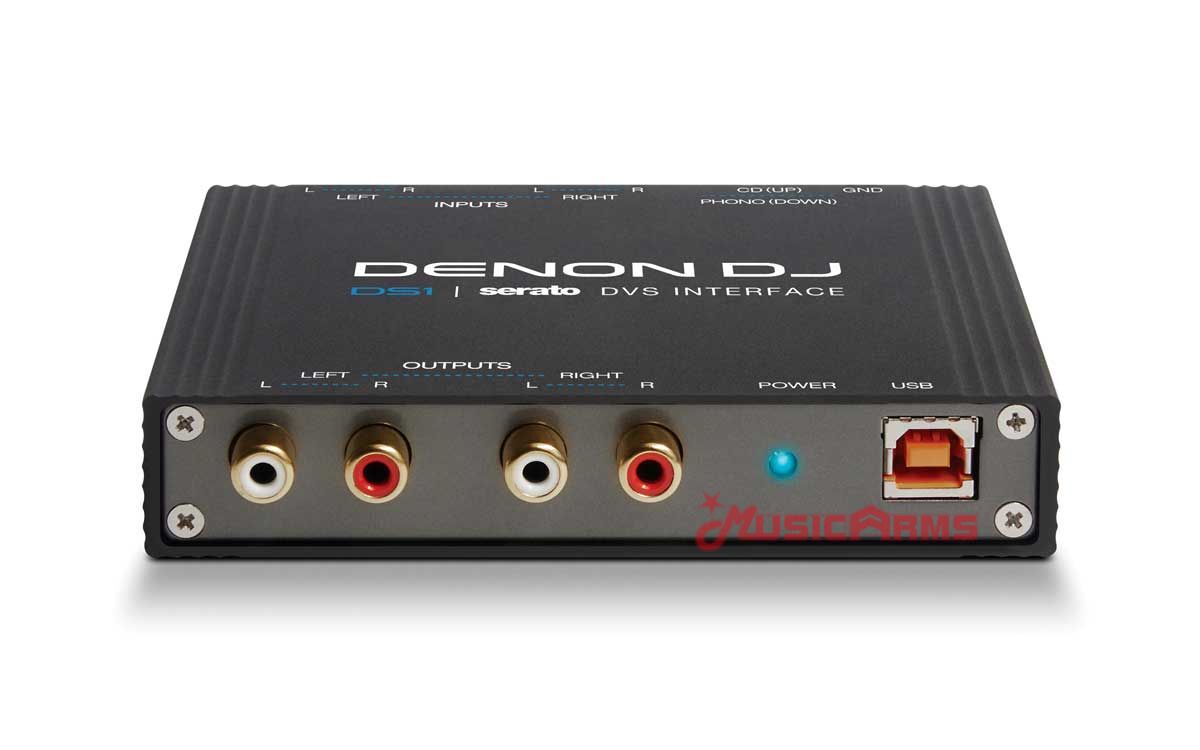

Dual RCA Stereo inputs/outputs

• Plays traditional vinyl records too

SOUND CONTROL

• Pocket-sized for transport but BIG in musical excellence – rock any bar, club or event with 24-bit, pristine audio
• Supports 44.1, 48 and 96kHz sampling rates
• Legacy, trusted Denon DJ audio quality

Lines Inputs 1-4 (unbalanced RCA)

• Frequency Response: 20 Hz – 20 kHz (+0.02dB)
• Dynamic Range: 103 dB (A-weighted))
• Signal-to-Noise Ratio: 100 dB (1 kHz, +6 dBV (2Vrms), A-weighted)
• THD+N: 0.002% (1 kHz +6 dBV (2Vrms)
• Max Input Level: +9 dBV
• Input Impedance: 47 kΩ

Phono Inputs 1–4 (unbalanced RCA)

• Dynamic Range: 81 dB (A-weighted)
• THD+N: 0.022% (1 kHz, -27dBV)
• Max Input Level: -26dBV (53 mVrms)
• Input Impedance: 47 kΩ

Lines Inputs 1-4 (unbalanced RCA)

• Frequency Response: 20 Hz – 20 kHz (+0.07 dB)
• Dynamic Range: 100 dB (A-weighted)
• THD+N: 0.007% (1 kHz, -1 dBFS)
• Maximum Output Level: +6 dBV
• Output Impedance: 100 Ω
• Note: All specifications above measured at 20 kHz bandwidth.

Unit Size

• 4.7 (W) x 3.0 (D) x 0.9 (H) (Inches)
• 119.38 (W) x 76.2 (D) x 22.86 (Millimeters)

Unit Weight

• 0.55 lbs
• 0.25 kg
