Denon AVR-X4700H 9.2 Ch. 8K AV Receiver with HEOS
ราคา : 63,900 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
วีดีโอ
Description
The Denon AVR-X4700H 9.2 channel 8K AV receiver with 125W per channel fully supports 3D audio formats like Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™, IMAX® Enhanced and Auro-3D®. Comes equipped with the latest in HDMI specifications such as 8K/60Hz and 4K/120Hz pass-through, VRR, ALLM, Dynamic HDR, HDR10+ and eARC support.
- Discover 8KEnjoy first-to-market high quality 8K entertainment.
- 9.2 channels of
excellenceFeaturing discrete, high-current amplifiers on all channels ensuring a dynamic and precise entertainment experience. - 3D audio excellenceImmerse yourself in 3D audio with Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X””, and IMAX Enhanced.
High-Resolution audio
Enjoy superb audio fidelity with your favorite high-resolution audio tracks from your favorite sources.
Ultimate Home Theater Experience — 8K Ready
The AVR—X4700H delivers the ultimate home theater experience with 8K/60Hz pass-through, 4K/120Hz pass-through for gaming*, and support for the latest HDMI specifications. The new AVR—X4700H lets you build the best 4K home theater today and is 8K ready when you are.
Full 3D Audio Support
Immerse yourself in 3D audio with Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:XTM and |MAX® Enhanced. Set up a 5.1.4 or 7.1.2 Dolby Atmos surround system using the nine channels of amplification built-in to the AVR-X4700H.
8K HDMI Video Section with eARC Support
Enjoy your favorite movies, shows and games with the best picture quality available. The AVR-X4700H features an advanced HDMI section (8 in/3 out) with a dedicated 8K input that will support 8K/60Hz and 4K/120Hz video pass-through and upscaling.
Specification
Multichannel Surround
| DTS HD Master / DTS:X / DTS:X Pro | Yes / Yes / No |
| DTS Neo:X / DTS Neural:X | No / Yes |
| Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization | Yes / Yes / Yes |
| Dolby ProLogic Ilz / Dolby Surround | No / Yes |
| Auro 3D | Yes |
| Audyssey DSX | No |
| Multichannel Stereo | Yes |
| Max Number of Processing (Preamp) Channels | 11.2 |
Sound Enhancements
| Mono Block Power Amp Construction | No |
| Discrete Power Amplifier | Yes |
| D.D.S.C. HD Digital | Yes (32 bit) |
| Pure Direct | Yes |
| Gold Plated RCA Terminals | No |
| Clock Jitter Reducer | Yes |
| Alpha Processing | AL32 Processing Multichannel |
| Denon Link HD | No |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Compressed Audio Restorer | Yes |
Network
| Media Server | Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless playback | Yes (FLAC, WAV, ALAC ,DSD) |
| Photo Streaming (JPEG) | No |
| AirPlay Audio Streaming | Yes (AirPlay2) |
| Internet Radio | Yes (TuneIn) |
| Spotify* | Yes (connect) |
| Pandora | Yes |
| SiriusXM* | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back / Front | 7 / 1 |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| Video Conversion Analog -> HDMI | Yes |
| Analogue to HDMI scaling | 480i/576i up to 8K 60/50 |
| HDMI to HDMI Scaling | up to 8K 60/50 |
| GUI Overlay on HDMI | Yes |
| 3D Signal Pass-through | Yes |
| 8K signal pass-through / scaling / GUI overlay | Yes / Yes / Yes |
| 4K Signal Pass-through / Scaling / GUI Overlay | Yes / Yes / Yes |
| HDMI pass-though in standby mode | Yes |
| Picture Adjust / Noise Reduction | Yes / Yes |
| CEC | Yes |
| DSD Audio Capability | Yes |
| Audio Return Channel | Yes |
| Auto LipSync | Yes |
Multi-room CI
| Multiroom zones | 3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes /Yes / Yes |
| Remote In / Out | Yes / Yes |
| DC Trigger Output | 2 |
Others
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 |
| FL Display | 2 lines |
| Graphic User Interface – GUI | Advanced |
| ISF Certification | Yes |
| GUI Languages | 3 |
| Setup Assistent | Yes |
| Quick Select Plus / Quick Select | Yes / No |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Sleep Timer | Yes |
Inputs Outputs
| Composite In / Out | 3 / 2 |
| Component In / Out | 2 / 1 |
| HDMI In / Out | 7+1 / 3 |
| Multi-room Video Out: Video / HDMI | Yes / Yes |
| Analogue In/out | 5 / No |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-room Out: Analog / Digital | 2 / No |
| Multichannel Preout | Yes (11.2) |
| Subwoofer Out | 2 (independent) |
| 7.1 Multichannel Input | No |
| Speaker Terminal: Gold Plated Screw / Regular Screw | No / Yes |
| Number of Speaker Terminals | 11 |
| Speaker A / B | assignable |
| Bi-amp Drive | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / Yes / Yes |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| AM/FM Tuner | Yes |
Specifications
| Number of Power Amps | 9 |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) | No |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) | 125 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 165 W |
General
| Metal Front Panel | Yes |

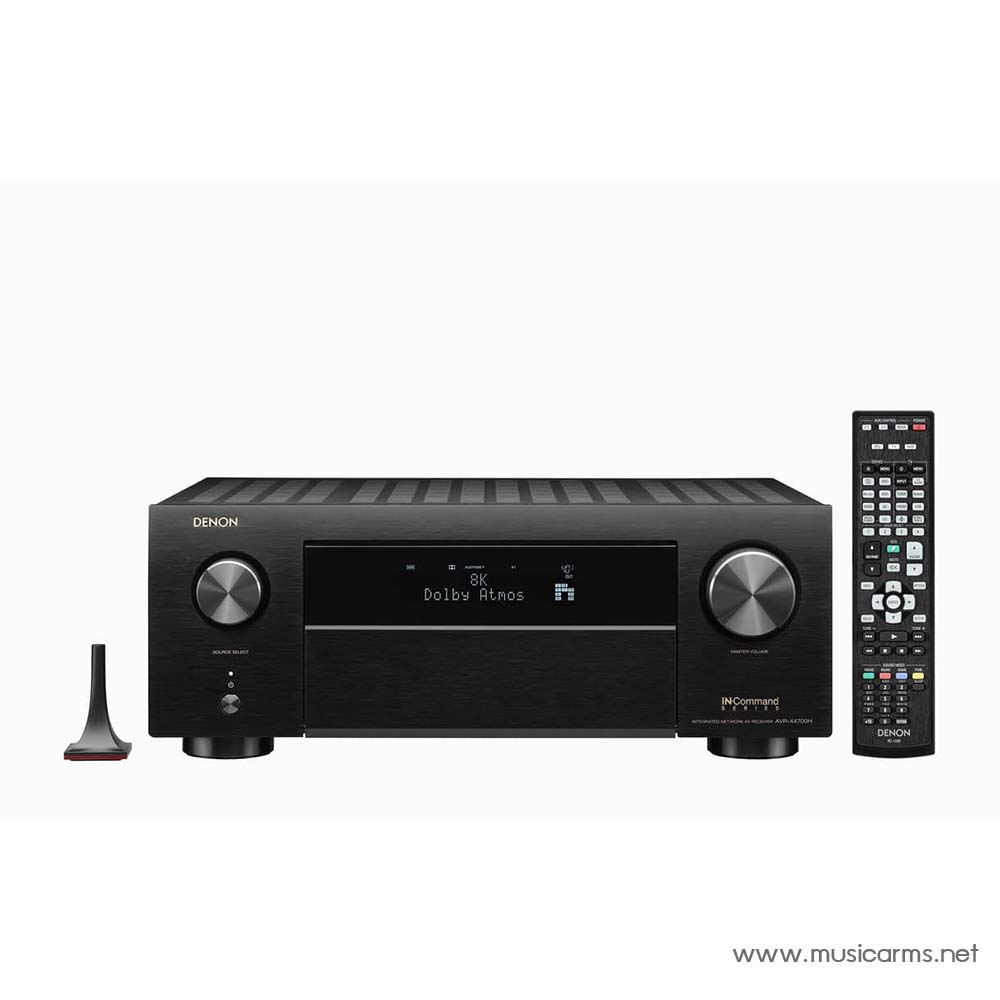

| System Remote Control | RC-1240 |
| Pre-programmed / Learnable / LCD Display | Yes / No / No |
| Power Consumption in W | 710 |
| Power Consumption No-Sound (ECO On / Off) in W | 65 W / 110 W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | 3.5 |
| Maximum Dimensions Antenna: Horizontal: (W x D x H) in Inches Antenna: Vertical: (W x D x H) in Inches W/O Antenna: (W x D x H) in Inches |
17.1 x 15.3 x 6.6 ( 17.1 x 15.3 x 9.3 ) 【 17.1 x 14.9 x 6.6 】 |
| Weight in LBS | 30.2 |
| Tuning frequency range | 520 kHz – 1710 kHz |
