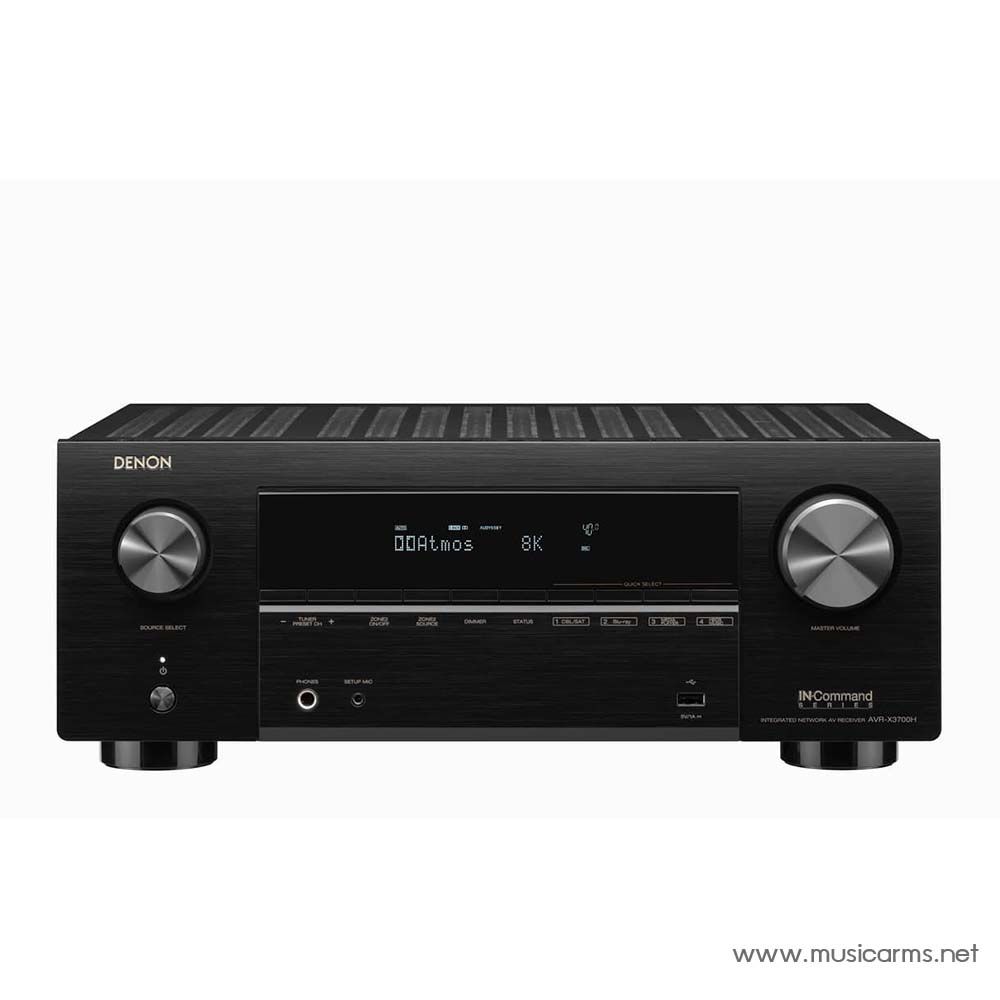

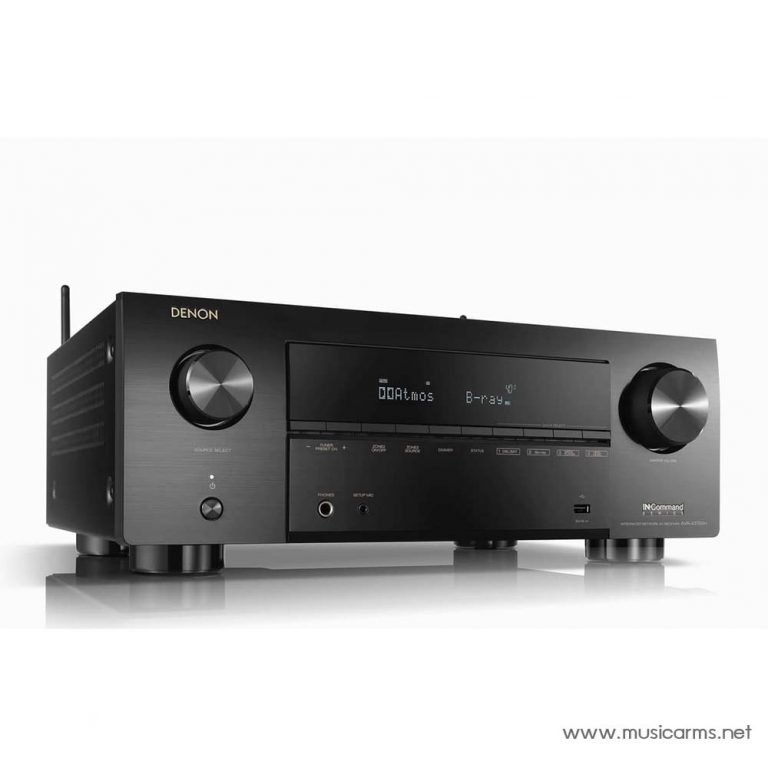

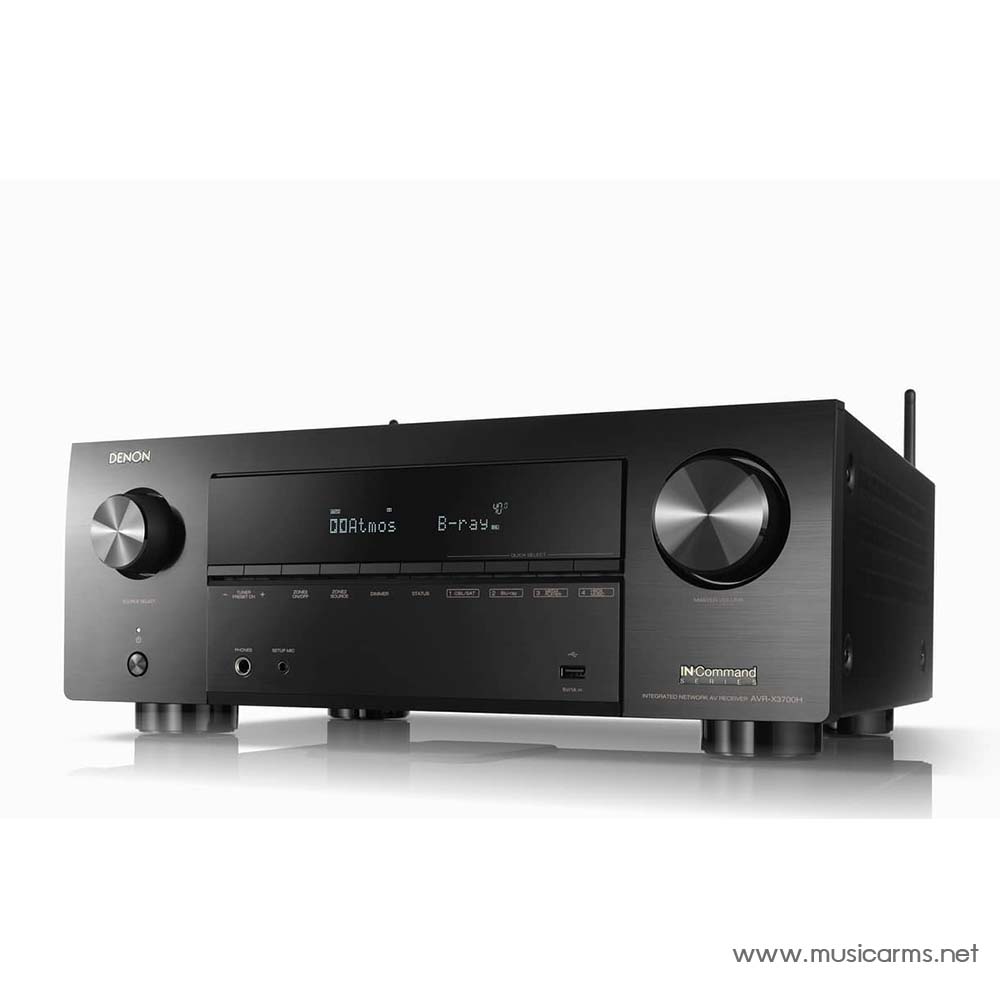

Denon AVR-X3700H 9.2 Ch. 8K AV Receiver with 3D Audio
ราคา : 41,705 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
วีดีโอ
Description
Denon AVR-X3700H 9.2 channel 8K AV receiver with 105W per channel that fully supports 3D audio formats like Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™ and IMAX® Enhanced, as well as the latest HDMI specifications such as 8K/60Hz, 4K/120Hz pass-through and upscaling, VRR, ALLM, Dynamic HDR, HDR10+ and eARC support.
- 4K TV’s, upgradedGet the most out of your 4K TV until you upgrade to 8K.
- channels of
entertainmentDrive your entire home theater system with 9 channels of power. - Latest HDMI
and eARCEnjoy your favorite movies, shows, and games with the best picture and audio quality available. - Full 3D audio
supportImmerse yourself in 3D audio and enjoy your entertainment in whatever speaker configuration you’d like.
Powerful 9-Channel Amplifier
Featuring discrete high-current amplifiers on all channels, the AVR-X3700H delivers high-power performance at 105W per channel (8 ohms, 20Hz-20kHz, THD: 0.08%, 2 ch. driven) to ensure a powerful and precise entertainment experience, every time.
Ultimate Home Theater Experience – 8K Ready
The AVR-X3700H delivers the ultimate home theater experience with 8K/60Hz pass-through, 4K/120Hz pass-through, and support for the latest HDMI specifications. The new AVR-X3700H lets you build the best 4K home theater and make you 8K ready.
Full 3D Audio Support
Immerse yourself in 3D audio with Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:XTM and IMAX® Enhanced. Set up a 5.1.4 or 7.1.2 Dolby Atmos surround system using the nine channels of amplification built-in to the AVR-X3700H.
Specification
Multichannel Surround
| DTS HD Master / DTS:X / DTS:X Pro | Yes / Yes / No |
| DTS Neo:X / DTS Neural:X | No / Yes |
| Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization | Yes / Yes / Yes |
| Dolby ProLogic Ilz / Dolby Surround | No / Yes |
| Auro 3D | No |
| Audyssey DSX | No |
| Multichannel Stereo | Yes |
| Max Number of Processing (Preamp) Channels | 11.2 |
Sound Enhancements
| Mono Block Power Amp Construction | No |
| Discrete Power Amplifier | Yes |
| D.D.S.C. HD Digital | No |
| Pure Direct | Yes |
| Gold Plated RCA Terminals | No |
| Clock Jitter Reducer | No |
| Alpha Processing | No |
| Denon Link HD | No |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Compressed Audio Restorer | Yes |
Network
| Media Server | Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless playback | Yes (FLAC, WAV, ALAC ,DSD) |
| Photo Streaming (JPEG) | No |
| AirPlay Audio Streaming | Yes (AirPlay2) |
| Internet Radio | Yes (TuneIn) |
| Spotify* | Yes (connect) |
| Pandora | Yes |
| SiriusXM* | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back / Front | 7 / No |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| Video Conversion Analog -> HDMI | No |
| Analogue to HDMI scaling | No |
| HDMI to HDMI Scaling | up to 8K 60/50 |
| GUI Overlay on HDMI | Yes |
| 3D Signal Pass-through | Yes |
| 8K signal pass-through / scaling / GUI overlay | Yes / Yes / Yes |
| 4K Signal Pass-through / Scaling / GUI Overlay | Yes / Yes / Yes |
| HDMI pass-though in standby mode | Yes |
| Picture Adjust / Noise Reduction | Yes / Yes |
| CEC | Yes |
| DSD Audio Capability | Yes |
| Audio Return Channel | Yes |
| Auto LipSync | Yes |
Multi-room CI
| Multiroom zones | 2 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes /Yes / Yes |
| Remote In / Out | Yes / Yes |
| DC Trigger Output | 1 |
Others
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 |
| FL Display | 1 line |
| Graphic User Interface – GUI | Advanced |
| ISF Certification | Yes |
| GUI Languages | 3 |
| Setup Assistent | Yes |
| Quick Select Plus / Quick Select | Yes / No |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | No |
| ECO Mode | Yes |
| Sleep Timer | Yes |

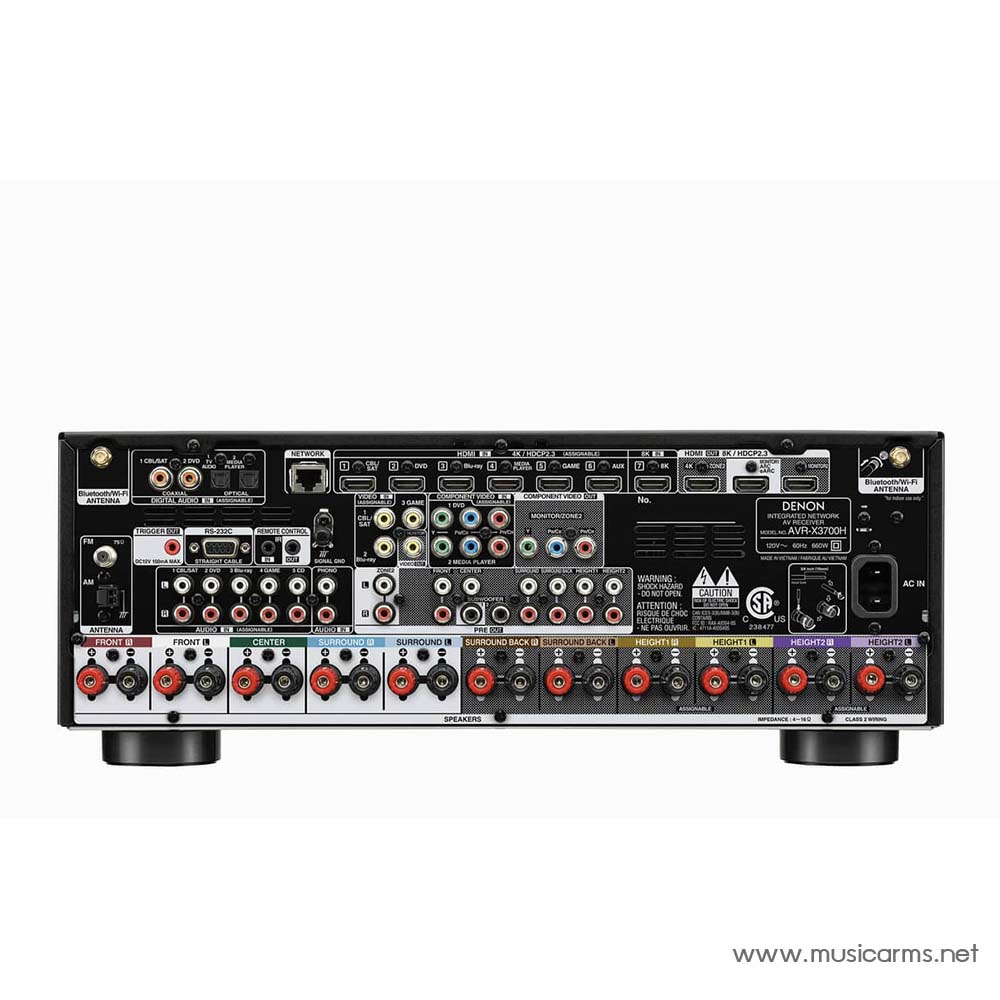

Inputs Outputs
| Composite In / Out | 3 / 1 |
| Component In / Out | 2 / 1 |
| HDMI In / Out | 7 / 3 |
| Multi-room Video Out: Video / HDMI | No / Yes |
| Analogue In/out | 5 / No |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-room Out: Analog / Digital | 1 / No |
| Multichannel Preout | Yes (11.2) |
| Subwoofer Out | 2 (independent) |
| 7.1 Multichannel Input | No |
| Speaker Terminal: Gold Plated Screw / Regular Screw | No / Yes |
| Number of Speaker Terminals | 11 |
| Speaker A / B | assignable |
| Bi-amp Drive | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / No / Yes |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| AM/FM Tuner | Yes |
Specifications
| Number of Power Amps | 9 |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) | 105 W |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) | No |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 135 W |
General
| Metal Front Panel | No |

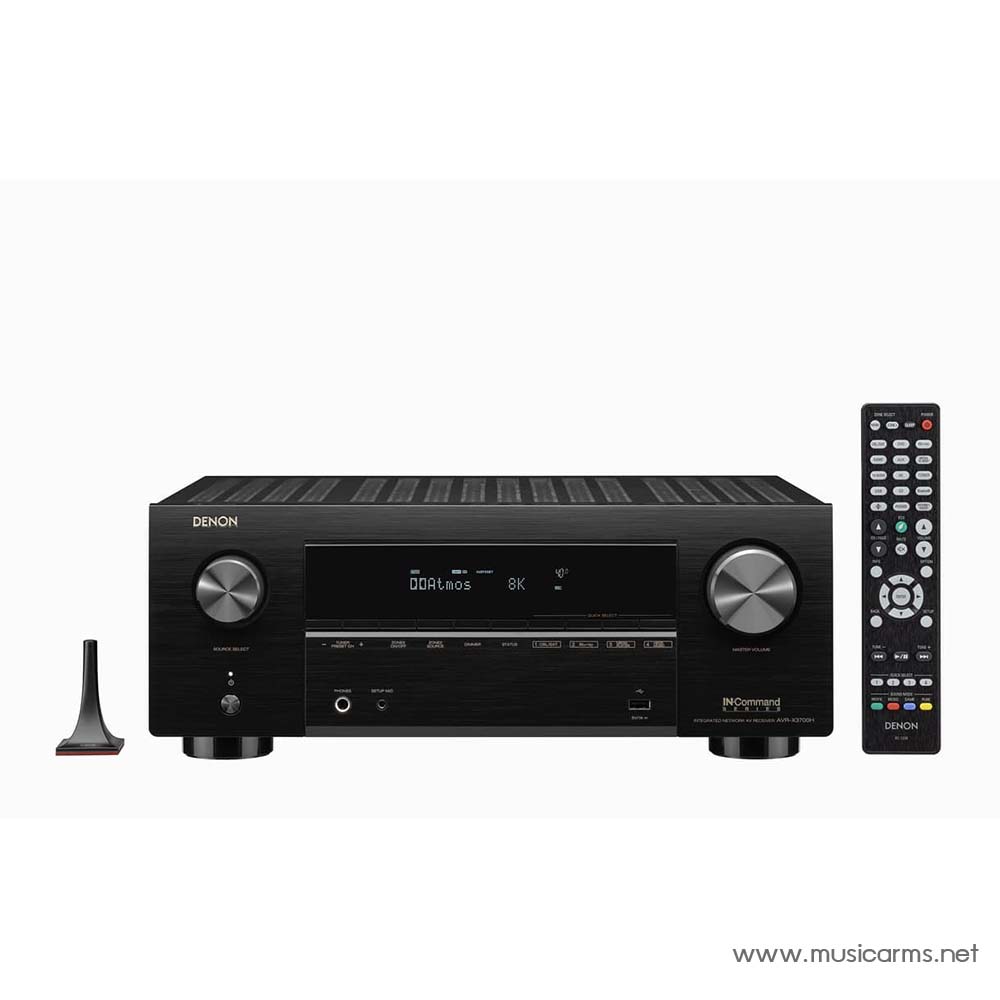

| System Remote Control | RC-1239 |
| Pre-programmed / Learnable / LCD Display | No / No / No |
| Power Consumption in W | 660W |
| Power Consumption No-Sound (ECO On / Off) in W | 60W / 100W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | 2.7 |
| Maximum Dimensions Antenna: Horizontal: (W x D x H) in Inches Antenna: Vertical: (W x D x H) in Inches W/O Antenna: (W x D x H) in Inches |
17.1 x 15.3 x 6.6 ( 17.1 x 15.3 x 9.3 ) 【 17.1 x 14.9 x 6.6 】 |
| Weight in LBS | 27.6 |
| Tuning frequency range | 520 kHz – 1710 kHz |
