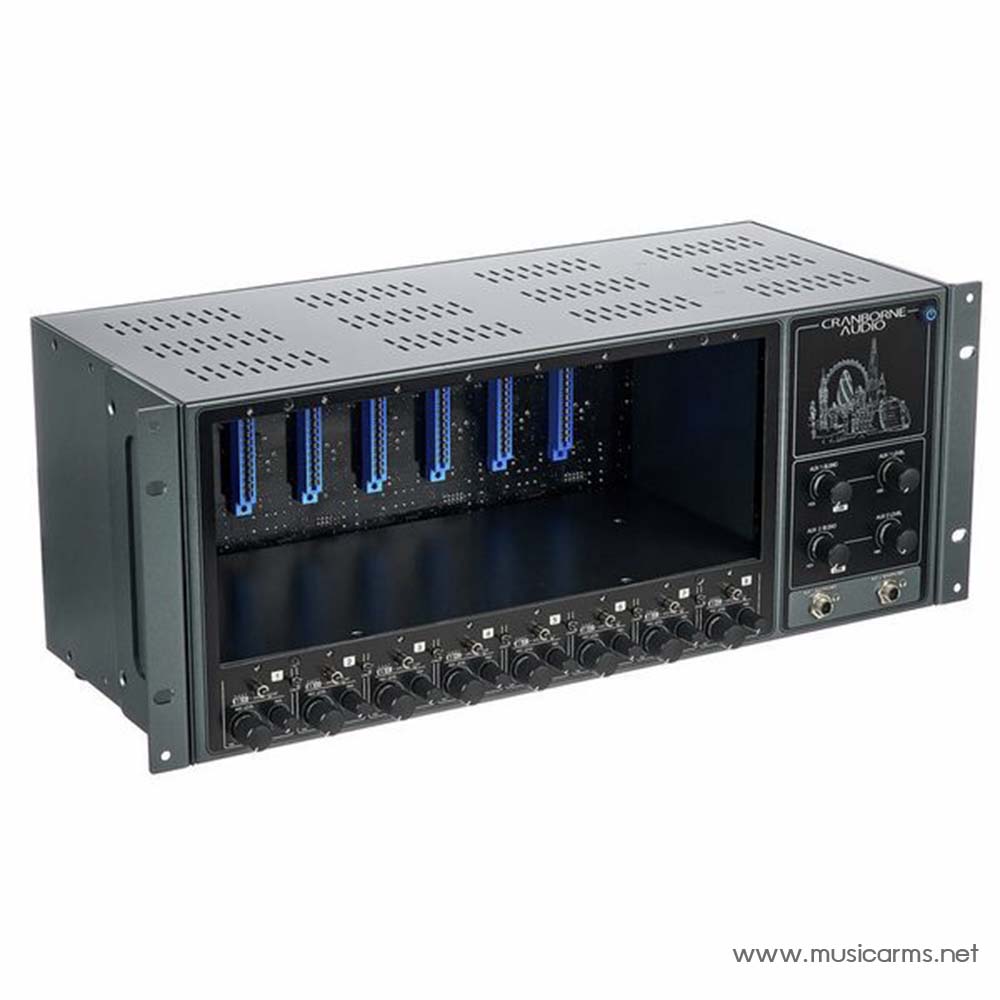

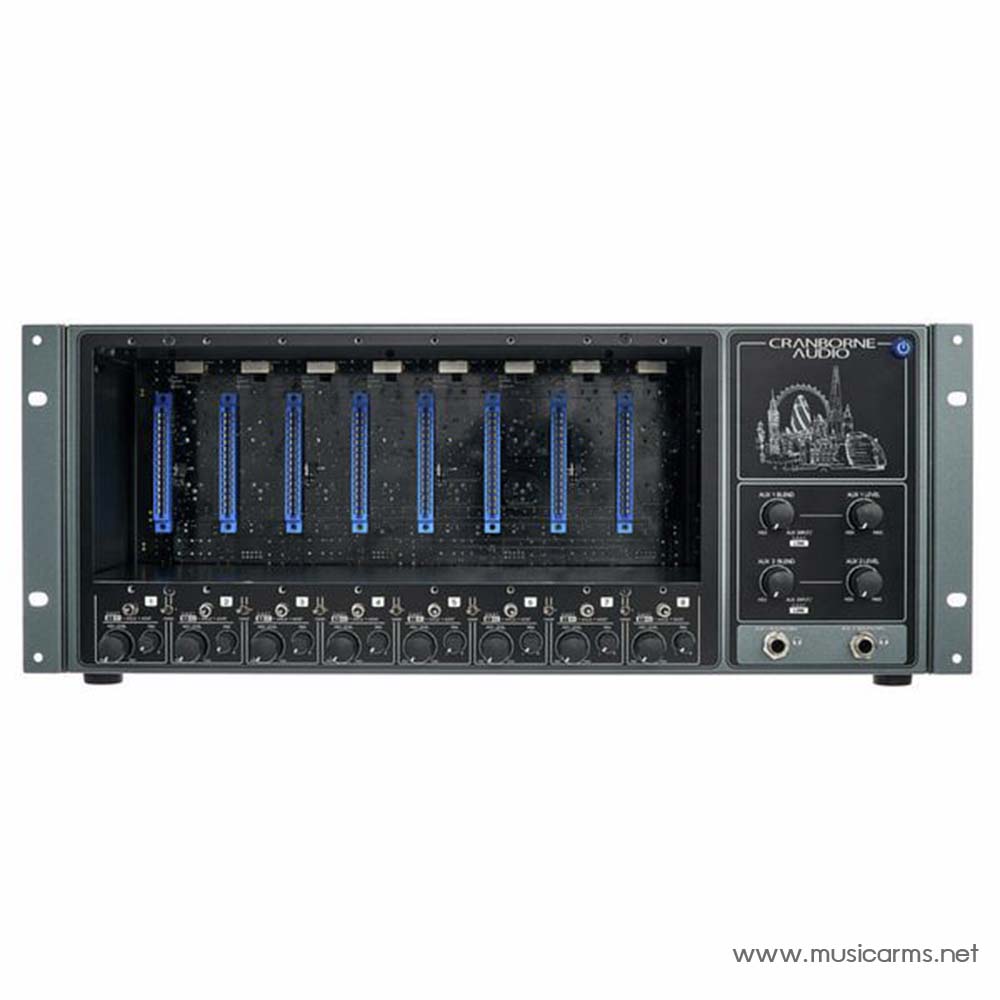

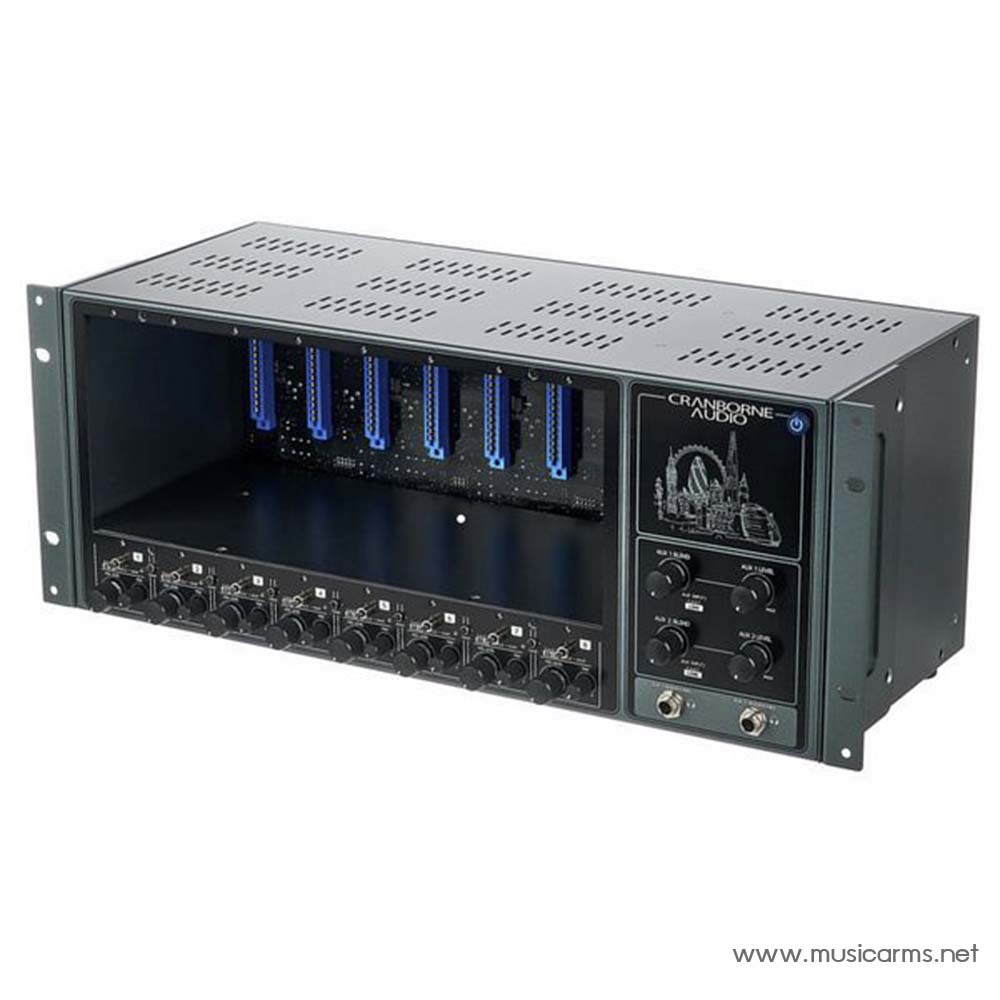

Cranborne Audio 500ADAT Expander & 8-Slot 500 Series Rack

The Best Of Analogue

By capitalising on the vast and ever growing 500 series market, you can configure your 500ADAT to suit your tastes of analogue flavour. By installing your favourite 500 series modules into the 8 available 500 series slots, you can create your ultimate analogue front-end/preamp stage that can be multi-track recorded directly into your DAW.

Fill 500ADAT full of vintage preamps for recording drums. Fill 500ADAT full of clean and pristine preamps for recording strings. Fill 500ADAT full of Preamp, EQ, and Compressor modules to create your own custom, analogue channel strips. The possibilities are endless and every 500ADAT is entirely unique to your sound.

The Best Of Digital

In order to capture every subtle nuance of your analogue signal, 500ADAT features reference-class A/D-D/A conversion with 121dB (A-wtd) dynamic range and THD+N of <0.00032% (@ -4dBFS, 1kHz, A-wtd), all governed by 500ADAT’s master-reference grade internal Clock with <0.5 picoseconds of jitter. You can also slave your audio interface’s clock from 500ADAT’s internal clock to benefit from 500ADAT’s low-jitter design.

The combination of highly-accurate, low-jitter clocking and high-performance digital conversion ensures that every ounce of analogue character is captured with the utmost detail – free of unwanted digital artefacts from the conversion process and with a wide dynamic range thanks to 500ADAT’s high-headroom analogue design and low noise floor.

8-in/8-out ADAT Interface

ADAT is tried, tested, and still one of the most widely available interfacing protocols in the audio industry, however it often remains unused and underutilised by many audio engineers and producers. Almost all major audio interfaces on the market feature a pair of ADAT lightpipe ports – simply connect 500ADAT to those ports and you can enhance and expand the possibilities of your studio.

By containing its own converters and using ADAT to transport audio to and from the 500 series format, 500ADAT removes analogue cabling spaghetti between your rack and interface whilst eliminating the worry of mismatched analogue operating levels between interface inputs and 500 series module outputs. 500ADAT is compatible with any session running from 44.1kHz to 192kHz and can achieve 8 channels of I/O expansion at 44.1kHz to 96kHz or 4 channels of I/O expansion at 176.4/192kHz.

8-Slot Rack for 500 Modules

• With integrated 8 In / 8 Out ADAT expander

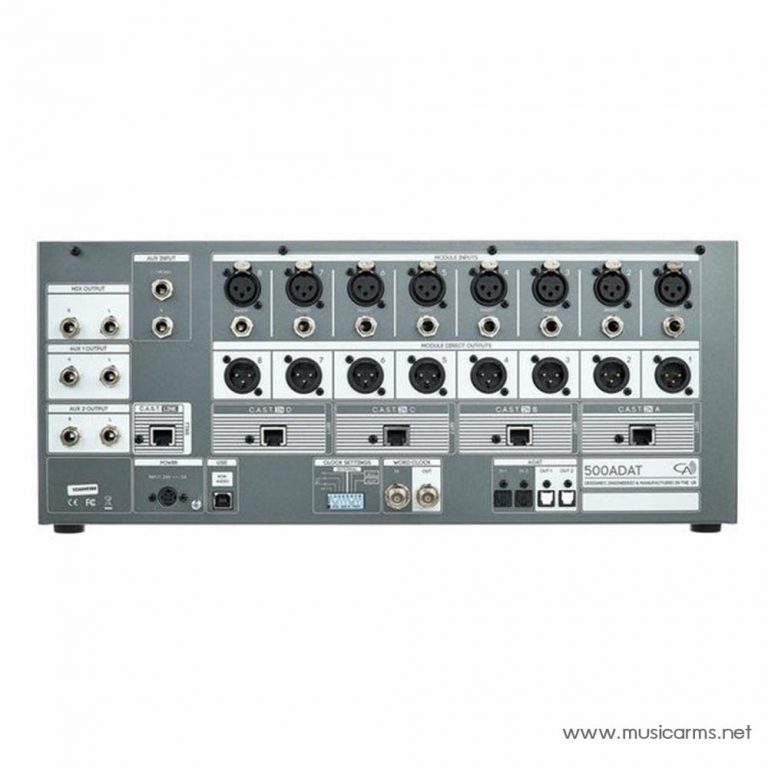

• 8 I/O channels with XLR
• 8 Channel discrete analogue summing unit
• Reference AD/DA converter
• 8 In / 8 Out ADAT
• Additional insert per channel
• Individual signal routing
• Bypass switch per channel
• C.A.S.T. system for transmission of 4 balanced, analogue audio channels via one Cat5 line
• Transducer dynamic range: 121 dB(A) according to AES17, 20 Hz – 20 kHz
• Frequency response: -1 dB, 2.2 Hz to > 80 kHz
• THD+N: <0.00032% (-110 dB) @ 4 dBfs, 1 kHz (A-weighted)
• Dimensions (W x H x D): 481 x 185 x 219 mm
• Weight: 6.4 kg

• แร็ค 8 ช่องสำหรับ 500 โมดูล
• ตัวขยาย ADAT 8 เข้า / ออก 8 ในตัว
• 8 ช่อง I/O พร้อม XLR
• ยูนิตรวมสัญญาณอะนาล็อกแยก 8 แชนเนล
• ตัวแปลง AD/DA
• 8 เข้า / 8 ออก ADAT
• แทรกเพิ่มเติมต่อช่อง
• การกำหนดเส้นทางสัญญาณส่วนบุคคล
• สวิตช์บายพาสต่อช่องสัญญาณ
• ระบบสำหรับการส่งสัญญาณเสียงอะนาล็อกที่สมดุล 4 ช่องผ่านสาย Cat5 เส้นเดียว
• ช่วงไดนามิกของตัวแปลงสัญญาณ: 121 dB(A) ตามมาตรฐาน AES17, 20 Hz – 20 kHz
• การตอบสนองความถี่: -1 dB, 2.2 Hz ถึง > 80 kHz
• THD+N: <0.00032% (-110 dB) @ 4 dBfs, 1 kHz (ถ่วงน้ำหนัก A)
• ขนาด (กว้าง x สูง x ลึก): 481 x 185 x 219 มม.
• น้ำหนัก : 6.4 กก.
