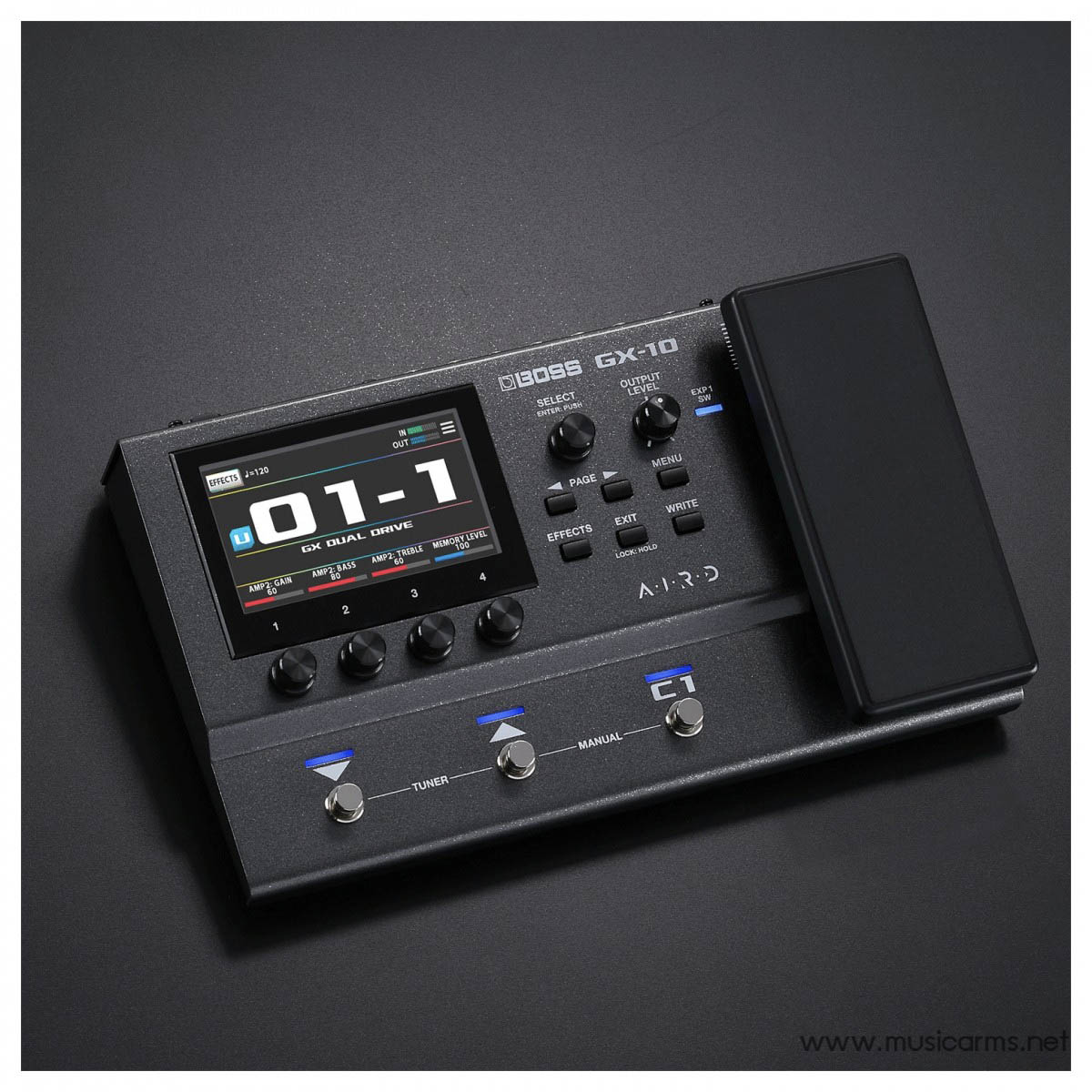

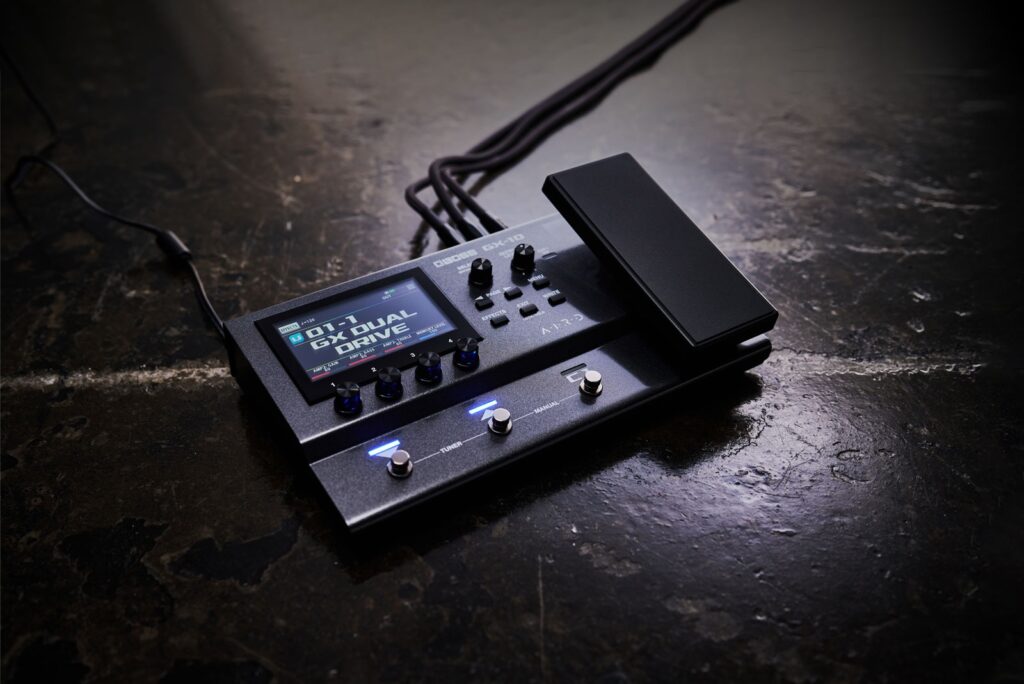

Boss GX-10 Guitar Effects Processor มัลติเอฟเฟค Multi Effect

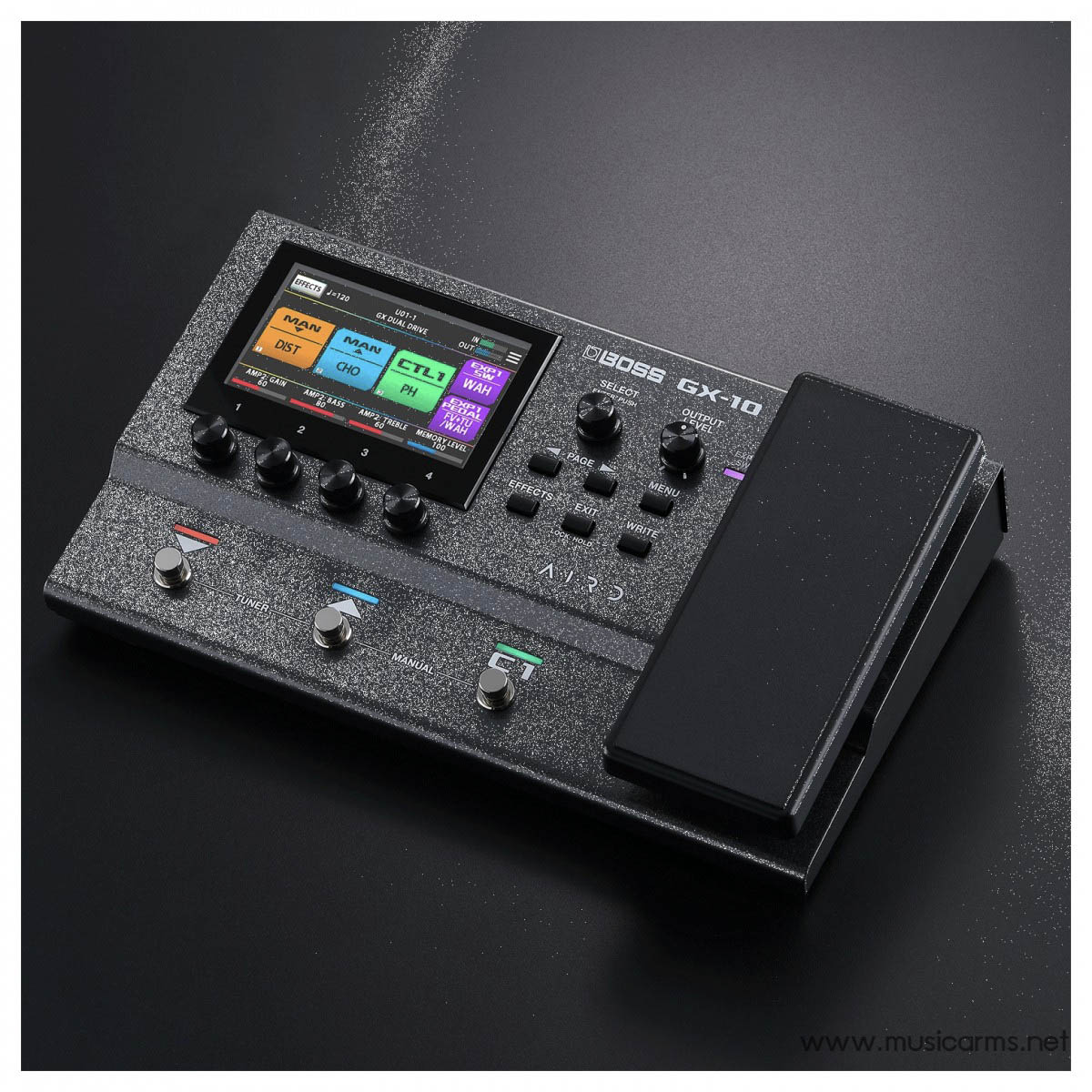

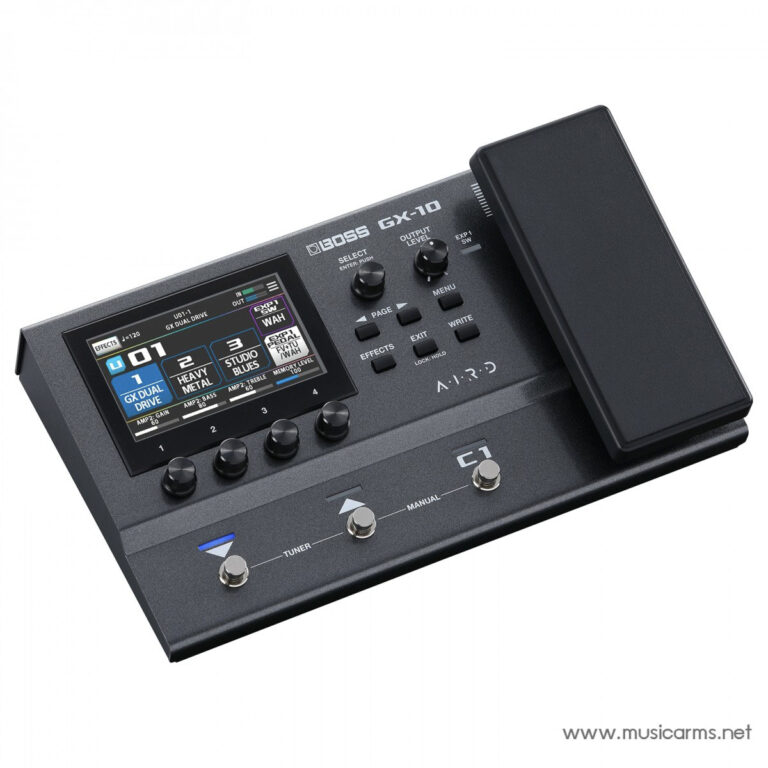

Embrace an insanely powerful streamlined guitar rig at your feet! Smaller than the incredibly popular GX-100, but just as powerful. All encased in a sleek, modern and rugged metal chassis, the GX-10 is a tone workstation which is controlled with its multi-function footswitches, expression pedal and the ultra-colourful touch display screen for simple, in-depth tone shaping thanks to the free-flowing interface.

Key Features

• Massive Library – 32 amplifier types and 170 Boss effects. Wide selection of onboard speaker types and support for loading WAV speaker IRs
• Small Footprint, Incredible Power – Powered by a core GX-100 engine, this tone machine can take whatever you throw at it.
• Authentic Amp Emulation – Authentic tube amplifier tone and touch response with AIRD technology
• Smart Workflow – Ultra-flexible amp/effect routing up to 15 assignable blocks
• Exceptional Audio Quality – 24-bit AD and 32-bit DA conversion, 32-bit floating-point processing, and 48 kHz sampling rate.
• Edit Sounds On Your PC – Edit sounds from your computer with BOSS Tone Studio for macOS and Windows.
• Connect Your Pedals – Place your pedals in the GX-10’s send/return loop and use the GX-10’s as part of your existing rig!

32 Amplifier Types, 170 Boss Effects

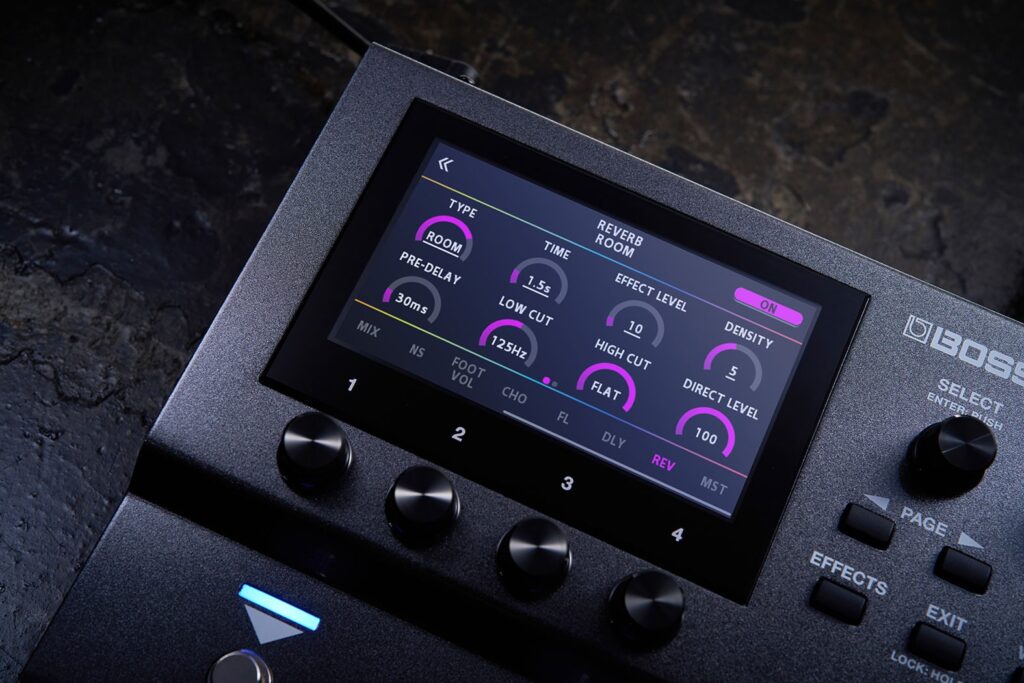

Powered by a core GX-100 engine, the interface is designed for the modern needs of the guitar/bass player. Whatever style of music you want to play, the plethora of Boss AIRD amps and effects has you covered. Create inspiring sound in seconds by using the interface and panel knobs for intuitive tone-shaping.

Boss Tone Studio

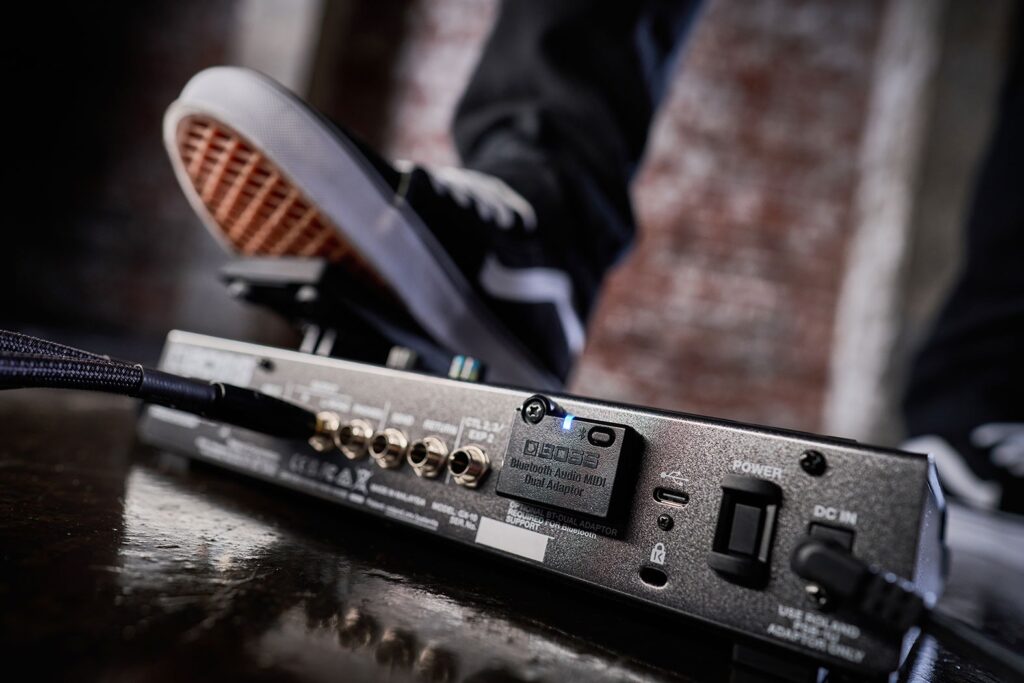

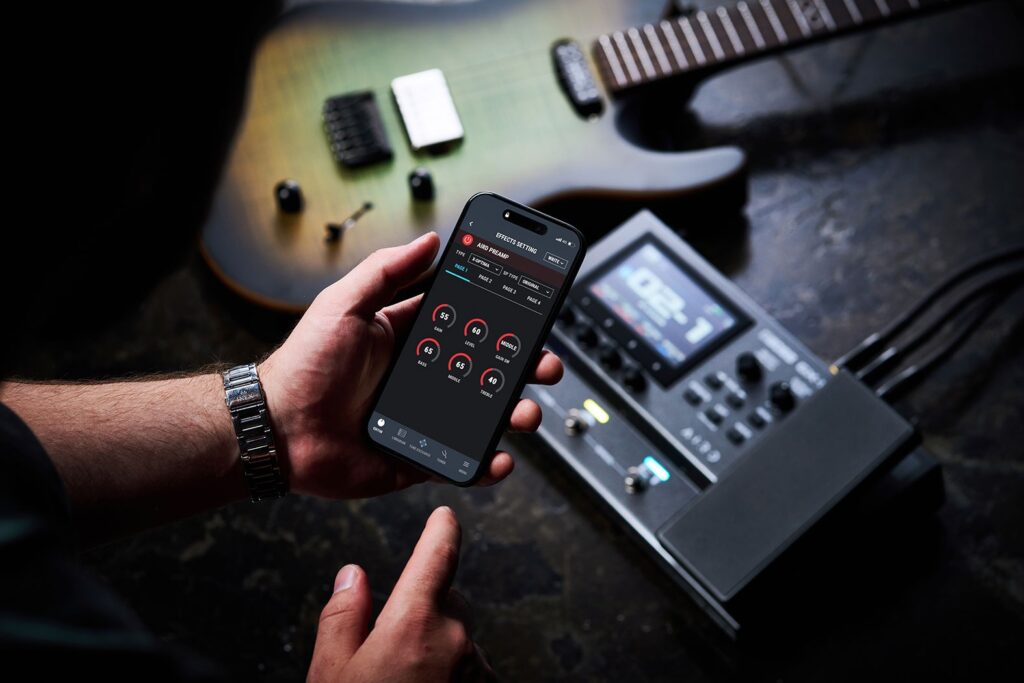

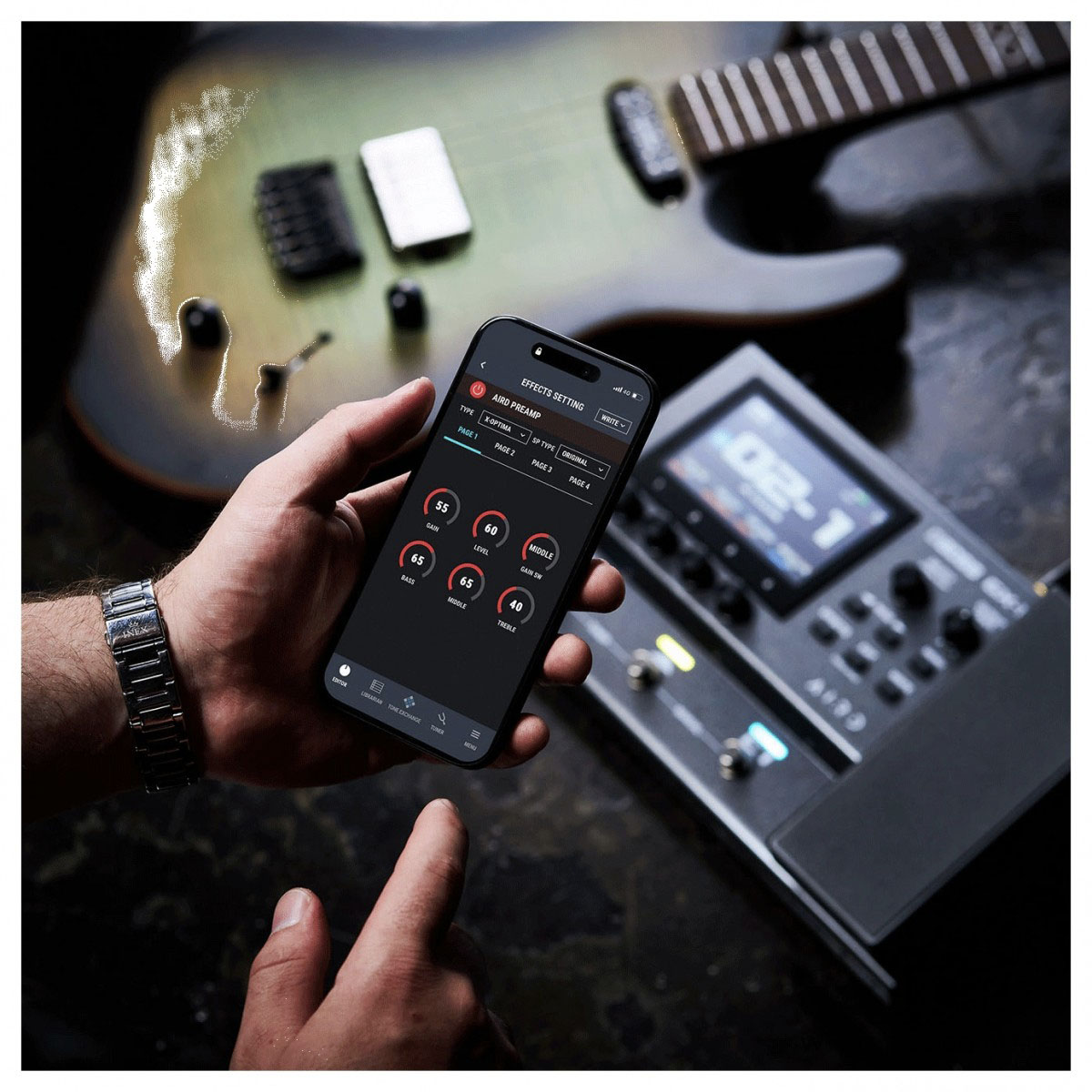

Tweak every GX-10 parameter, save sounds, and organise ‘Live Sets’ for different gigs from your computer — all via Boss’ Tone Studio software for macOS and Windows. And with the Boss BT-DUAL Bluetooth Audio MIDI Dual Adaptor (sold separately), you can wirelessly adjust settings from the Boss Tone Studio app on your mobile device and stream backing music from your device’s library.

Seamless Usage

Practice, record & perform seamlessly thanks to the strategic inputs and outputs. Plug into the PC to record and play tracks in music production software on a computer or mobile device via USB-C. Plug in your headphones and practice in smart, effective ways thanks to the on-board effects and looper.

66 Banks, 198 User Memories

Simplify your rig by scrolling through memories one at a time. Set up basic memories for clean, crunch rhythm, and lead sounds. Or load up the 66 banks and 198 user memories with custom sounds for your set list and tap through them sequentially on stage.

Use Like A Standard Pedalboard, or Explore Endless Possibilities

This reconfigures the footswitches to control three user-assignable targets. Use them like a pedalboard to turn effects on/off or kick in a solo boost. Or go deeper by changing up to 20 assignable parameters with just one press.

Bank/Number Mode

This mode allows you to select memories within banks. It also unlocks the Current Number function, providing access to one or more parameters by pressing the switch for the currently loaded memory. Using this function, you can extend your tonal options for each memory with a solo boost, delay effect, or anything else you’d like to assign.

What’s in the Box?

• Boss GX-10
• AC adaptor (PSB-1U + AC Cord Set)
• Owner’s manual

Specifications

• Sampling Frequency: 48kHz
• AD Conversion: 24 Bits, AF Method
• DA Conversion: 32 Bits
• Processing: 32-Bit Floating Point
• Effects: 170 Types
• Memories: 198 (User)
• Display: Colour Graphic LCD Touch Screen

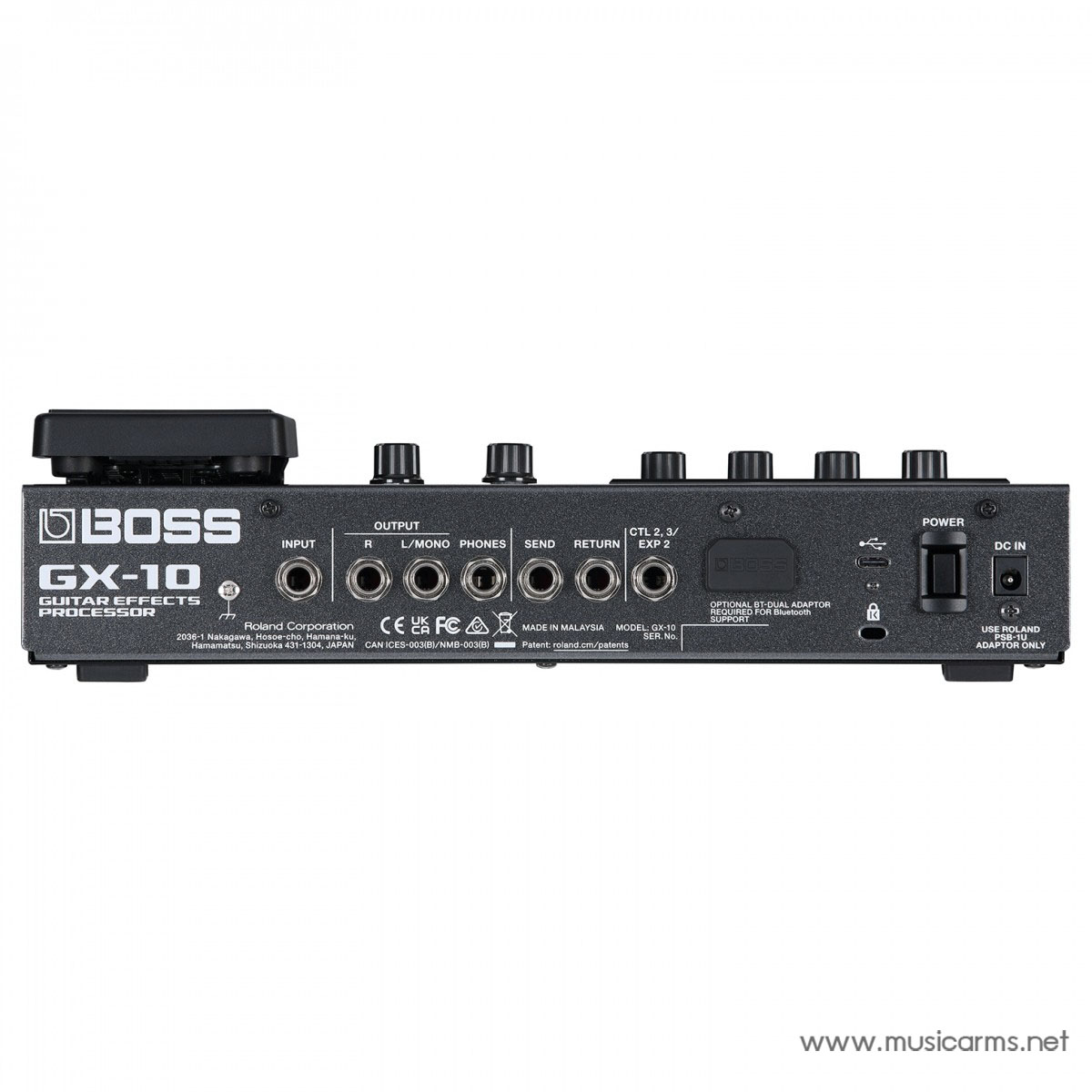

Connectors

• Input Jack, Output (L/Mono, R) Jacks
• Phones Jack: Stereo 1/4-Inch Phone Type
• CTL2, 3 EXP2 Jack
• Send/Return
• USB Computer Port: USB-C Type
• Bluetooth Adaptor Port: BT-DUAL Adaptor
• DC IN Jack

Size

• 300 (W) x 183 (D) x 74 (H) mm

Power Requirements

• Power Supply: AC Adaptor
• Current Draw: 1.2 A

Recommended Accessories

• Footswitch: FS-5U / FS-5L / FS-6 / FS-7
• Expression Pedal: FV-30, FV-500L, FV-500H,
• Roland EV-5
• Bluetooth Audio MIDI Dual Adaptor: BT-DUAL
• Wireless MIDI Expression Pedal: EV-1-WL
• Wireless Footswitch: FS-1-WL
• Instrument Cables: BIC-Series

• ความถี่ในการสุ่มตัวอย่าง: 48kHz
• การแปลงสัญญาณ AD: 24 บิต, AF Method
• การแปลงสัญญาณ DA: 32 บิต
• การประมวลผล: 32-บิต Floating Point
• เอฟเฟกต์: 170 ชนิด
• หน่วยความจำ: 198 (ผู้ใช้)
• หน้าจอแสดงผล: หน้าจอสัมผัสแบบ LCD กราฟิกสี

การเชื่อมต่อ

• ช่องเสียบ Input, Output (L/Mono, R)
• ช่องเสียบหูฟัง: แบบสเตอริโอ 1/4 นิ้ว
• ช่องเสียบ CTL2, 3 EXP2
• ช่องเสียบ Send/Return
• พอร์ตเชื่อมต่อคอมพิวเตอร์ USB: USB-C Type
• พอร์ตเชื่อมต่อ Bluetooth Adaptor: สำหรับ BT-DUAL Adaptor
• ช่องเสียบไฟ DC IN

ขนาด

• กว้าง 300 มม. x ลึก 183 มม. x สูง 74 มม.

ความต้องการไฟฟ้า

• แหล่งจ่ายไฟ: AC Adaptor
• กระแสไฟฟ้าที่ใช้: 1.2 A

อุปกรณ์เสริมที่แนะนำ

• สวิตช์เท้า: FS-5U / FS-5L / FS-6 / FS-7
• แป้นเหยียบควบคุมเสียง: FV-30, FV-500L, FV-500H, Roland EV-5
• Bluetooth Audio MIDI Dual Adaptor: BT-DUAL
• แป้นเหยียบควบคุมเสียงไร้สาย: EV-1-WL
• สวิตช์เท้าไร้สาย: FS-1-WL
• สายเคเบิลเครื่องดนตรี: BIC-Series
