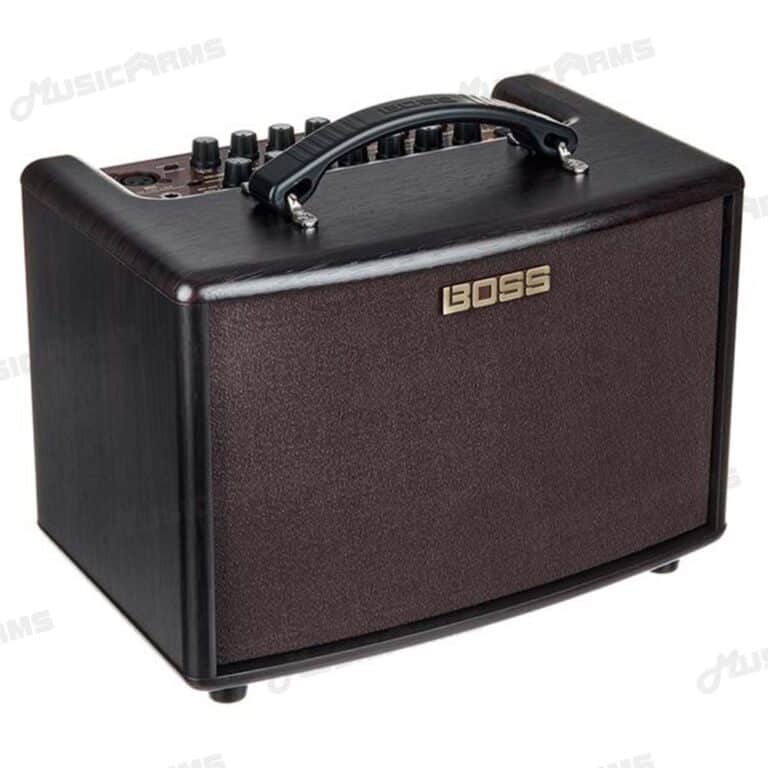

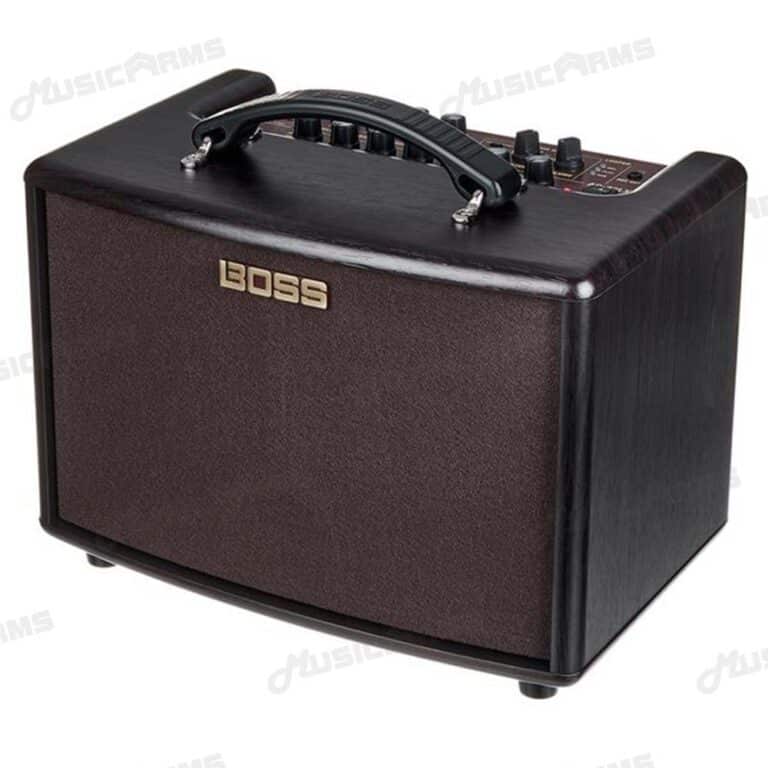

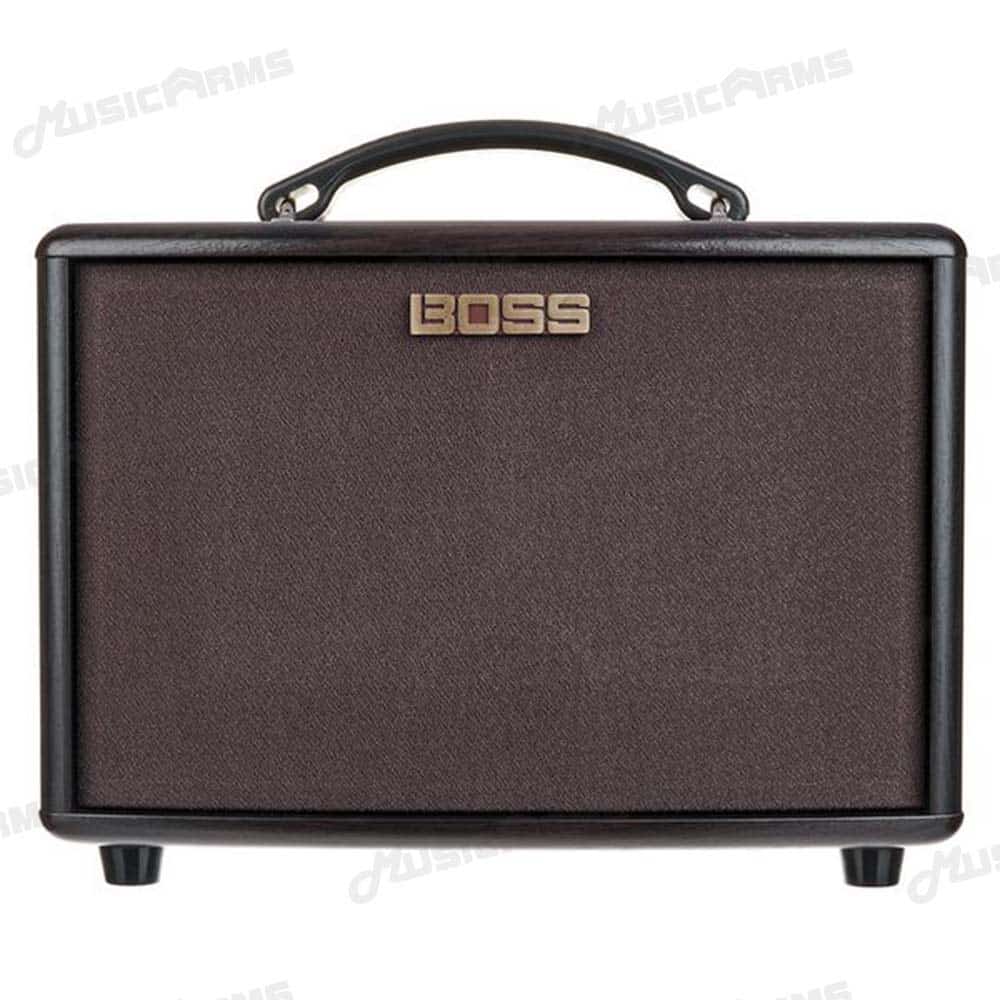

Boss AC-22 LX Acoustic Amplifier

The Boss AC-22LX Acoustic Guitar Amplifier is a compact stereo amplifier that revolutionises the acoustic amplification experience. With its innovative Air Feel technology, this amplifier brings to life the full richness and detail of acoustic instrument tones, recreating the immersive sound captured by classic stereo microphone setups in professional studio environments.

Designed for acoustic-electric guitars and other pickup-equipped acoustic instruments, the AC-22LX delivers inspiring acoustic sound with depth, dimension, and natural resonance. It features a small and portable design with two custom-designed 5-inch twin-cone speakers, providing powerful stereo sound in a compact package. With a 10-watt stereo power amp and multiple sound-shaping tools, including a three-band EQ, dedicated reverb and chorus effects, and five Air Feel settings, you can customise your sound to perfection.

• Rated Power Output: 10 W (5 W + 5 W)
• Nominal Input Level:
  • GUITAR/INSTRUMENT: -10 dBu (10 M ohm)
  • MIC: -40 dBu (5 k ohm)
  • AUX IN: -20 dBu (15 k ohm)
• Nominal Output Level: LINE OUT L/MONO, R: -10 dBu
• Speakers: 12 cm (5 inches) x 2

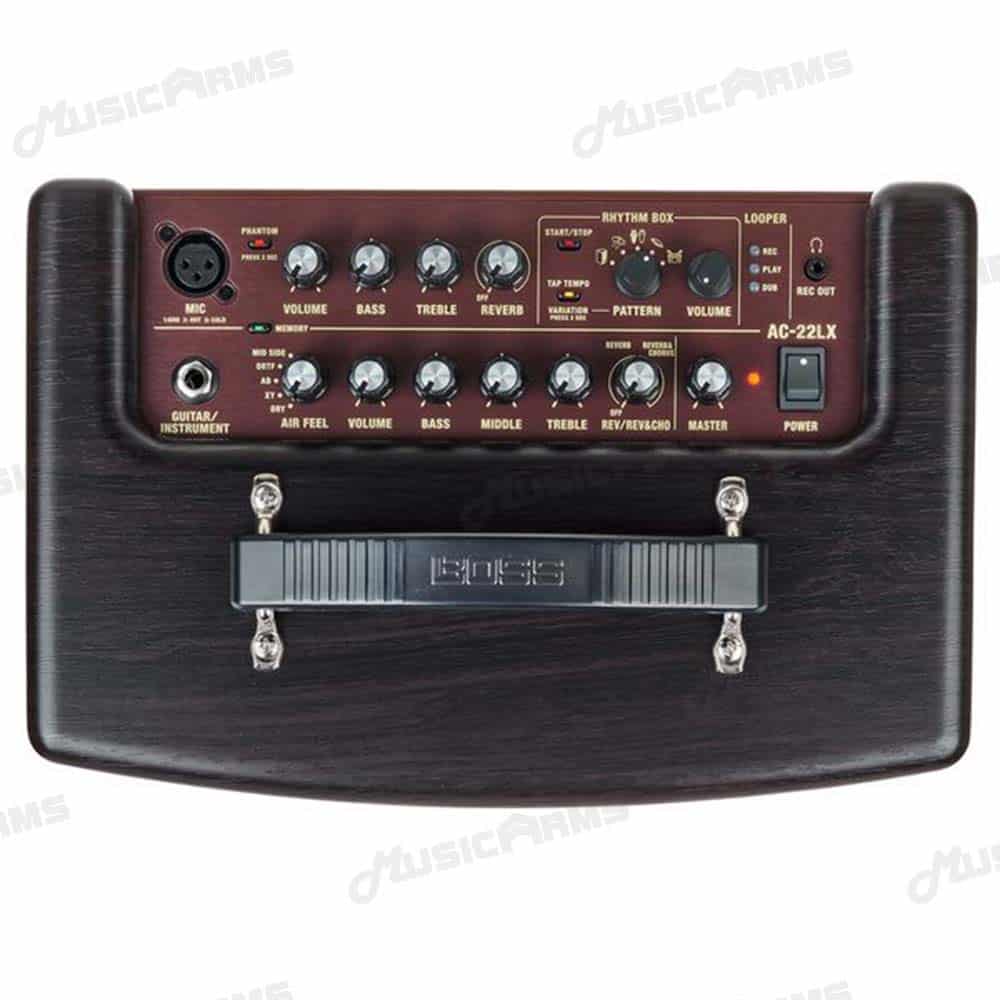

• Controls:
  • POWER switch
  • MASTER knob
  • MEMORY button
  • USB LOOPBACK switch
• GUITAR/INSTRUMENT:
  • AIR FEEL knob (DRY, XY, AB, ORTF, MID SIDE)
  • VOLUME knob
  • BASS knob
  • MIDDLE knob
  • TREBLE knob
  • REV/REV&CHO knob (REVERB, REVERB&CHORUS)
• MIC:
  • PHANTOM button
  • VOLUME knob
  • BASS knob
  • TREBLE knob
  • REVERB knob
• RHYTHM BOX:
  • START/STOP button
  • TAP TEMPO/VARIATION button
  • PATTERN knob (CAJON, SHAKER, CONGA, TAMBOURINE, DRUMS)
  • VOLUME knob
• Indicators:
  • POWER
  • PHANTOM
  • MEMORY
  • START/STOP
  • TAP TEMPO/VARIATION
  • REC
  • PLAY
  • DUB

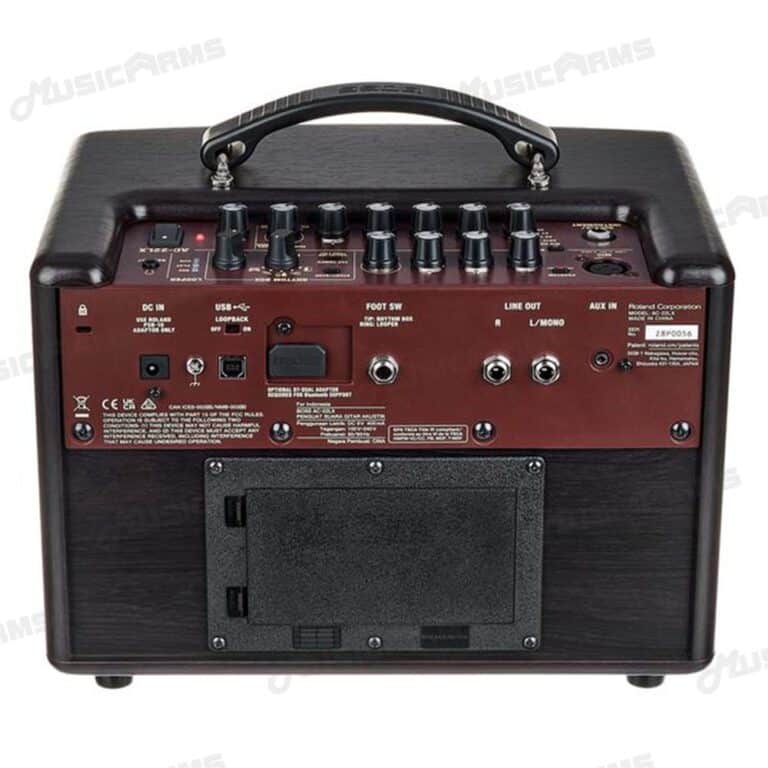

• Connectors:
  • GUITAR/INSTRUMENT jack: 1/4-inch phone type
  • MIC connector: XLR type, phantom power (DC 48 V, 14 mA Max)
  • PHONES/REC OUT jack: Stereo Miniature phone type
  • AUX IN jack: Stereo Miniature phone type
  • LINE OUT L/MONO, R jacks: 1/4-inch phone type
  • FOOT SW jack: 1/4-inch TRS phone type
  • Bluetooth ADAPTOR connector: Dedicated connector
  • USB port: USB B type
  • DC IN jack
• Power Supply:
  • AC adaptor (DC 9 V)
  • Alkaline battery (AA, LR6) x 8
  • Rechargeable Ni-MH battery (AA, HR6) x 8
• Current Draw: 400 mA
• Expected battery life under continuous use:
  • Alkaline battery: Approximately 8 hours
  • Rechargeable Ni-MH battery: Approximately 10 hours (*1)
• Dimensions: 317 (W) x 210 (D) x 265 (H) mm

  12-1/2 (W) x 8-5/16 (D) x 10-7/16 (H) inches

• Weight (excluding AC adaptor): 4.0 kg

  8 lbs 14 oz

• Accessories:
  • Owner’s Manual
  • Leaflet USING THE UNIT SAFELY
  • AC adaptor
  • Power cord
