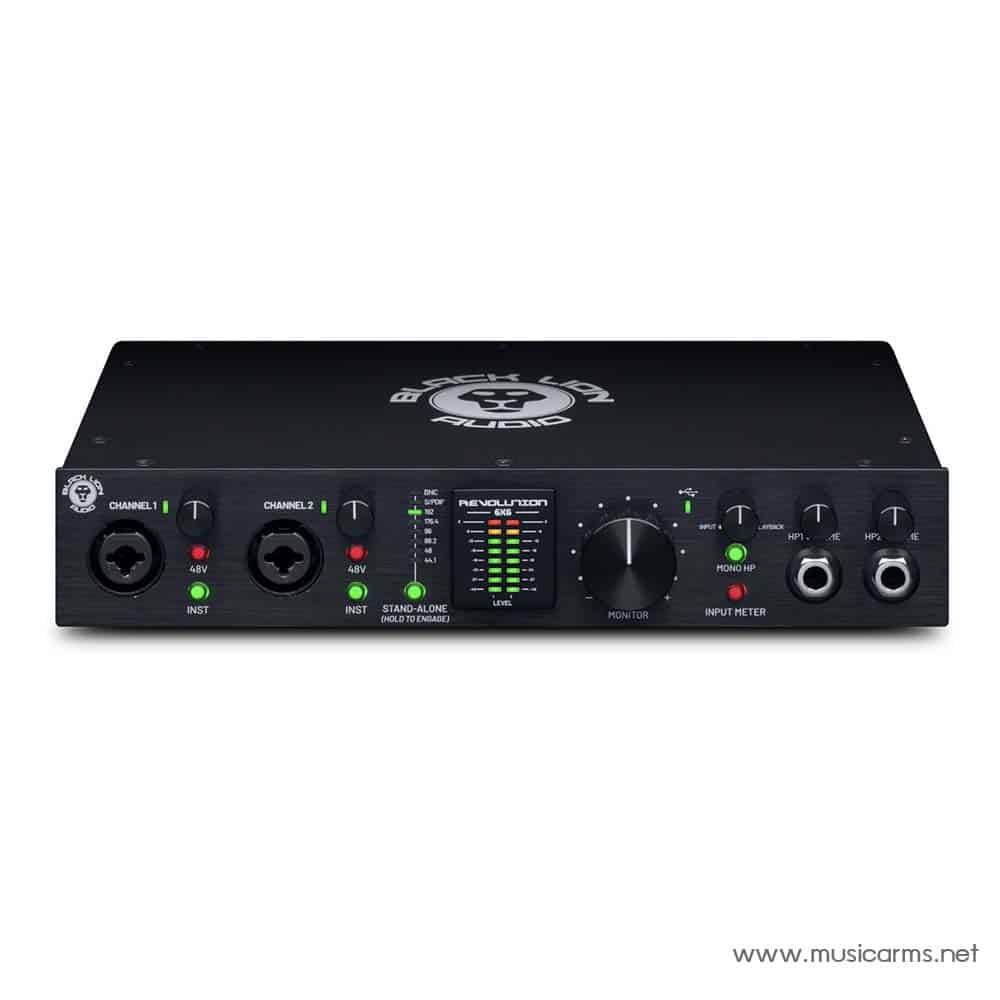

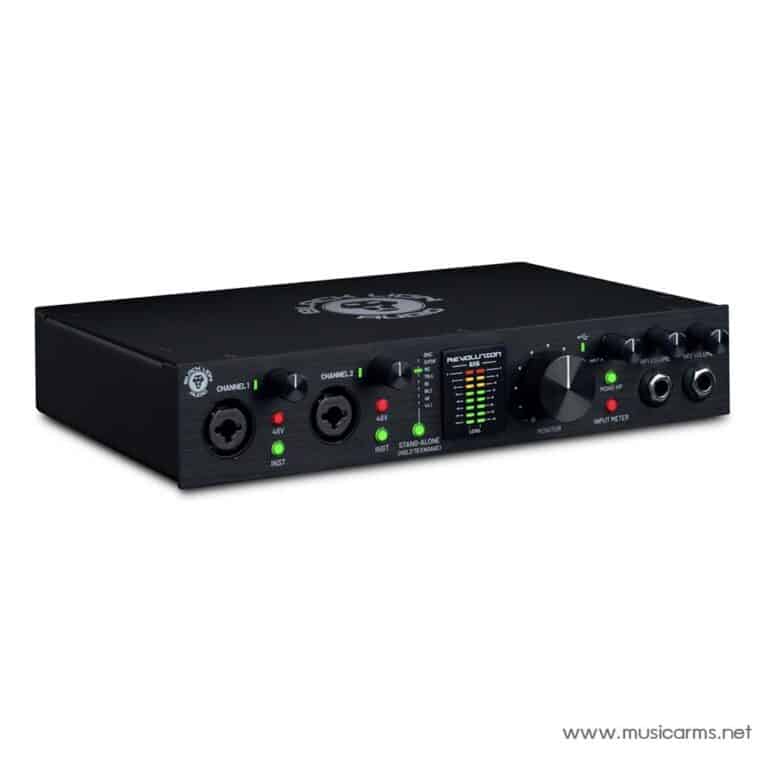

Black Lion Revolution 6×6 USB Audio Interface 6-in/6-out

The Black Lion Revolution 6×6 is an all-purpose studio dynamo that can serve as a master clock, a standalone DAC and ADC, and a 6-in, 6-out class-compliant USB interface with audio quality worthy of the Revolution name. Enjoy world-class clocking and low-noise conversion while tracking to the included Studio One Artist. Use the USB OTG connection to sample audio from your phone or tablet or send audio from your laptop to your mobile device and stream your performance live online. Sync your other hardware devices via Black Lion’s proprietary Macro-MMC clocking—all while treating your music with the highest audio quality imaginable.

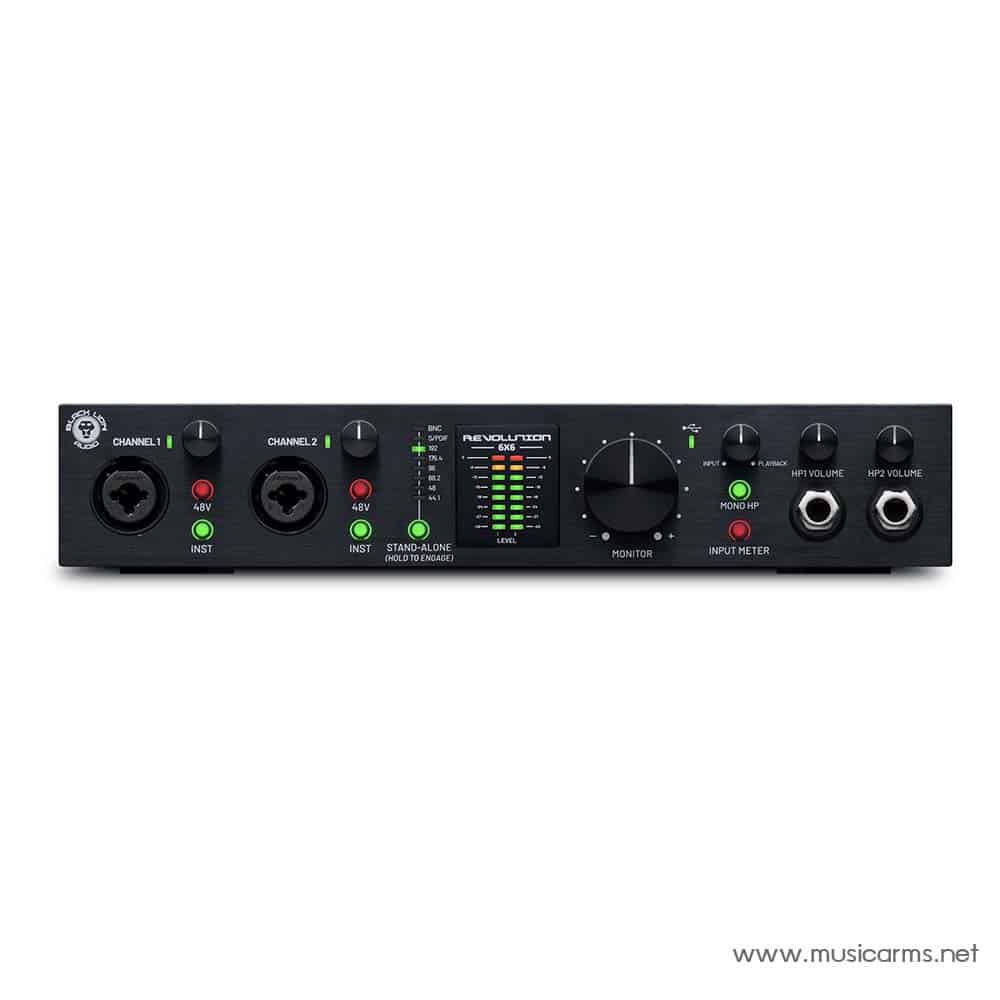

Record anything thanks to balanced XLR, line-level, and instrument-level input options. Connect pro studio monitors or use its two plenty-loud, crystal-clear, mono-summable headphone outputs with direct monitoring mix control. Integrate external gear via the S/PDIF connection and USB OTG.

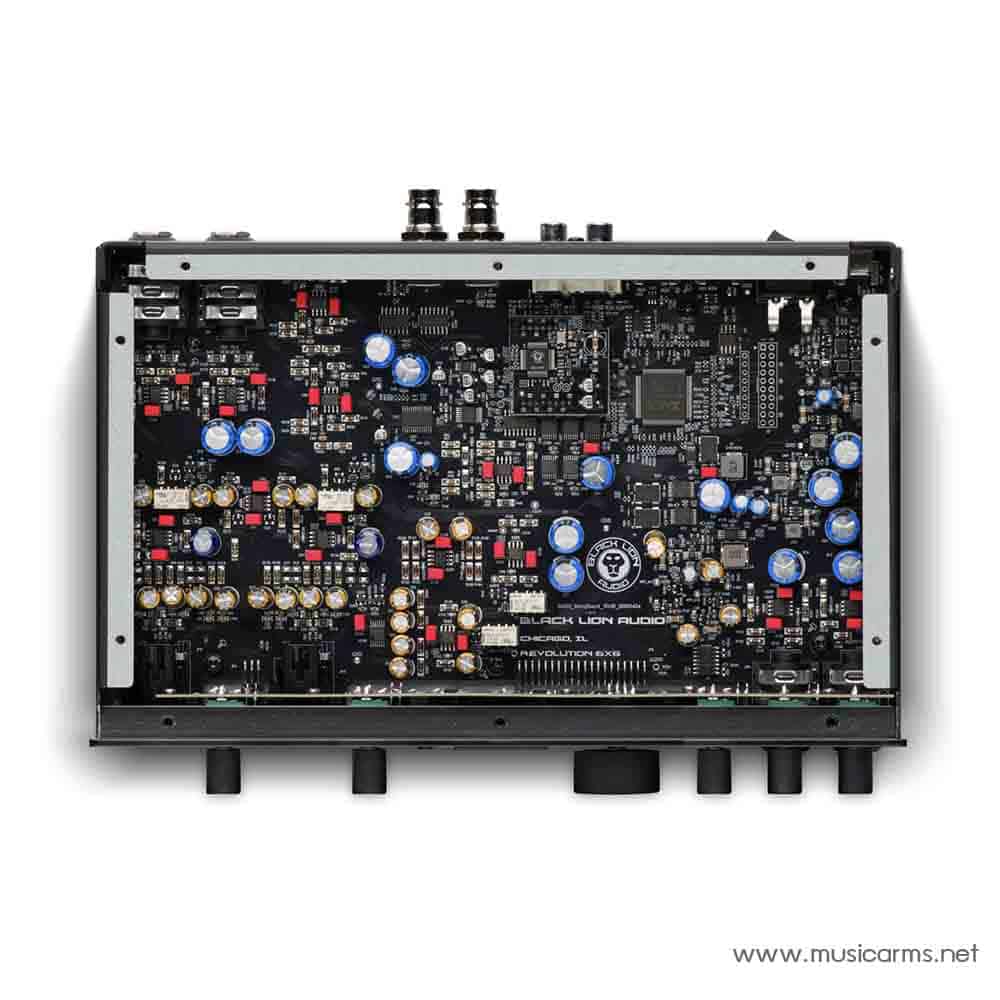

Rarified tech found in Revolution 6×6 includes the Macro-MMC clock for maximum converter quality, yielding reduced jitter and enhanced harmonics for a glossy, airy top-end you won’t hear in lesser interfaces. Proprietary PG-i filtering technology and highly filtered power rails work with full-circuit power decoupling to further reduce noise contamination. And for the best possible capture and playback, Revolution 6×6 sports the most cutting-edge, high-end ICs and Vishay, Nichicon, and Wima capacitors throughout with all internal gain-staging optimized for the best possible signal-to-noise ratio. All analog I/O is also fully decoupled and balanced—right to the very core of the converter.

Standalone Mode for DAC and ADC Use

Not every studio task requires a computer. The Revolution 6×6’s DAC, word clock, and D/A conversion features can all be used without a computer; just press and hold the “Standalone” button. Hook up your media player via S/PDIF and enjoy good old-fashioned hi-fi listening with good new-fashioned hi-fi conversion or add two additional output channels from another audio interface or digital mixer. Many MPCs, synths, and guitar processors also have S/PDIF, which will often deliver better sound than using their onboard converters.

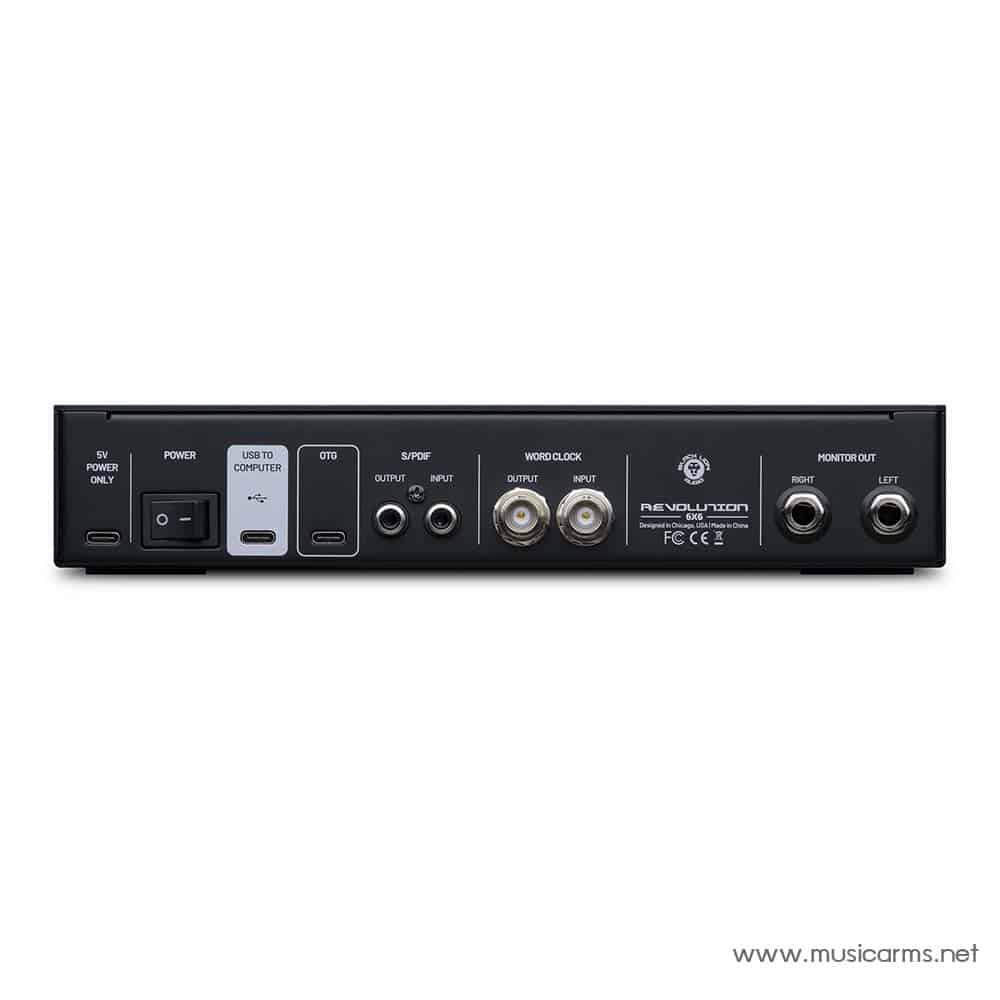

For recording, connect any guitar processor with a S/PDIF output and enjoy high-quality D/A conversion of your custom guitar tones. You can even connect Revolution 6×6 to your computer over USB for hi-fi listening by bypassing the questionable converters in your old laptop. Use S/PDIF to add two channels to an audio interface or digital mixer, all synchronized by the same master clock over BNC.

As a standalone A/D converter, you’ll add two superior channels of Black Lion-converted audio over S/PDIF to your existing recording setup—and you won’t have to buy an ADAT expander.

Go Mobile With USB On-the-Go

USB On-the-Go connectivity gives the Revolution 6×6 2-in, 2-out connectivity with Android and Apple mobile devices. It’s perfect for livestreamers and mobile musicians who record to or stream from phones and tablets. Connect two USB devices to the Revolution 6×6 simultaneously and send audio to and from either. Sample from your phone to your laptop or livestream an iPad performance from your phone, the possibilities are endless.

Shocking Clocking

The Macro-MMC (Master Music Clock) in Revolution 6×6 was developed from Black Lion’s experience creating dedicated word clocks, as well as modifying many embedded clocks found in other recording interfaces. Macro-MMC ensures the best possible performance from its converters, but also allows you to connect external gear via the BNC connections for maximum sync and ultra-low jitter—meaning any devices synced via Macro-MMC are communicating as accurately as possible to minimize the phase distortions that can muddy your high-end and dull your transients. If you’ve already invested in a clock you like, that’s okay—the Revolution 6×6 graciously accepts clock in.

All the Software Tools You Need

The Revolution Software Suite covers all your software needs so you can start creating from day one. You’ll record straight into the award-winning Studio One Artist, and Black Lion has also included select plugins from Izotope, Psychic Modulation, Brainworx, and Lindell:

• PreSonus Studio One Artist: Recording and music production DAW
• Izotope Elements Suite: Nectar, Neutron, Ozone and RX for tone-shaping, mastering, and repair
• Psychic Modulation EchoMelt3: BPM-based modulation and echo
• BrainWorx bx_digital: Mid/side EQ with filter and de-ess options
• Lindell 6X500: Colorful preamp model with two-band EQ

Mic Input

Input Impedance = 2KΩ (balanced)
Gain Range = 59dB
Frequency Response = 20Hz – 20KHz +/- 0.25dB
THD + N = .01% (Min Gain)
Dynamic Range = 112dB (A-Weighted)
Crosstalk = < 100dB

Line Input

Input Impedance = 15KΩ (balanced)
Maximum Input = 21dBu
Gain Range = 59dB
Frequency Response = 20Hz – 20KHz +/- 0.25dB
THD + N = .01% (Min Gain)
Dynamic Range = 112dB (A-Weighted)
Crosstalk = < 100dB

Line Outputs

Output Impedance = 47Ω (balanced)
Max Output Level = 12dBu
Frequency Response = 20Hz – 20KHz +/- 0.25dB
THD+N = .005% (@ +10dBu)
Dynamic Range = 106dB

Instrument Input

Input Impedance = 1MΩ (unbalanced)
Gain Range = 59dB
Frequency Response = 20Hz – 20KHz +/- 0.25dB
THD + N = .02% (Min Gain)
Dynamic Range = 103dB (A-Weighted)
Crosstalk = < 100dB

Headphone Outputs

Output Impedance = 10Ω
Maximum Signal Output = 9.3dBu
Frequency Response = 20Hz – 20KHz +/- 0.5dB

Download Manual – English

รายละเอียด Black Lion Revolution 6×6

อินพุตไมโครโฟน

• Input Impedance = 2KΩ (สมดุล)
• ช่วง Gain= 59dB
• การตอบสนองความถี่ = 20Hz – 20KHz +/- 0.25dB
• THD + N = .01%  (Gain ขั้นต่ำ)
• ช่วงไดนามิก = 112dB (A-Weighted)
• Crosstalk = < 100dB

อินพุต Line

• Input Impedance = 15KΩ (สมดุล)
• อินพุตสูงสุด = 21dBu
• ช่วง Gain = 59dB
• การตอบสนองความถี่ = 20Hz – 20KHz +/- 0.25dB
• THD + N = .01% (Gain ขั้นต่ำ)
• ช่วงไดนามิก = 112dB (A-Weighted)
• Crosstalk = < 100dB

เอาต์พุต Line

• Output Impedance = 47Ω (balanced)
• ระดับเอาต์พุตสูงสุด = 12dBu
• การตอบสนองความถี่ = 20Hz – 20KHz +/- 0.25dB
• THD+N = .005% (@ +10dBu)
• ช่วงไดนามิก = 106dB

อินพุตเครื่องดนตรี

• Input Impedance = 1MΩ (unbalanced)
• ช่วง Gain = 59dB
• การตอบสนองความถี่ = 20Hz – 20KHz +/- 0.25dB
• THD + N = .02% (Gain ขั้นต่ำ)
• ช่วงไดนามิก = 103dB (A-Weighted)
• Crosstalk = < 100dB

เอาต์พุตหูฟัง

• Output Impedance = 10Ω
• สัญญาณเอาท์พุตสูงสุด = 9.3dBu
• การตอบสนองความถี่ = 20Hz – 20KHz +/- 0.5dB
