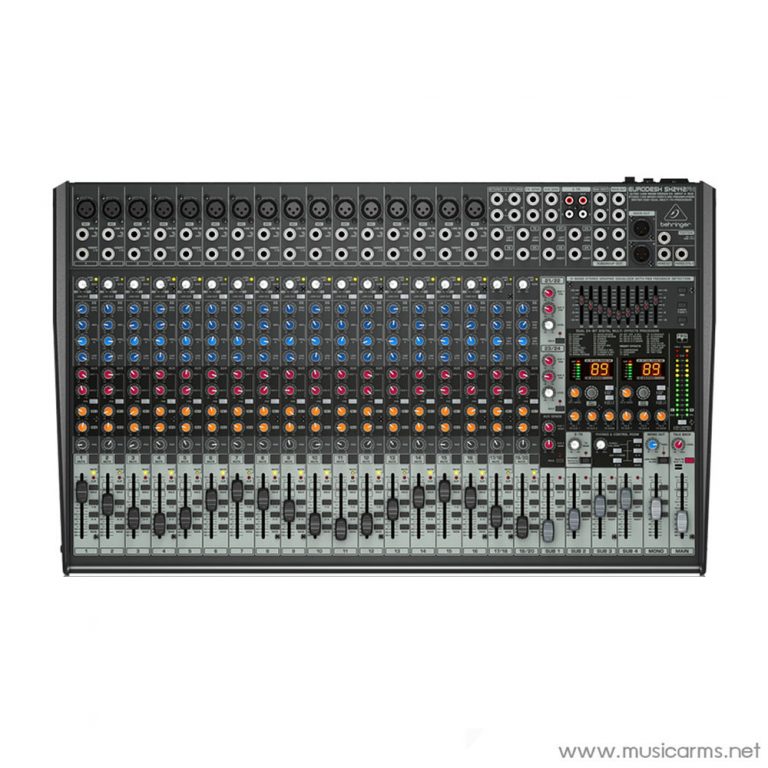

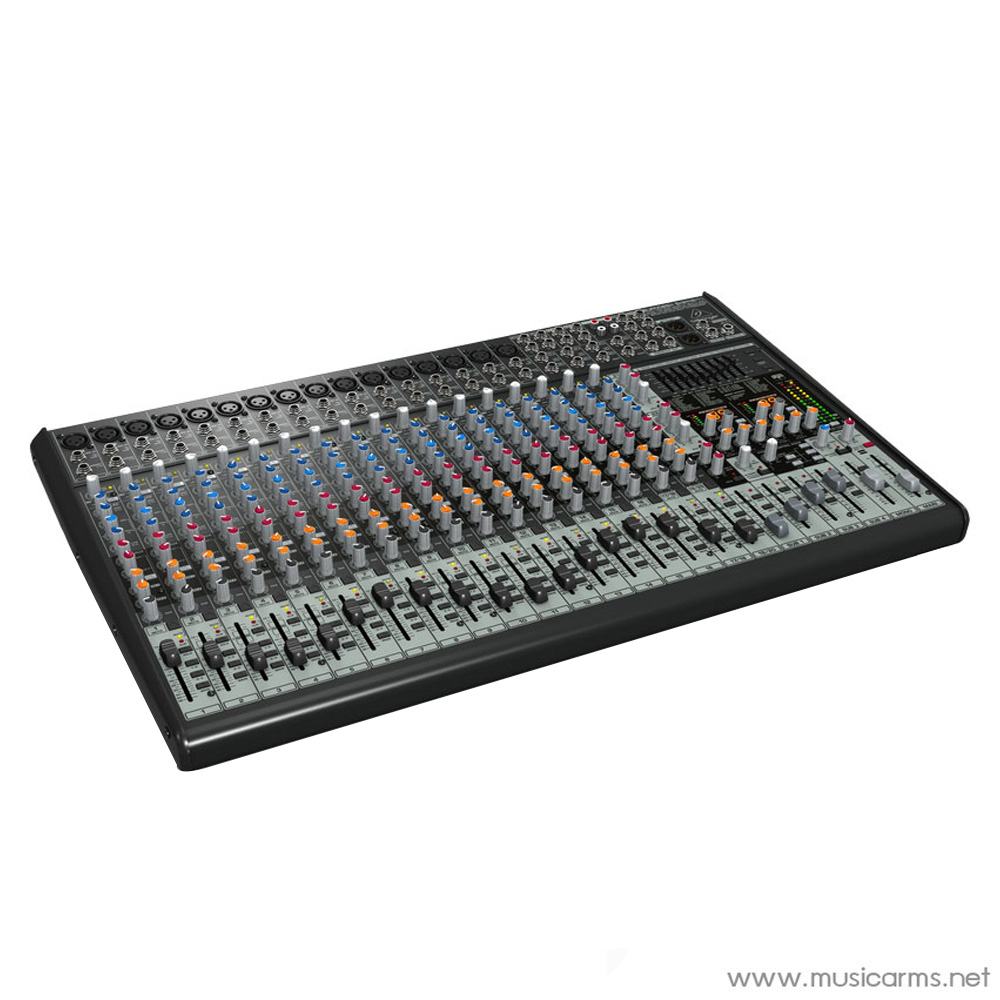

พาวเวอร์มิกเซอร์ Behringer รุ่น Eurodesk SX-2442 FX

SX2442FX

If you want classic analog handling but cant skimp on superior digital effects and studio-grade mic preamps, the SX2442FX is your new best friend. This mixers 6 mic inputs, 8 stereo inputs and 4 buses give you enough leeway to handle anything from a graduation speech to a small orchestra.

CLASSIC CONTROL, STATE-OF-THE-ART SOUND

Each of the SX2442FXs 6 mic inputs connects to our world-famous, studio-grade XENYX mic preamps. They are legendary for their high headroom, warm natural timbre and utter lack of background noise. Plug in a large-diaphragm condenser mic and track a vocal to hear XENYXs rich detail and spaciousness. Plug in a dynamic mic and stick it inside a bass drum to appreciate the whopping headroom.

Some manufacturers make what they call 24-input mixers that count stuff like CD/TAPE IN as an input. But the SX2442FX really gives you sixteen honest mono channels plus eight stereo channels, making it easy to accommodate a variety of studio or live performance configurations. You can connect up to 6 microphones or other mono instruments and up to four stereo instruments (keyboards or tone modules, for example).
You can combine these input in four different sub-mixes (we call them buses). That allows you to blend multiple channelssay all the mics on a drum kit or all the backup singers micsto a single fader, which is easier to adjust for the overall mix that goes to the PA speakers. You can also use one or more of the sub-mix buses to create custom monitor mixes for picky members of your band (More me! More me!).

YOU MAY EXPERIENCE SIDE-FX

Whether you need to add a dab of reverb or delay to a live vocalists mic or warp a hard days studio session into psychedelic quicksand, the SX2442FX has you covered. We gave this mixer two independent studiograde 24-bit stereo FX processors with 99 awesome presets to provide the perfect sonic garnish. Sure theyre great for live sound, but I have a lot of cool plug-ins for recording, we can hear some of you saying. Truth be told, you never have too many effects. And when you hear the quality of the SX2442FXs FX, you may want to give your overworked CPU a rest.

Naturally we gave you a whole palette of creative effects like reverb, chorus, flanger, delay and pitch shifter tones, as well as mind-bending multi-effects to take your sound out of this world. But you also get problem solving workhorses like compression and gating plus final effects such as Ultramizer, Ultrabass and Exciter that can put a PA or studio mix over the top. And because there are two processors, you can cue two separate effects, then apply one or both to channels through 20 compression for the vocalist, reverb for the vocalist and snare drum, for example.

WHAT THE HECK IS BRITISH EQ

A good thing to have on your side when you start reaching for those channel equalization knobs. At a live concert or in the studio.
Think of it as kinder, gentler, more musical EQ like the type found on classic British consoles from the 60s and 70s. Single malt scotch instead of Everclear. Home-baked cherry cobbler instead of an artificial cherry lollypop. British EQs distinct configuration of wider curves/lower Q and harmonic phase characteristics allows you to add or subtract EQ more generously than you can with conventional EQ circuit designs. When you add low midrange, you get a firmer sound instead of a nasty bonk. When you back high frequencies off a bit, treble backs off just a hair instead of turning muffled.
All SX2442FX mono channels have low and high shelving plus a sweepable midrange you can move anywhere from 00Hz to 8kHz. Think of it as your roving English troubleshooter.

MAKE FEEDBACK LEAVE SO YOUR AUDIENCE DOESN’T

When it comes to suppressing feedback, the SX2442FX is like having a bloodhound trained to spot trouble frequencies a mile away.
The 9-band graphic EQ (which you can choose to apply to your main mix or monitor mix via the MAIN/AUX button) features the FBQ Feedback Detection system. It makes finding and adjusting critical frequencies a snap. Just push FBQ IN, then watch as LEDs on the individual EQ sliders light up, indicating which frequency bands are causing feedback. Simply adjust until the LED goes dim.

A ZILLION WAYS TO CHANGE THE CHANNEL

At the top of each mono channel, youll find both a balanced XLR input with a XENYX mic preamp and a /4″ input. A phantom power switch located on the back near the main power switch accommodates condenser mics.
Next comes is an insert for connecting up individual signal processors or feeding a remote broadcast feed or multitrack recorder directly.
Trim control and level set LED let you adjust the channels input level for maximum headroom and minimum noise the huge range of this control can handle anything from a very timid vocalist to a close-miked guitar amp stack.
Each mono channel features a 3-band EQ with semi-parametric mids (giving you control of the Mid level and a sweepable frequency with a boost or cut of 5dB) and a Trim control for adjusting input gain via a Level Set LED. A Low Cut button eliminates the frequencies where unwanted infrasonics such as mic handling, P-pops or wind noise occur.
FX and FX2 dials add a blend of up to two effects, and AUX and AUX2 dials help create your monitor mix. Press the PRE button to send a raw, EQ-free signal to the monitors.
Near every mono channels fader youll find a -2, 3-4 and MAIN button. By engaging the MAIN button, the signal is sent to the main mix. Or, if you engage the -2 button, the channel becomes part of a bus. Twist the PAN control all the way to the left to assign it to Sub , or all the way to the right for Sub 2. The same principle applies to the 3-4 button.
A Mute button with accompanying LED cuts the signal from the channel, and a Clip LED helps you dial in a distortion-free post-EQ signal. The Solo button on individual channels routes the subgroup signal to the solo bus or Pre-Fader Listendepending on whether the signal has been included in a subgroup.
Instead of XLR inputs, stereo channels 7-24 have left and right balanced/unbalanced line level inputs. Channels 7-20 feature the same controls as the mono channels, but with a four-band EQ that gives you control of HIGH, HIGH MID, LOW MID and LOW. This is especially useful for EQing the critical midrange frequency content found in keyboard signals. Stereo channels 2 through 24, designed for signals that do not require EQ, have a simplified interface consisting of a Level, AUX and AUX2 dial. Can you say laptop backing track feeds, drum machines, tone modules, DJ mixers or CD players
Finally, all four sub-mix buses feature an independent fader (naturally), Solo switch with bright LED, and assign buttons for routing them to Left or Right stereo channels.

PACKED WITH TASTY DETAILS THAT MAKE YOUR CREATIVE LIFE EASIER.

We solved the problem of what to do when you want to play music during breaks but dont want to have to mute every channel or turn down every fader. Just push CD/Tape STANDBY button to A) mute all mixer channels and B) solo just your CD/Tape source.
We didnt just give you a MONO output for subwoofers. We gave it a built-in variable low pass crossover, saving you money on outboard gear.
We added a footswitch jack that you can use to control either internal or external effects.
We gave you a complete Phones and Control Room assignment matrix so you can send mains, buses, CD/Tape or auxes out at the touch of a button.
We added a routing button to Talkback so you can talk directly to either a monitor mix or the house mix for public announcements.
We made the 9-band equalizer assignable to either AUX or the main mix.

TAKE ON THE WORLD

Not every town on the planet uses the same voltage common in yours. Unfortunately, this sometimes doesnt occur to jet-setting sound technicians until theyre 5,000 miles from home. With the SX2442FX, this is never an issue. The internal autorange power supply can run on anything from 00 to 240 V with noise-free audio, top-quality transient response and low power consumption.

BUY IT NOW. TEACH YOUR GREAT GRANDKIDS HOW TO RUN IT.

BEHRINGER mixers last and last. We use top quality parts such as longwear faders, sealed rotary controls and premium circuit boards. We have 20 years of experience figuring out how to compensate for clumsy load-ins, spilled drinks, crazed guitarists and millions of road miles. The result is a mixer you can count on day after day and night after night.

WHY DO YOU NEED THIS MIXER

Built-in pristine XENYX mic preamps
Dual 24-bit FX processor with 99 presets including reverb, chorus, flanger, delay and pitch shifter tones
British-style EQ dials give you the sound and control preferred by top studio engineers
The built-in FBQ Feedback Detection system instantly reveals critical frequencies and the 9-band stereo graphic EQ allows precise correction of those frequencies in monitor or main mixes
Awesomely complete I/O everything from bus inserts to mono output
